Walk In Cold Room Onion Storage Warehouse

Product Overview

Description

walk in freezer for meat storage



walk in freezer  Product Features



 1. The walk in freezer  panel is durable in use, color lasting & coated layer keeping.
2. It is made with Bayer polyurethane material by high pressure foaming. The cold room panel

density is up to 40kg/m3 or above.
3. The internal cold room floor panel of our cold room is made by 1.0mm galvanized steel

and durable for anti-scratch.
4. The hinged door panel of our coldroom is made by heavy duty door hinge, heavy duty door lock and hydraulic door closer.
5. The connection of our cold room panels are made with PE sealing rubber which is with high

quality sealing.
6. The connection of our cold room is with cam lock construction and excentric fasterners for

tight connection and sealing of the cold room



walk in freezer   Product information



Dimension	Length (m) *Width (m)*Height (m) According to client's requirement .
Panel	polyurethane insulation panel,43kg/m3, fire retardant
Foaming material	BASF

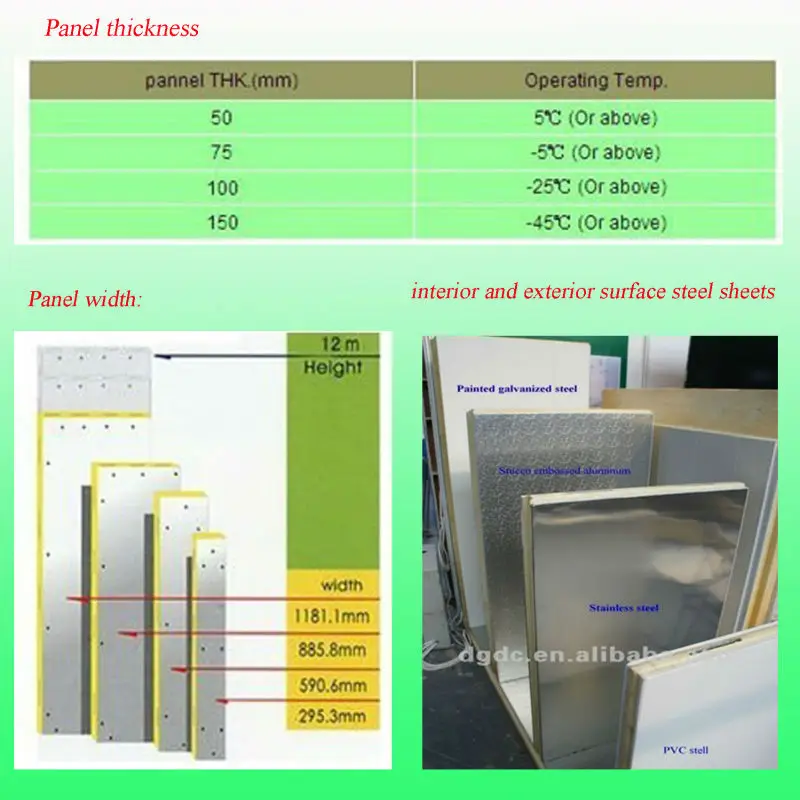

Panel thickness	50mm,75mm,100mm,150mm,200mm
Steel cover	stuccom embossed aluminum,painted galvanized steel,stainless steel,PVC stell
Panel connection	cam lock type, use hexagonal key to assemble and disassemble
Type of door	hinge door, convex door, sliding door
Temp.of room	-45~+20 degree, optional
Purpose of cold room	fruit,vegetable,flower,fresh/frozen meat etc
Refrigeration unit	Copeland / Bitzer / Sanyo etc
Refrigeration type	air cooled / water cooled
Fittings	all necessary fittings are included, optional
Place to assemble	indoor/out door(concrete construction building/steel construction building)
Voltage	220V/50HZ, 220V/60HZ, 380V/50HZ optional

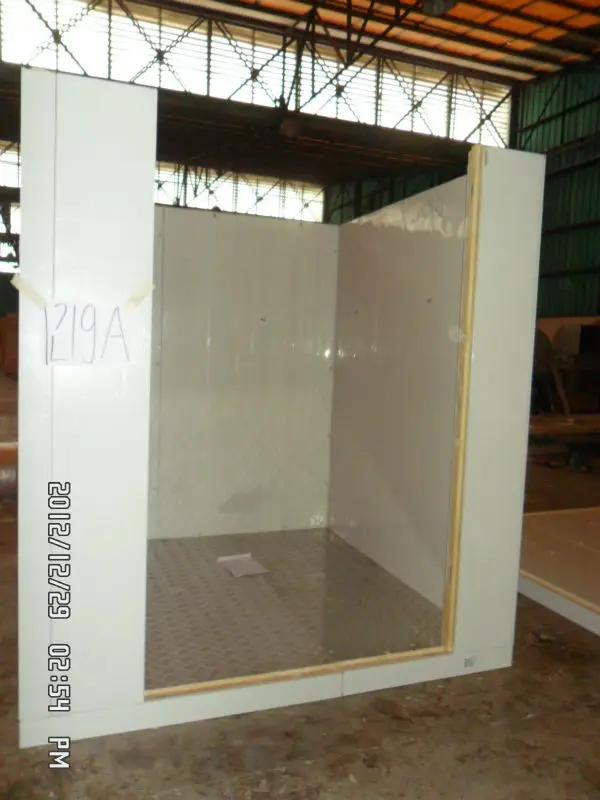

can do the  non-slip floor for the walk in freezer

we are a professional manufacturer,which help our clients to customize the

walk in freezer .Pls answer us the following questions. Tks!



1.Which country the  walk in freezer  located?
2. walk in freezer being installing inside the building or putting outside the house?
3.What is the ambient temperature(°C)
4.External dimension of the  walk in freezer  ?(m)
5.What Kind of products is gonna store in the room?
6.Required temperature inside the  walk in freezer (°C)?
7.How much kilograms of products put in  walk in freezr  per once(kg/once)?
8.Original temperature of products before put into the   walk in freezer (°C)

 9.what kind of door your require? Hinged door,manual/electric sliding door or glass door?

10.Both sides of panels are with steel sheet covered. T

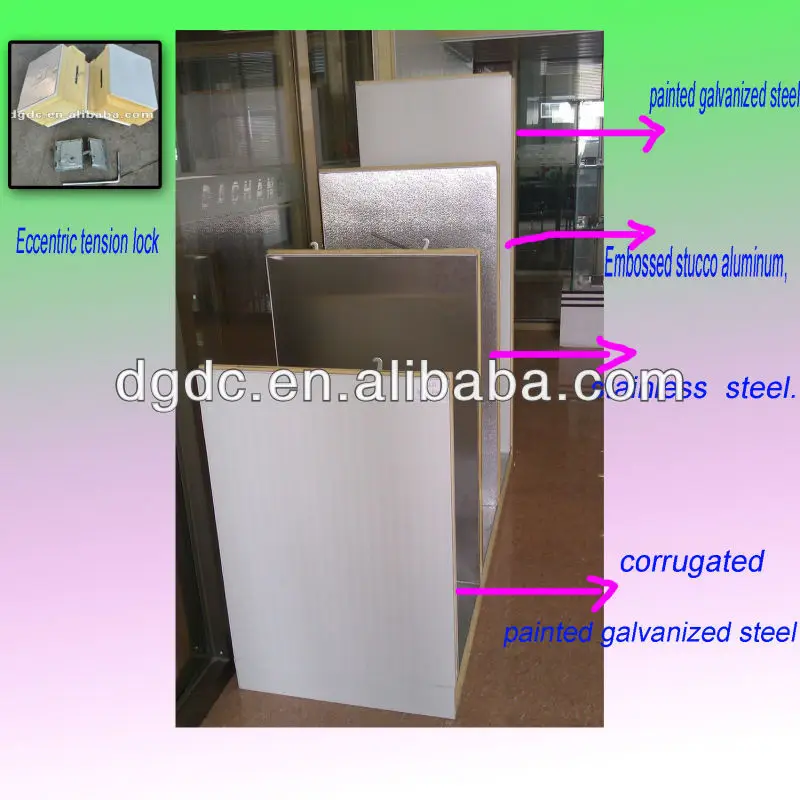

The steel sheet optional: painted galvanized steel,embossed stucco aluminum, stainless  steel.Which do you like ?

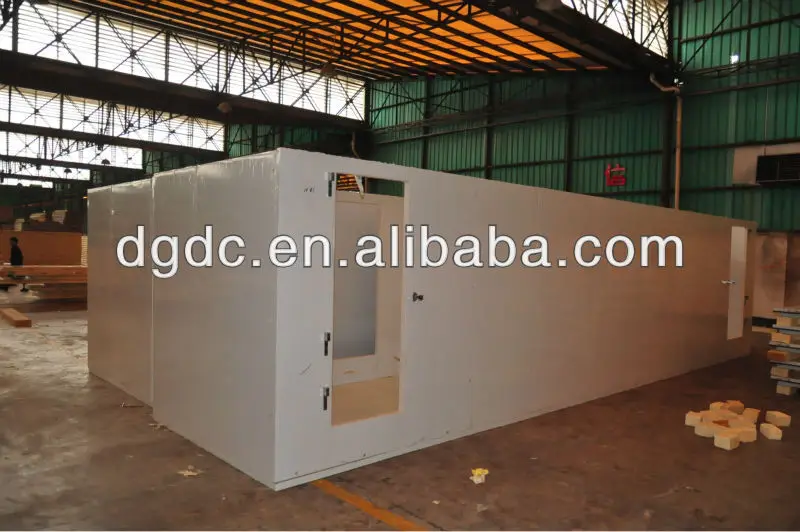

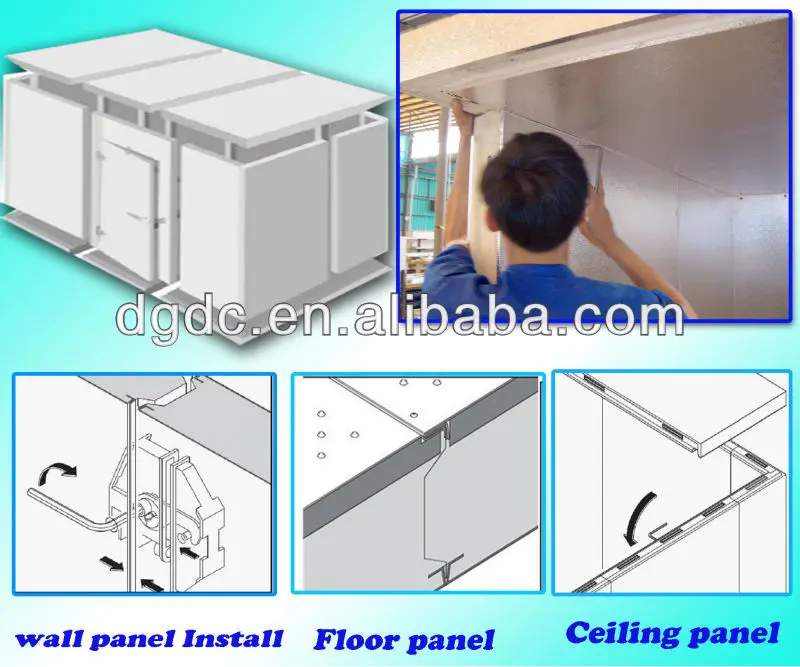

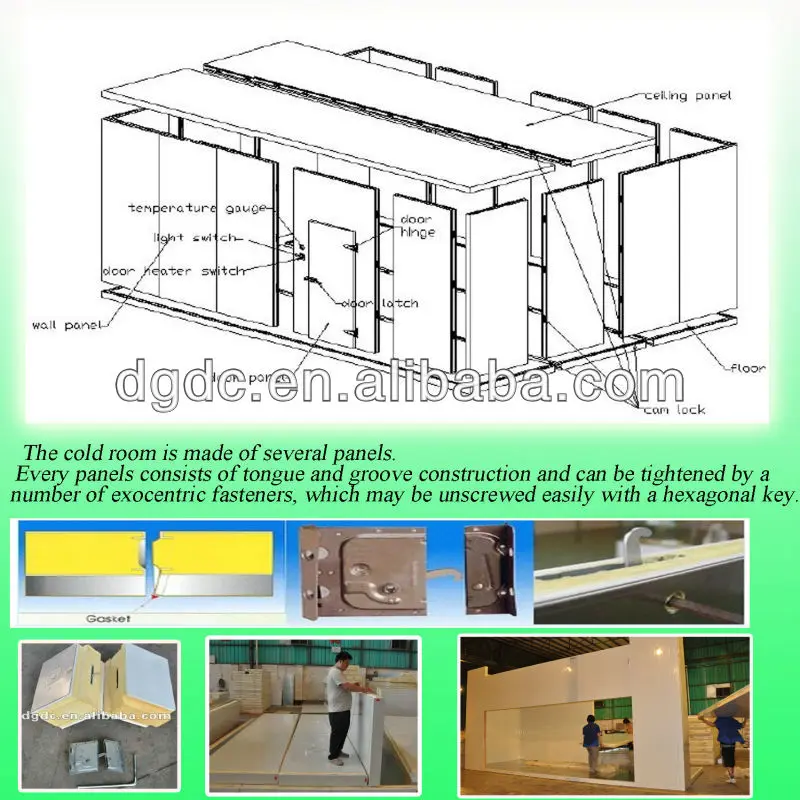

walk in freezer  Structure

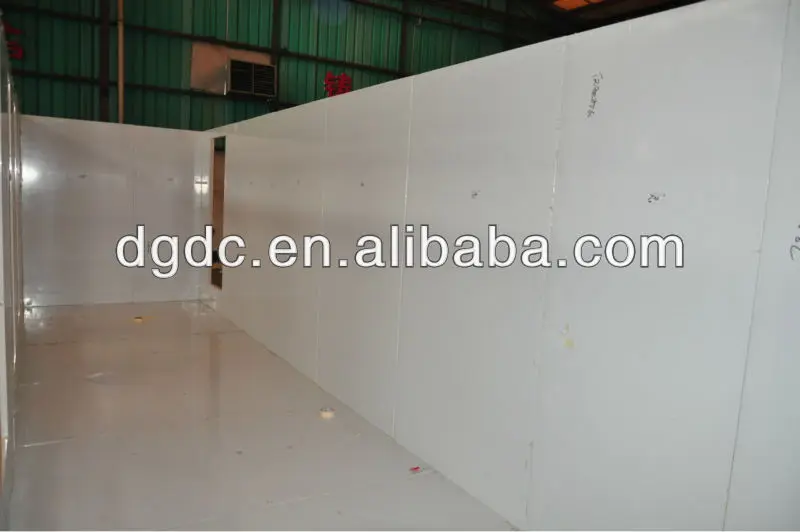

walk in freezer panel

 Every panel is  male (convex) and femal(concave) type,cam locks are pre-burried inside the panels,use a key to lock them together.









our panel advantage

1. Our panel foaming material is Italy Brand BASF . The whole panel average density above 40kg/m3 which enable the panel with better thermal conductivity of  0.021W/(m.k). The national standard is 0.024W/(m.k), which mean our panels will save the energy consumption of 12.5% than national standard.

2.All the panels we produce are with fire retardant, self-extinguish, Fireproofing Grade is B1. It refers to the safety problem.

3.The steel sheet we purchase from Baosteel and POSCO which are the biggest steel factories in the world, they promise the painted galvanized steel they produce will not fade in 15~20 years.

4. Gasket is around the edge of each walk in freezer panel , when panel lock together,the cool air will not leak,and the hot air can not come in .

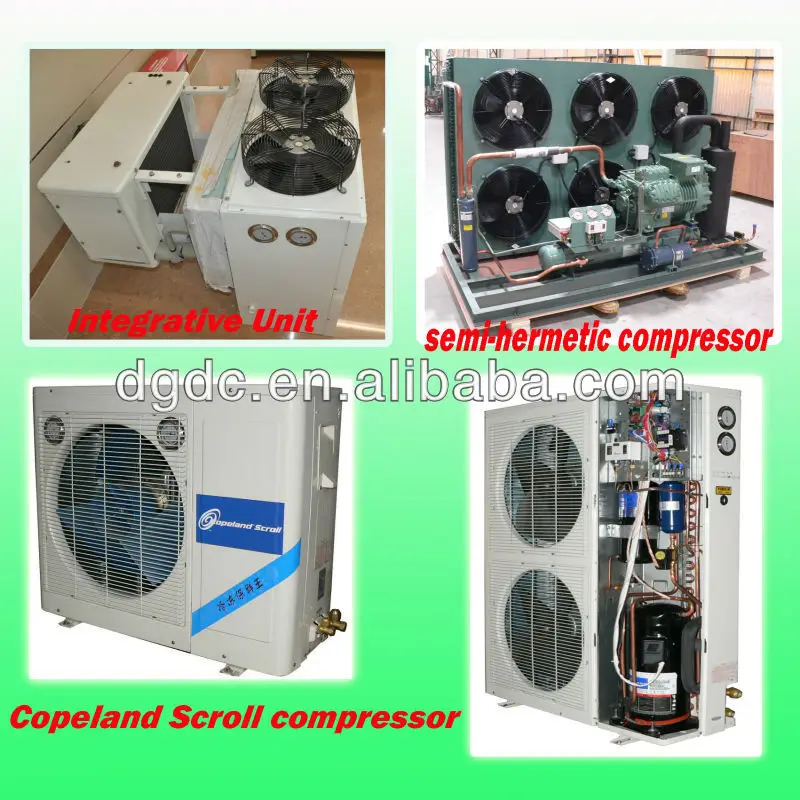

walk in freezer condensing units

Brand:  ZANOTTI / Copeland / Bitzer

•Compliant,accurate,fewer moving parts,the exclusive copeland design guarantee the supper reliability.
•Wide flexibility,Energy saving,Low noise.
•Low vibration,space and weight saving,Energy saving.
•can bu used in more higher ambient temperature.

Fan/cooler for our walk in freezer

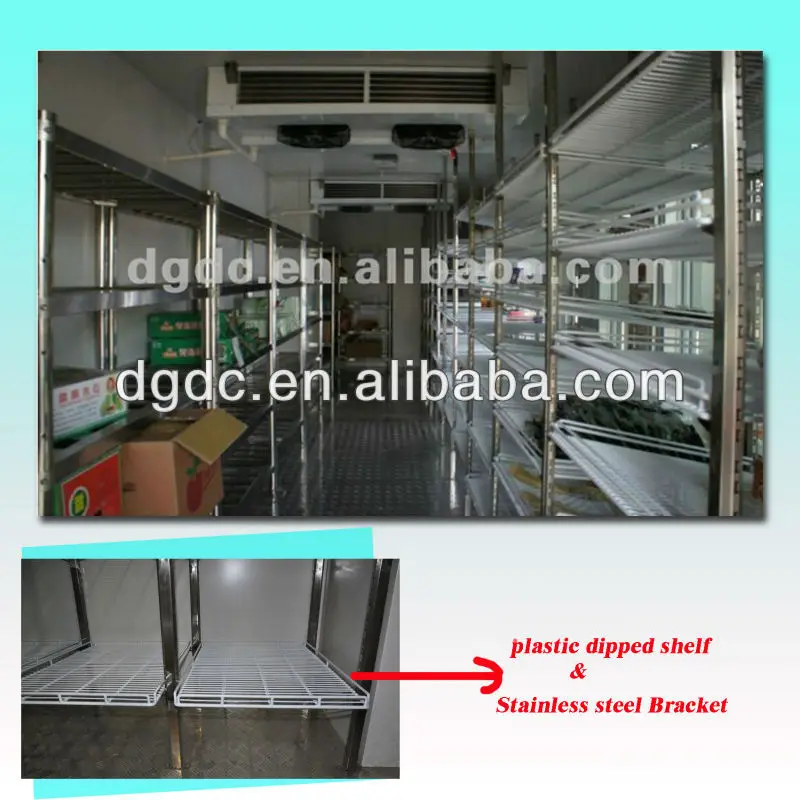

Inner can install the shelf

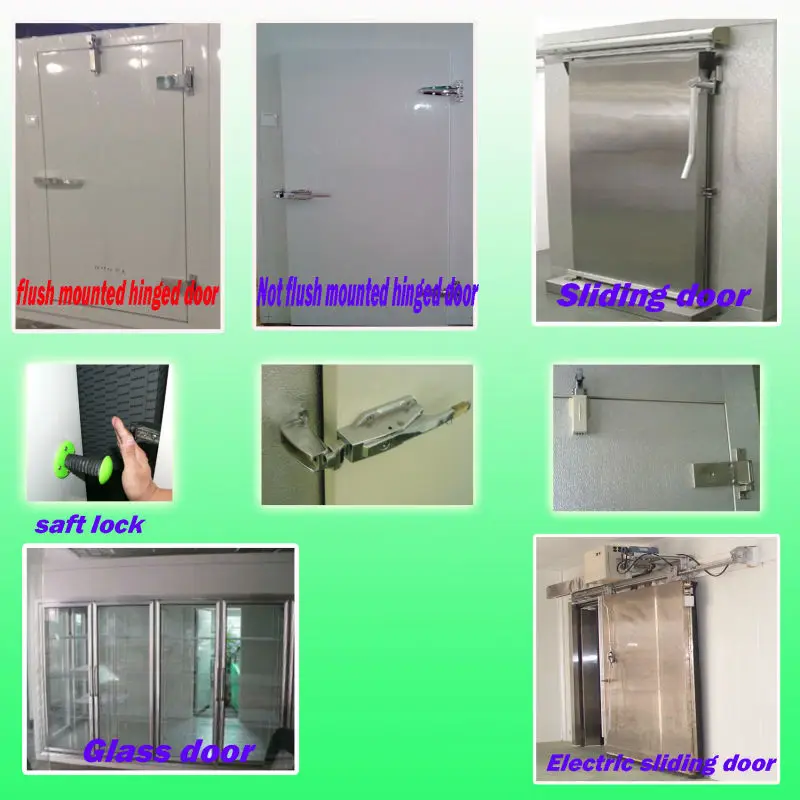

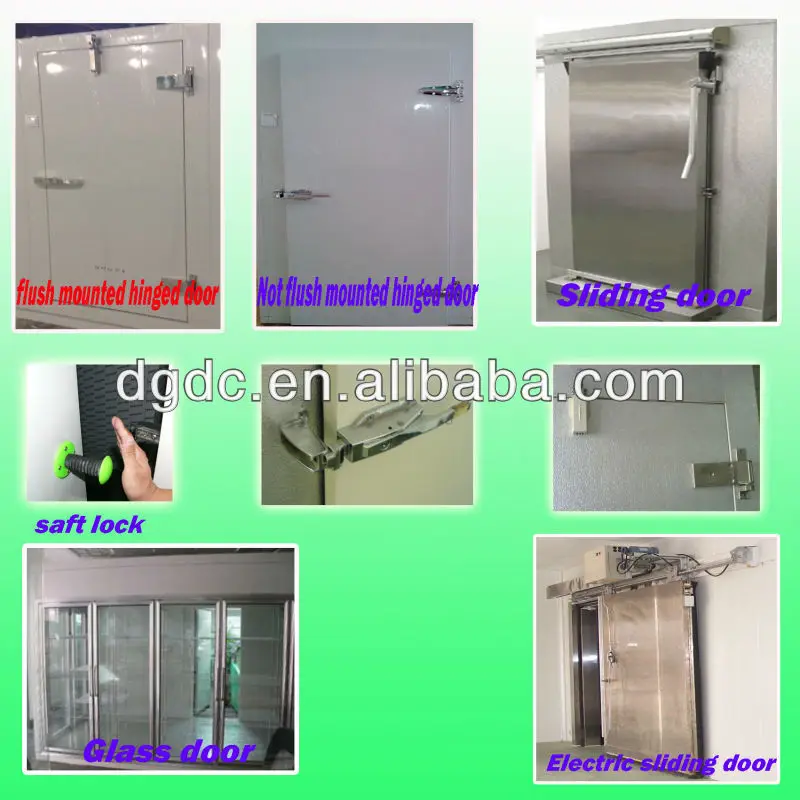

walk in freezer door for your choose



No	Door type	door size	door heater voltage
1	Flush door	800mm W*1900mm H	24V / 36V
2	not flush mounted hinged door	832mm W*1860mm H	24V / 36V
3	sliding door	832mm W*1860mm H	24V / 36V



production line for our walk in freezer

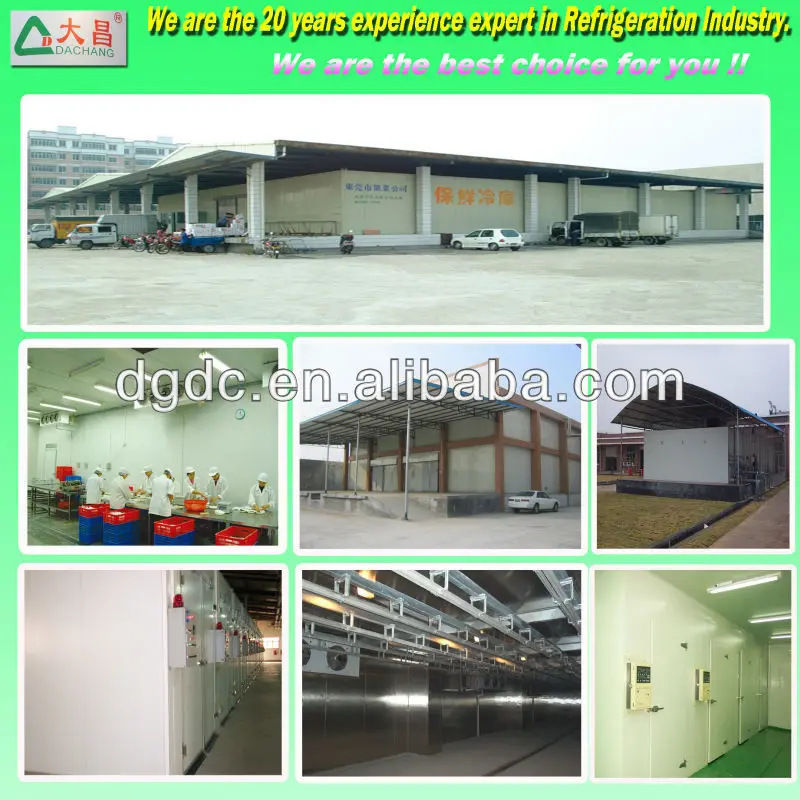

 Some of our  walk in freezer Project :Domestic and Overseas

Take part in the  Exhibition every year
