HDPE Tree Guard Mesh with UV Stabilized
- Category: >>>
- Supplier: Hebei Hengsu Screen Manufacturing Co. Ltd.
Share on (738359026):
Product Overview
Description
Specifications
Material: Recycled HDPE
Photodegradable
Colour: Olive Green
Brown & Black also available

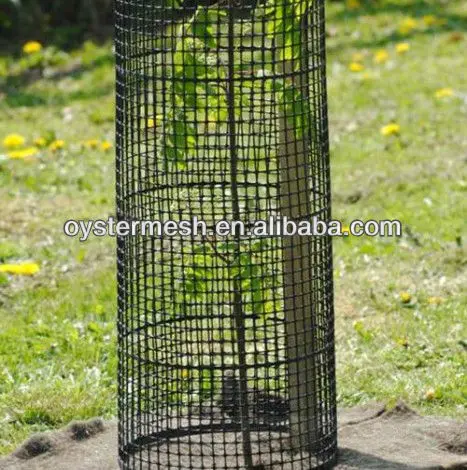

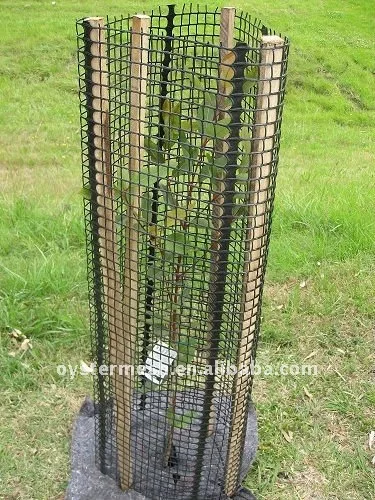

Tree guard is a 12mm square plastic mesh designed for protecting small trees from damage caused by browsing animals. Our Tree guard mesh guards are particularly suitable for the protection of evergreens which often grow too rapidly in an enclosed shelter (Like traditional tubes shelters), becoming top heavy and unstable. Tree guards allow the tree to grow in its natural climate without inhibiting sunlight or rainfall. Our Tree guard is identical to our Shelter guard™ but without the polyethylene lining.
Our Tree guard range is available in pre-formed nested tubes in diameters suitable for trees and shrubs. The mesh tree guard can also be supplied on full rolls or in cut pieces as required. We nest products to enable shipping costs to be reduced and ultimately product costs.
Our Tree guard for trees range consists of four welded tubes nested inside of each other (diameter range of 80-110mm). We fit all pre-formed tree guards with ties as standard.
We supply all our tree guards for trees range with an injection molded pre-fitted top lipping which helps prevent stem abrasion whilst strengthening the tree guard tube.
The tree guard mesh / netting and top lipping will photodegrade and split as the stem of the growing tree expands to fill the tube.
| Spec Item | TGSG15-15 | TGSG20-20 | TGSG25-25 | TGSG30-30 | TGSG35-35 | TGSG40-40 | TGSG45-45 |
| Vertical tensile yield per linear meter ≥ (KN/m) | 15 | 20 | 25 | 30 | 35 | 40 | 45 |
| Horizontal tensile yield per linear meter ≥ (KN/m) | 15 | 20 | 25 | 30 | 35 | 40 | 45 |
| Vertical tensile stretch ≤ (%) | 13 | ||||||
| Horizontatensile stretch ≤ (%) | 16 | ||||||
| Vertical drawing force in 2% tensile stretch ≥ (KN/m) | 5 | 8 | 11 | 13 | 16 | ||
| Horizontal drawing force in 2% tensile stretch ≥ (KN/m) | 7 | 10 | 13 | 15 | 20 | ||
| Vertical drawing force in 5% tensile stretch ≥ (KN/m) | 8 | 10 | 15 | 16 | 25 | ||
| Horizontal drawing force in 5% tensile stretch ≥ (KN/m) | 10 | 13 | 15 | 20 | 22 | ||
| Remark | Please contact us for details and relative data. Particular specifications can bu customized. | ||||||
Technical Specifications
| Color | Roll size | Mesh aperture | Diameter of Guard | Weight/m2 | Material |
| Black | 450mm x 5m | 37mm x 23mm | 140 mm | 533 | HDPE |
| Black | 600mm x 50m | 13mm x 13mm | Variable | 366 | HDPE |
| Green | 600mm x 50m | 13mm x 13mm | Variable | 366 | HDPE |
| Black | 1000mm x 50m | 45mm x 25mm | Variable | 500 | HDPE |
| Black | 1200mm x 50m | 13mm x 13mm | Variable | 366 | HDPE |
| Green | 1200mm x 50m | 13mm x 13mm | Variable | 366 | HDPE |
| Black | 120mm x 100m | 2mm x 2mm | 120mm | 110 | HDPE |
