plastic material industrial dehumidifier

Product Overview

Description

1.Application

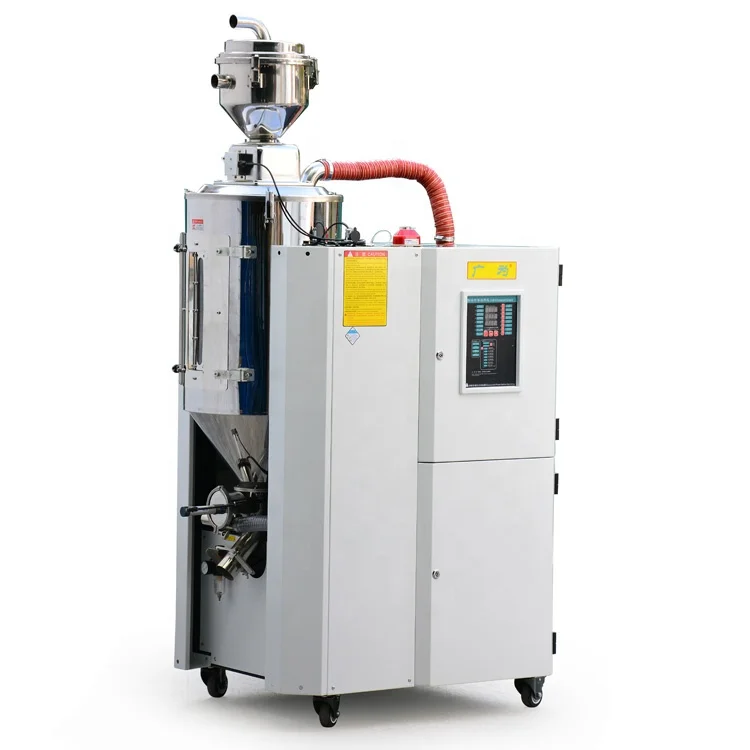

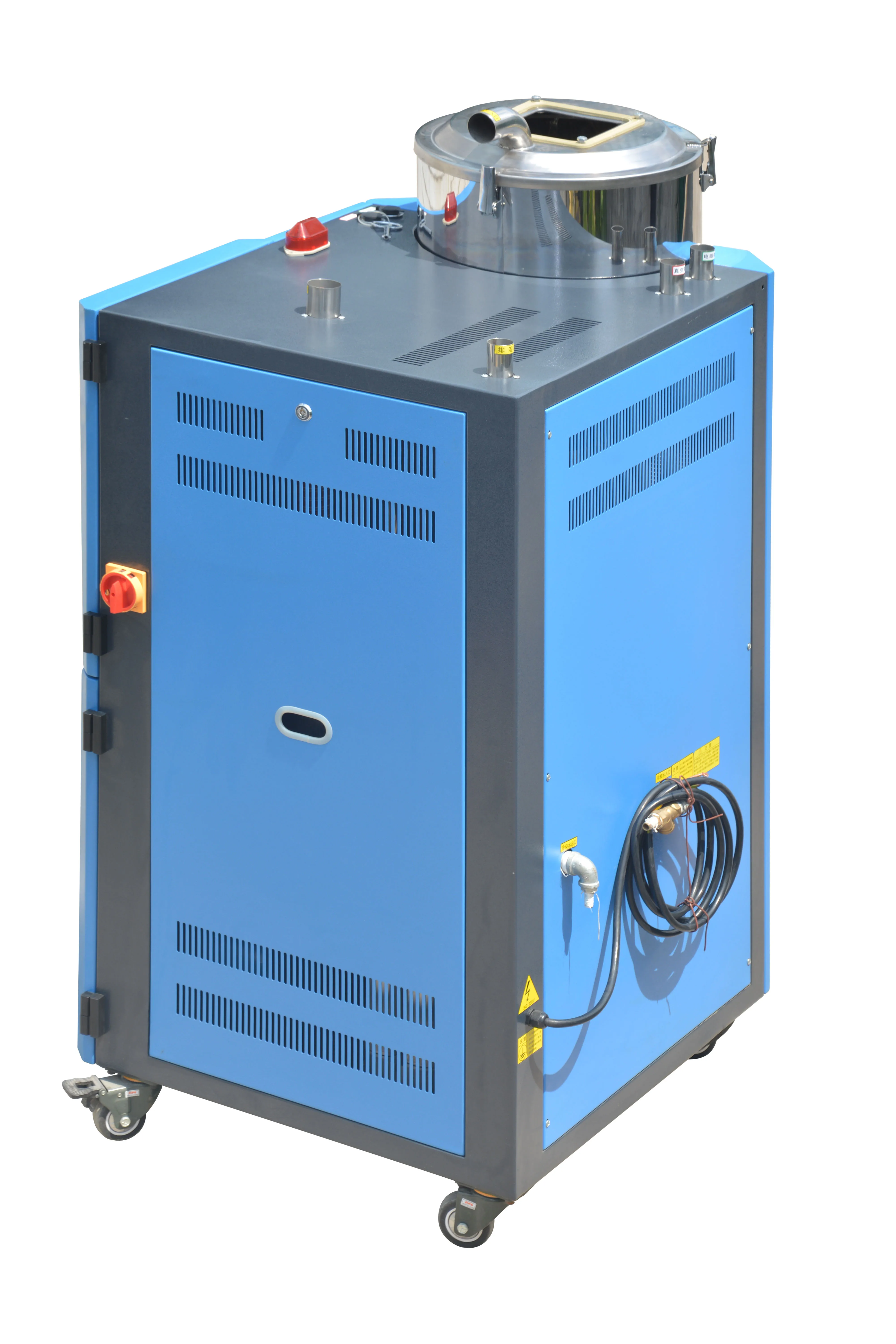

GD-H series honeycomb dehumidifiers are mainly used to dry hygroscopic engineering plastics. A honeycomb-rotor is used to offer effective drying, which under ideal conditions, can supply dehumidified dry air with a dew-point lower than -40°C.This series comprises 15 models of honeycomb dehumidifiers, the largest of which can provide dry air up to a quantity of3,000 m3/hr.



2.Features

 Standard configuration:
1)  Adopts P.I.D. temperature controller to accurately control regenerative temperature.
2) The dehumidifying system of the GD-H series features two coolers to ensure a low return air     temperature and low dew-point.
3) Return air filter is mounted inside to ensure no contamination to the honeycomb.
4) Adopt silica gel assorption honeycomb, with low regenerative temperature of 150°C, which can save more energy compared with molecular sieve structure with regenerative temperature of 200°C above.
Accessory option:

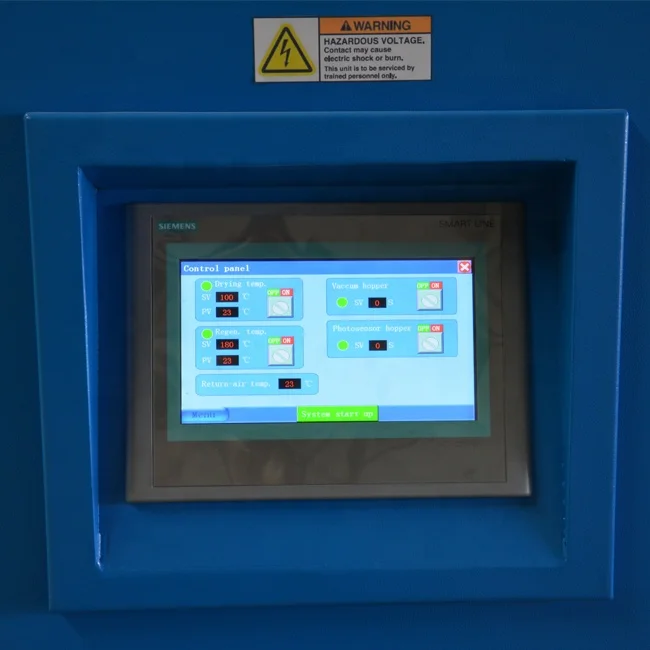

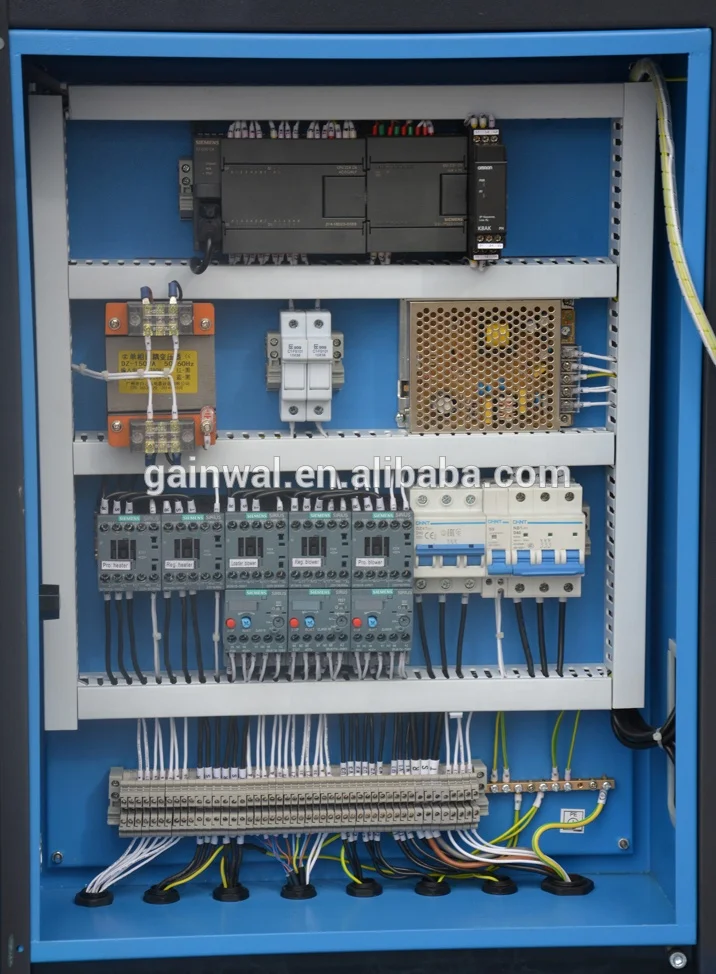

1) Centralized automatic control can be realized by optionally selected PLC touch screen controller.
2) Optionally select dew-point monitor to realize dew-point real-time monitoring.
3) Optionally select drying heater and its temp. controller to work with drying hopper for material  dehumidifying and drying.
4) Optional heat-resistant air pipe, cyclone dust separator with floor stand, oil filter are available.
5) Molecular sieve honeycomb rotor is optional to reach -50°C dew-point



3.Specifications

Model     GD-	30	60	90	120	150	200	300	400	500	800	1000	1500	2000
Regen.Heater  (kw)	2.0	2.4	2.4	2.4	2.4	3.6	3.6	6	6	9	12	18	24
Regen.Blower        (kw )	0.12	0.12	0.12	0.18	0.18	0.37	0.37	0.75	0.75	1.1	1.5	2.2	2.2
Process Blower   (kw )	0.25	0.37	0.75	1.1	1.5	2.2	3.8	5.5	7.5	7.5	11.0	15.0	22.0
Process.Heater (kw)	3	3.9	6	6	12	12	15	18.0	21.0	24.0	32.0	58.0	80.0
Dry Air Capacity (m3/hr )	30	60	90	120	150	200	300	400	500	800	1000	1500	2000
Pipe Dia. (inch)	1.5"	2"	2"	2"	2.5"	2.5"	3"	3"	4"	4"	5"	6"	8"



4.Working Principle

The moisture contained in the air which is waited for treating) will be absorbed by hygroscopic
materials, hereafter, be de-absorbed by the regenerated hot air. And the two airstream work
together in the rotation wheel. So, with the rotation of the wheel, moisture will be absorbed and
de-absorbed continuously, and drain out via de-absorbing by regenerated air to form a steady
low dew point airstream for using.

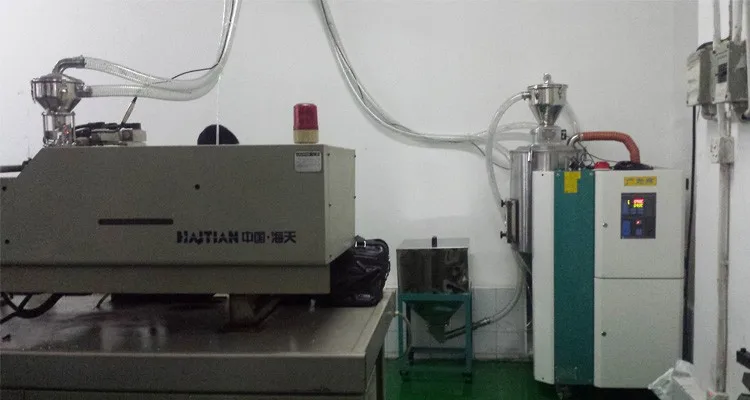

5. Installation Diagram
