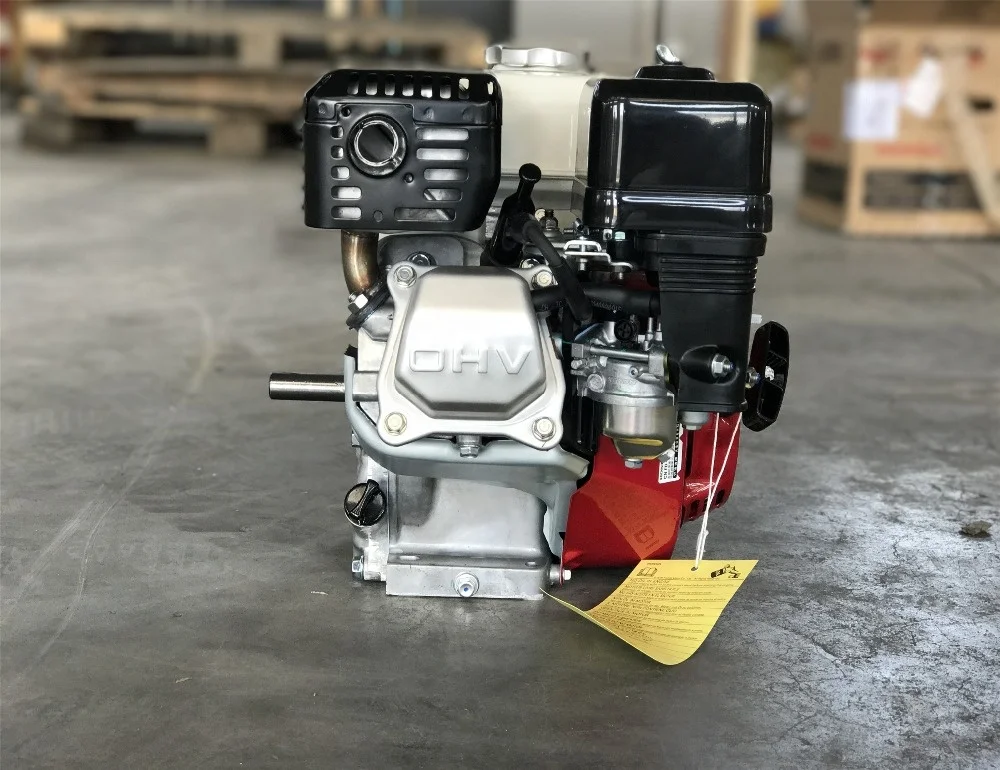

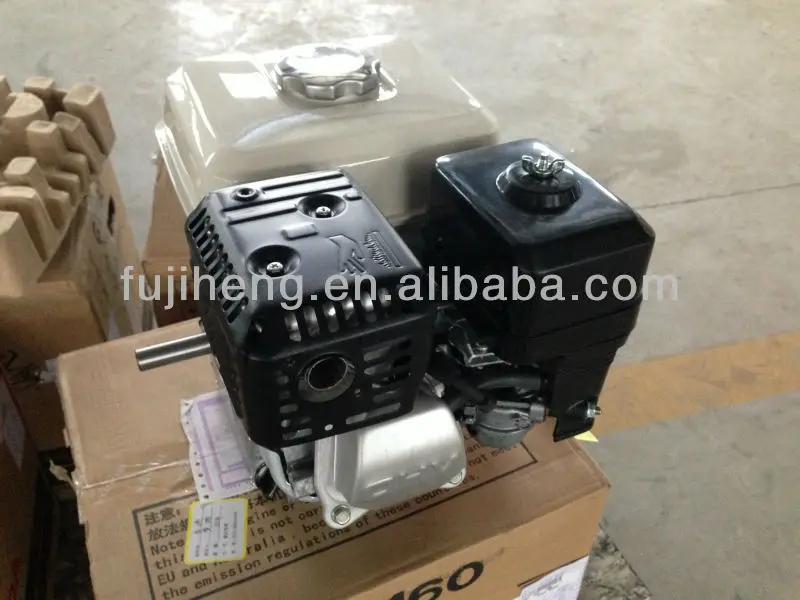

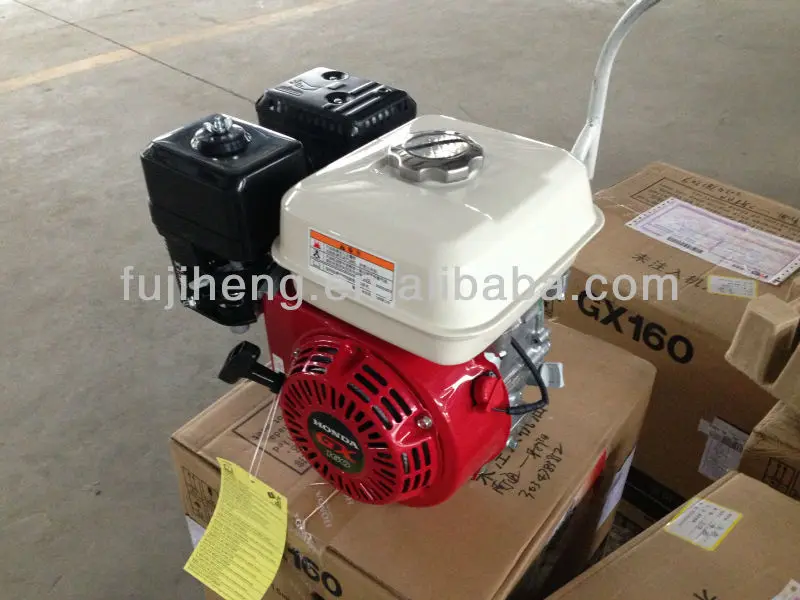

5.5hp Japanese gasoline engine GX160

Honda gasoline engine

Model

GX120

GX168

GX200

Type

4-stroke, 25 inclined,single cylinder, with Air-cooled

Bore*stroke(mm)

60*42

68*45

68*54

Displacement(ml)

118

163

196

Compression ratio

8.5:1

Max.torque(N.m/rpm)

7.4/2500

10.8/2500

13/2500

Max output (HP/rpm)

4.0/3600

5.5/3600

6.5/3600

Ignition system

T.C.L.

Fuel

 Unleaded gasoline

Fuel consumption(g/HP-Hour)

270

Fuel tank capacity(L)

2.5

3.6

3.6

Lubricationg oil capacity(L)

0.6

0.6

0.6

Air cleaner

Semi-dry,oil bath, gual, double silent and cyclone type

Start system

Recoil starter/Electric start

Packing size(L*W*H)mm

387*330*360

20/40FT unit

575/1254

Net weight(KG)

13

15

16
