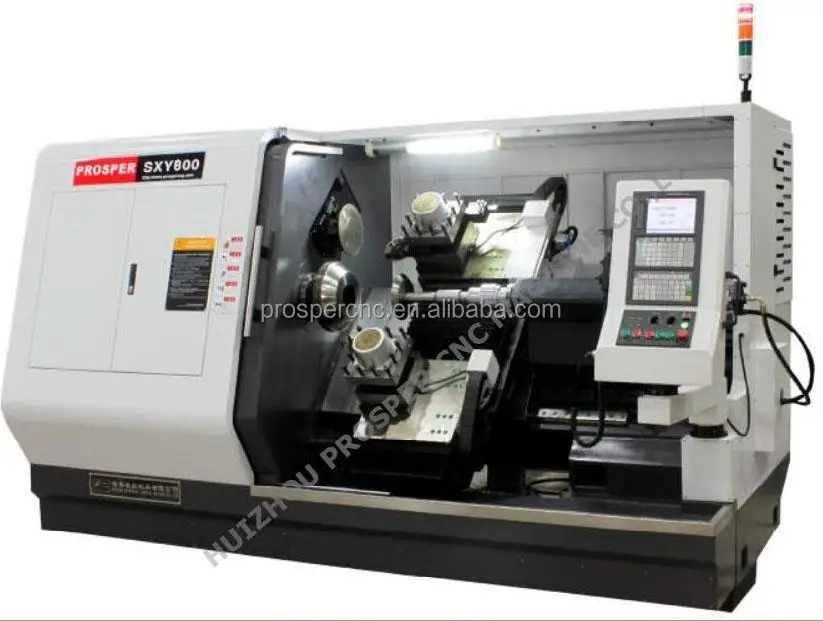

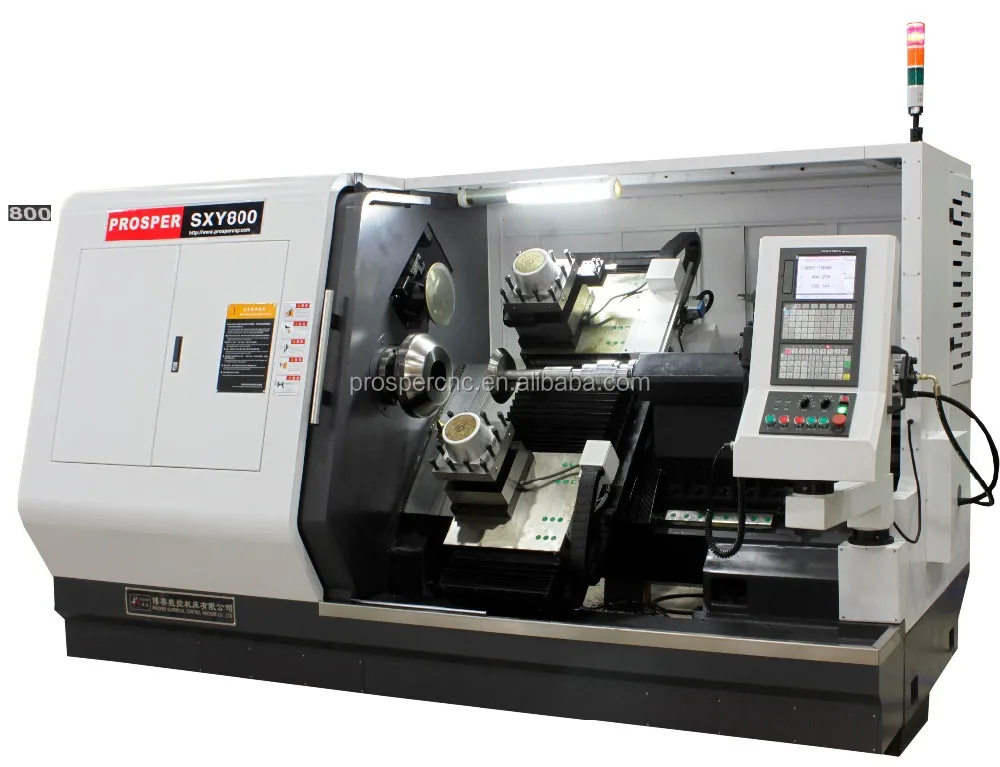

Металлический вращающийся станок с ЧПУ

Product Overview

Description

CNC metal spinning machine main features
1.Best solution for small to medium diameter/thichness products
2.Excellent cost effective economical and practical
3.High stablility and efficiency
4.reduce both material and human labor cost
5.High rate retur
6. Save both material and labor



Machine basic specification:

1.High strength cast machine body
2.Spinning tools(turret and rollers)
3.Heave duty guide and ball-screw
4.High torque/high speed spindle
5.Tools compensation device
6.Material centering device
7.Digital intergrated hudraulic system
8.Digital intergrated lubrication system

9.Optional BE units

10. Optional BA units

11. Optional manipulator

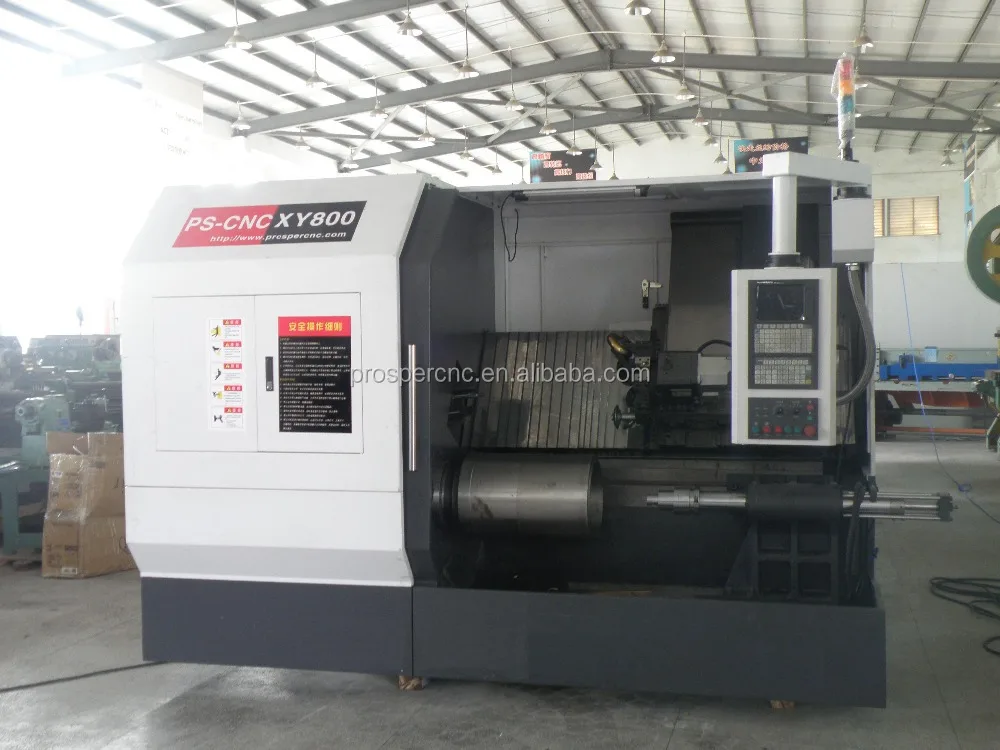

forming machine- metal spinning machine----- Prosper High-Performance full function  CNC metal machine  PS-CNCXY800 technical data :

(Para)             (Spec.)		PS-CNCXY800	PS-CNCSXY800	PS-CNCXY1250	PS-CNCXY400
Max.Blank DIA(mm)		800	800	1250	400
Max.DIA over slide(mm)		N/A	N/A	N/A	200
Center height(mm)		400	400	650	200
Center distance(mm)		600	600	800	400
Main spindle power(KW)		20inventer	20 servo/inventer	22/30servo/inventer	7.5 servo/inventer
Main spindle RPM(rpm)		30-2000	30-2000	30-2000	10-3000
Travel	X-axis travel	DIA700	DIA700	DIA1000	DIA420
	Z-axis travel	500	500	800	500
Tailstock force(KN)		25	25	60	10
Tailstock Travel(mm)		600	600	1000	300
Hold plate Travel(mm)		400	400	500	300
Positioning accuracy		0.01	0.01	0.01	0.01
Hydraulic power		5.5	5.5	5.5	2.2
Tool position(EA)		4/8/1	2+2/1+1	4/8/1	6
Material thickness(mm)	Copper/Aluminum	0.5-6mm	0.5-6mm	0.5-6mm	0.5-2.5mm
	Steel	0.5-3mm	0.5-3.5mm	0.5-3mm	0.5-1.6mm
	Stainless steel	0.5-2.5mm	0.5-3mm	0.5-2.5mm	0.5-1.2mm
