biogas /natural gas generator price 10kW 300kW.
- Category: >>>
- Supplier: Weifang Naipute Gas Genset Co. Ltd.
Share on (740494472):
Product Overview
Description
Technical parameter for 300kW gas generator set
Generating set general Model | 300GFT | |
Structure | integral | |
Exciting method | AVR Brushless | |
Rated Power (kW) | 300 | |
Rated Current(A) | 540 | |
Rated Voltage(V) | 400/230 | |
Rated Frequency(Hz) | 50 | |
Rated Power Factor | 0.8 LAG | |
Overall dimension (L x W x H)(mm) | 3050X1550X1950 | |
Net weight (kg) | 2850 | |
Gas Engine | Model | ND159D32TL |
Type | V type,4 strokes, electric control ignition, pre-mixed Lean burn, turbocharged after cooled | |
Cylinder number | 8 | |
Bore x Stroke (mm) | 132X145 | |
Total displacement (L) | 15.87 | |
Rated Power (kW) | 320 | |
Rated Speed (r/min) | 1500 | |
Fuel type | Natural gas/Biogas | |
Control panel | NPT Brand 300 KZY | LCD display |
Circuit Breaker type | ATS/SKT1-630 | |
Control module | Smartgen HGM6320 | |
Operation language | English | |
Alternator | Model | XN4FS |
Brand | MBH( Germany) | |
Shaft | Single bearing | |
Rated Power (kW) | 300 | |
Rating(kVA) | 375 | |
Enclosure protection | IP23 | |
Efficiency(%) | 93 | |
Function :
1. Adopt Genset controller with LCD display, taking microprocessor as the core.
2. Adopt ATS( automatic transfer switch) to achieve the automatic transfer from the generated electricity to grid electricity
3. The monitor and display on the voltage, current, frequency, active power, apparent power, power factor of the generated electricity /grid electricity
4. The monitor and display on the genset’s water temperature, oil pressure, rotational speed, battery voltage, running hours, accumulative total power and number of starts
5. Protection alarm and fault automatic storage on high water temperature, low oil pressure, double speeding, over current, over voltage, over frequency and phase failure etc.
Optional devices :
CHP device, Soundproof cabinet, automatic grid parallel connection device, emergency cooling system etc
Application area:
Natural gas generator : Pipeline natural gas, liquid natural gas (LNG),coal mine industry, crude oil industry

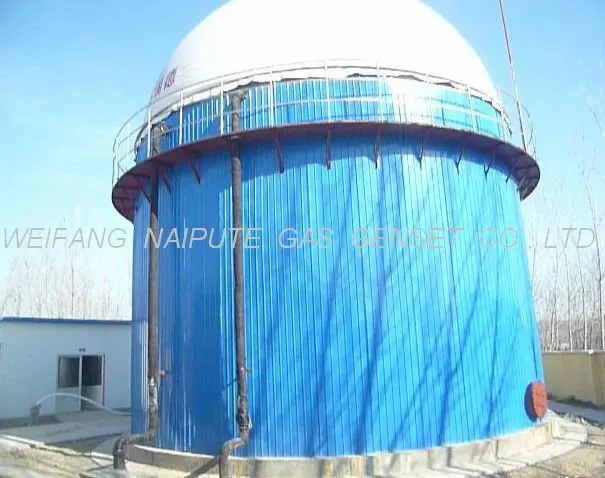

Biogas generator : dairy and poultry farm, food processing ( starch, alcohol, palm oil ),industrial waste, Bio garbage processing, landfill
LPG generator : Crude oil industry
Biomass generator: agriculture straw, wood chips etc.
Certifications :
Patent list :
Items | Patent Name | Patent No. | Patent Holder |
1 | Biogas generator set air/fuel inlet integratedsystem | 201020548851.7 | NPT |
2 | Gas generator set integrated control system | 201020548831.X | NPT |
3 | Generator set waste heat utilization system | 201020548780.0 | NPT |
4 | Gas generator set exhaust heat utilization system | 201020548858.9 | NPT |
5 | Gas generator set jacket water heat utilization system | 201020548835.8 | NPT |
6 | Biogas generating set safety running control system | 201020548821.6 | NPT |
7 | container type gas generator set shift system | 201120234706.6 | NPT |
8 | container type gas generator set ventilation system | 201120234643.4 | NPT |
9 | Gas engine with lean burn technology | 201120234661.2 | NPT |
10 | Container type gas generator set with CHP | 201120234653.8 | NPT |
11 | Container type gas generator set automatic switch system of power off & on | 201120234682.4 | NPT |
12 | container type gas generator set automatic oil filling system | 201120234691.3 | NPT |
After-sale service :
