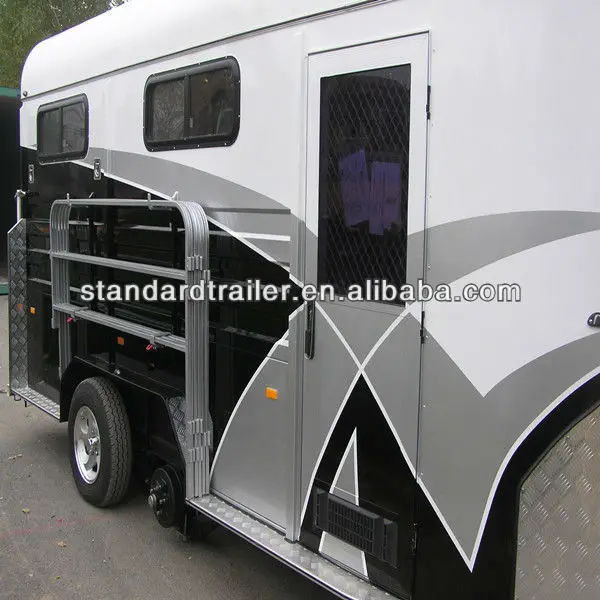

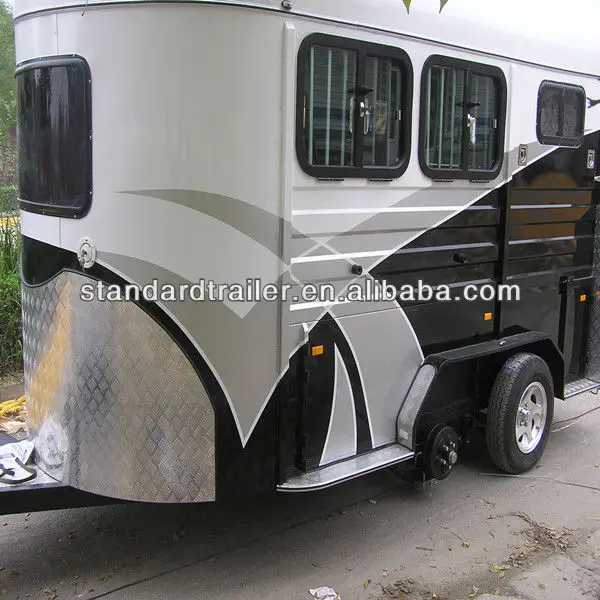

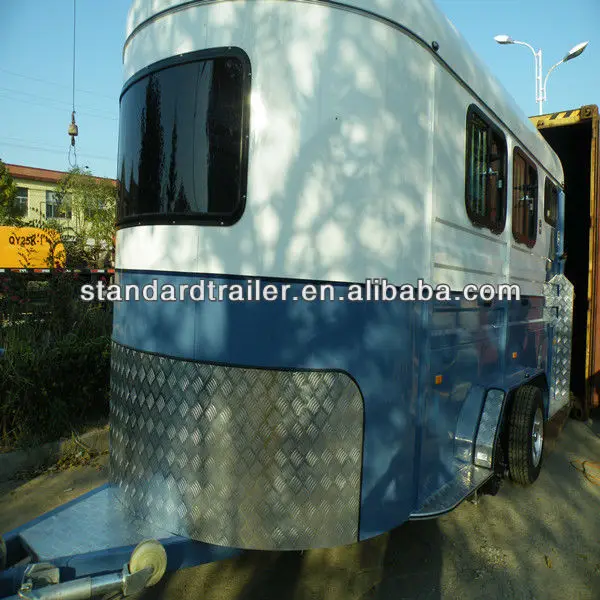

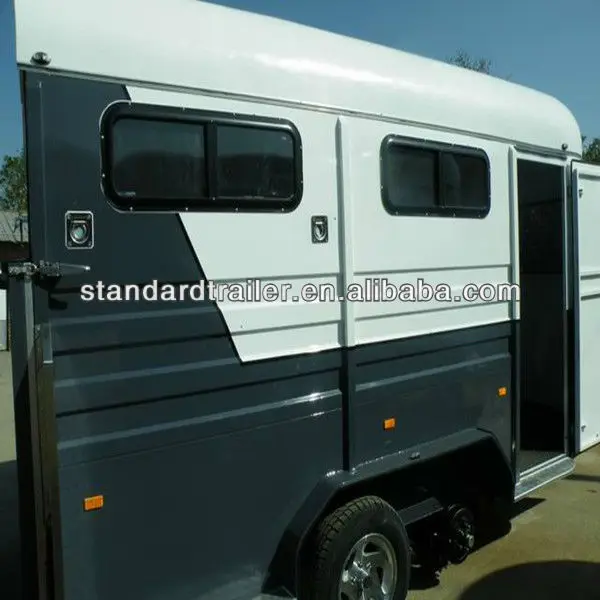

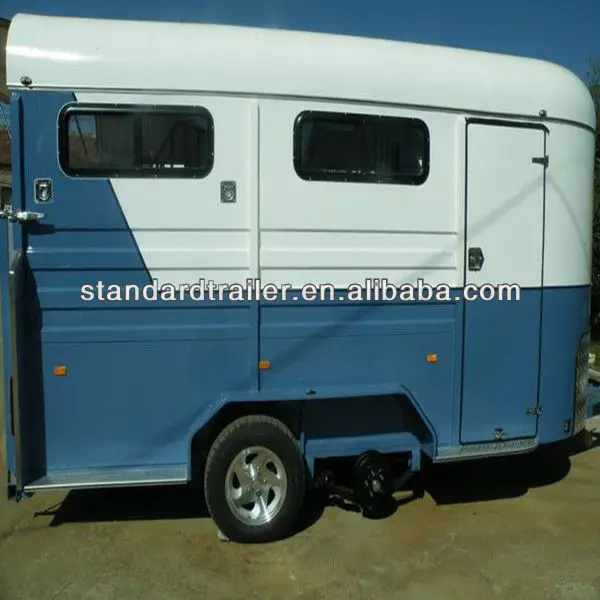

Horse floats standard trailer made in shandong

Product Overview

Description

Details:



Model	STD-3HAL-S
Materials	Chassis Material: double hot dip galvanized RHS (3.5mm-4.0mm)
	Frame Material: double hot dip galvanized RHS (2.5mm)
	Body Panel: galvanized sheet (1-1.5mm)
	Roof: Special molded FRP 3mm
Brake	Perfect security structure design, double axle electric brakes
Drawbar	Drawbar Checker Plate 1.2mm aluminium
	Drawbar Safety Chain two & Bracing Wheel one
Suspension	Roll rocker tandem spring 7 plate
Axles	Two special trailer axles 50*50mm
Wheels & Tyre	Five 205R14 tyres and 14’ aluminum alloy rims including a spare wheel
Rubber Matting	18mm special plywood for floor& ramp door
	Rubber Matting For Inner Side Panel           6mm Rubber Matting
	Rubber Matting For Floor & Ramp Door    17.5mm anti-slip rubber sheet
Windows Doors	Front Window (mm) 1220*610mm
	Side Windows
	Skylight   two large size upturning ventilation windows
	Rear Upper Door (mm) 1980*1065mm Strut & High-intensity anti-rust strut
	Ramp Door (mm) 2030*1210
	Side Door (mm)   1730*615
	Hinges for Rear Upper Door   special 6mm diameter copper hinges
Supporting Wheel	Swing-able knight supporting wheels to make parking safe and reliable
Lights& Retro Reflectors	Trailer Plug       Seven-prongs Plug
	Rear Lights brackets aluminium
	LED interior lights, two small LED sidelights, two LED combination taillights
	Retro Reflectors   8

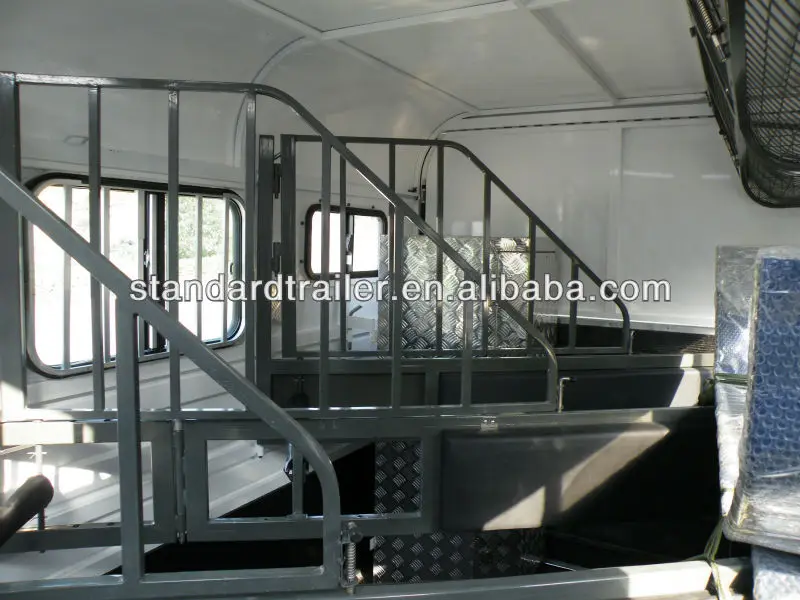

Auxiliary Fittings	Horse Protection Frame fully padded
	Horse Ring         7
	Saddle Rack   in saddle box(1200mm height for 3 saddles)
	Rug Rack           Side
	Saddle Box       One
Dimensions	Body Dimension (L x W x H: mm): 4575 x 1980 x 2230
	Inner Dimension (L x W x H: mm) : 4525 x 1930 x 2155
	Overall Dimension(L x W x H: mm): 5425 x 2290 x 2600
	Length of Tone (mm):     850
Empty Weight	1600 KGs
Carrying Capacity	2500 KGs













detailed drawing

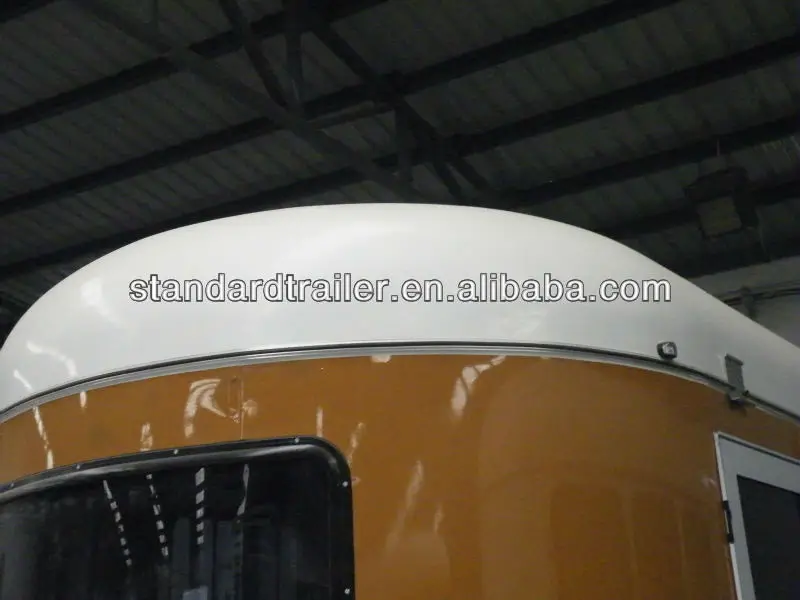

3mm Fiber-glass roof ,durable and sturdy

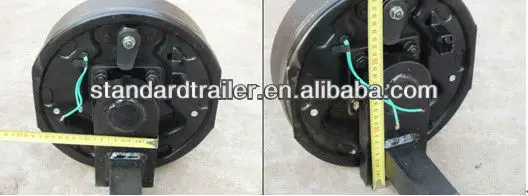

Double electric axles ,50*50 , making the trailer more strong

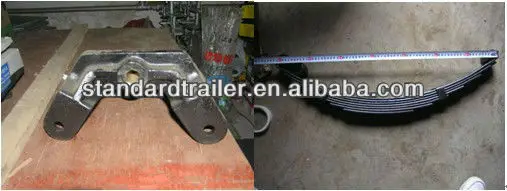

Rock suspension

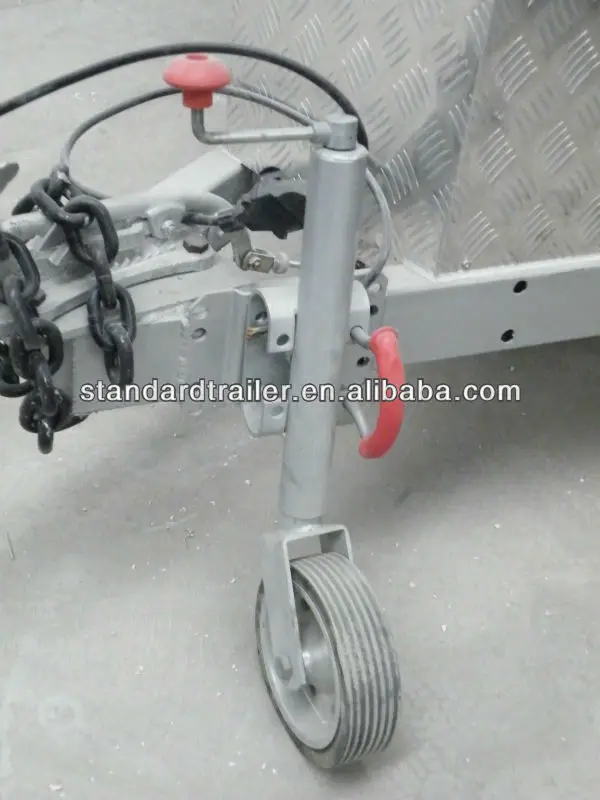

 Adjustable Knight wheel , Floats can be parked in a safe and secrue place

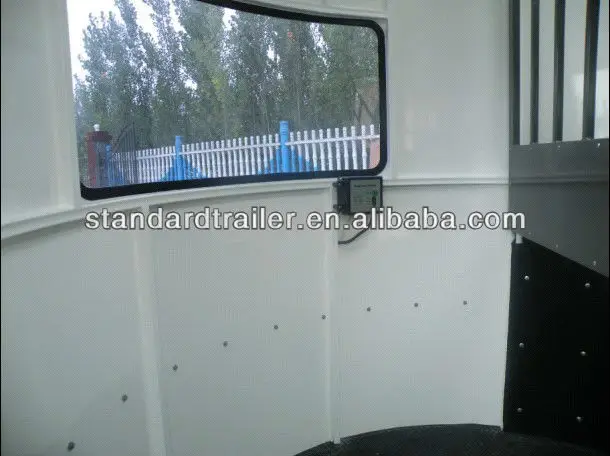

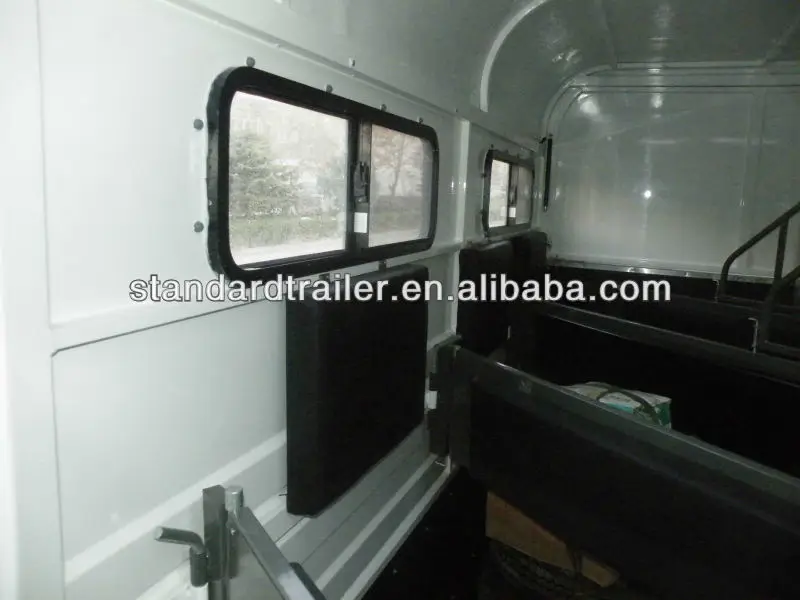

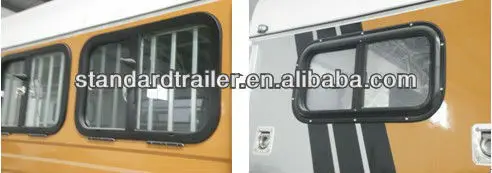

Drop-down windows and side windows with high quality

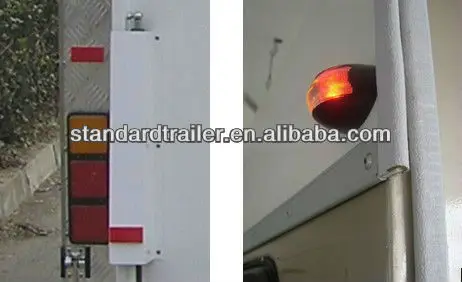

 All the LED Conform to ADRS

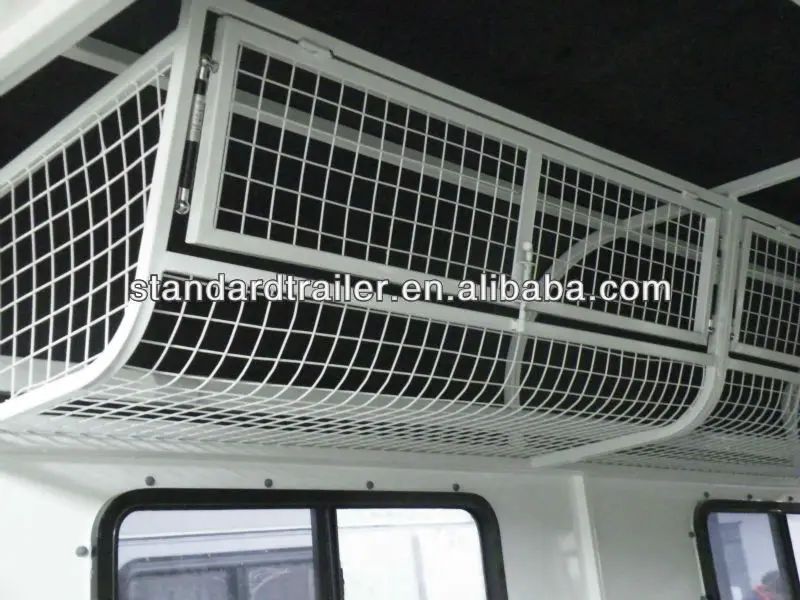

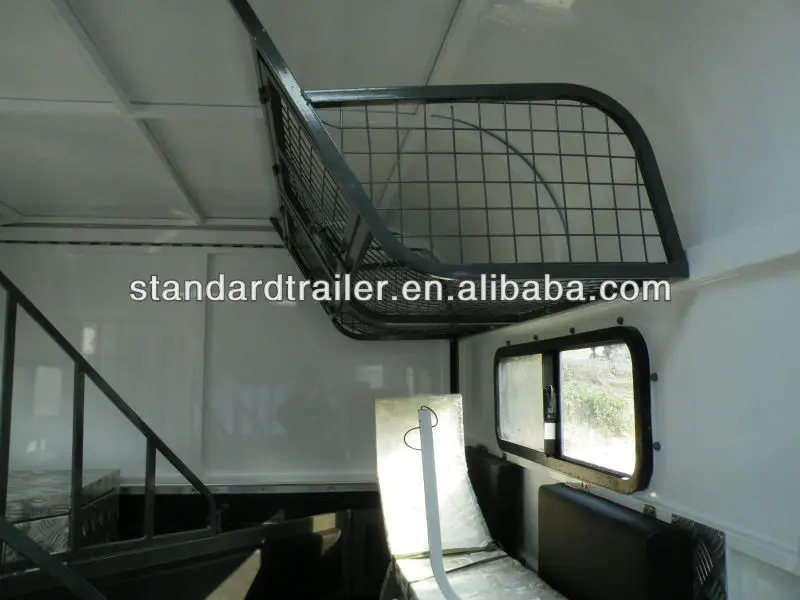

 Rug rack with small door

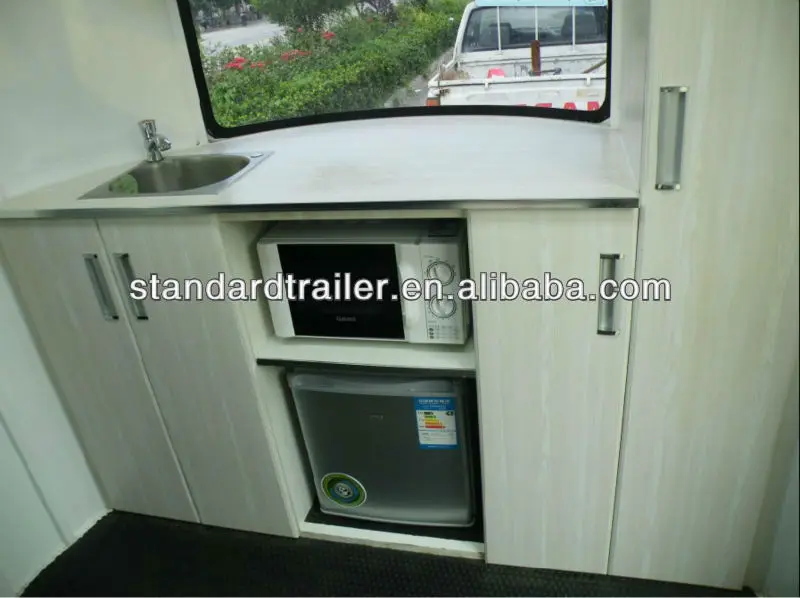

Beautiful and durable cupboard

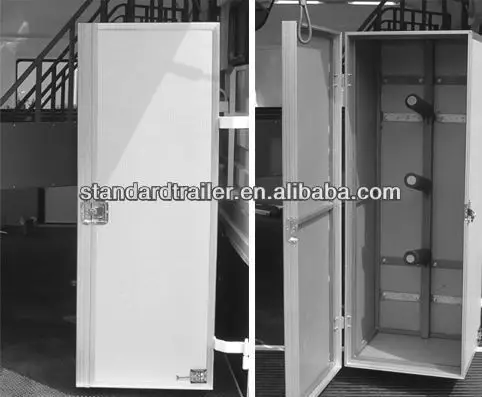

 Exquisite saddle box

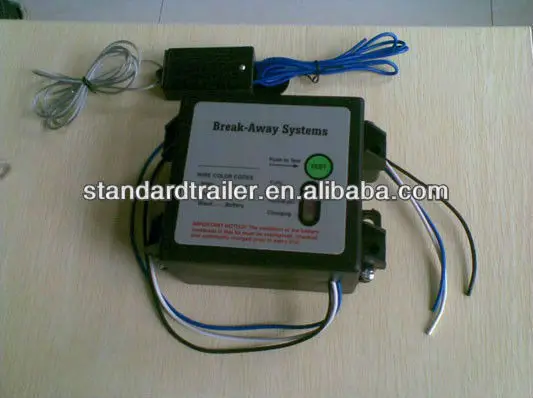

Break away System guarantee the safety of floats and horse in some extreme cases

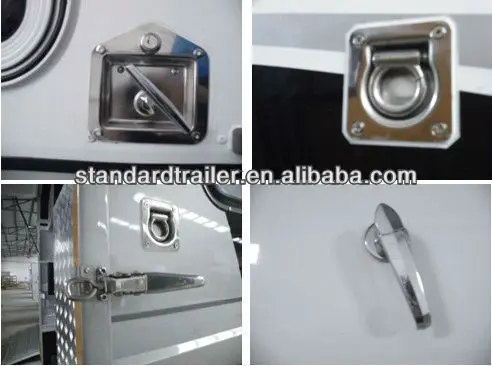

  All the screws&nuts&handles use the stainless steel
