200L Balcony Split Pressurized Solar Water Heater

Product Overview

Description

       200L Balcony Split Pressurized Solar Water Heater



Featrue:
1. It is not easy to be frozen and cracked down even in hash weather.
2. The shortcoming of bursting of tube or water leakage due to aged rubber ring is eradicated;
3. The water tank is welded scientifically under the high frequency weld and argon-arc weld. The integrated pressurized vacuum tube solar water heater can be directly connected with tap water system to operate automatically with pressure-bearing.
4. Water proof grade: IP *4
5. Hot water can be used directly, or can be used as a pre-heat.
6. Electric heater can be used 1500W or 3000W
7. The standards of vacuum tubes with heat pipe: 14, 16, 18, 20, 24, 30, or 36 units.
8. Water capacity: 100L, 150L, 200L, 240L, 300L and so on
9. Hail resistance: 25mm (diameter)

10. The time of heat insulation: 72h
11. High heat effectiveness: Higher than all glass evacuated solar collector tube by 15





Specifications:

Vacuum tube: 15~30 tubes of 58/1800mm heat pipe

Inner tank: SUS304-2B with thickness 1.5mm-2.0mm

Outer tank: Galvanized steel alloy with thickness 0.5mm

Inner copper header: 0.8mm thick red copper

Outer shell: 1.6mm thick alumium alloy

Size of outer case: 100mm*112mm

Bracket: 45degree 1.8mm thick alumium alloy

Heat insulation layer: 35 mm thick polyurethane foam

Application: split solar water heating system

Absorption rate: 93%~96%

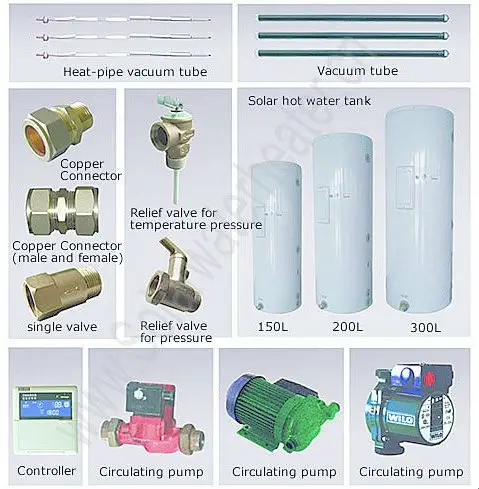

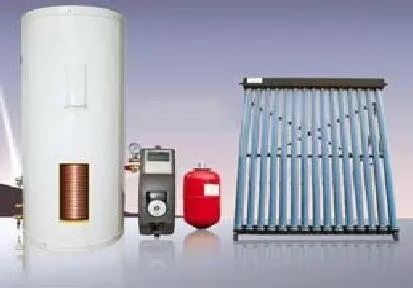

Structure of Product:

Pressurized water tank

Heat pipe solar collector

Working Station(Including controller, circulation pump, flowing meter, pressure gauge,safety valve, expansion vessel)







Working principle:

The water tank is separated from collector. Split pressurized vacuum tube solar water heater is convenient to install and use. It works with pressure up to 0.6 MPa and can normally work in all climates. The absorptive coating of vacuum tube is ALN/ALN-SS/CU. This coating has high absorbing ratio (0.94) and low emission ratio (0.6). The heat efficiency is 0.64. The life span of vacuum tube is 15 years. The vacuum tube is made of borosilicate 3.3. No water in the vacuum tube. Even if some vacuum tubes are broken, the split pressurized vacuum tube solar water heater can normally work.
