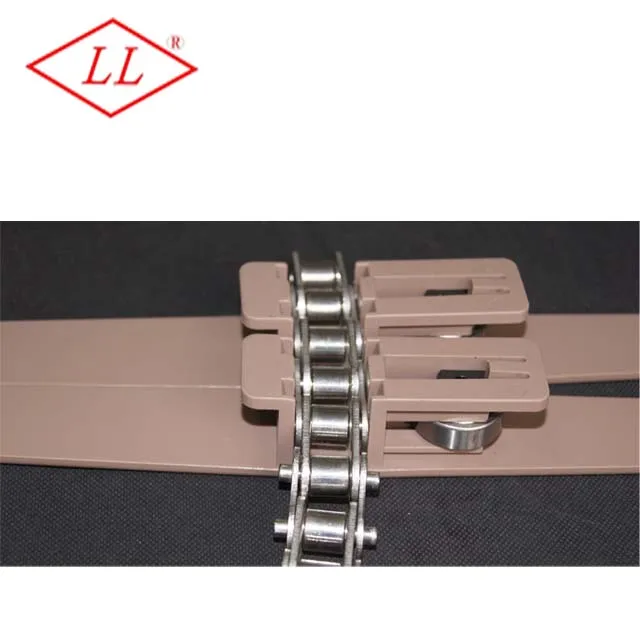

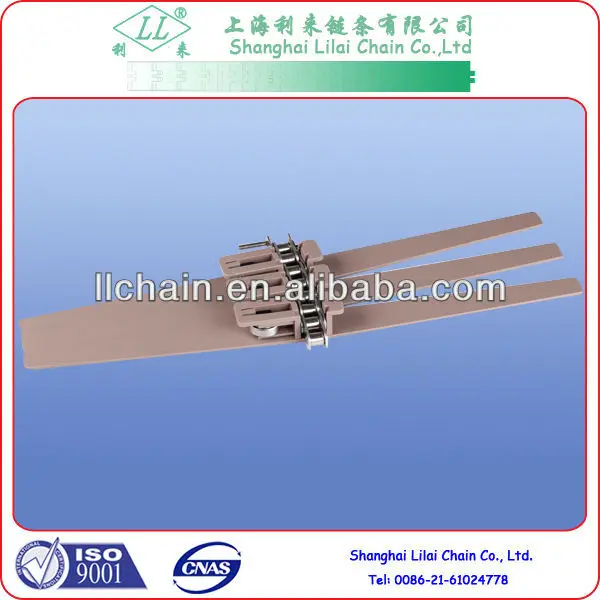

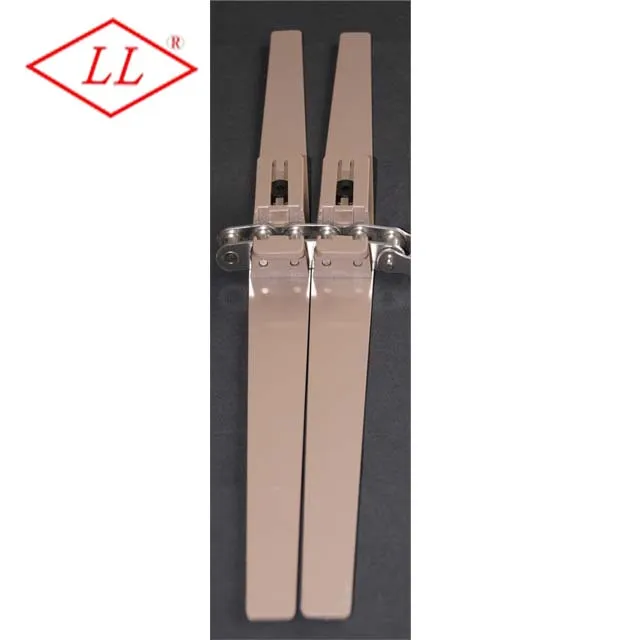

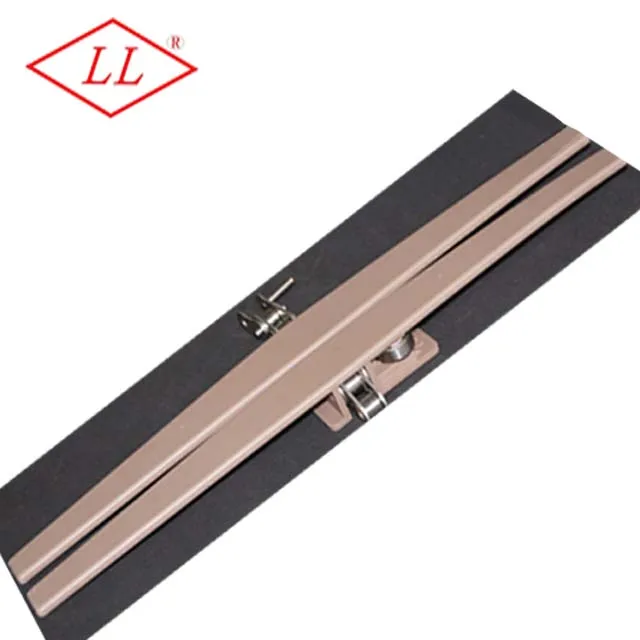

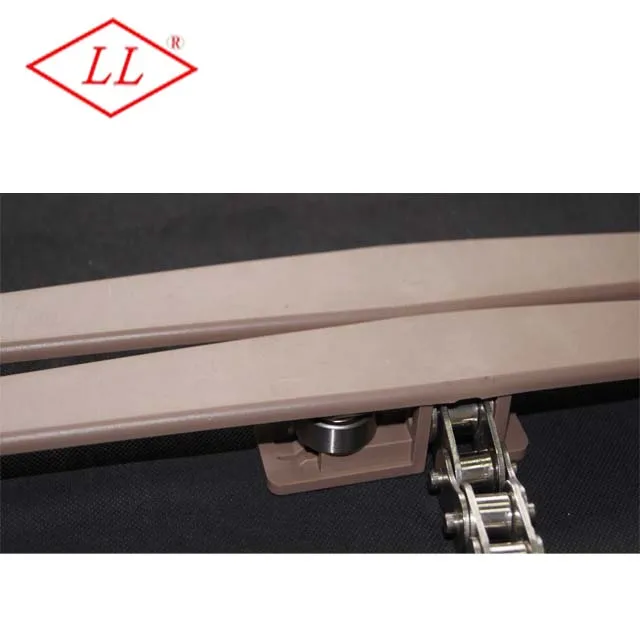

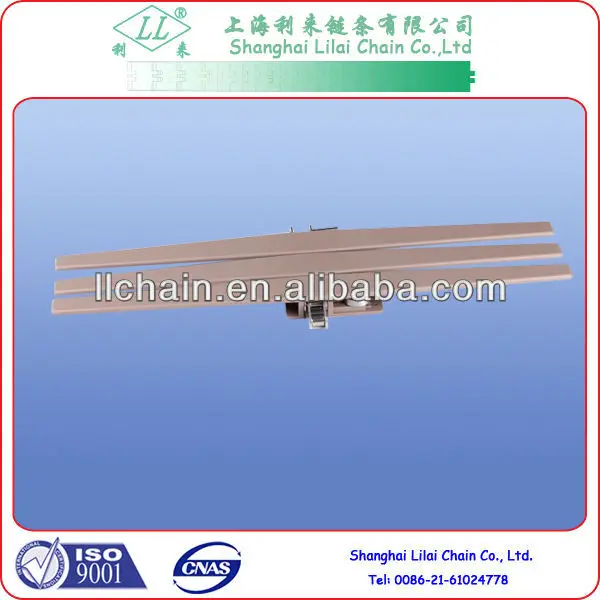

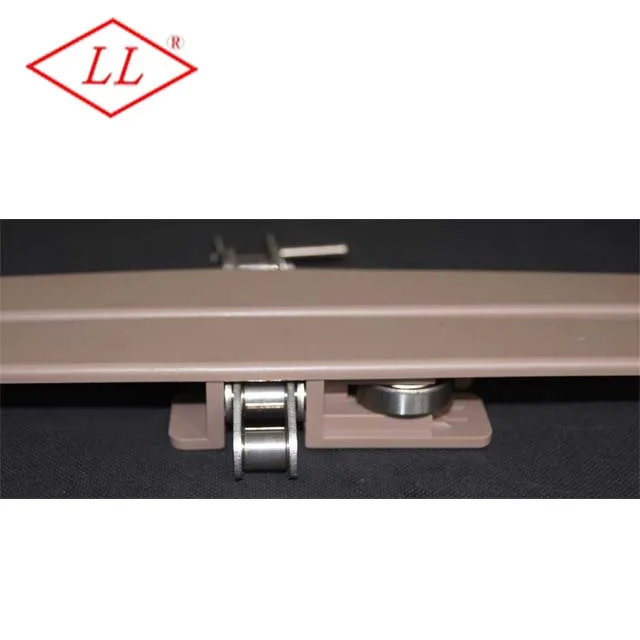

side flex chain for spiral conveyor with bearing 1873SS K2000 Z

Product Overview

Description

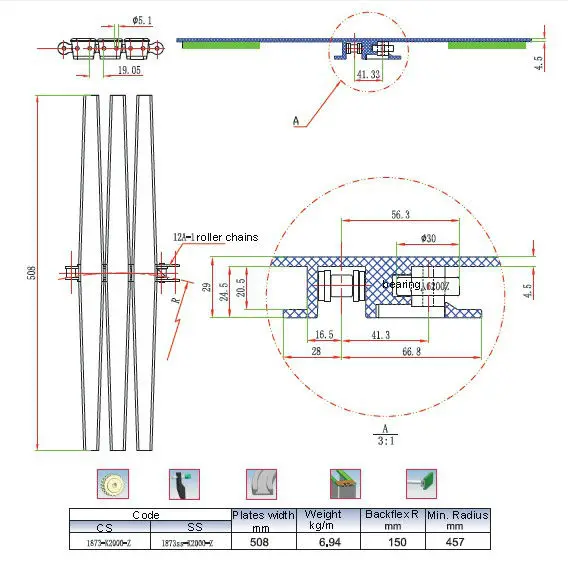

          side flex chain for spiral conveyor with bearing 1873SS-K2000-Z



Temperature range: -40°~90°                    Plates material: POM



Color: brown                                                  Roller base chain: standard 12A roller chain



Supply unit:1.524mtr (5ft)                           Max speed: 80m/min lubrication 50m/min dry



Working load: 3200N (mat.: CS), 1600N (mat.: SS)                 Packaging:1.524m/pc



Plates material: stainless steel or carbon steel



Max conveying length: 30m (mat.: CS), 24m (mat.: SS)



Main application : for vertical conveying of cans, glass bottles, etc..









Other  Products:







Introduction of our company:



Shanghai Lilai Chain Co.,LTD
Shanghai Lilai Chain Co., Ltd. specialized in manufacturing conveyor chains, modular belts, sprockets and conveyor components. Since 1998 we have been supplying products to customers in Italy, Germany, Spain, etc. Now we have business all over the world.
Main application:		Food,beverage and Pharmaceutical industry etc,such as transportations of bottles.
Certification:		ISO9001:2000
Note:		For the fast results, when requesting a quote:    1.Please inform quantities , material , sketches, drawings, lead time , etc.    2.We will reply you ASAP.    3. If you want to know more , please feel free to contact us.







Factory site and workshop:







  Exhibitions:



Certification:







Packaging:



         • Inner packing :pack in paper box

         • Out packing: Cartons or wooden pallet

         • Suitable for sea and inland shipment

         • As customers request



Payment Terms:



         • Loading Port: Shanghai China

         • Samples Leading Time: 3-7 days

         • Delivery Time: Within 7-15 days after ur payment

         •  Payment: L/C, T/T, Western Union



After sales service:



         •  Please contact us in time after you receiving the goods

         •  Tel: 0086-021-61024778           Fax:0086-021-67613190



Contact:
