NJD Series of Electric Loading Torque Wrench Calibration (Accuracy Class:+/-0.3%)

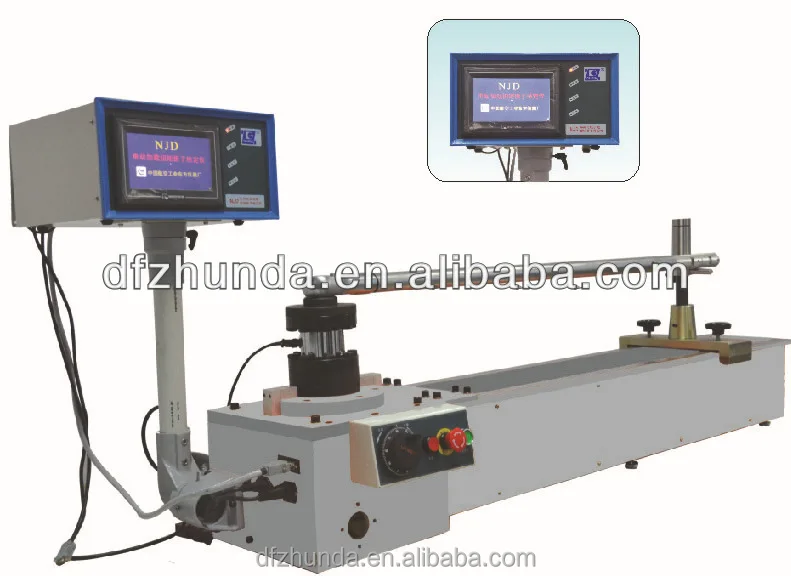

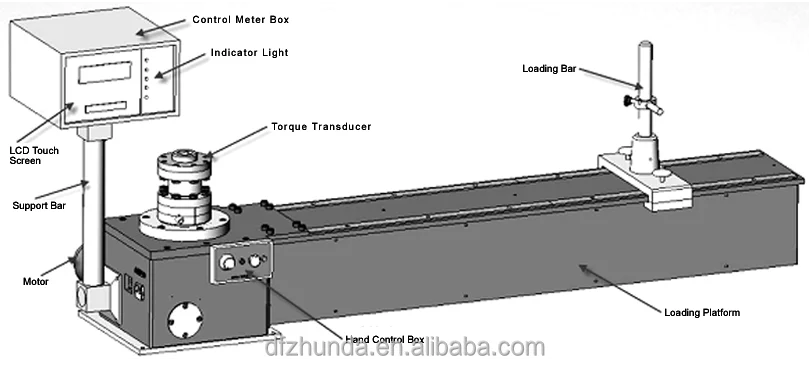

 NJD series of electric loading torque wrench calibration is made up of control meter box, torque transducer, loading platform, driving motor etc..

  1. The self-combination of the control meter box and the torque transducer, which compose

the precise control and display to the torque tools checking, can easily be

operated beyond the loading platform by the customers.

 2.The auto continuous load and manual load of the torque tools are made up of

control meter box, hand control box and driving motor.

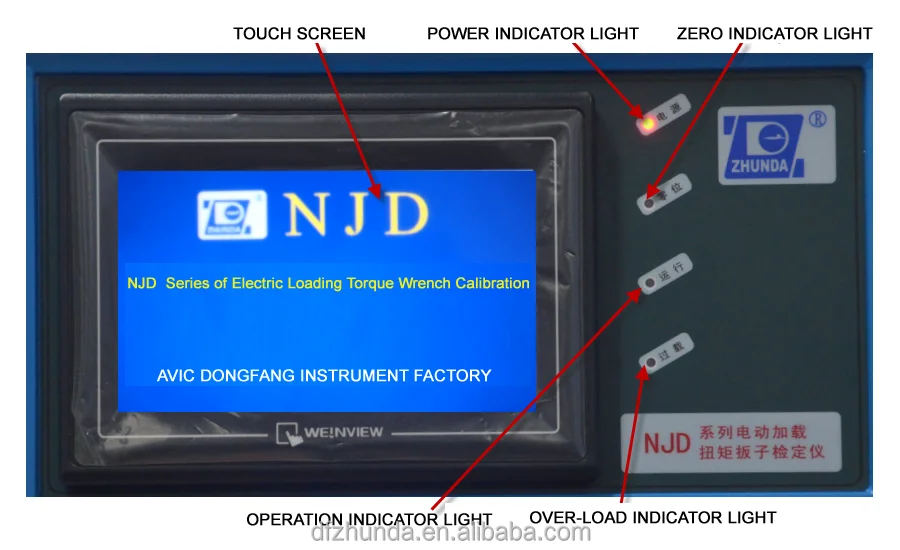

 3.The operation buttons and display screen adopt the advanced touch screen

technology, and the manual load also uses the advanced electronic handwheel.

 4.The calibration operates easy and convenient, it has the following functions:

display clearly, automatically input testing data, intelligent query, high precision

 (+/-0.3%), sampling quickly (50k/s), labor saveing etc..

 5.Therefore, it is the ideal testing equipment for customers to examine various

of hand tools, especially for the large and medium-sized enterprises or the measurement Institutes.

Technical Parameter

1.Operating temperature:  20°C±5°C;

2.Rrelative humidity:     ≤80%;

3.Accurate:             +/-0.3 class;

4.Overload capability:    110% (F.S);

5.Sampling frequency:    50k/s;

6.Operation of the touch screen:  display size: 200mm×145mm;

 7.Three operation modes (Following, peak keeping and Max. Peak) can automatically convert.

8.Auto-alarming when error;

9.Two kinds of units of measurement: reset and zero cleaning;

10.Five units: N.m,N.cm,Kgf.cm,Lbf.ft,Lbf.in;

11.Bidirectional (left and right) rotating;

12.Examine and sensor data can be stored for use;

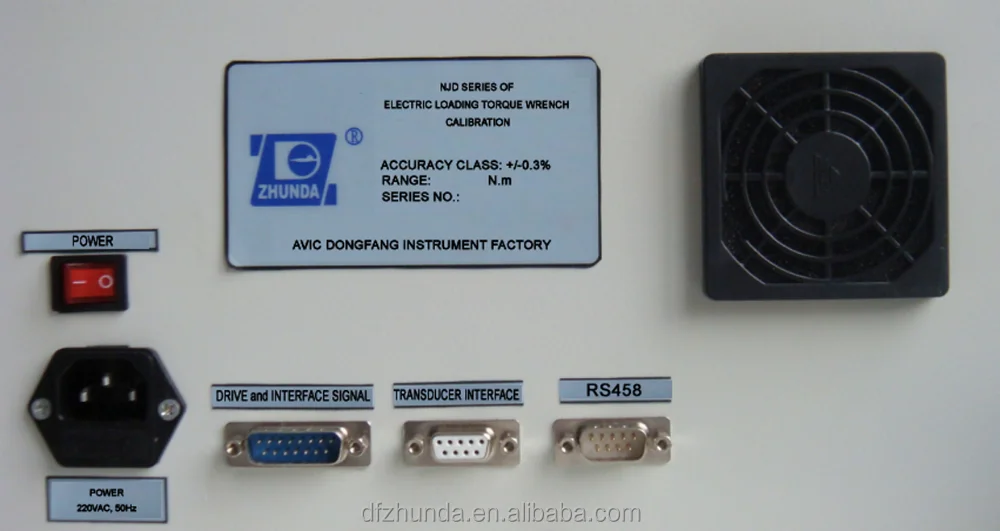

13.Power:  220VAC  50Hz.

 parameter Table:

Pre-sales.

* Project design, performance introduction, technical agreement, contract signing, packaging
* Inquiry and consulting support.
* Sample test support.

In-sales.

* We will provide you with the latest progress in the product assembly, packaging and transportation.

After-sale.

* We will provide free accessories for the damage to non - human parts.
* Training how to install the machine, training how to use the machine with video and so on.
* And our technical staff can provide technical guidance.
