k type thermocouple compensation wire made in China

Application :

Compensation wire is the proper temperature range including room temperature (typically -20 ~200 °C), has connected to the thermocouple thermoelectric properties of a pair of mutually insulated conductors, its role is to compensate for thermoelectric even terminal to display the temperature difference between the potential in the control instruments. Compensation divided into extension and compensation-type conductor wire core material is divided into common type and heat-resistant, according  to temperature compensation precision divided into ordinary class and precision

Thermocouple wire

1.    Thermocouple:K,J,E,T,N,S

      RTD:Cu,Ni

2.    Conductor dimension

Conductor square meter:0.2mm²,0.5 mm²,1.0 mm²,1.5 mm²,2.5 mm²

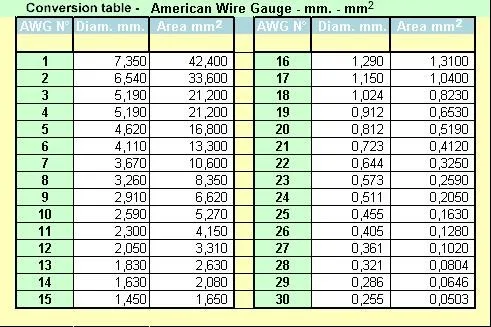

AWG standard

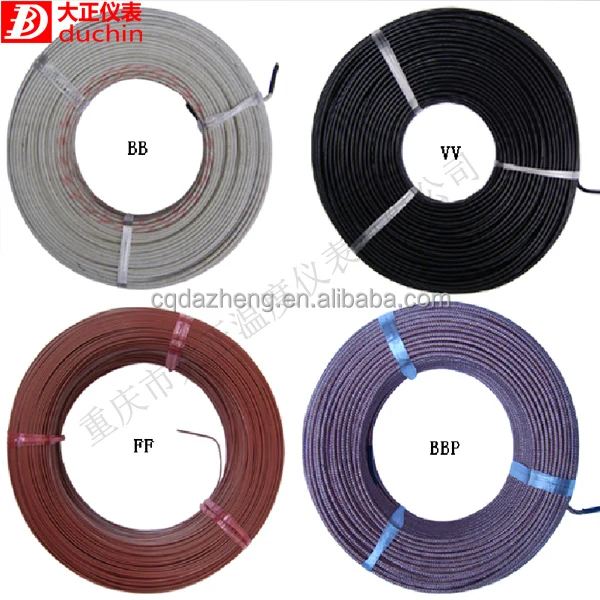

3.     Insulation layer material

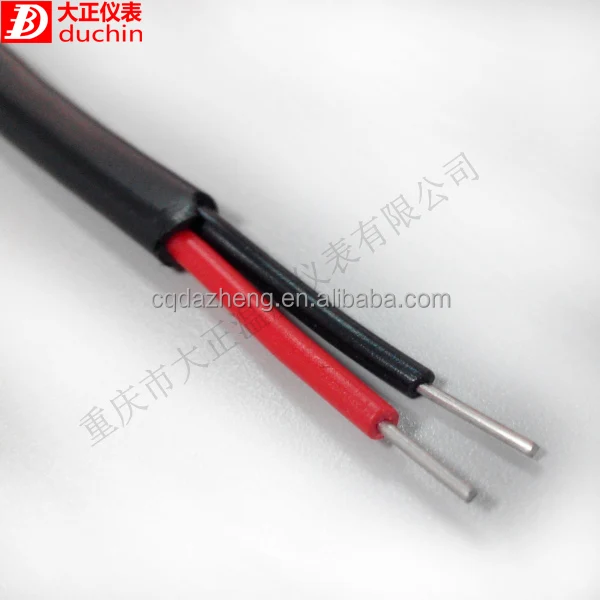

V:PVC             0~105C

F:PTFE       0~350C

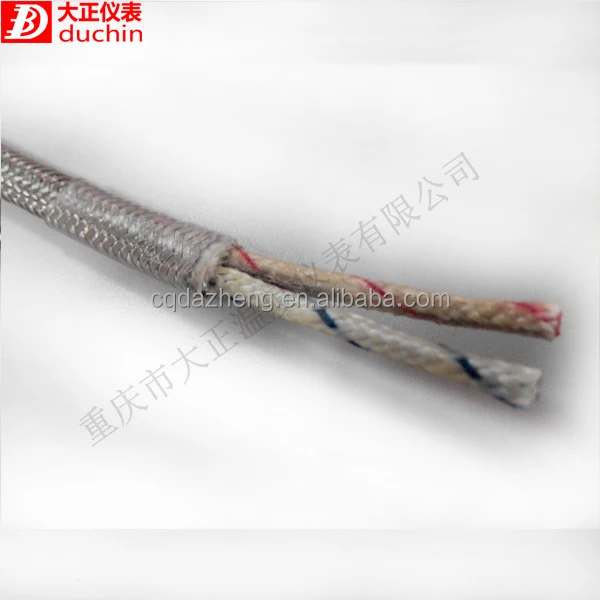

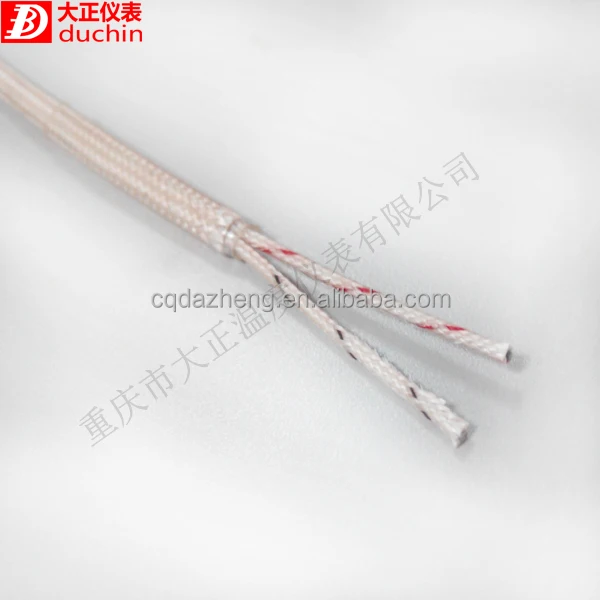

B:Fiberglass   0~300C

4.    Jacket layer material

V:PVC       0~105C

F:PTFE       0~350

B:Fiberglass   0~300C

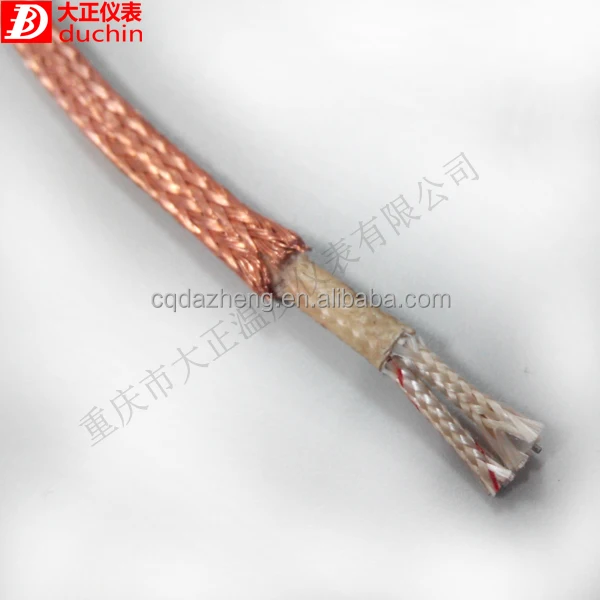

5.     Shield material

P:Cu

P1:Tinned brass

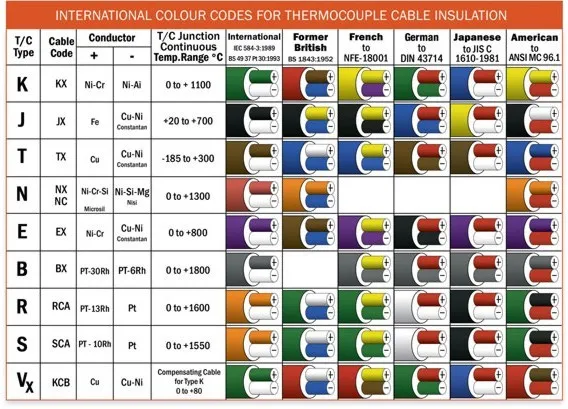

6.     Color standard

Confroms to IEC584 standard

Cables with special material or special dimensions,welcome to contact for further discussion.

Company Information





Certifications

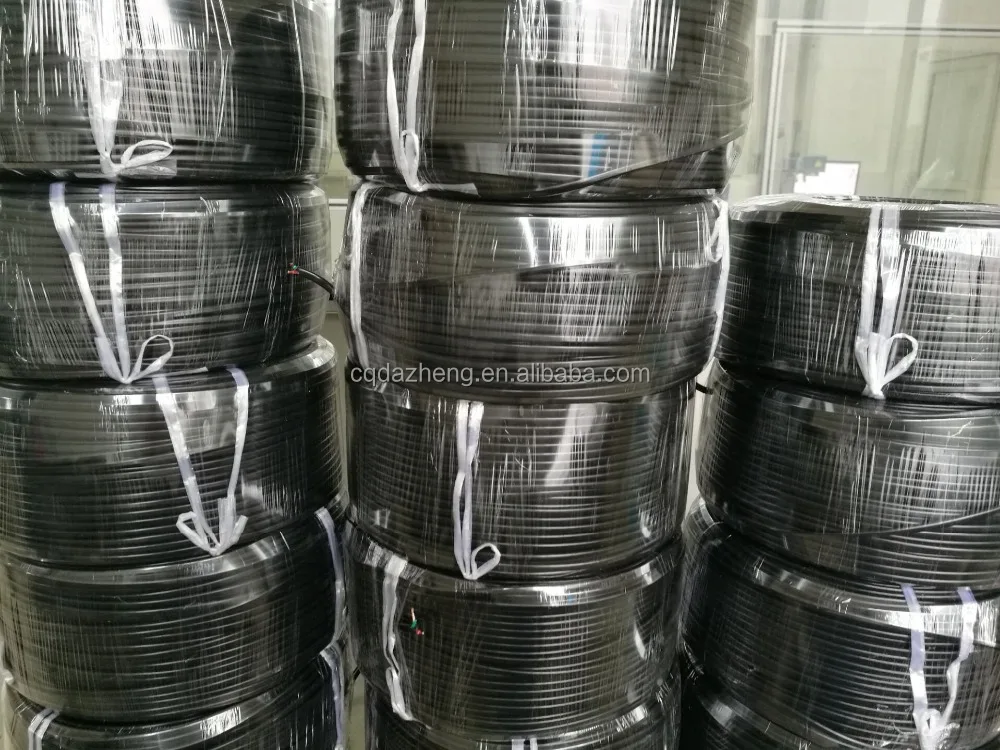

Packaging & Shipping

FAQ

 Please inform me the following things when you inquire

1. Application Environment (Petroleum industry, Chemical industry, Cement, etc,.)

2. Required Temperature Measuring Range

3. Fixing or Installation Type (Movable Flange Type, Non-fixing Type, Thread Type, etc,.)

4. Conductor Material or Calibration K\N\E\J\T\S\R\B

5. Thermowell Materia and Diameter

6.  Immersion Length

7. Accuracy Class’ (Thermocouple, RTD A or B)

8. Other Special Requirements

 If you have any questions, please feel free to contact me.
