HM Liquid Formulation System CE GMP approved /EU cGMP Standard

Product Overview

Description

HM Liquid Formulation System

HM PT-I series Automatic Mixing Tank System

Usage: HM PT-I series Automatic Mixing Tank is full sanitary designed and made according to pharmaceutical cGMP regulations & pressure vessel standards. It is widely used in medicine solution preparation and formulation, powder dissolution, solution mixing and holding storage in:

lSVP Injectable solution for ampoule and vials.

lLVP IV infusion solution for bottle and bags.

lSyrup and suspension liquid oral dosage.

lBlood/Biological products mixing

lChemical API mixing, reaction& crystallization.

lDisinfection/Antiseptic solution mixing.

lCosmetic/Detergent solution mixing

Function and Features:

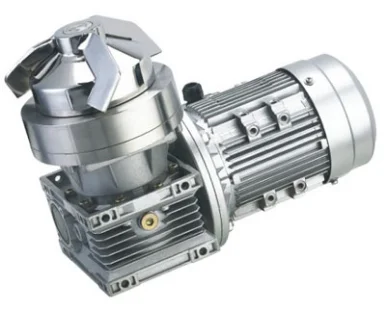

1.   Sanitay bottom mounted Magnetic agitator 50-800rpm or top mounted mechanic agitator 30-120rpm for mixing the solution.

2.   The agitator speed can be adjustable by frequency inverter.

3.    Tank inner shell is made by stainless steel sus316L or sus304, mirror polishing Ra≤0.4µm, the outside is made by sus304 Mat-finishing or Mirror polished with Ra≤0.8µm.

4.    SIEMENS PLC and Touch Screen Automatic Control System with automatic valves operation.

5.    Adopt quick-connected Tri-clamp type connection.

6.  GMP Validation documents (certificate, IQ, OQ protocol).

Model: HM PT-I100, 200, 300, 500, 1000, 2000, 3000, 5000, 10000, 20000Capacity: 100, 200, 300, 500, 1000, 2000, 3000, 5000, 10000, 20000L

Working pressure of inner tank: -0.09-0.3MPa according to the requirement.



HM ST-S series Solution Storage Tank

Usage: For the storage of Purified Water, WFI and medicine solutions

Model: HM STS-S500,1000,1500,2000,2500,3000,4000,5000…50000

 Working volume: 500,1000,1500,2000,2500,3000,4000,5000…50,000L

Optional items: Vertical or horizontal type, Material of Construction St. st.sus316L Or sus304, jacket for heating or cooling, steam/electrical heating, heat insulation by rock wool or polyurethane foam, manhole, open-lid or full close cover, liquid level sensor, load cell, temperature sensor, pressure gauge, vent filter, bottom diaphragm valve, sight glass, safety valve, vent filter, CIP washing ball, SIP sterilization port, liquid inlet port and outlet port etc
