Keestar DN 2HS High speed single needle paper bag making machine
- Category: >>>
- Supplier: Keestar Industries Co. Ltd.
Share on (742798232):
Product Overview
Description
| Keestar DN-2HS High speed single needle paper bag making machine |
Attention:
- Please oil the machine throughly before running;
- Please follow the safety instruction strictly before put the machine into operation;

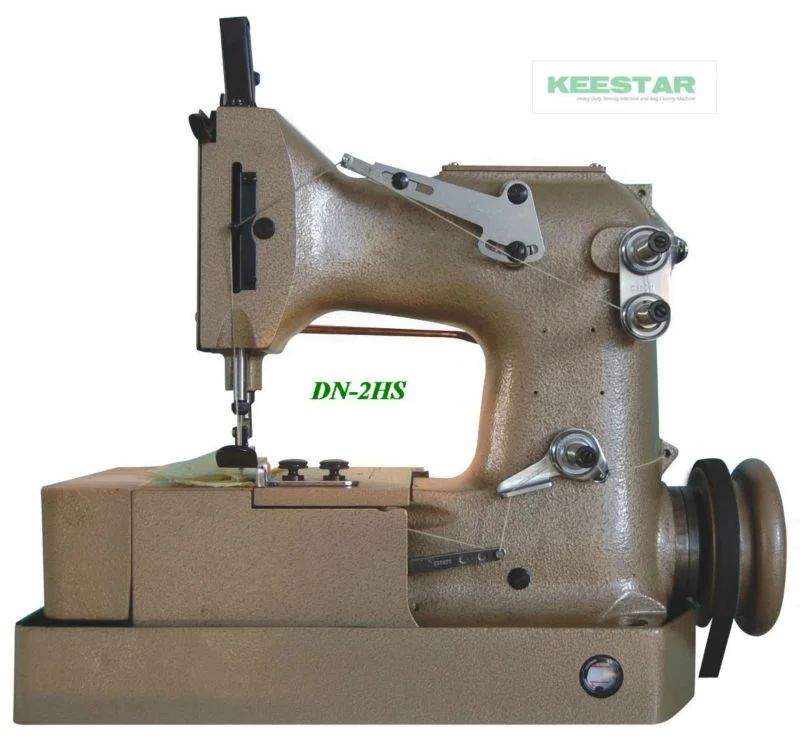

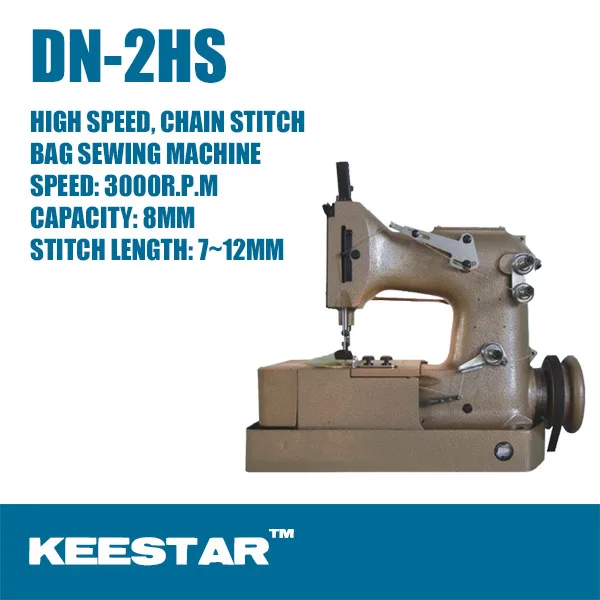

Keestar DN-2HS High speed single needle paper bag making machine
Keestar DN-2HS High speed single needle paper bag making machine
Keestar DN-2HS High speed single needle paper bag making machine

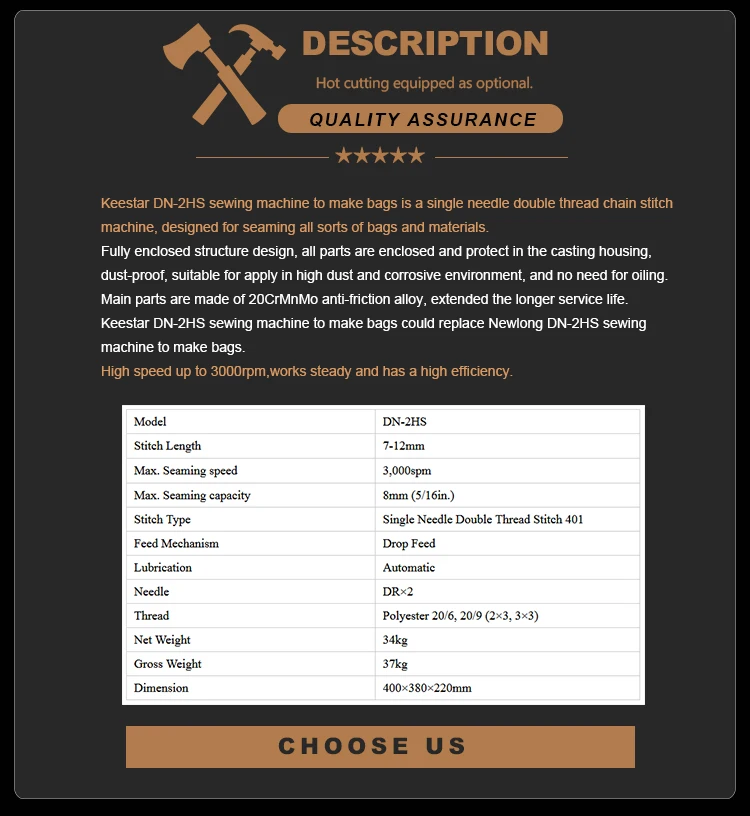

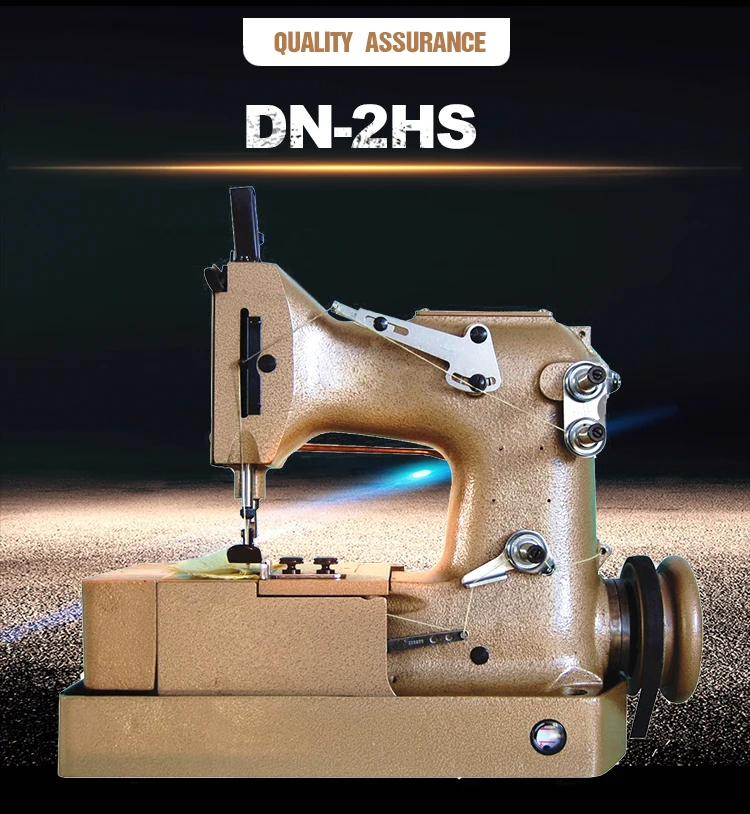

Keestar DN-2HS is designed for sewing all sorts of paper bags and materials. Fully enclosed structure design, all parts are enclosed and protect in the casting housing, dust-proof, suitable for apply in high dust and corrosive environment, and no need for oiling. Main parts are made of 20CrMnMo anti-friction alloy, extended the longer service life.
Keestar DN-2HS bag sewing machine to make bags could replace Newlong bag sewing machine to make bags.
Feaures:

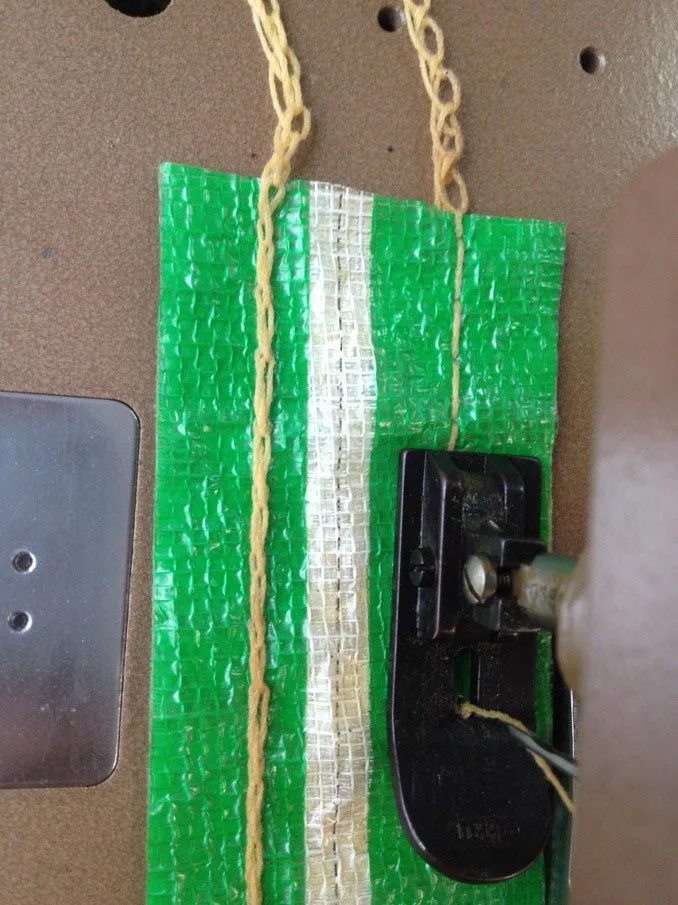

Single needle double thread chain stitch 401;
High speed bag sewing machine, maximum sewing speed up to 3,000spm;
Maximum sewing capacity up to 8mm (5/16in.), 24 plies of paper;
Adjustable stitch length from 7 to 12mm;
Drop feed system;
Fully enclosed structure;
Automatic lubricating;
Main parts are made of 2OCrMnMo antifriction alloy;
Well assembly quality, ensure the stable running and long service life;
High level and reliable bag sewing machine for all sorts of bag sewing;
Servo motor drived optional;
Most popular type bag sewing machine in international market;
Specification:
| Model | DN-2HS | ||||
| Stitch Length | 7-12mm(0.28-0.47 in.) | ||||
| Max. Sewing speed | 3,000spm | ||||
| Max. Sewing capacity | 8mm (0.31 in.) | ||||
| Stitch Type | Single Needle Double Thread Stitch 401 | ||||
| Feed Mechanism | Drop Feed | ||||
| Lubrication | Automatic | ||||
| Needle | DR×2 | ||||
| Thread | Polyester 20/6, 20/9 (2×3, 3×3) | ||||
| Net Weight | 34kg | ||||
| Gross Weight | 37kg | ||||
| Dimension | 400×380×220mm |
