Soya milk filter;Double filter ;for juice/milk filter machine
- Category: >>>
- Supplier: Shanghai Tiangang Machine Manufacture Co. Ltd.
Share on (742901954):
Product Overview
Description

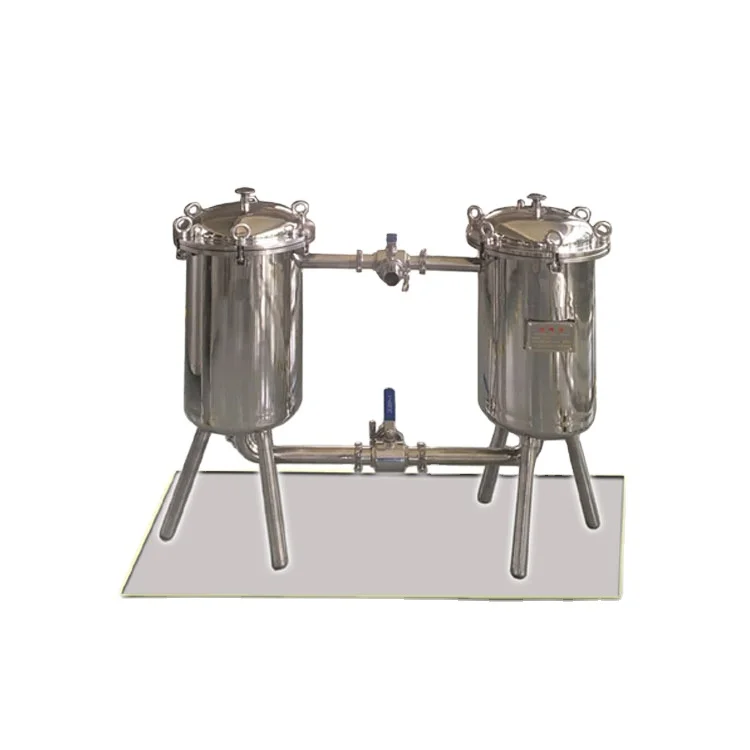

Soya milk Filter;Double Filter

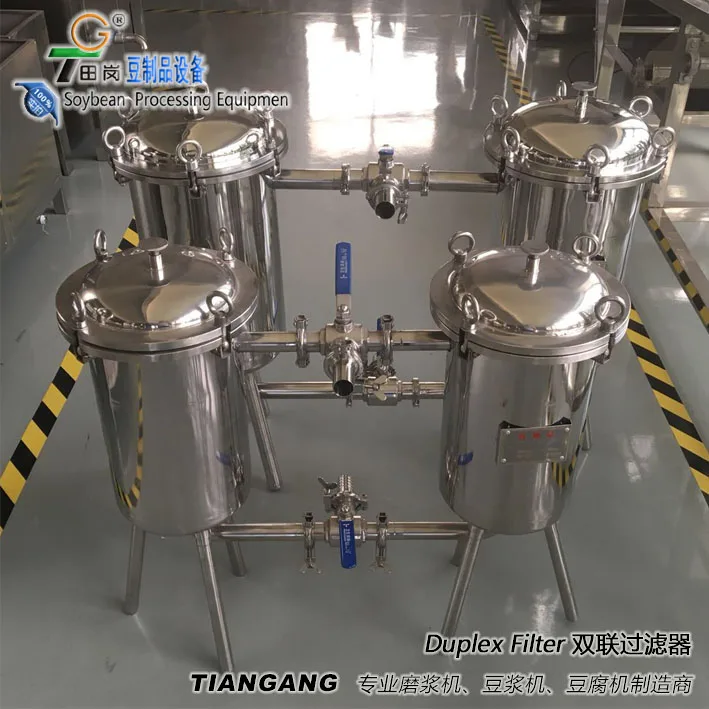

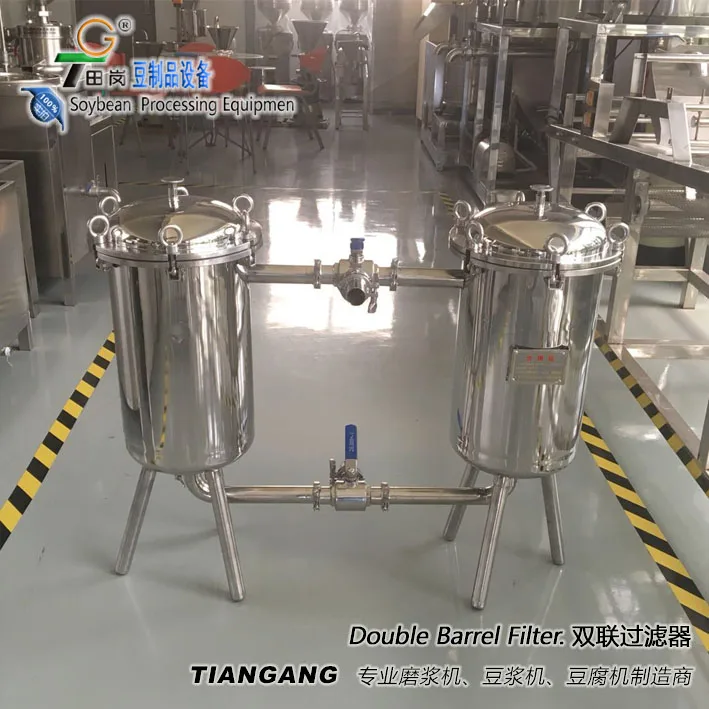

Double filter; it is made of two stainless steel filters connected in parallel, with compact structure and easy operation. Widely used multi-purpose filtration equipment. The probability of side leakage of the filter bag is small, which can accurately guarantee the filtration accuracy, and the filter bag can be replaced quickly, and the filter has basically no material consumption.

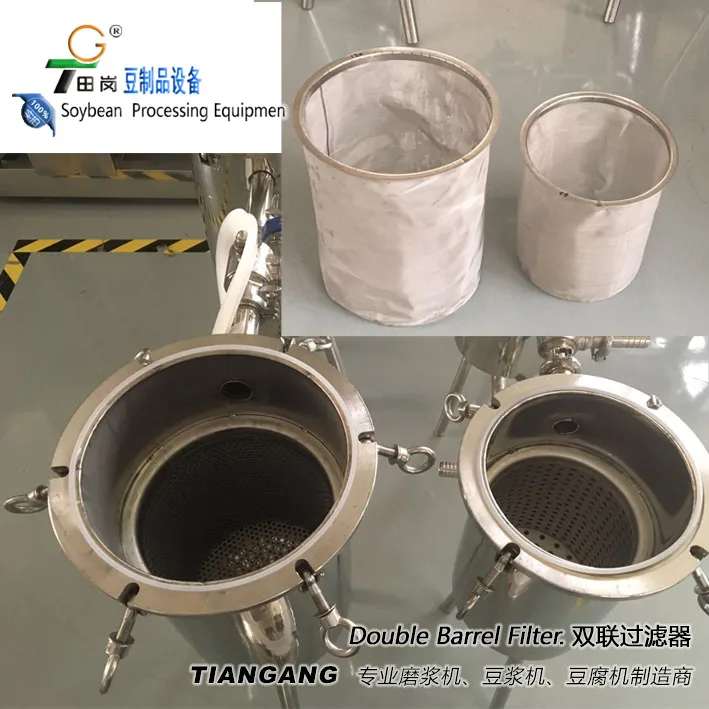

This equipment is all made of stainless steel. It consists of a barrel, a filter support basket, a filter, a seal, and a sanitary quick-connect three-way valve. The top is equipped with an air release valve for air release during work. The factory has passed the 0.3Mpa water pressure test. Using two three-way ball valves, the filter screen does not need to be stopped for cleaning (replacement) to ensure continuous work.
This equipment is all made of stainless steel. It consists of a barrel, a filter support basket, a filter, a seal, and a sanitary quick-connect three-way valve. The top is equipped with an air release valve for air release during work. The factory has passed the 0.3Mpa water pressure test. Using two three-way ball valves, the filter screen does not need to be stopped for cleaning (replacement) to ensure continuous work.
Cooked soy milk filter;
Model: ZRP-H1
Filter: 30-200 mesh; Filter area: 0.15m2;
Filter diameter 210 * 220mm;Production capacity: 3-5T / h; import and export;caliber: DN32
Weight: 30KG; Size: 1000 × 300 × 800mm
Model: ZRP-H2
Filter: 30-200 mesh; Filter area: 0.3m2;
Filter diameter 250 *300mm Production capacity: 5-10T / h;
import and export caliber: DN38
Weight: 38KG; Size: 1000 × 300 × 800mm
Related soybean milk filter equipment.
Shanghai Tiangang Machine Manufacture Co.Ltd. has been engaged in manufacturing soybean processing machine for .
Our products are widely used all over the world . Mainly including Food grinding machine,Colloid mill,Commercial Soya milk machine, Tofu making machine, packaging and other soybean processing machinery.
Also,we can provide whole sets of soymilk and tofu processing line, consist of soybean soaking,suction of soybeans,grinding and separating,cooking,breaking,pressing and sterilization ,packaging other.
More importantly is we can design turn-key project according to customers' needs. Our salesmen as well as engineers are know very well about our products,they will serve you with all their profession and sincerity.
Looking forward to cooperating with you in the near future !
Our products are widely used all over the world . Mainly including Food grinding machine,Colloid mill,Commercial Soya milk machine, Tofu making machine, packaging and other soybean processing machinery.
Also,we can provide whole sets of soymilk and tofu processing line, consist of soybean soaking,suction of soybeans,grinding and separating,cooking,breaking,pressing and sterilization ,packaging other.
More importantly is we can design turn-key project according to customers' needs. Our salesmen as well as engineers are know very well about our products,they will serve you with all their profession and sincerity.
Looking forward to cooperating with you in the near future !
