1kw magnet motor free energy/renyx casing/aluminum alloy windmill/

Product Overview

Description

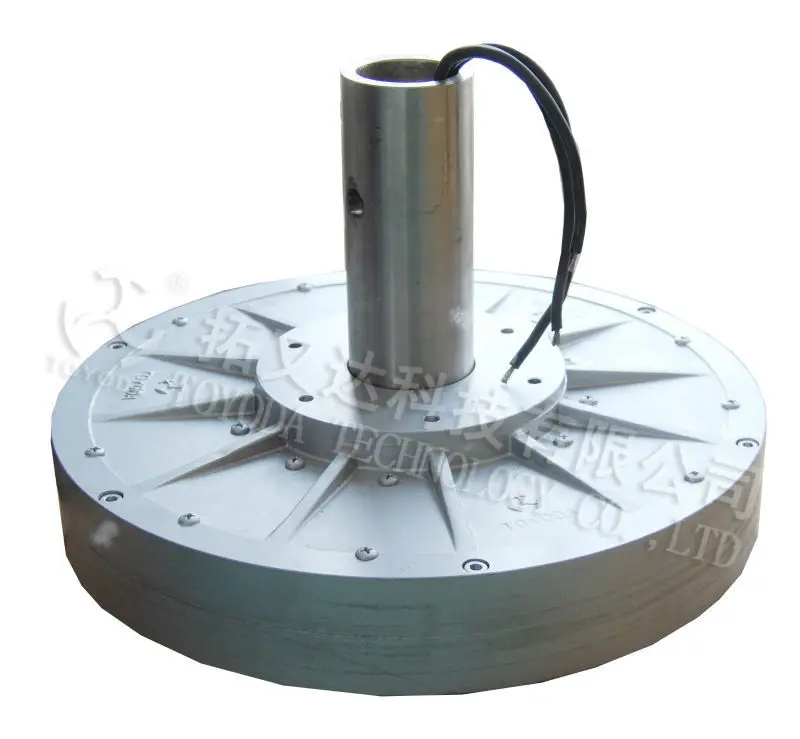

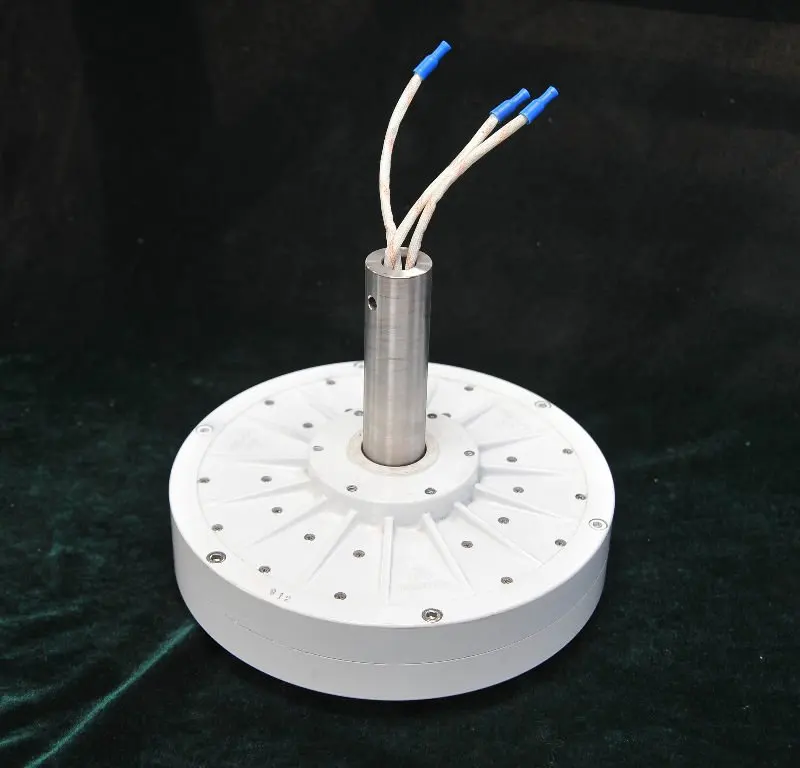

This magnet motor free energy features a unique outer rotor and coreless structure. The generator achieves noise-free rotation, together with extreme smoothness; the cogging torque that impedes rotation is not generated. The rare earth magnet generates a strong magnetic field. In addition, the multipole design can generate high voltage even at minimum rotating speeds and realize high-power output and improved efficiency in the range from low to high wind velocities.



Some Details of the wind generator

Model	TYD-350A
Internal structure	Axial type;outer rotor; iron-coreless; three-phrase AC
dimension	350mm*107mm
magnetic material	rare-earth magnet
Rated Power,Max power(W)	1000(300rpm),1800(500rpm)
Rated current,Momentary max current(A)	13,15

Non-load character (AC GENERATOR)

 Dimension



Model	A	B	C	D
TYD-350A	207	107	100	350
