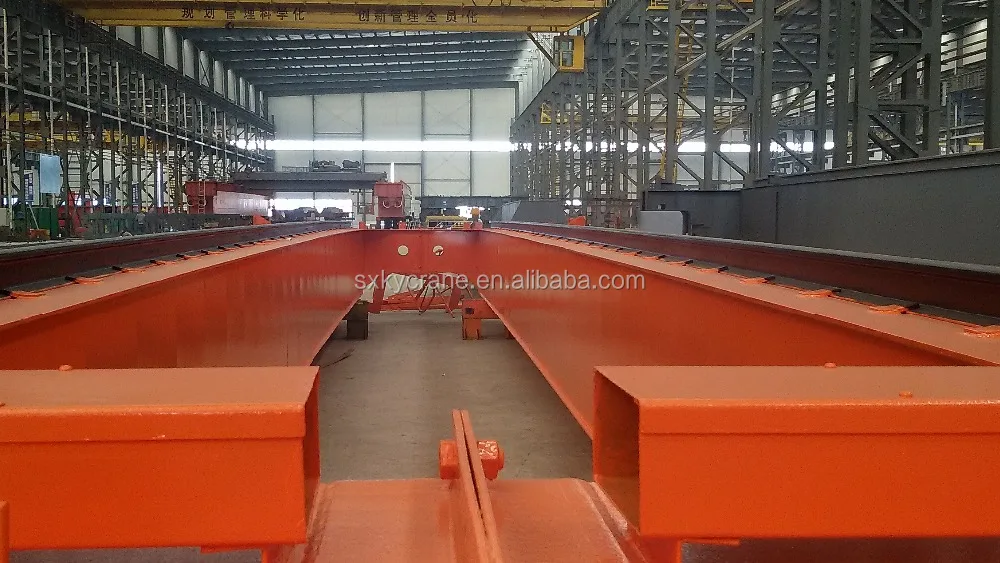

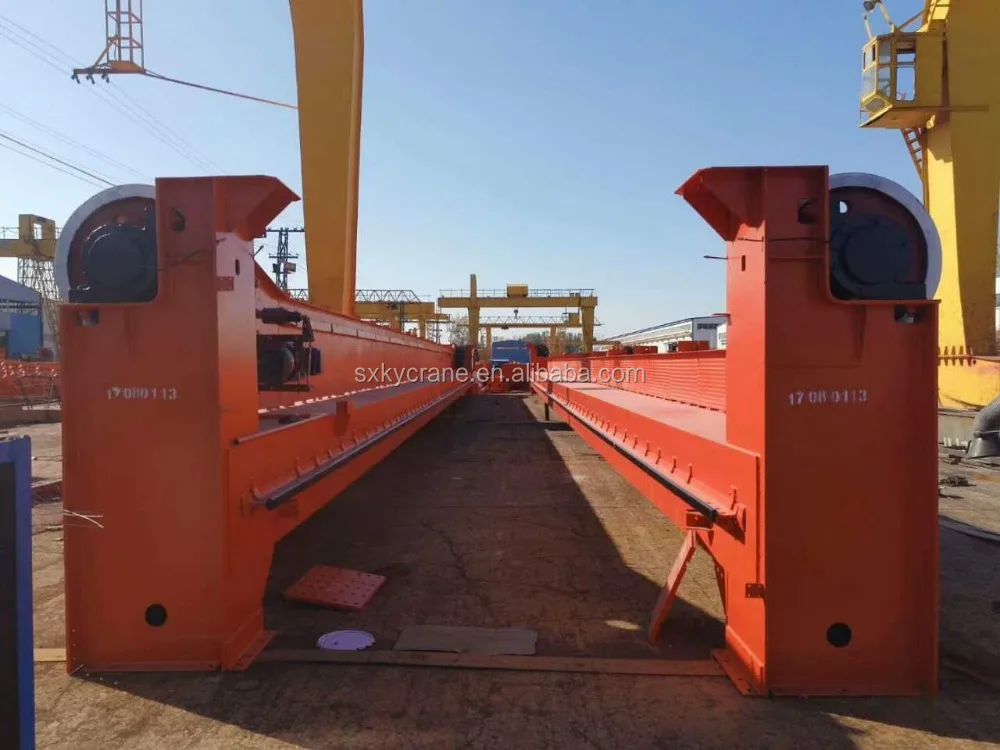

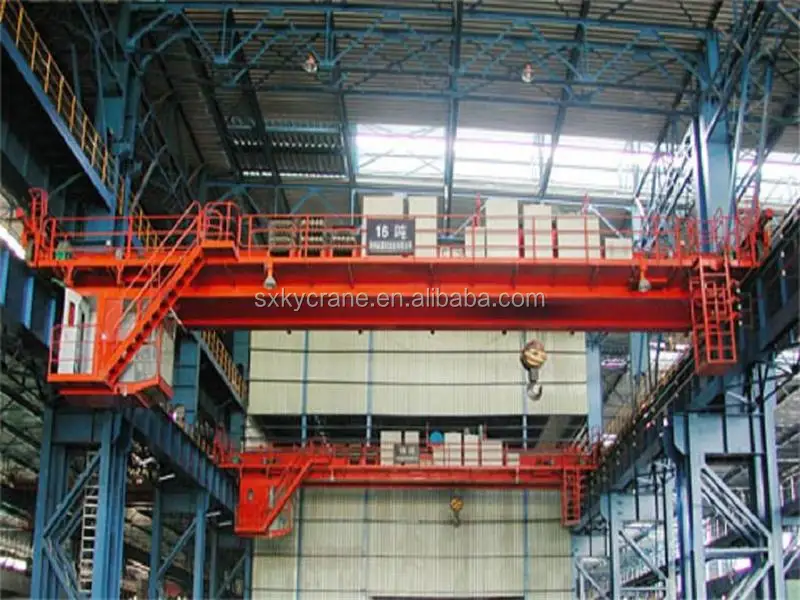

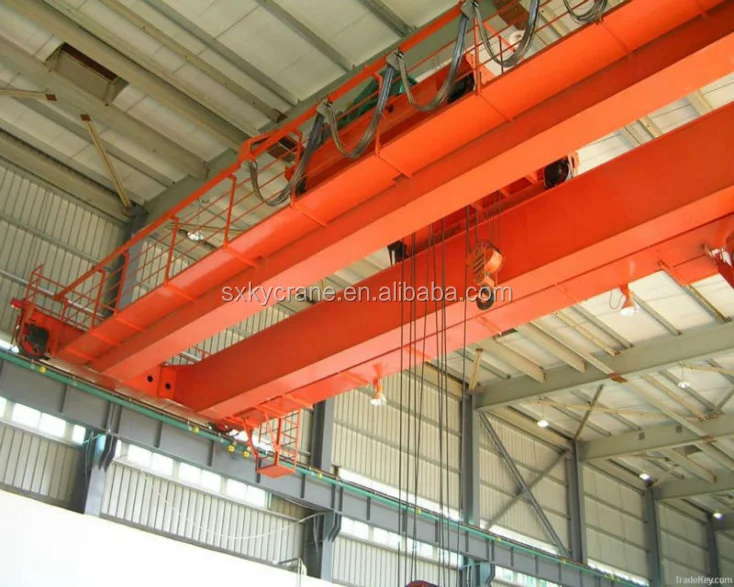

Electric Double Girder traveling mobile crane 30 ton, 35 ton, 50 ton
- Category: >>>
- Supplier: Shaanxi Keliyuan Crane Equipment Co. Ltd.
Share on (743334547):
Product Overview
Description
Product Description

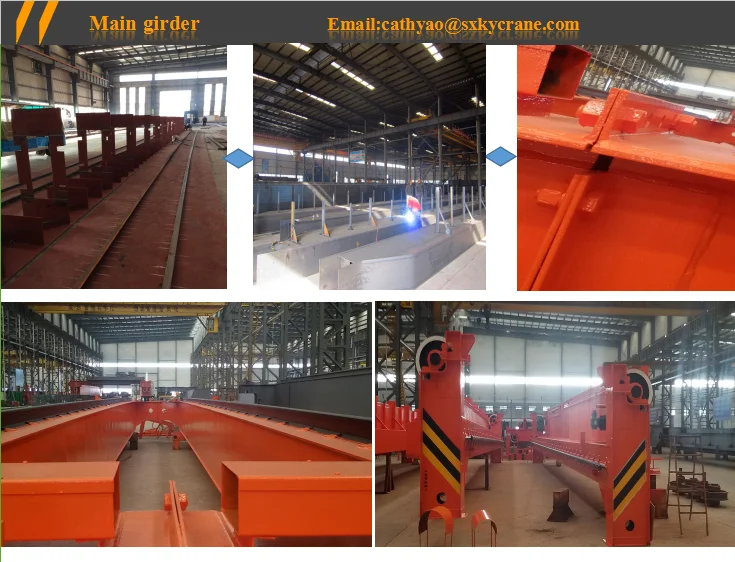

This crane is composed of main beam, end carriage, electric hoist, hoist trolley, electric power transmission device and operation room(as your demand).
Usuage: This crane is usually used indoors, such as workshop, plant, stockyard, etc. to lift goods. It is prohibited to use the equipment in the combustible, explosive or corrosive environment.
Capacity: 3~20ton
Span: 10.5~31.5m
Lifting height: 6~18m
Working class: A3
Power source: 380v 50hz 3phase(standard), can be customized.
Crane rail recommended: 24/38

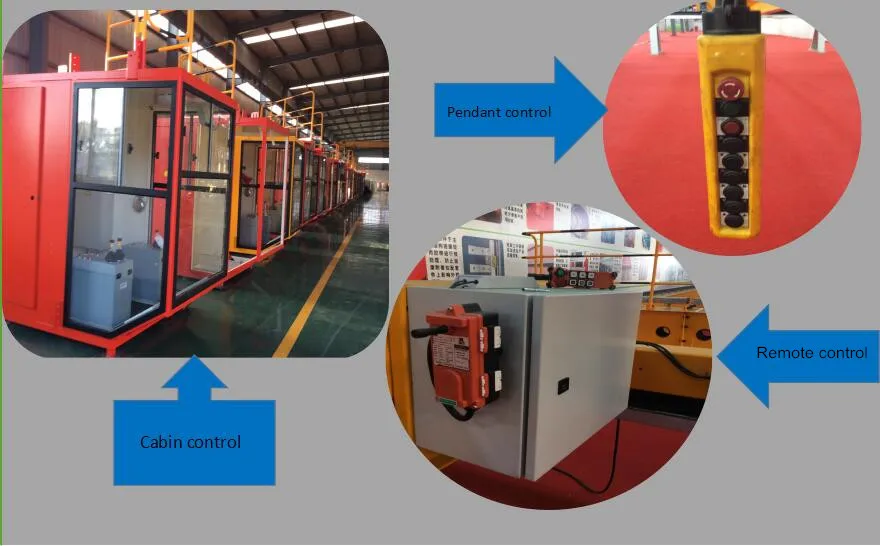

Control method: Pendent line, wireless remote control, operation room
We have rich experience for exporting the cranes to all over the word for 5 years .
Our senior engineer will design out the suiltable and workable plan . you will satisfy with our high quality and after sales service if you can give us chance to cooperate
Model number | QD- Double girder overhead crane |
Capacity(main hook) | 5~550ton |
Capacity(Aux hook) | as your requirement |
Span | 7.5m-35m |
Lifting height | 6m, 9m, 12m, 18m, 24m, 30m |

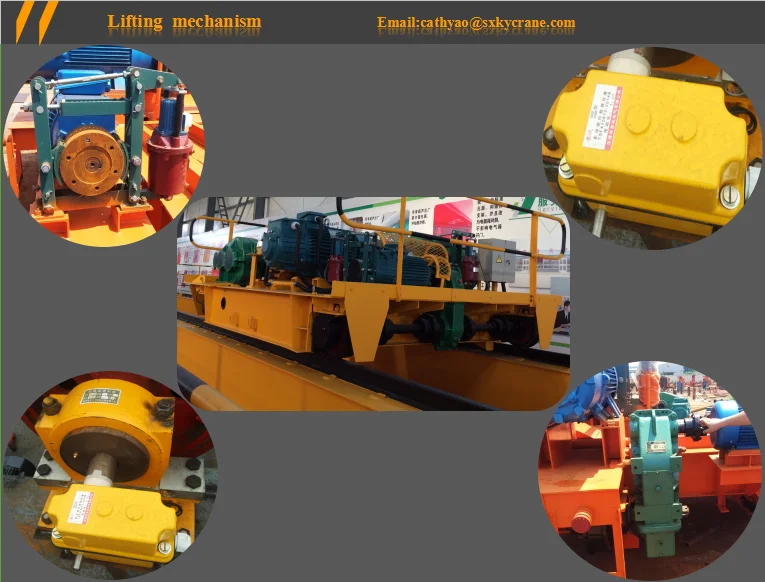

Lifting machinism | Wire rope electric trolley |
Industrial voltage | 380V,50Hz,3Phase or as your demands |
Control methods | Pendant push button, remote controller or cabin control |
Working temperature | -25°C ~ +42°C |
Working class | A5, A6, A7 |
driven machnism | main hook , auxiliary hook. crane reaveling , trolley traveling |
Color of crane | Red, yellow or as your demands |
Raw material of crane structure | Q235 steel plate |

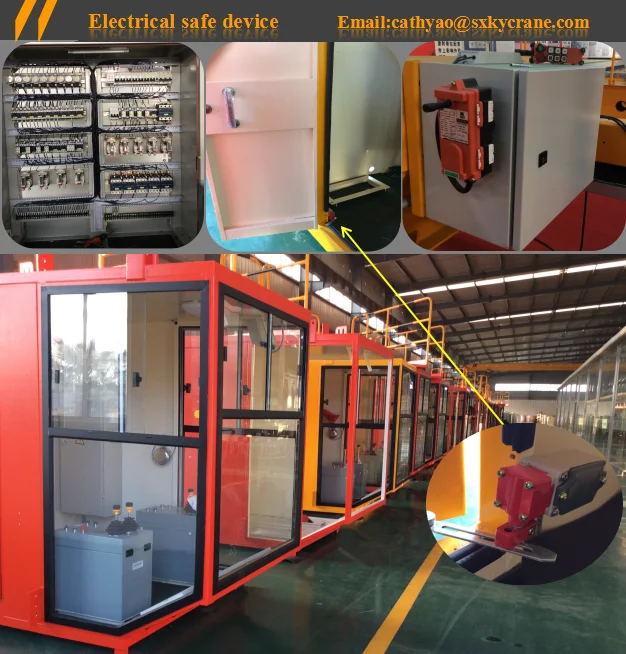

No.
| Item | No. | Item |
| 1 | Limit Switch | 1 | Short-circuit protection |
| 2 | Interlock protection device | 2 | Uner-voltage protection |
| 3 | Buffer | 3 | Zero protection |
| 4 | Rail tongs,Anchor device | 4 | Motor overhead protection |
| 5 | Rail clear plate | 5 | Emergency stop system |
| 6 | Protective cover | 6 | Current overhead protection |
| 7 | Bus bar preventer plate | 7 | Security chain protection |
| 8 | Anti-collision device | 8 | Ground protection |
| 9 | Overhead Limiter | 9 | Main isolating switch |

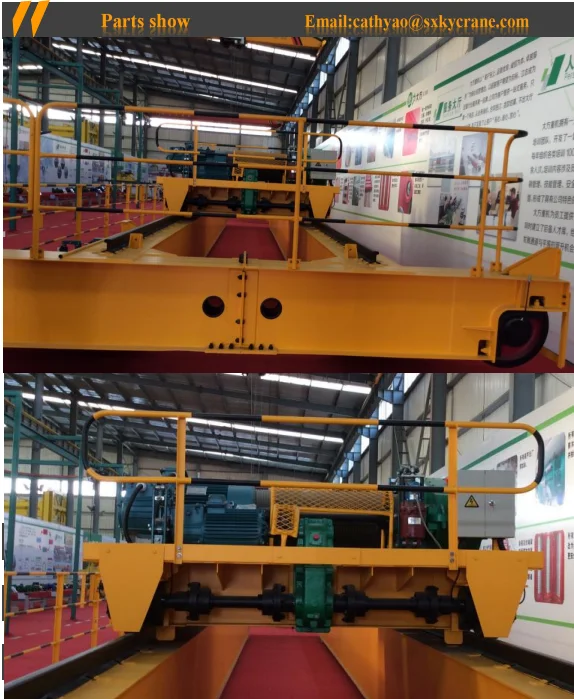

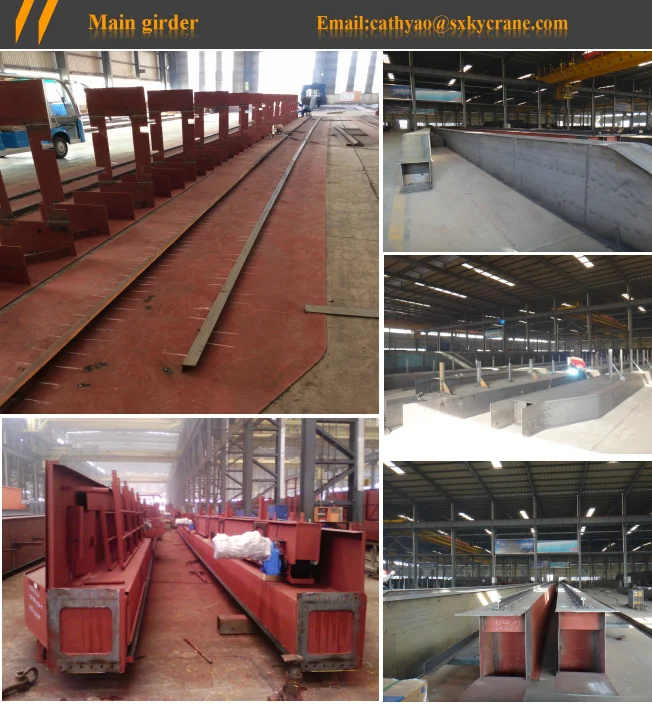

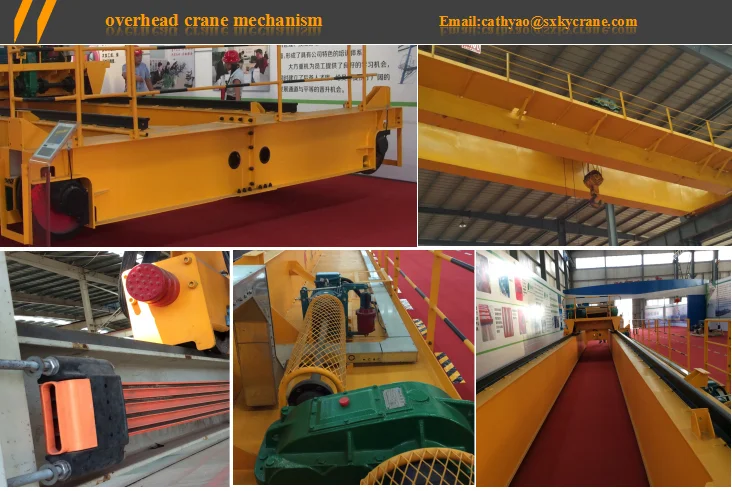

Main Parts Show
Our Services
| Delivery date | In 25 working days after received the deposit and comfirmed designs |
| Payment |
* 30% down payment through T/T within 2days after signing the contract.
* 70% balanced payment after inspection before delivery from factory by T/T
|
| Validity | 7 days |
| Warranty | 12 months after commissioning at site or 18 months after delivery, what occurs first. During this period, we will bear all repair and maintenance expenses including broken spare parts and man power if it is caused by the defects of products itself. |
| Shippment | By sea |
| 2. Installation service Our engineer to site for installation, customers need to supply the VISA,Round trip tickets, accommodation and meals for them, and pay USD$150/day for each person. | |

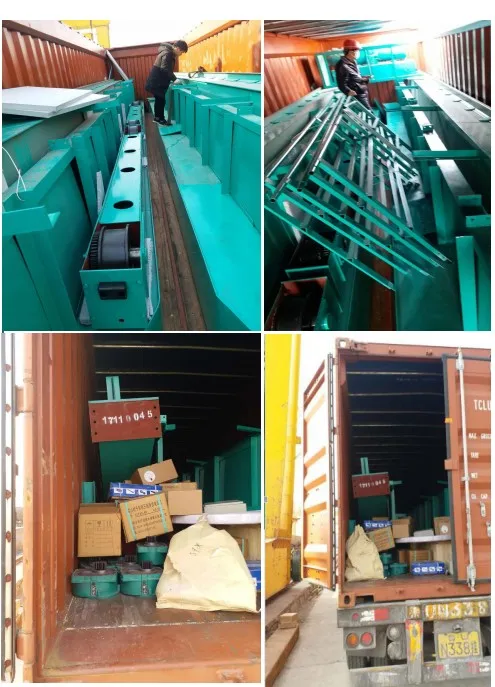

Packaging & Shipping
1. Electric parts are packed by high quality plywood crate, to reduce distortion in conveying;
2. Main beams, end beams and electric hoist are packed by plastic woven cloth. It can reduce abrasion when transport.
Shipping:
(1) If the size of whole crane are suitable for container ship, usually by container;
(2) If the size is too big, usually by bulk ship or by container after truncation;
(3) Transport ways are based on reducing cost for you and keep the crane performance.
FAQ
What information should confirm when you send inquiry.
1. Lifting capacity ?

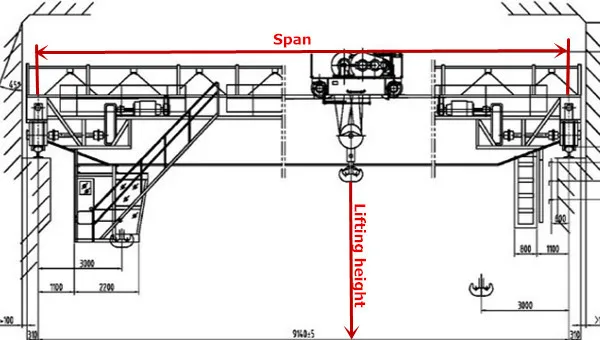

2. Lifting height ? (from the centre of the hook to the ground lever )
3. Span?
4. The crane traveling length ?
5. The working condition ________________ ?
How many hours for continuous using of the crane one day ?
6. control method : ground control , remote control or cabin control .
7. Power supply :380v 50hz 3ph is ok ?

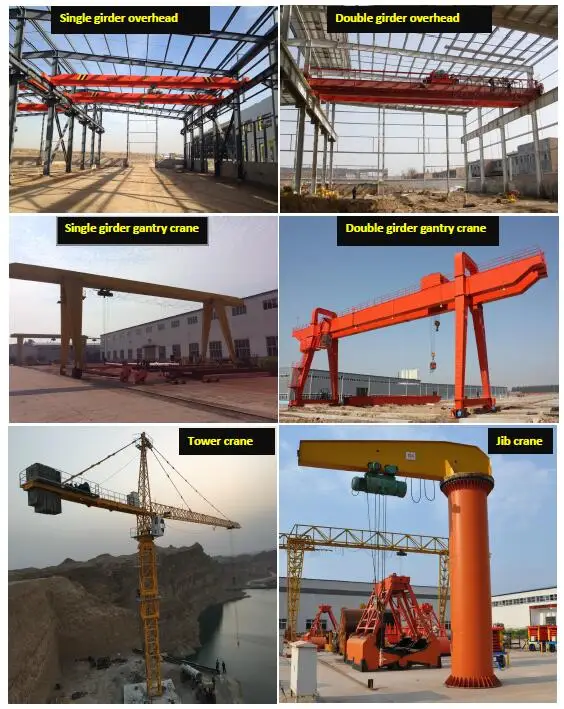

Refer products
Our addvantage :
Customizing according to every client .
Our cranes are exported to all over the world
Double girder overhead crane in Hongkong,Bangladesh,Tunisia ,Saudi Arabia,in Uzbekistan,
JIb crane project in Australia ,Hungary,Bahrain
Single girder overhead crane in USA ,India ,Kazakhstan,Malta
Lifting equipment in Pero ,Ireland,Holland ,Malta ,Singapore,Philippines,Argentina,Paskistan ,in Georgia
Cast heavy duty double bridge crane in Bangladesh . in Georgia
Crane parts in Saudi Arabia ,Indonesia,Vietnam,UAE ,
Gantry crane project in indonesia,USA, Hongkong
