ac axial fan 400mm flow fan motor for evaporator condenser of refrigeration 220v/60hz

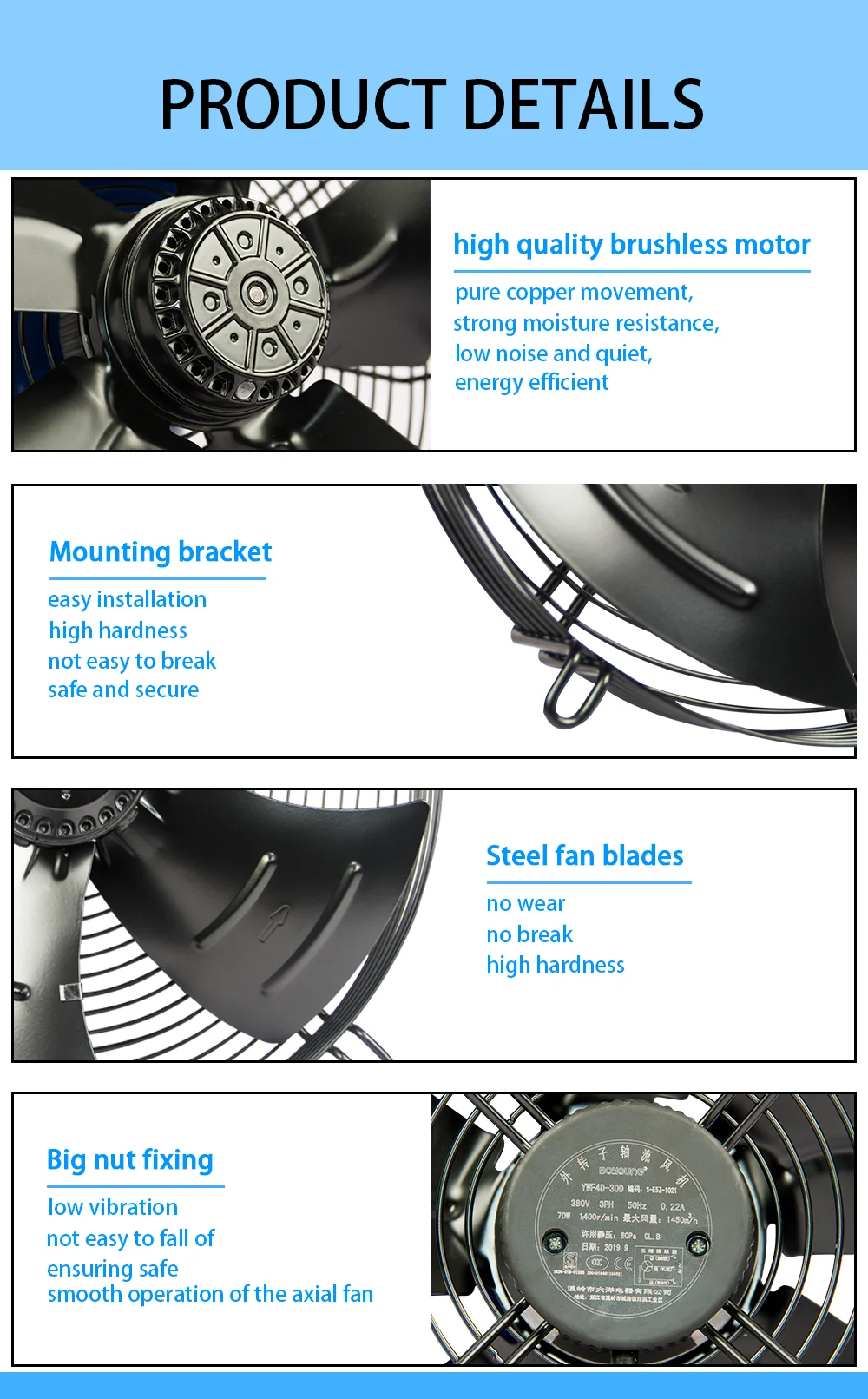

Product Overview

Description

ac axial fan 400mm flow fan motor for evaporator condenser of refrigeration 220v/60hz

1.The insulation grade ambient temperature:-25°C~+60°C, if the temperature range exceed the above, our factory can be customized according to customer requirements.

2.The insulation grade of currently supplied fan is B-class, F-class and H-class, the protection class is IP54. At present, we can also supply the fan of working environment temperature:-40°C~+60°C and -25°C~+80°C. All fans can install thermal protection in them. Our factory will put the IP56 external rotor motor with new structure soon, and this structure has got national patent. It can apply to the high humidity and bad environment.

3.Fans have single-phase capacitor running and three-phase asynchronous running. Single-phase motor has 220V/50HZ and 220V/60HZ. Three-phase motor has 380V/50HZ and 380V/60HZ. At the same time can provide customers with motors of the special requirements: special voltage, dual voltage and so on.

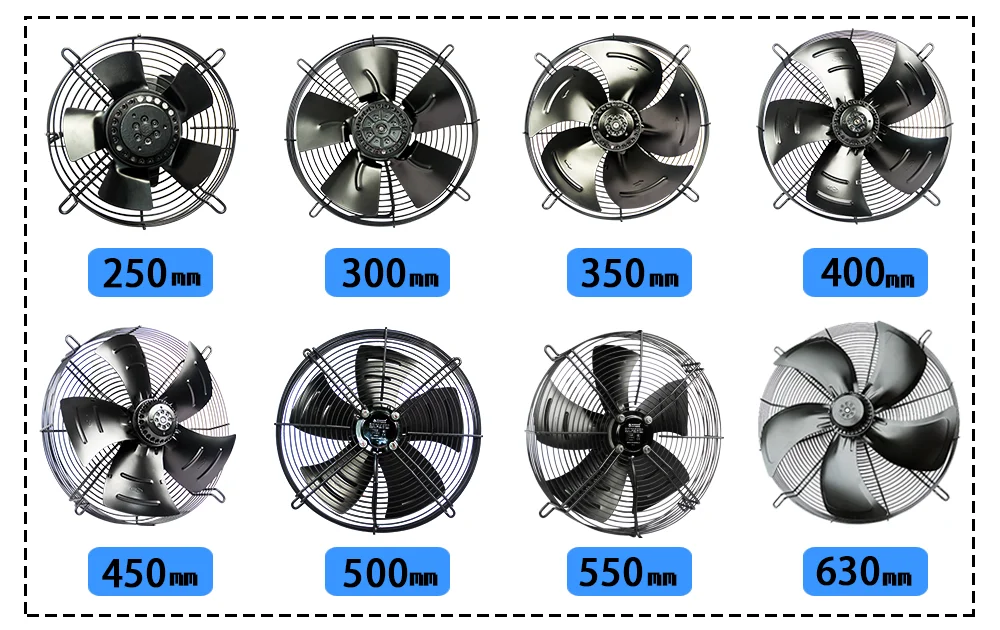

Technical data about 400mm diameter series ac axial fan



Model	Voltage	Frequency	Current	Input power	Speed	Air Volume	Static pressure	Noise	N.W.
	V	Hz	A	W	r/min	m³/h	Pa	dB	KG
YWF4E-400	220	50	1	240	1370	3806	100	75	5.2
	230	60	1.47	350	1580	4540	90	70
YWF4D-400	380	50	0.52	230	1350	4015	100	68
	400	60	0.7	330	1570	4400	105	70



Ac axial fan are extensively applied to all kinds of refrigeration equipment, ventilation, air conditioner and heating and ventilation industries, equipment heat dissipation,medical, communication and other instrumentation equipment.

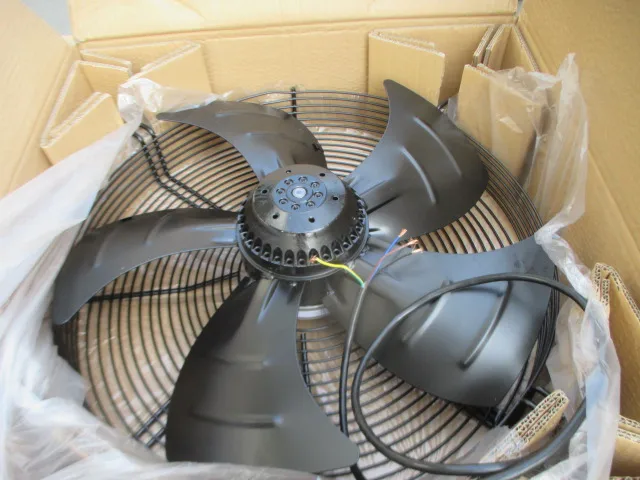

Product packaging

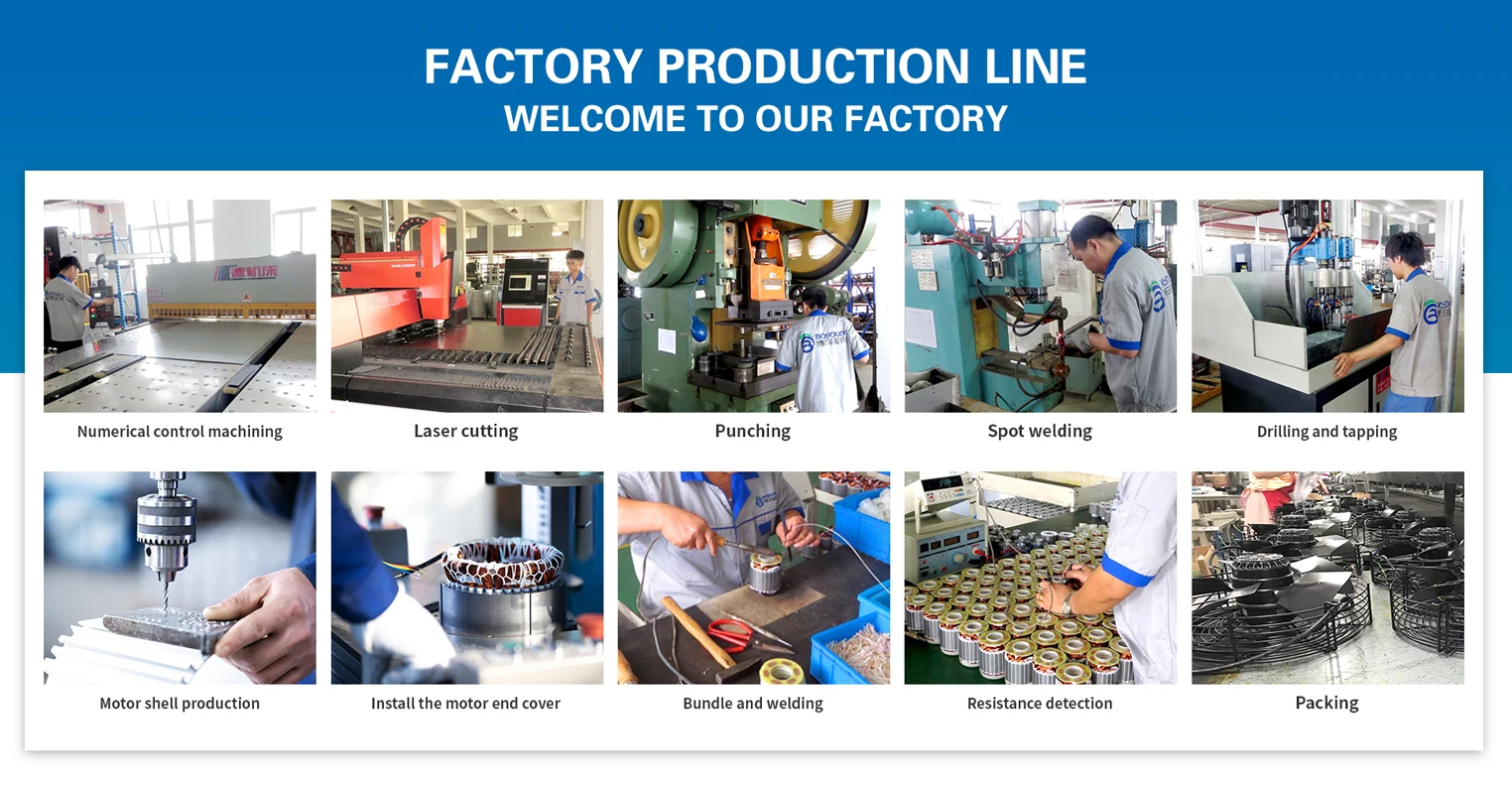

Details about our factory:
