Metal processing high sensitivity torch height control Flame/plasma Auto THC
- Category: >>>
- Supplier: Beijing Seigniory NC Equipment Co. Ltd.
Share on (744859933):
Product Overview
Description

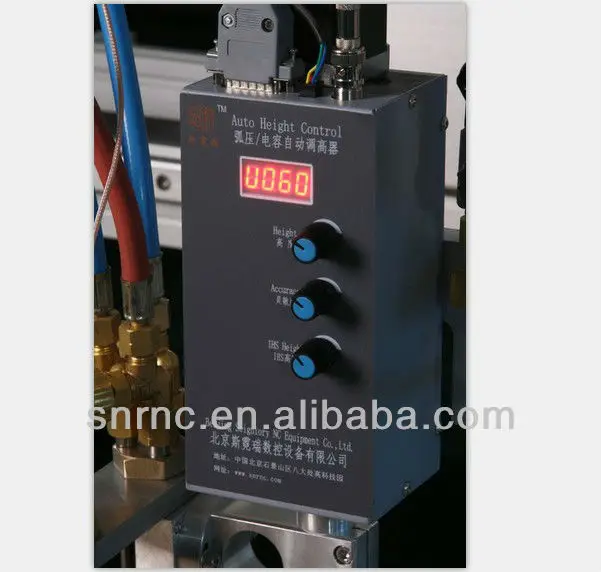

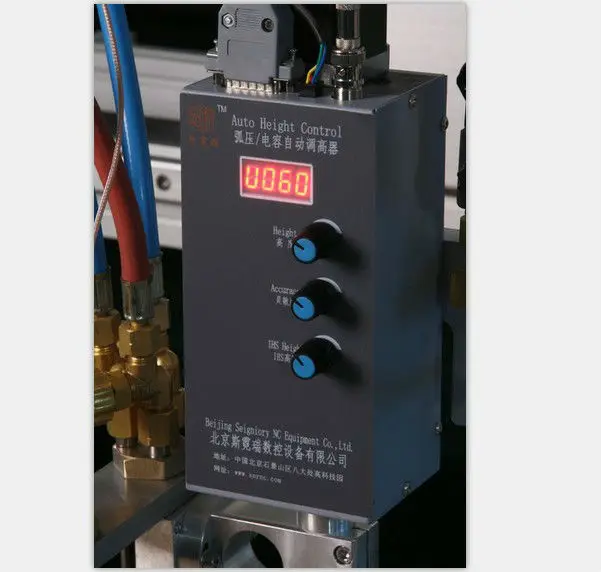

SF-HC30A,automatic torch height control ,supports flame and plasma, high sensitivity,mechanical lifters and height control in one center.
Parameter
| Model | SF-HC30A |
| Power Supply | DC 24V 3A |
| Motor | 17hs(42)series step motor |
| Hand adjustment range | 0-100 mm |
| Automatic control range | 3-30 mm |
| Control Precision | +-0.5 mm |
| Max Power | 100W |
| Detect System | Capacitance height detector,arc height detector |
| Weight | 3 kg |

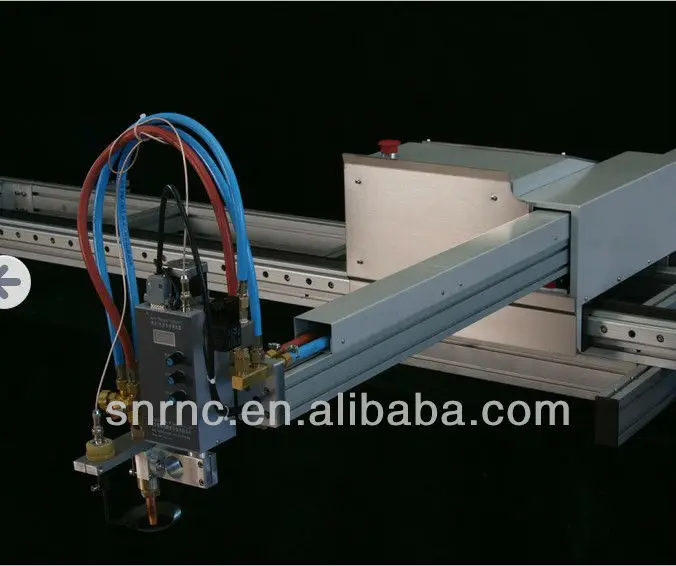

It can be used for cutting any shape that consists of arc and straight lines
Effective cutting thickness: Flame cutting 6-15mm; Plasma cutting 0.1-50mm (depend on the plasma power)
Precision: National standard JB/T 10045.3-99
Speed: Flame cutting 0-1000mm/min unload > 8m; Plasma cutting 0-4000mm/min unload > 8m
Not occupy fixed place.
