Product Overview

Description

Mainstay MIG200 Buy Welding Wire and MIG Welder Mig Tig Welder Welding Machine Mig


Mianstay co2 mig welding machine extends Chinese most advance range of MIG/MMA welding systems into thin and medium applications,very useful for stainless steel and aluminum welding,200,250 and 500 amps for heavy duty works.System designed to weld at costs far lower than conventional methods,more efficient with better economy.



Model:MIG200/250/350/500





Features:

1.The waveform control technology,good forming,small spatter.

2.The high frequency inversion,small volume,light weight,energy saving.

3.Slow wire arc starting, easy arc starting, high success rate.

4.Has the cut function when receiving arc,high welding melt spreading rate,adjustable electric current voltage,wide applicable scope.

5.The welding source suits weilding operation under an electric shock risk big environment.

6.When input network voltage fluctuation and electronic arc length change,the electric current to be highly steady, the strong ability to adjust electric arc,the electric arc is gentle.

Applications:

The MIG200 CO2 mig welding machine are widely used in all kind low carbon steel,low alloy steel gas shield welding.

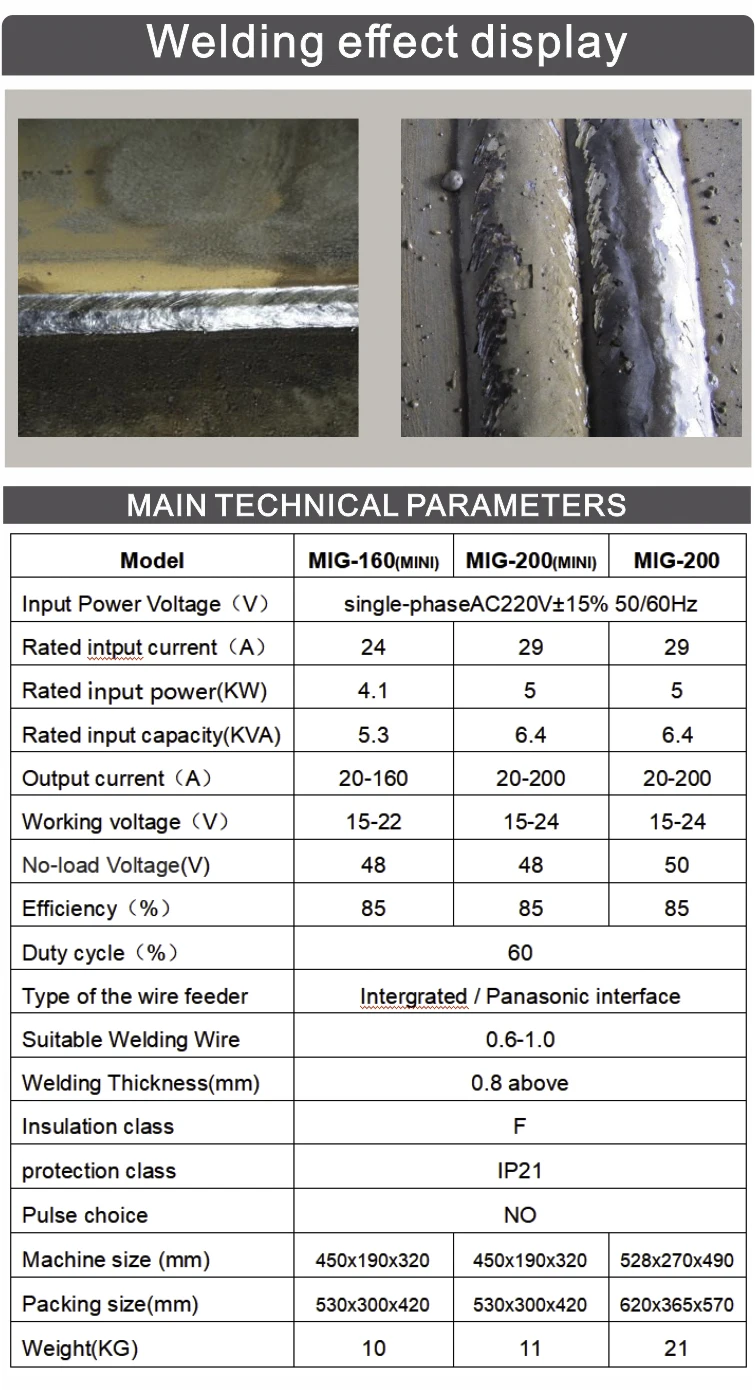

Techincal Specs:

Model	MIG-200
Supply voltage	AC220V±10% 1ph 50/60Hz
Rated input current	25A
Rated output voltage	15-26V
Output current adjustment	50-200A
Wire feed speed	3-13m/min
Duty cycle	60%
Efficiency	85%
Insulation grade	B
Outer covering protection rank	IP21
Power factor	0.93
Weight	20kg
Outlook dimension	528x270x490mm
No-load loss	40w
welding wire scope	0.6-0.8mm

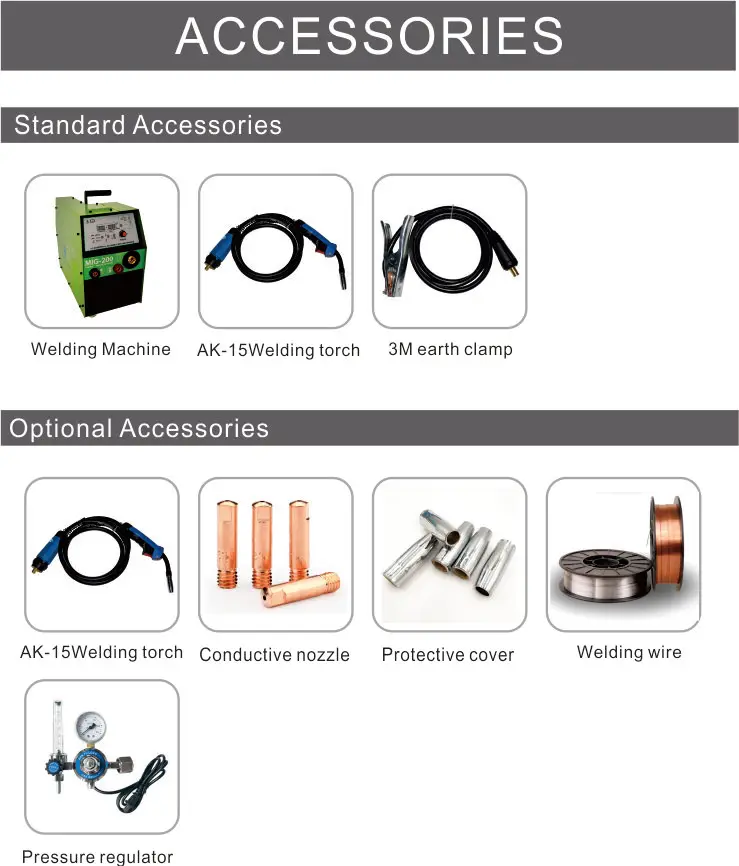

Standard accessores:

AK15AK 3M Welding Torch , 2M Earth clamp ,
