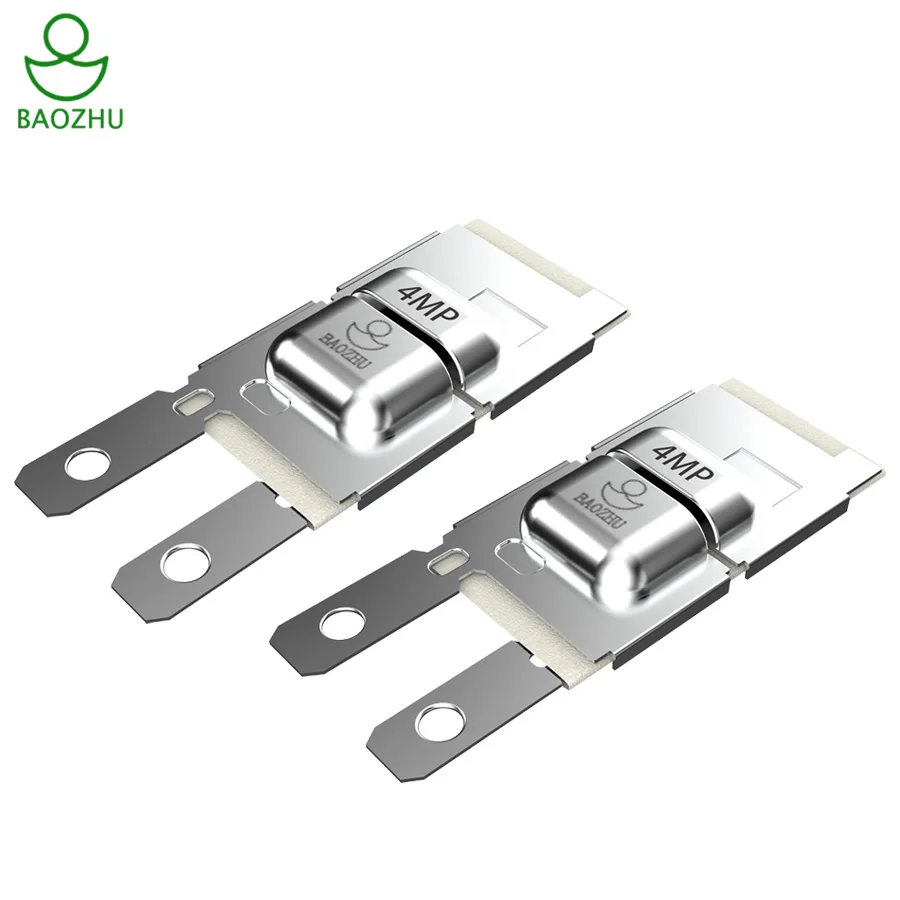

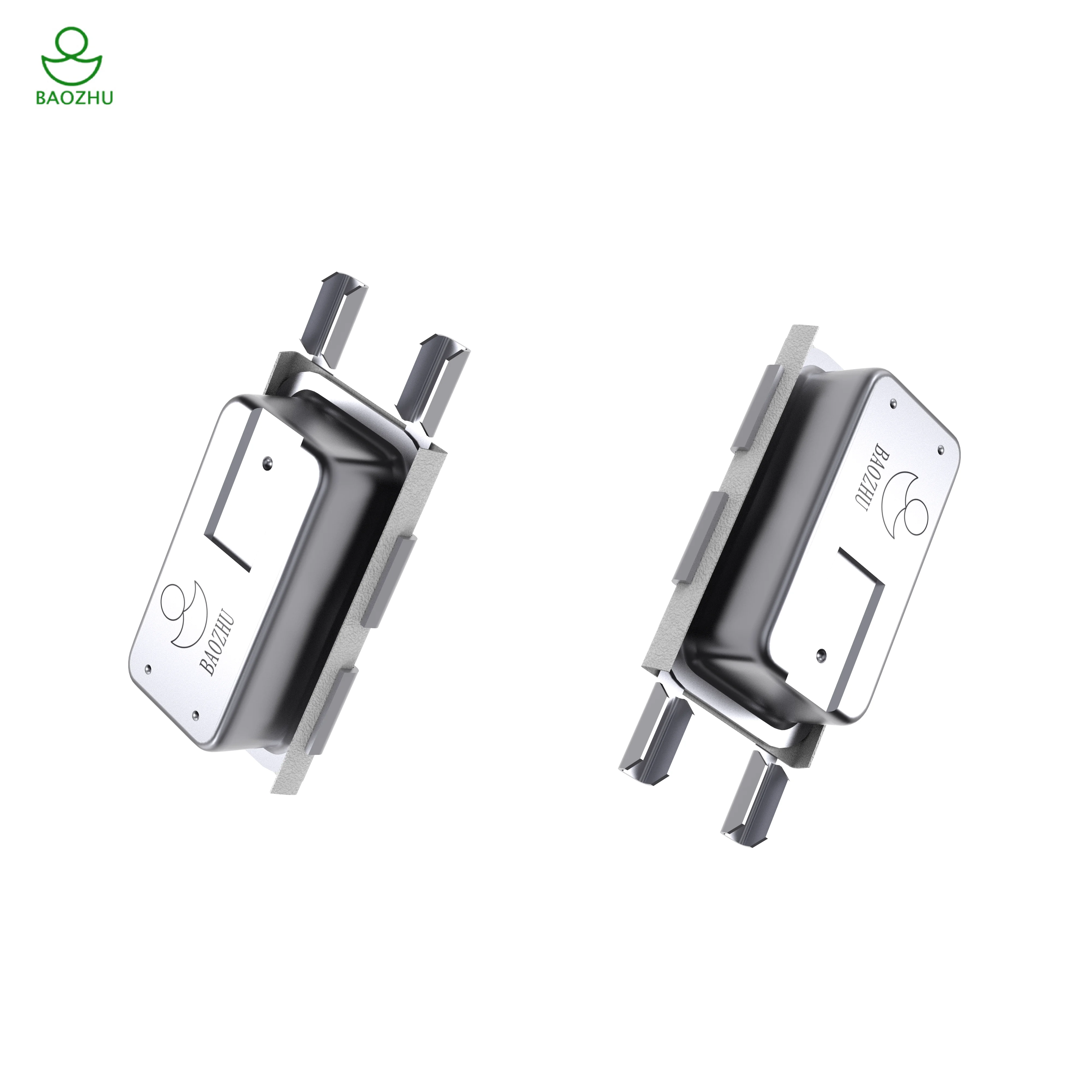

5AP series bimetal thermostat for motors household appliance instead of CD and klixon and KW

AGENCY

FILE NUMBER

STANDARD NUMBER

APPLICATION

UL

E305764

873

Motor protection

VDE

40016121

EN60730-2-2

Motor protection

TUV

R50109800

EN60730-2-3

Lighting Protection

TUV

R50110965

EN60730-2-9

Thermal cut-out

CB

CN5785

IEN60730-2-2

Motor protection

CQC

CQC05002013372

GB14536.1 GB14536.3

Motor protection Limit and regulating controls

MODEL

L(mm)

W(mm)

H(mm)

LEAD WIRE

5AP

18.7

5.8.0

2.9

3321--AWG18#3135--AWG18# or Nickel strip normally.length is 70mm or according to customer'srequire

3MP

23

9.3

3.6

VOLTAGE

CURRENT

12 VDC

20 amperes

24 VDC

10amperes

125 VAC

20 amperes

250 VAC

20 amperes

CODE

OPEN TEMP

RESET TEMP

CODE

OPEN TEMP

RESET TEMP

30

30±3.5°C

≥20°C

95

95±5°C

70±15°C

35

35±4°C

≥25°C

100

100±5°C

70±15°C

40

40±4.5°C

≥30°C

105

105±5°C

75±15°C

45

45±5°C

≥33°C

110

110±5°C

75±15°C

50

50±5°C

≥35°C

115

115±5°C

80±15°C

55

55±5°C

42±6°C

120

120±5°C

85±15°C

60

60±5°C

45±8°C

125

125±5°C

85±15°C

65

65±5°C

48±10°C

130

130±5°C

90±15°C

70

70±5°C

50±12°C

135

135±5°C

95±15°C

75

75±5°C

53±14°C

140

140±5°C

100±15°C

80

80±5°C

55±15°C

145

145±5°C

100±15°C

85

85±5°C

60±15°C

150

150±5°C

105±15°C

90

90±5°C

65±15°C

155

155±5°C

110±15°C
