Porous ceramic filter element for TDS reduction

Product Overview

Description

  Porous ceramic filter pipe for TDS reduction

1:General Material Description:

Corundum filter element is a porous filter ceramic composed of corundum grains (α-Al₂O₃) sintered by a alumosiliceous bond. Main components are splintery, dense electro-corundum grains that build a finefiltering ceramic structure with very narrow pore size distribution. The special feature of this filter media is its highly porous structure with its large internal surface area. Therefore it is suitable especially for depth filtration applications.This filter elements are successfully used for the filtration of liquids and gases.



2:Physical Properties:

Corundum filter element

	Unit
Filtration fineness	μm	1-100
Porosity	%	33-50
Material density	g/cm³	1.8
Bending strength	Mpa	20-80
Max. temperature resistance1	oC	900
Operating pressure	Mpa	-0.1-8
Expansion coefficient(25-800 oC)	10-6/K	8.5
1Depending on operating conditions



3:Chemical Resistance:

It’s resistant against most acids, saline solutions and organic solvents, liquid or gas covering the complete acid,neutral and alkali range up to pH 11,exept hydrofluoric acid and fully desalted water.



 (As end use conditions can vary,it is the users’ responsibility to verify compatibility with their specific use conditions.)





4:Standard Dimensions



Type	Item No.	Do/Di (mm)	Length (mm)	Area (m²)		Weight (kg)

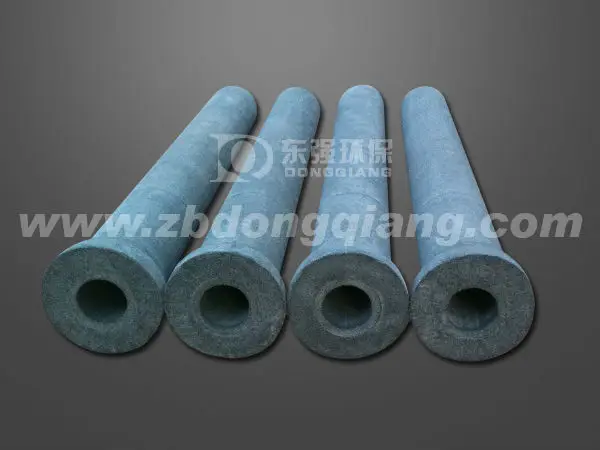

Flanged Candle	DQCRFC-1	60/40	1000	0.18		3.0
Flanged Candle	DQCRFC-2	110/80	1000	0.34		8.3
Flanged Candle	DQCRFC-3	60/40	500	0.09		1.6
Flanged Candle	DQCRFC-4	110/80	500	0.17		4.3

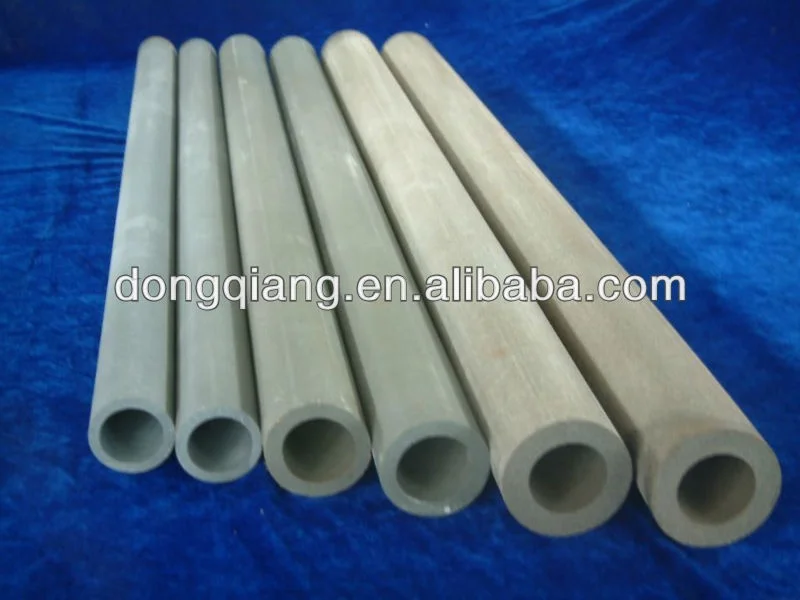

Cylinder	DQCRCL-1	60/40	1000	0.18		2.8
Cylinder	DQCRCL-2	110/80	1000	0.34		8.0
Cylinder	DQCRCL-3	60/40	500		0.09		1.4
Cylinder	DQCRCL-4	110/80	500		0.17		4.0
Plate	DQCRPL	< 500×500×30mm ; < Ø400×30mm
Special dimensions and special products on request.



5:Applications:

Filtration of liquids and gases.

e.g.

a:Filtration of various kinds of chemical fluids and chemical products:e.g.calcium chloride,Soduim Acetate,ammonia water,Caustic soda,concentrated sulphuric acid,aluminium hydroxide;

b:Filtration of catalyst and decoloration liquids of activated charcoal in pharmacy and chemical industry;

c: Filtration of water treatment,e.g. industrial waste water,industrial circulation cooling water,high purity process water;

d: Filtration of gases:e.g. compressed gas from air compressor,high pressure sterile air,steam,catalysis air of petrochemical industry,separation of acid mist,high temperature dusty gas in environmental protection industry;

e:Filtration of fertilizer industry,e.g.mixed gas filtration for HNO3 synthesis;methane,sludge gas,bio gas;

f: Filtration of sands from various kinds of medium:e.g. extracting oil,pumping water from the well;





Note:As end use conditions can vary,it is the users’ responsibility to verify compatibility with their specific use conditions.
