5KW permanent magnet alternator for vertical wind turbine

Product Overview

Description

 5KW permanent magnet alternator for vertical wind turbine













Features-TOYODA outer rotor coreless multipole generator



This generator features a unique outer rotor and coreless structure. The generator achieves noise-free rotation, together with extreme smoothness; the cogging torque than impedes rotation is not generated. The rare earth magnet generates a strong magnetic field. In addition, the multipole design can generate high voltage even at minimum rotating speeds and realize high-power output and improved efficiency in the range from low to high wind velocities.



Gear-free direct drive mechanism.



Unique reinforced structure of flange ensures wind resistant ability strong and a good resistance to corrosion.



This generator features an outer rotor structure, and the armature windings do not use the silicon steel sheet. so the genenerator starts without reluctance torque, which can reduce the start-up wind speed of the wind turbine.







Some Details of the wind generator



Model	TYD250-300	TYD350-1000	TYD450-2000	TYD450-3000	TYD600-5000	TYD600-10000
Rated Power(W)	300	1000	2000	3000	5000	100000
Rated Current(A)	5.1	10.1	8.3	11.3	14.1	19.6
Rated Voltage(V)	61.0	101.2	250.3	271.3	373.0	531.2
Start Torque(N.M)	0.2	0.5	1.0	1.5	1.5	2.0
Internal Structure	Axial Type; Outer Rotor; Iron-Coreless; Three-Phrase AC	Axial Type; Outer Rotor; Iron-Coreless; Three-Phrase AC	Axial Type; Outer Rotor; Iron-Coreless; Three-Phrase AC	Axial Type; Outer Rotor; Iron-Coreless; Three-Phrase AC	Axial Type; Outer Rotor; Iron-Coreless; Three-Phrase AC	Axial Type; Outer Rotor; Iron-Coreless; Three-Phrase AC
Dimensions (Mm)	250*185	350*210	45*328	613*340	613*350	613*350
Magnetic Material	Rare-Earth Magnet	Rare-Earth Magnet	Rare-Earth Magnet	Rare-Earth Magnet	Rare-Earth Magnet	Rare-Earth Magnet



If you have any question, please contact with us.

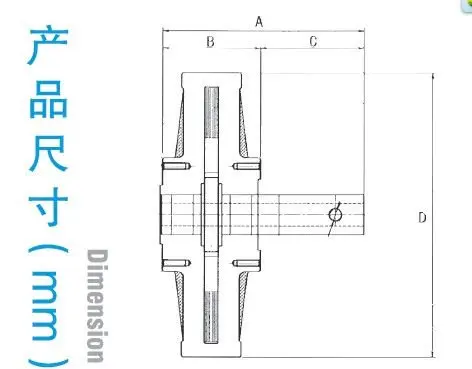

Model	A	B	C	D
TYD250-300	196	84	112	254
TYD350-1000	223	102	121	350
TYD450-2000	299	112	187	452
TYD450-3000	299	112	187	452
TYD600-5000	354	194	160	613
TYD600-10000	354	194	160	613
