Plastic Extrusion Machine

Product Overview

Description

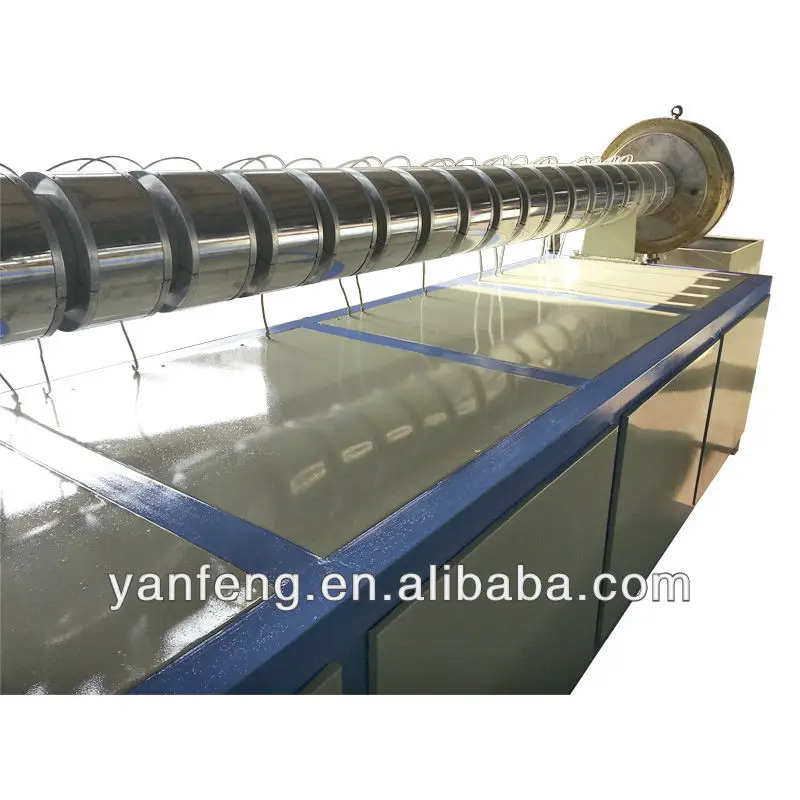

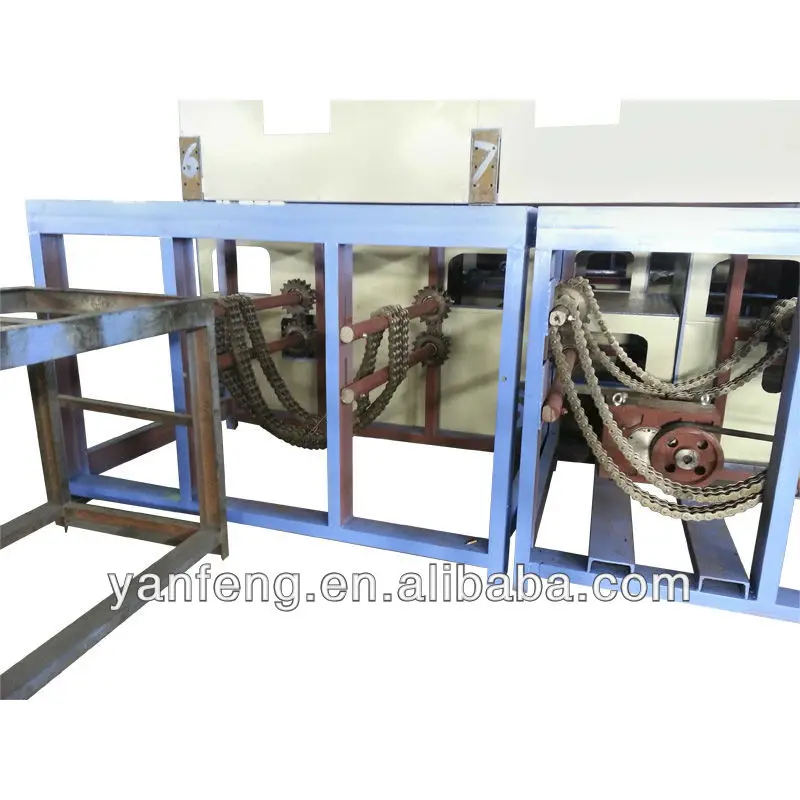

Plastic Extrusion Machine



1. Model of Plastic Extrusion Machine:

SJ-FS110/800B



2. More Information for Plastic Extrusion Machine:



The machine, using material of polypropylene and high density polyethylene, through heating, extruding and drawing, makes tape that is then winded for the weaving of the circular loom.

Having been improved so many times, the machine can use 100% recycled PP and PE granules or powder to produce yarn.



3. Main Technical Parameters for Plastic Extrusion Machine:



Model No.	SJ-FS110/800B
Diameter of Screw(mm)	110
L/D ratio of Screw	23:1
Rotational Speed of Screw (r/min)	25-75
Width of Die (mm)	800
Motor Power of Extruder (kw)	30
Heating Power of Extruder (kw)	36
Power of Driving Motor (kw)	7.5
Heating Power of the Oven (kw)	15
Drawing Rate	4-8
Thickness of Tape (mm)	0.025-0.08
Production Capacity(kg/h)	50-100
Linear Speed(m/min)	80-200
Approx. Weight(kg)	6500
Installing Dimensions (L×W×H) (mm)	13300×1500×2000





4. Pictures for Other Types of Machines:

5. Certificate for Our Machines:

6. Factory Show:

7. The Package for Plastic Extrusion Machine:

Packed in nude or wooden case



8. The Payment for Plastic Extrusion Machine:

a. We accept T/T and L/C

b.The lead time is 30-45 days after we receive the advance.

c.The warranty time is 12 months
