high quality wholesale price cookie capping machine for sale
- Category: >>>
- Supplier: Beijing Yinrich Technology Developing Co. Ltd.
Share on (748791132):
Product Overview
Description
Products Description

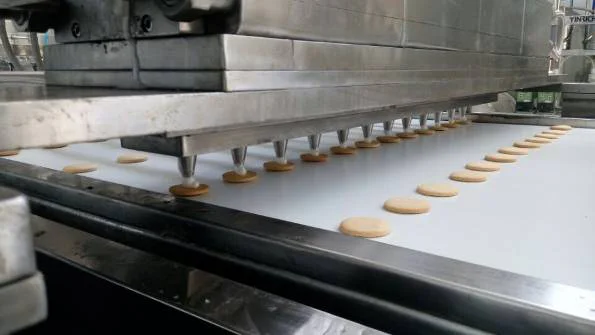

The compact design of our under band depositor enables easy installation and assembly between the baking and return oven bandsurfaces. The depositor combines horizontal and vertical motion available for the depositing manifolds.
Powerful servo motors ensure high speed capability, accuracy and repeatability paramount for the dedicated production line.Biscuit indexing and synchronizing control system in operation prior to a PRESSURISED depositing manifold designed for depositingmarshmallow, cream, caramel ,and etc. onto the continuous moving rows of biscuits.
Powerful servo motors ensure high speed capability, accuracy and repeatability paramount for the dedicated production line.Biscuit indexing and synchronizing control system in operation prior to a PRESSURISED depositing manifold designed for depositingmarshmallow, cream, caramel ,and etc. onto the continuous moving rows of biscuits.
Model | JXJ1000 |
Working capacity pcs/h | 14400~21600 |
Dia. Of deposited product mm | 43 |
Depositing speed | 20~30strokes/min |
Steam consumption kg/h | 250 |
Steam pressure MPa | 0.2~0.6 |
Electric power needed | Appro.40kW/440V(220V) |
Compressed air consumption | 1.5mP3P/min |
Compressed air pressure | 0.6-0.8MPa |
Room temperature(℃) | 20~25 |
Humidity (%) | 45~55 |
Gross weight kgs | 15000 |
Procedure:
1) In the pre-mixer, all the ingredients（sugar ,liquid glucose, gelatin, water, and etc..） to be dissolved and cooked. (An automatic YINRICH ‘s AWS-HOTMIX can be used for auto weighing and mixing.). Then the basic slurry is continuously pumped to a cooker till the final moisture level is reached.
2) After cooking, the slurry will be cooled and mixed with a separate whipping agent solution.
3) Then the cooled “marshmallow base” is passed through the continuous aerator.
4) The product then be transferred to the depositor.

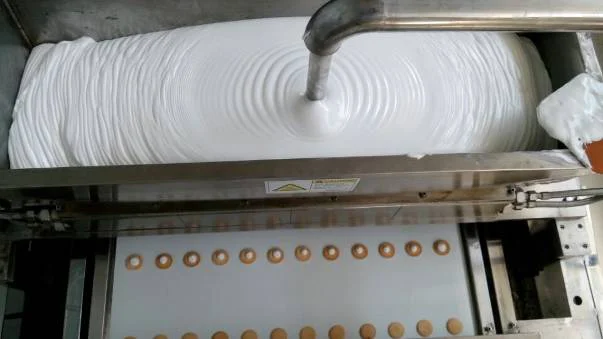

5) The marshmallow is deposited onto continuously moving rows of the 1st layer biscuits . A plain or center-filled marshmallow products can be done via different manifolds;

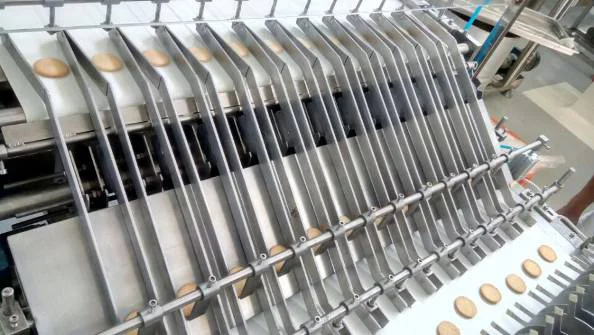

6) Then the 2nd biscuit will be put onto the top of the marshmallow to make a sandwiched cookies with a filling of marshmallow in the middle.
2) After cooking, the slurry will be cooled and mixed with a separate whipping agent solution.
3) Then the cooled “marshmallow base” is passed through the continuous aerator.
4) The product then be transferred to the depositor.
5) The marshmallow is deposited onto continuously moving rows of the 1st layer biscuits . A plain or center-filled marshmallow products can be done via different manifolds;
6) Then the 2nd biscuit will be put onto the top of the marshmallow to make a sandwiched cookies with a filling of marshmallow in the middle.
