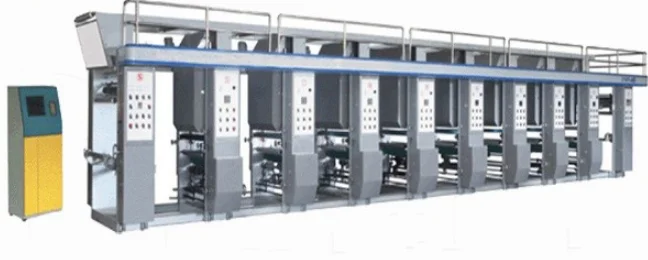

moderate speed computer middle rail gravure machine/Gravure printing machine/Film printing machine

It is suitable for BOPP, PET, CPP, PVCD and the combined film and paper with the same properties. Its printing speed is 80m/min,while the machinery speed is 100m/min.

1. Main transmission device: The main transmission device adopts electrician converter of Panasonic to control the electric machine, transferring each group of printing blocks. It has the performance: of electric saving.

2. Axial plate-loading mechanism: plate roller shaft unit, the horizontal adjustment adopts the movement of screw.Performance: assure the boards to be concentric, improving the quality of product.

3. Structure of ink scrapper: On height and parallelism, blade can be reached to any height and angle. Performance: lengthen the service of the blocks.

4. Impression lift structure: Impression adopts dial air cylinder to Impress through lifting.Performances: Assure the average of pressure and chromatic abacration.

5. Chromaticmechanical handles: They adopt computer to control,synchronic electric machine to transfer the ball thread bar to adjust the chromatography through to register color automatically.

6. Material-Collecting and Feeding Device: The Material collecting and Feeding stand adopts dual scaffoldtocollectthematerialswithtwohands.While thematerial adopts magnetic automatic extension controller. The material-collecting device adopts momentelectric extension controller. The material collecting device adopts moment electric machine to controller. Performance: Reduce the waste materials and lower the cost.

7. Dry and cool device: The oven adopts contrifugal blower to blow and make suction. With electrical heating tubes used for oven heating, temperature is controlled with intelligent thermal instrument, upper device of oven is cooled to ensure film cooling. The temperature is controlled by intelligent.

Model

RYZAE-800

RYZAE-1100

Printing width

800mm

1100mm

Printing speed

80-100m/min

80-100m/min

Print cyl. Dia.

φ100-350mm

φ100-350mm

Web Dia.

φ600mm

φ600mm

Print cyl. cross adjustable

30mm

30mm

Print cyl. Longtudinal adjustable

100(degree)

100(degree)

Registering accuracy

±0.12mm

±0.12mm

Total power

40KW

55KW

Weight

8500kg

9500kg

Overall dimensions (L×W×H) mm

9000×2400×2550

9000×2600×2550
