Product Overview

Description

AQUAFINE
REPLACEMENT LAMPS
Aquafine #	Description	UVDR #
3084	G36T5L/C  30" 254nm DE Single pin	1152
3087	G36T5VH/C  30" 185nm DE Single pin	1162
17491	G36T5L/CB 0J6  30" 254nm SE 2 pin	1154
17495/18977-3	G36T5VH/CB 0J6  30" 185nm SE 2 pin	1164
16676	G36T5L/C Validated 30" 254nm DE Single pin	16676
16678	G36T5VH/C Validated 30" 185nm DE Single pin	16678
18059	G36T5L/CB 0J6 Validated 30" 254nm SE 2 pin	18059
18062	G36T5VH/CB 0J6 Validated 30" 185nm SE 2 pin	18062
3098	G64T5L/C  60" 254nm DE Single pin	1179
3095	G64T5VH  60" 185nm DE Single pin	1182
17998	G64T5L/CB 0J6  60" 254nm SE 2 pin	1174
17498/18977-4	G64T5VH/CB 0J6  60" 185nm SE 2 pin	1184
16677	G64T5L/C  Validated 60" 254nm DE Single pin	16677
16679	G64T5/VH  Validated 60" 185nm DE Single pin	16679
18060	G64T5L/CB 0J6  Validated 60" 254nm SE 2 pin	18060
18061	G64T5VH/CB 0J6 Validated 60" 185nm SE 2 pin	18061
18024	GHO64T5L/CB 0J6  60" HO 254nm SE 2 pin	1175
17820	GHO64T5VH/CB 0J6  60" HO 185nm SE 2 pin	1185
QUARTZ SLEEVES
Aquafine #	Description	UVDR #
3184	22mm x 25mm x 832mm Open ended	1258
18347	20mm x 22.5mm x 832 Open ended	1247
18057	20mm x 22.5mm x 850mm Domed	1250
3198	22mm x 25mm x 1540mm Open ended	1259
18348	20mm x 22.5mm x 1540 Open ended	1248
17751	20mm x 22.5mm x 1568mm	1252

Aquafine Replacement
WE offers the cross reference below for the Aquafine^® ColorGuard^®  system but does not attempt to duplicate or copy the ColorGuard ^® system as it is a unique feature of the Aquafine^® Corporation.

Aquafine®	Aquafine®	First Light	First Light
ColorGuard®	Part Number	Lamp Description	Spec
Mauve	3011	GPH287T5L/C	1765
Blue	3015	GPH287T5VH/C	1176
Mauve	3050	G10T5L/C	1069
Green (Validated)	16714	G10T5L/C	1069
Blue	3052	G10T5VH/C	1071
Yellow (Validated)	16715	G10T5VH/C	1071
Mauve	3084	G36T5LCA/C	2525
White	3089	G36T5LCA/C	2525
White	3084LM	G36T5LCA/C	2525
Green (Validated)	16676	G36T5LCA/C	2525
Blue	3087	G36T5VHCA/C	3057
Yellow (Validated)	16678	G36T5VHCA/C	3057
Mauve	3098	G64T5LCA/C	1993
White	3098-LM	G64T5LCA/C	1993
White	3099	G64T5LCA/C	1993
Green (Validated)	16677	G64T5LCA/C	1993
Blue	3095	G64T5VHCA/C	3051
Yellow (Validated)	16679	G64T5VHCA/C	3051
Mauve	17491LM	G36T5LCA/S07/CB-0J6	2482
Blue	18063	G36T5VHCA/S07/CB-0J6	2484
Green (Validated)	18059	G36T5LCA/S07/CB-0J6	2482
Yellow (Validated)	18062	G36T5VHCA/S07/CB-0J6	2484
Mauve	17998LM	G64T5LCA/S07/CB-0J6	2481
Blue	17498	G64T5VHCA/S07/CB-0J6	2483
Green (Validated)	18060	G64T5LCA/S07/CB-0J6	2481
Yellow (Validated)	18061	G64T5VHCA/S07/CB-0J6	2483
Cyan	18198	G36T5LCA/2S07/CB-0J6	2892
Violet	18197	G36T5VHCA/2S07/CB-0J6	2889
Black (Validated)	18950	G36T5LCA/2S07/CB-0J6	2892
Orange (Validated)	18952	G36T5VHCA/2S07/CB-0J6	2889
Cyan	18024	G64T5LCA/2S07/CB-0J6	2607
Violet	17820	G64T5VHCA/2S07/CB-0J6	2485
Black (Validated)	18951	G64T5LCA/2S07/CB-0J6	2607
Orange (Validated)	18953	G64T5VHCA/2S07/CB-0J6	2485
Gold	GOLD-L	G64T5LCA/M18/CB-0J6	3091
Silver	SILVER-L	G64T5VHCA/M18/CB-0J6	3047
Cream (Validated)	CREAM-L	G64T5LCA/M18/CB-0J6	3091
Tan (Validated)	TAN-L	G64T5VHCA/M18/CB-0J6	3047

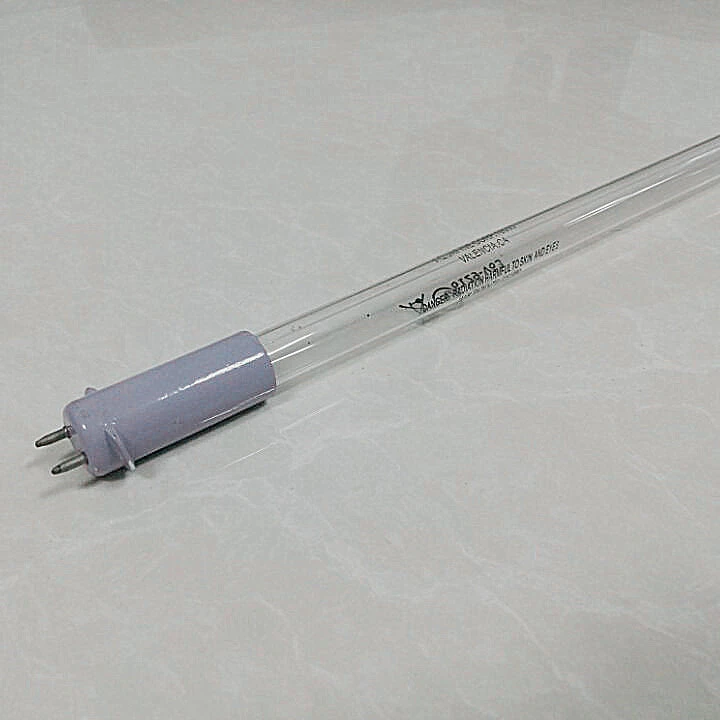

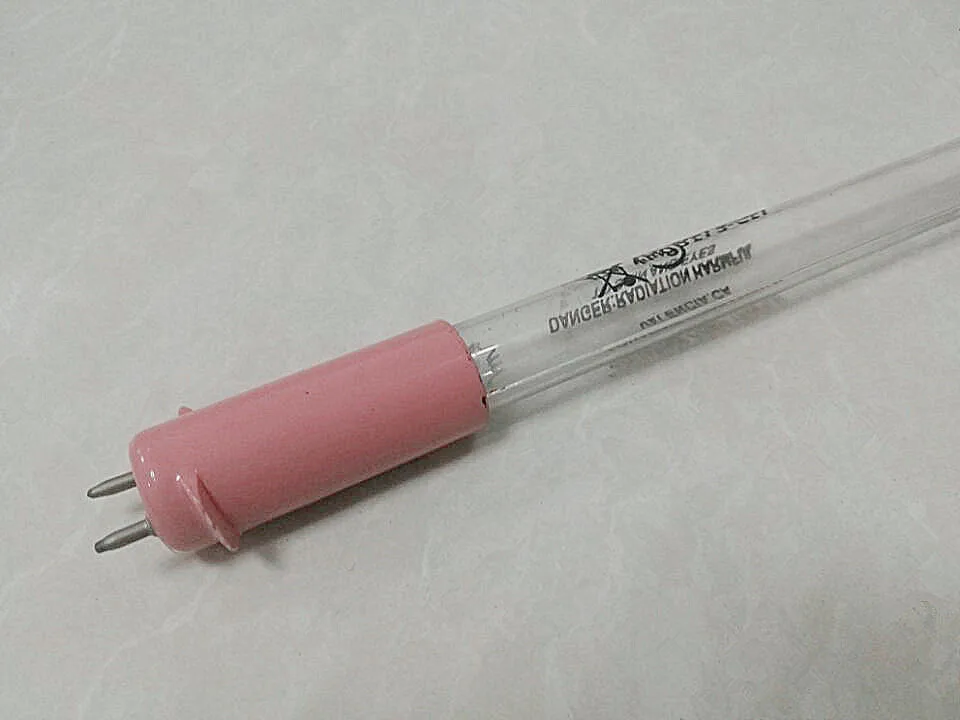

Aquafine uv replacement lamp
