Flat bar rolling machine, flat bar processing

Product Overview

Description

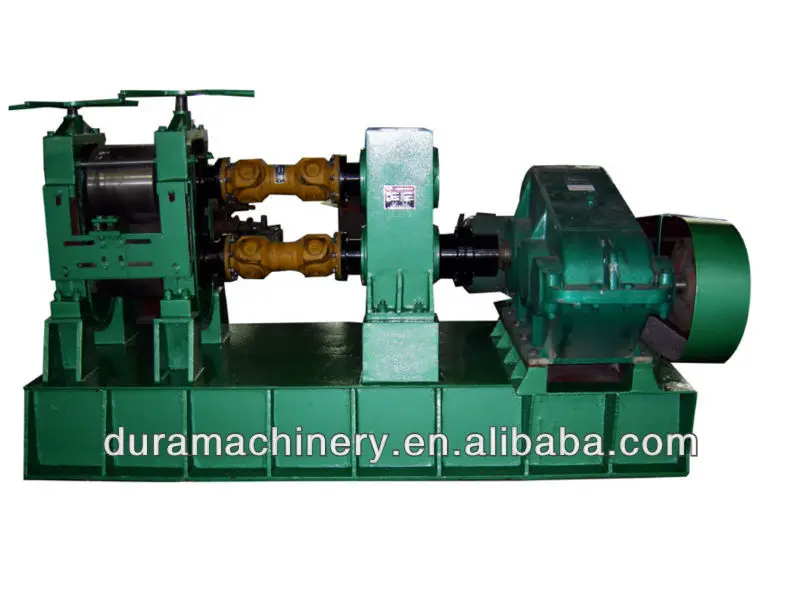

FLAT BAR ROLLING MACHINE



Technical Specifications



Model	Unit	WFM-190
Inlet wire diameter	mm	Ø 6.0
Outlet flattened wire (flat bar) size	mm	W x T - 12mm x 3mm
Flattening roller diameter	mm	Ø 192
Motor power	kw	18.5
Frequency Inverter	kw	18.5
Speed	M/min	25 - 30
Capacity	Kg/ 8hrs.	Approx. 3000
Net Weight (approx.)	kg	1800
Overall dimensions(L*W*H)	mm	1000 x 2200 x 1200



































The advanced machine models is popular among users now, please check the following site:

www.alibaba.com/product-detail/High-speed-stitching-wire-flattening-machine_523753297.html

And feel free to contact us for more information!
