Automatic EMC filter toroid coil winding machine(SS900B6 series final coil OD 10~80mm) replace Credo tech toroidal winder
- Category: >>>
- Supplier: Sanshine (Xiamen) Industrial And Trading Co. Ltd.
Share on (750381472):
Product Overview
Description
Product Description

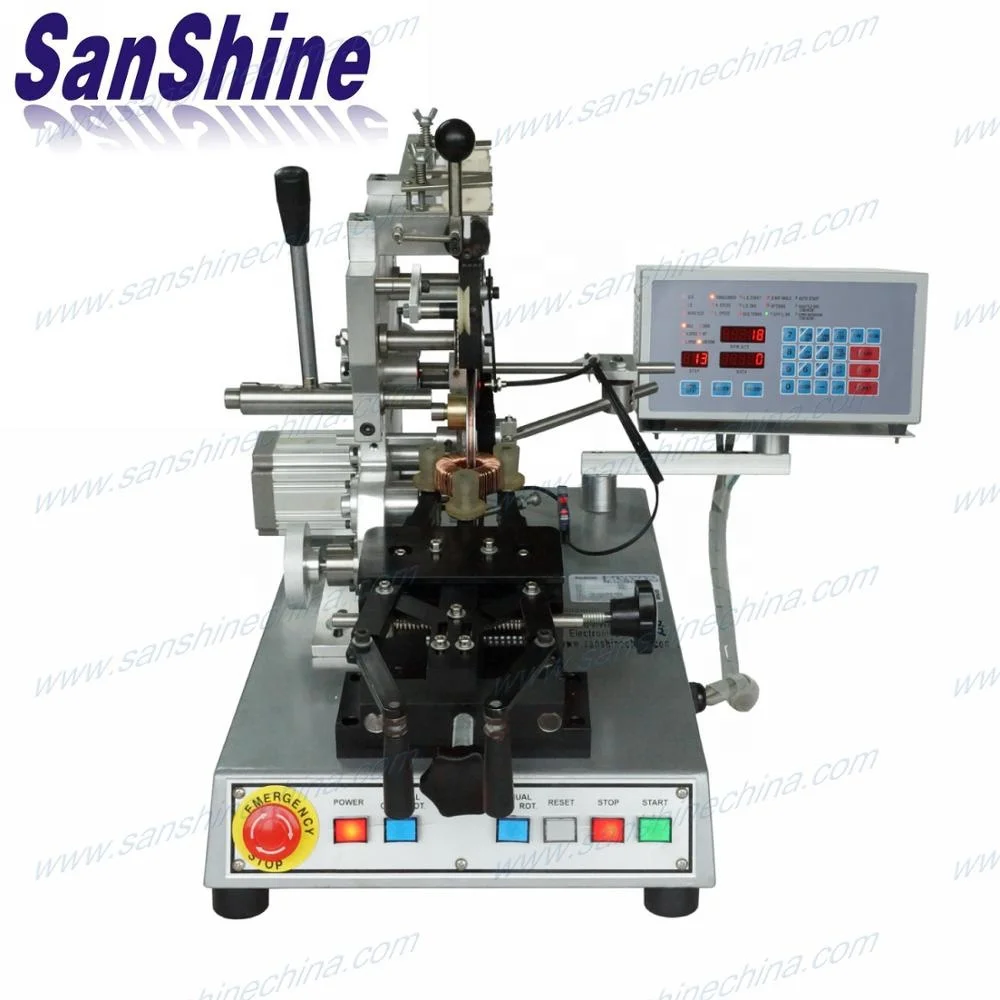

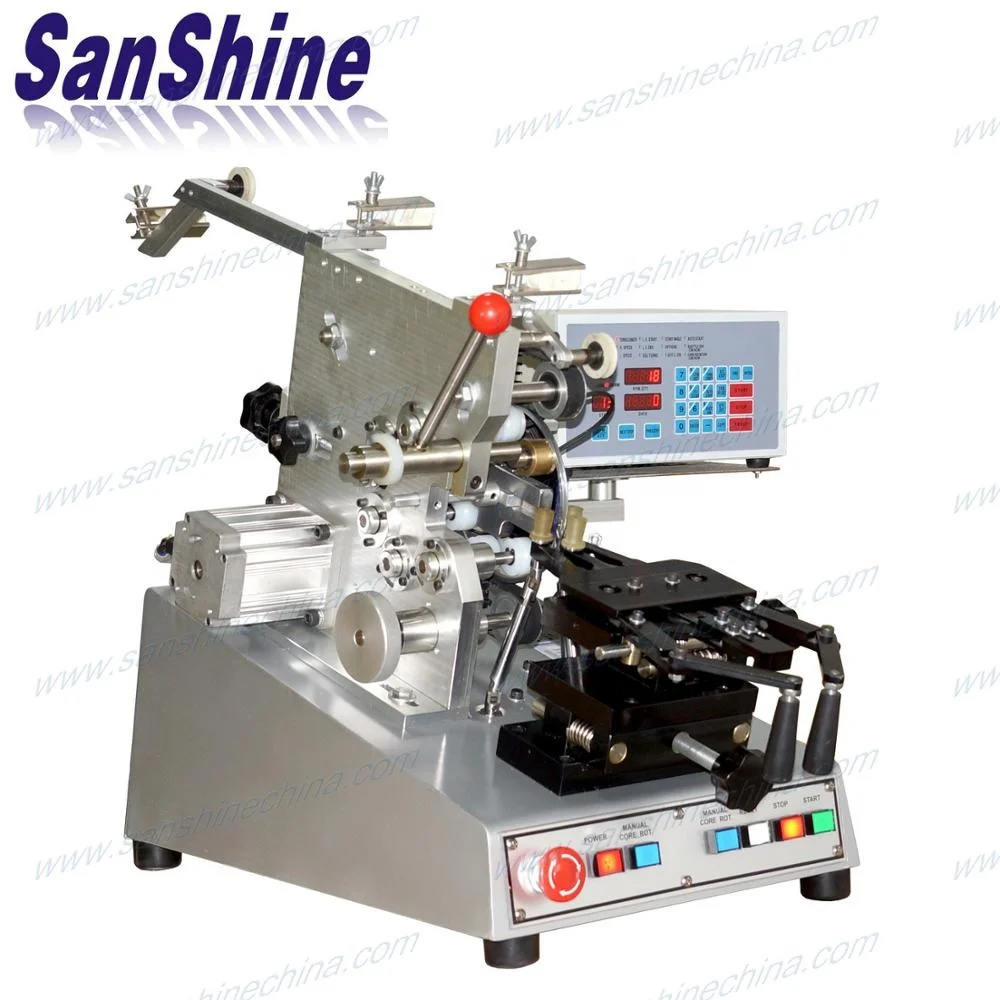

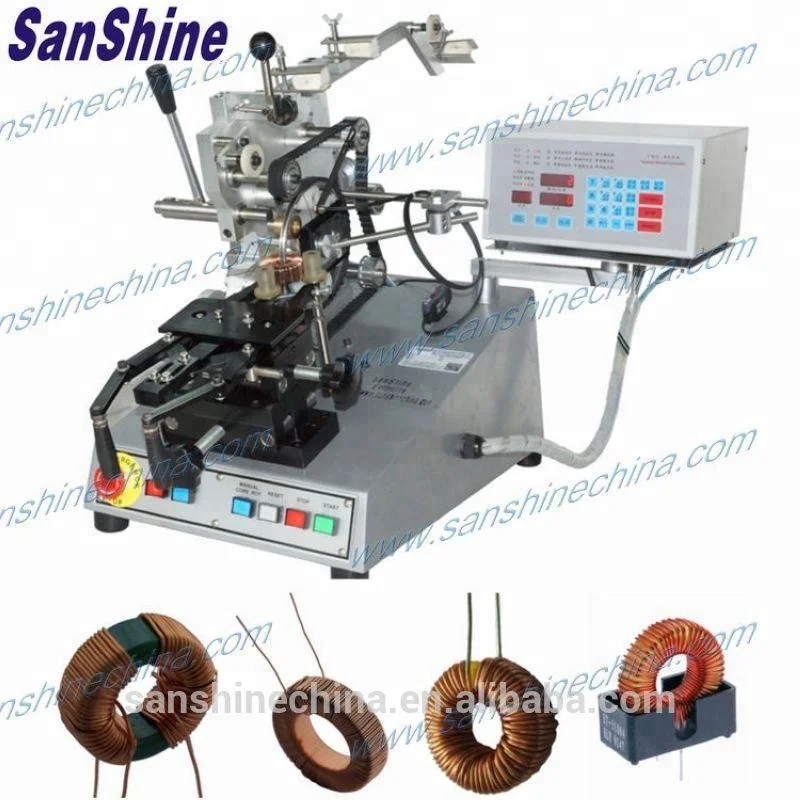

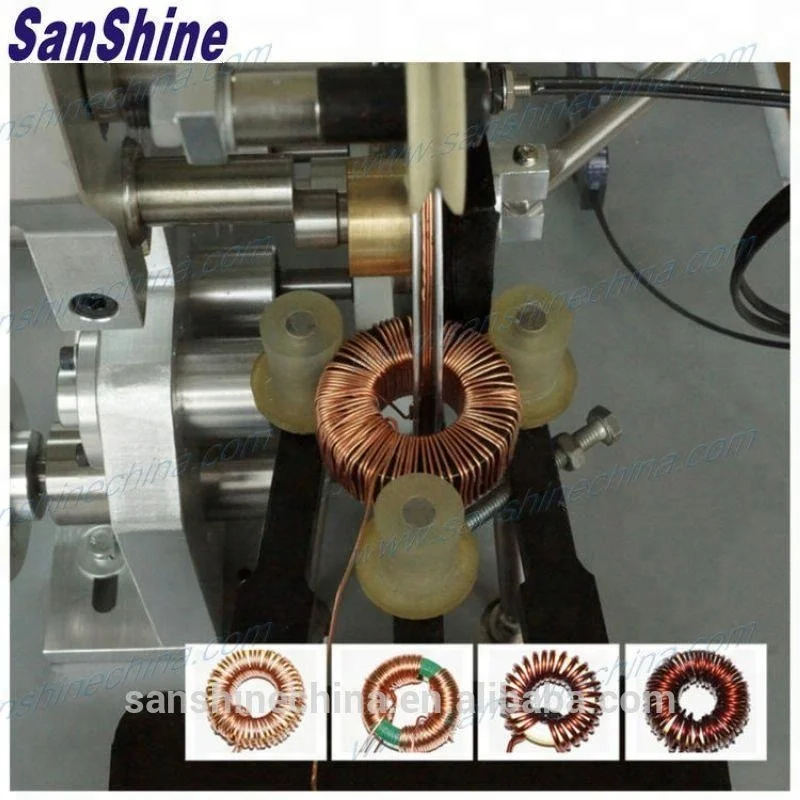

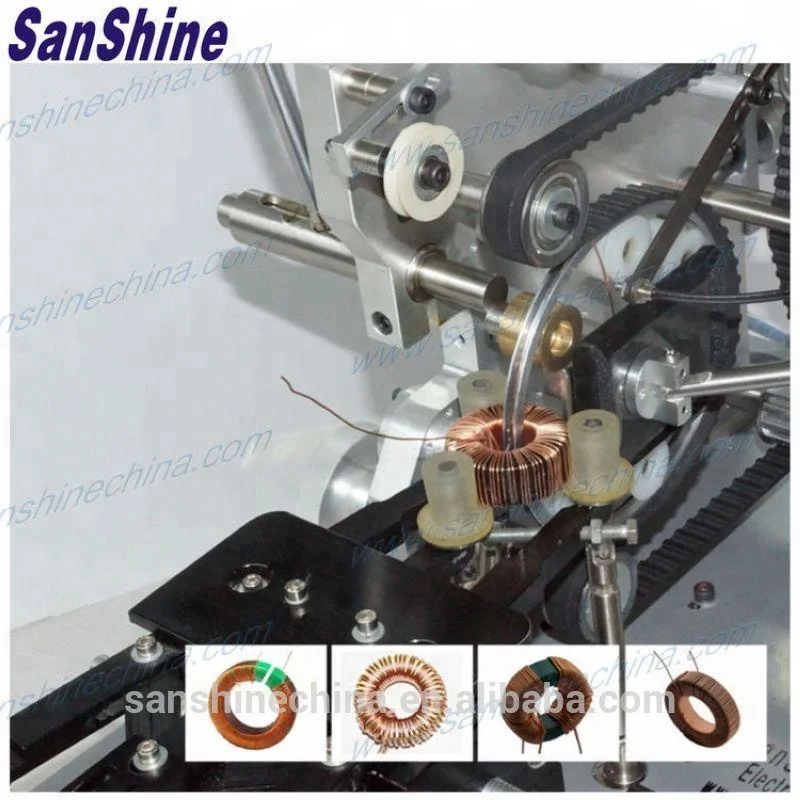

Description of automatic toroidal winding machine(SS900B6 series):
The SS900B6 digital automatic toroid winding machine adopts CNC toroid controller, it is belt type winding shuttle.
belt type is used for the thick copper wire winding. It's an accurately and reliability digital toroid-winding machine.
is used for toroidal inductor, toroidal transformer, toroidal current transformer, toroidal current sensor, toroidal coil,
toroid chock coil, power inductors, power magnetics, UPS inductor, converter inductors, watter metter sensors,
toroid current transformer of electronic watter-hour meter, power factor corrector toroid coil, etc.
Features of automatic toroidal winding machine(SS900B6 series):
1. Collocate belt type winding head, interchangeable roller table with different size shuttle(magazine) for different toroid coil demensions, wire size, so that to reduce the cost.
2. Hi-tech shuttle for highest efficiency.
3. Separate speed controls for wire loading and winding.
4. Accurately count length of loading wire by length sensor, the wire length sensor be integrated in the winding motor.
5. Accurately count turns of winding by high frequency response photo-electricity sensor.
6. Programmable winding direction, winding returns range (turns or angle) and segment winding angle.
7. Accurately wire spacing by programmable controller.
8. Memory capacity accommodates 999 sequences of parameters with off-power memory retention.
Specification of automatic toroidal winding machine(SS900B6 series):
The SS900B6 digital automatic toroid winding machine adopts CNC toroid controller, it is belt type winding shuttle.
belt type is used for the thick copper wire winding. It's an accurately and reliability digital toroid-winding machine.
is used for toroidal inductor, toroidal transformer, toroidal current transformer, toroidal current sensor, toroidal coil,
toroid chock coil, power inductors, power magnetics, UPS inductor, converter inductors, watter metter sensors,
toroid current transformer of electronic watter-hour meter, power factor corrector toroid coil, etc.
Features of automatic toroidal winding machine(SS900B6 series):
1. Collocate belt type winding head, interchangeable roller table with different size shuttle(magazine) for different toroid coil demensions, wire size, so that to reduce the cost.
2. Hi-tech shuttle for highest efficiency.
3. Separate speed controls for wire loading and winding.
4. Accurately count length of loading wire by length sensor, the wire length sensor be integrated in the winding motor.
5. Accurately count turns of winding by high frequency response photo-electricity sensor.
6. Programmable winding direction, winding returns range (turns or angle) and segment winding angle.
7. Accurately wire spacing by programmable controller.
8. Memory capacity accommodates 999 sequences of parameters with off-power memory retention.
Specification of automatic toroidal winding machine(SS900B6 series):
Copper wire diameter | 0.3~1.2mm |
Min. Finished ID | 6mm (will be different by shuttle size and coil height. ) |
Finished OD range | 10~80mm |
Max. Speed | 1200rpm |
Winding motor | 1/2HP DC brushless motor |
Spread motor | Stepping motor |
Memory capacity | 999 steps |
Power source | AC220V /110V +10%, 50/60 Hz |
Dimension | L60x36x60(cm) |
Net weight | 40Kgs |
Model | Universally matched shuttle model | Copper wire diameter range(mm) | Min. inside diameter of finished coil (mm) | Out side diameter of finished coil range (mm) | Height of finished coil range (mm) |
SS900B2 | 1.6 1.8 2.0 | 0.07 ~0.25 | 2.5 | 5 ~ 16 | 3 ~8 |
SS900B3 | 1.8 2.0 2.5 | 0.07 ~0.25 | 2.5 | 5 ~16 | 3 ~8 |
SS900B4 | 2.5 2.8 3.0 3.5 or customized | 0.15 ~0.8 | 3 | 5 ~60 | 3 ~25 |
SS900S4 | 2.6 3.0 3.5 or customized | 0.05 ~0.3 | 4.5 | 5 ~60 | 3 ~25 |
SS900B6 | 3.5 5.0 6.3 or customized | 0.3 ~1.2 | 6 | 10 ~80 | 5 ~45 |
SS900S6 | 3.5 5.0 6.3 or customized | 0.08 ~0.35 | 7 | 10 ~80 | 5 ~45 |
SS900B8 | 8 10 12 15 or customized | 0.35 ~1.5 | 12 | 20 ~150 | 8 ~80 |
SS900S8 | 8 10 12 15 or customized | 0.3 ~0.6 | 15 | 20 ~150 | 8 ~80 |
Related Products
Packing&Shipping
Package and transport
General package(Paper carton or plastic bag): For small goods, Package it with form and pack paper to guarantee unbroken during the transport.
Wooden case package: For larger scale goods as machine equipment etc, we have special skilled carpenter, who would make the proper wooden case with exact thickness,density,length. The up arrow ↑marked on the outer wooden case. Buffer material would be put in the wooden case to prevent crack and shock. We will inform you the delivery note. You just need to wait for phone call, then pick up the goods at the nearest logistic station .(Please let me know in advance if you want get the goods at home.)
General package(Paper carton or plastic bag): For small goods, Package it with form and pack paper to guarantee unbroken during the transport.
Wooden case package: For larger scale goods as machine equipment etc, we have special skilled carpenter, who would make the proper wooden case with exact thickness,density,length. The up arrow ↑marked on the outer wooden case. Buffer material would be put in the wooden case to prevent crack and shock. We will inform you the delivery note. You just need to wait for phone call, then pick up the goods at the nearest logistic station .(Please let me know in advance if you want get the goods at home.)
Our customers
Working shop
Our Services & Strength
Service tenet
Provide you the best service with “fast + satisfactory + safe”.
Warranty period
12 months long after the user received the product.
Warranty items
Only for abnormal breakdown caused by the machine design or manufacture defect,
free repair and accessory will be provided.
Technology service ability
All service engineers with many years experience are gotten special technology training, who can deal with various breakdown problem.
Guide the user to use accurately and how to maintain the product.
Provide free consultation about production process technology of electronic products.
Service after sell
In order to guarantee the machine used normally, we’d have training on how to operate, use and maintain our product by English manual, video, guiding on line.
Use instruction
Apply for the right complete size of product, otherwise, the wrong dimensions will affect the use effect.
Do ensure using the product accord to the use instruction completely.Do not exceed the scope of application of the products.
Maintain the product after use,Damp proof, rust proof, leak proof, explosion-proof, regular maintenance and inspection should be taken care. All done help to extend the use period.
User document management
Establish perfect user document management in EPR system, Every product running details would be followed to manage. The users would be taken good care.
About product
1. Product photo: All product photos are taken by real product, There is the color aberration between the product and photo, which is caused by shoot light, product size, manual technology and computer display etc. It’s not quality problem. Parts of products
are changed in appearance due to technology revolutionary and process improvement. SanShine would ensure the parameter of product is unchanged, The product couldn’t affect to use.
2.Product size: All parameters are all measured by manual just for reference. There is a small deviation due to the difference of measure tools, lot products and produce process. Real size should be accordance with the final delivery product.
3.Quality inspection: All products should be inspected strictly before shipment. Ensure the good function and appearan
Provide you the best service with “fast + satisfactory + safe”.
Warranty period
12 months long after the user received the product.
Warranty items
Only for abnormal breakdown caused by the machine design or manufacture defect,
free repair and accessory will be provided.
Technology service ability
All service engineers with many years experience are gotten special technology training, who can deal with various breakdown problem.
Guide the user to use accurately and how to maintain the product.
Provide free consultation about production process technology of electronic products.
Service after sell
In order to guarantee the machine used normally, we’d have training on how to operate, use and maintain our product by English manual, video, guiding on line.
Use instruction
Apply for the right complete size of product, otherwise, the wrong dimensions will affect the use effect.
Do ensure using the product accord to the use instruction completely.Do not exceed the scope of application of the products.
Maintain the product after use,Damp proof, rust proof, leak proof, explosion-proof, regular maintenance and inspection should be taken care. All done help to extend the use period.
User document management
Establish perfect user document management in EPR system, Every product running details would be followed to manage. The users would be taken good care.
About product
1. Product photo: All product photos are taken by real product, There is the color aberration between the product and photo, which is caused by shoot light, product size, manual technology and computer display etc. It’s not quality problem. Parts of products
are changed in appearance due to technology revolutionary and process improvement. SanShine would ensure the parameter of product is unchanged, The product couldn’t affect to use.
2.Product size: All parameters are all measured by manual just for reference. There is a small deviation due to the difference of measure tools, lot products and produce process. Real size should be accordance with the final delivery product.
3.Quality inspection: All products should be inspected strictly before shipment. Ensure the good function and appearan
FAQ
How to select the best suited automatic toroid coil winding machine for your toroid coil, Tell us your toroidal coil of data as
below please:
1, toroid core outside diameter before winding?
2, toroid core inside diameter before winding?
3, toroid core height before winding?
4, how many windings on this core?
5, how many turns of each winding?
6, how about the copper wire diameter of each winding?
7, provide pictures of products to us which is better.
below please:
1, toroid core outside diameter before winding?
2, toroid core inside diameter before winding?
3, toroid core height before winding?
4, how many windings on this core?
5, how many turns of each winding?
6, how about the copper wire diameter of each winding?
7, provide pictures of products to us which is better.
