Quality chrome steel bearing deep groove ball bearing
- Category: >>>
- Supplier: Changzhi TEBearing Corp. Ltd.
Share on (751664887):
Product Overview
Description

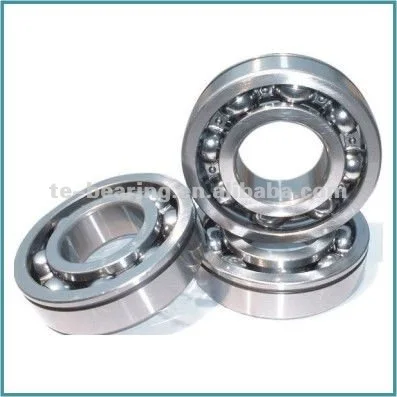

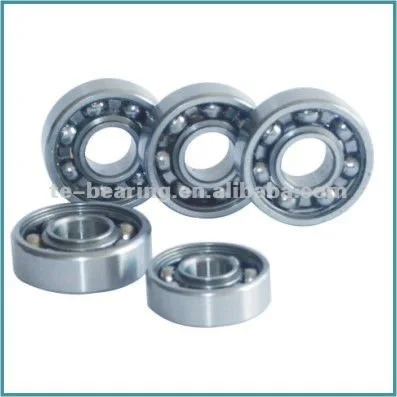

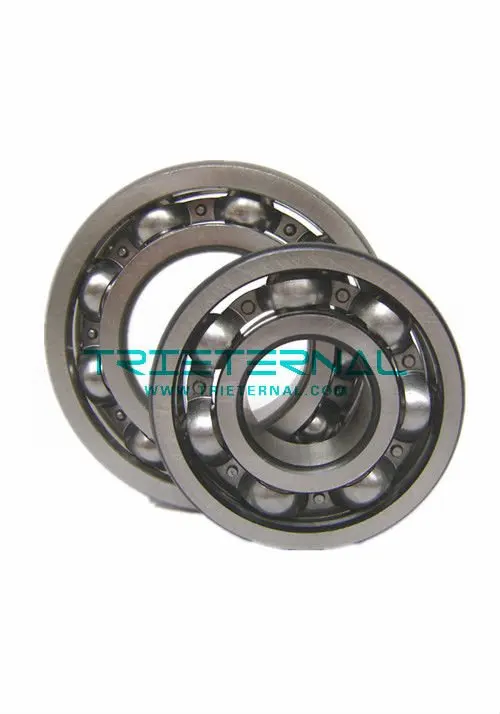

Quality chrome steel bearing deep groove ball bearing tripod bearing
Product Description
Name | Deep groove ball bearing |
Model | 6000 Series - Extra Light Ball Bearings – Ideal for limited space applications |
6200 Series - Light Series Ball Bearings – Balanced between space and load capacity | |
6300 Series - Medium Series Ball Bearings – Ideal for heavier load capacity | |
Material | GCr15 chrome steel |
Precision | P0, P6, P5 |
Bore Size | 10mm-100mm |
Outside diameter | 25mm-220mm |
Clearance | C0,C1,C2,C3,C4,C5 etc. |
Cage Type | Brass cage or Stainless cage |
Seals Type | ZZ,RS, 2RS, R2, Z, 2Z, 2RZ etc |
Certificate | ISO9001:2001 |
Features | Deep groove ball bearing are simple in design, non-separable, suitable for high and even very high speeds and are robust in operation, requiring little maintenance. Deep-groove bearings have higher load ratings for their size than shallow-groove , but are also less tolerant of misalignment of the inner and outer races |
Application |
Automobile, tractor, machine tool, electric machine, water pump, agricultural machinery and textile machinery. |
Package | pallet, wooden case, industrial package or as customers' requirement |
Price | FOB, CFR, CIF |
Delivery Time | 20-30 days after the order confirmed |
Payment Terms | T/T, 30% in advance, the balance should be paid against the B/L. |
Website | //te-bearing.en.alibaba.com |
Deep Groove Ball Bearing is the most representative rolling bearing, it can suffer from both axial and bidirectional radial load. It can be used in these occasions with the demand of high rotation, low noise, and low oscillation. Bearing with seal together with steel cover of rubber seal usually filled with lubricant in advance ,the outside ring with stopping circle or flange ,these will not only be easier for axial orientation ,but also good for the installing of outside shell. The size of maximum loading bearing is just the same as standard bearing ,while with backfill trough in the inside and outside ,which can add the balls, and improve the maximum load at the same time.
Deep Groove Ball Bearings | |||
Model | d | D | B |
6201 | 12 | 32 | 10 |
6202 | 15 | 35 | 11 |
6203 | 17 | 40 | 12 |
6204 | 20 | 47 | 14 |
6205 | 25 | 52 | 15 |
6206 | 30 | 62 | 16 |
6207 | 35 | 72 | 17 |
6208 | 40 | 80 | 18 |
6305 | 25 | 62 | 17 |
6306 | 30 | 72 | 19 |
6307 | 35 | 80 | 21 |
Deep groove ball bearing types:
1,.A single deep groove ball bearing
2. With dust cover single deep groove ball bearing
3. With dust cover, sealing ring single deep groove ball bearing outer ring, have
4. Stop moving slot and stop ring single deep groove ball bearing
5. Have put the ball of the gap of deep groove ball bearings
6. Double row deep groove ball bearing
Packaging & Shipping
Packaging detail: pallet, wooden case,industrial package or as customers' requirement
Delivery detail:15-30 days
Company Information
Changzhi TEBearing Co.,Ltd is located in Changzhi, which a city with very convenient transportation and advanced information exchange in Shanxi Province, North of China.
The company has been engaging in exporting mechanical and electrical products for more than 10 years. In the period, it's growing up step by step, with more than 100 well-cooperated manufacturers. the company has been selected as long-term and stable supplier by many customers from Germany, Italy, Belgium, France, Russia, Ukraine, Canada, South America, Southeast Asia,Taiwan and Hong Kong as well as domestic.
The company specializes in exporting all kind of bearings, steel balls and bearing accessories, as well as other relevant mechanical and electrical product. Such as, deep groove ball bearings, thrust bearings, angular contact ball bearings, self-aligning ball bearings, tapered roller bearings (both inch system and metric system), spherical roller bearings, cylindrical roller bearings, spherical plain bearings as well as cages and forgings. Adhering to the principal of “High Quality, Excellent Service, Eternal Reputation”, the company always gains high praise and trust from different customers for constantly improved product quality, increased product types and satisfying service. We will do our best to continue extensive and sincere cooperation with friends around the world.
Our Services
1. More than ten years bearing products exporting experiences.
2. OEM order and non-standard bearing order can be accepted.
3. Many sizes of bearing are available. Large quantity bearing can be provided.
4. To respect customer, you can choose loading port, then we can accept inland transport of short distance
5. A certain number of free sample can be provide to support our customer's after-sale services and warranty.
High Quality, Competitive Price, Reliable Service, On-Time Delivery !
Trieternal Can Be Your Trusted Partner in Bearing Field !!!!

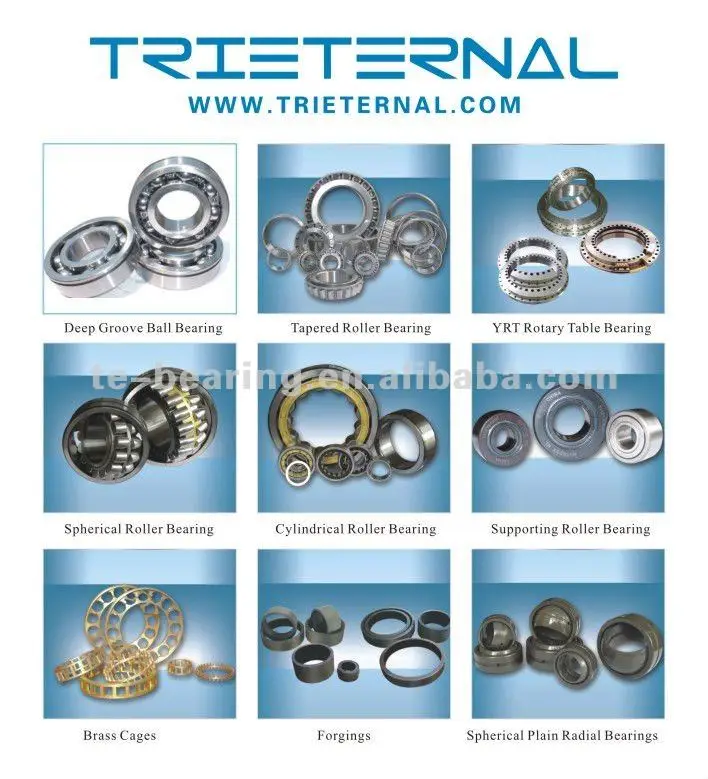

Our Bearing Product
1.Taper roller bearing
2.Deep groove ball bearing
3.Spherical roller bearing
4.Cylindrical roller bearing
6.Angular contact ball bearing
7.Self-aligning ball bearing
8.Thrust ball bearing
9.Bearing cage
10.Forgings etc
![Trieternal Bearing Series[1].](http://sc02.alicdn.com/kf/HTB1vMwataSWBuNjSsrbq6y0mVXaG/200910618/HTB1vMwataSWBuNjSsrbq6y0mVXaG.jpg)
...
