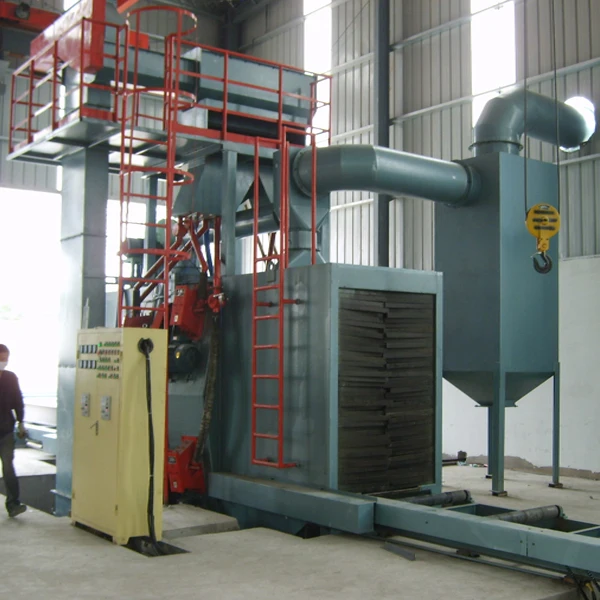

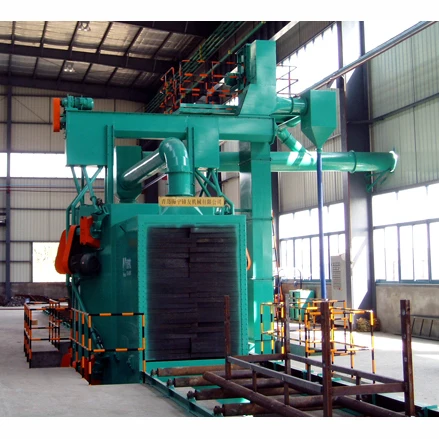

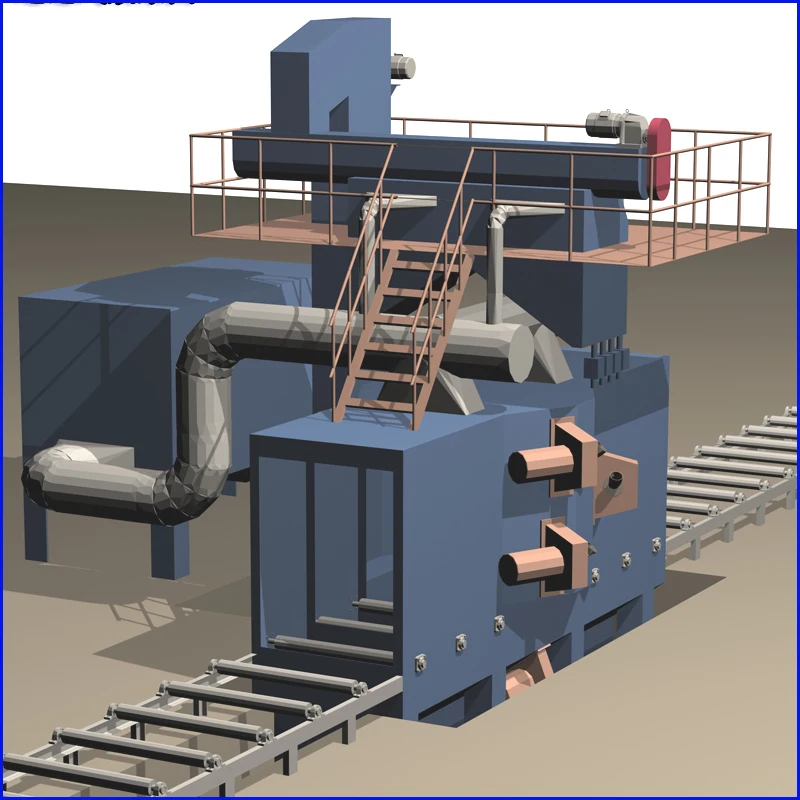

building steel structure shot blast machine

Product Overview

Description

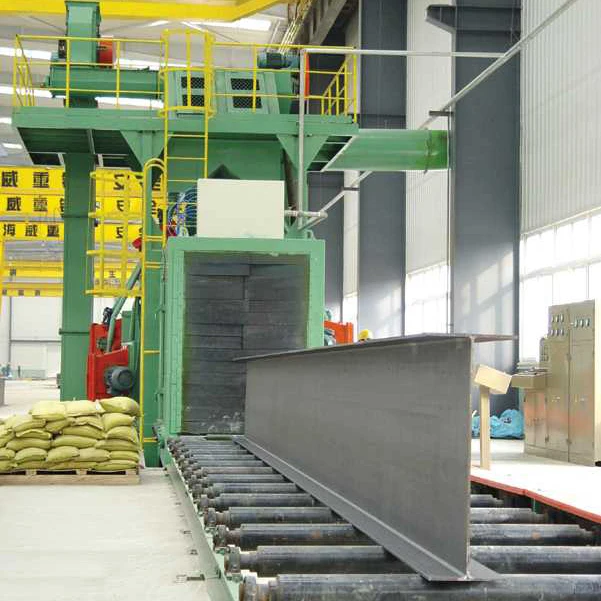

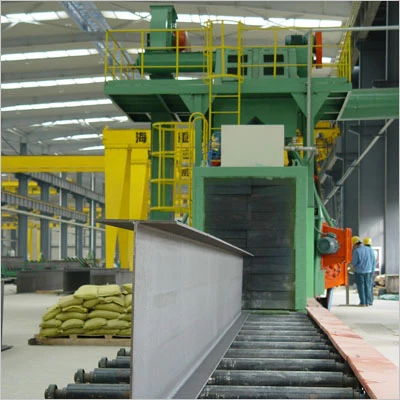

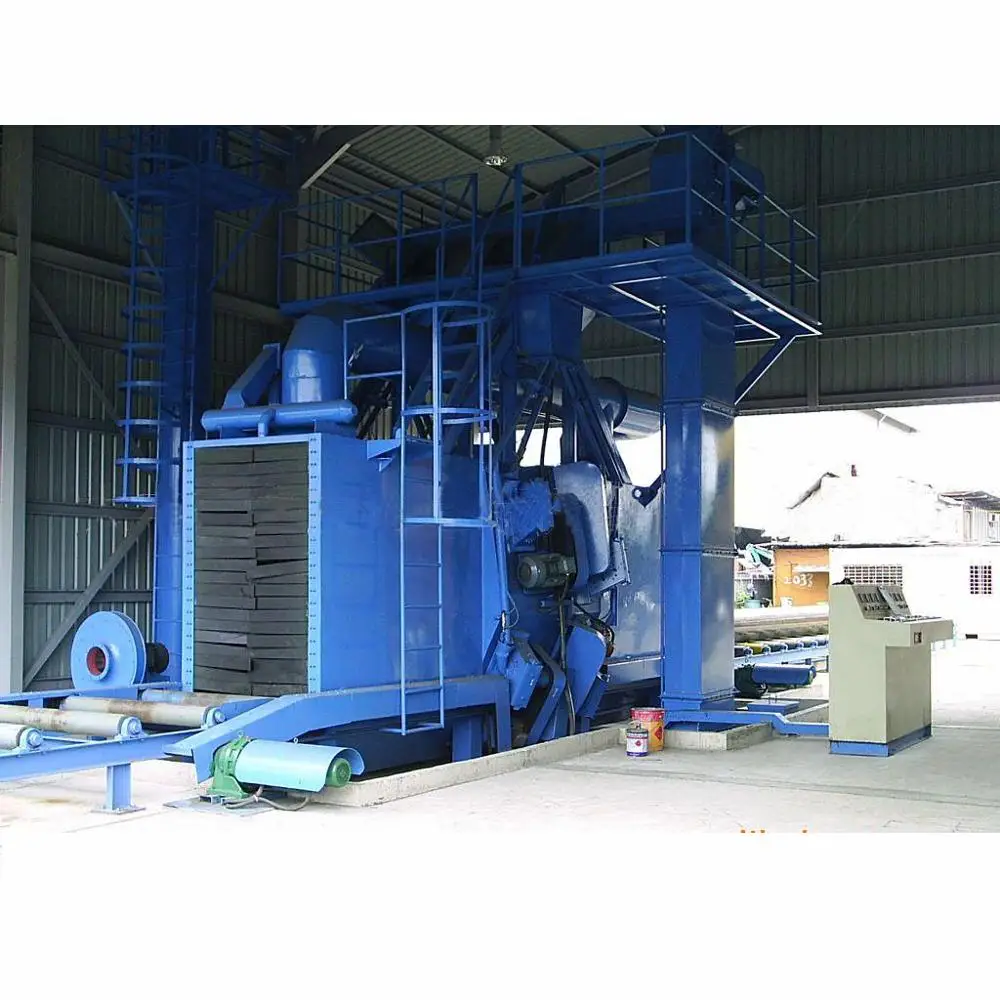

 Building steel structure shot blast machine is designed and manufactured to clean the surface of the large section steel. It is most used for t removing the rust, scale and contamination from the steel surface of large scale H-Beam and I-Beam.

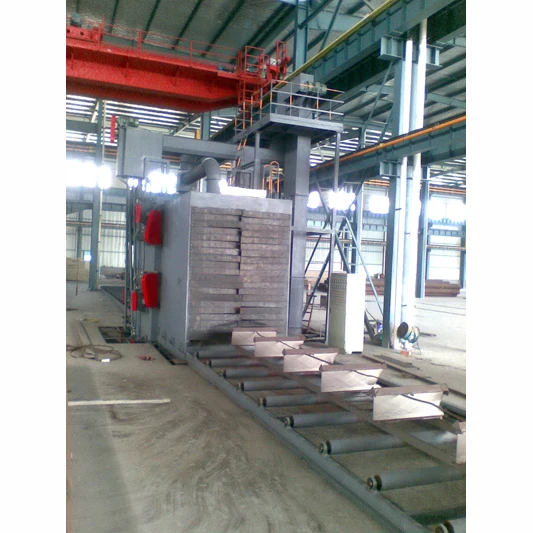

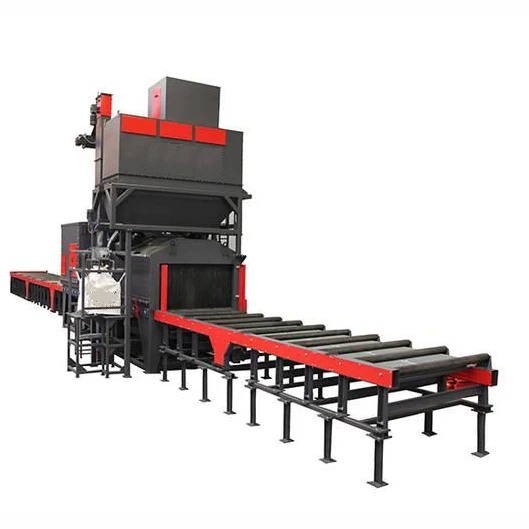

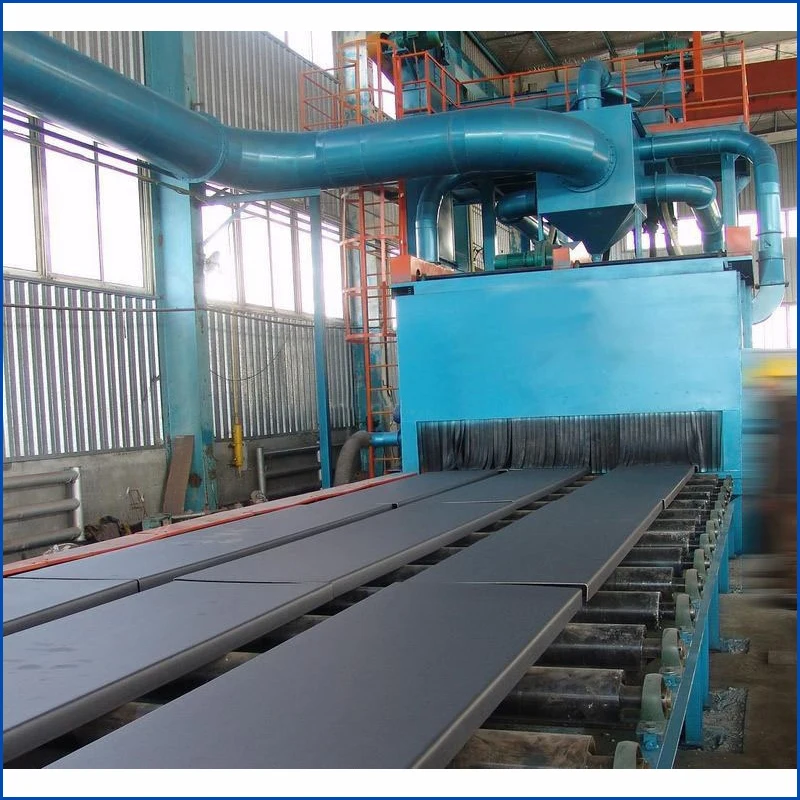

The components crosses the tunnel laid on a roller conveyor, extendible outside with modular lengths. The surface treatment  is done during the running through the blasting room:  at one single  pass it is possible to achieve the required finishing degree, according to the specification of standard ISO 8501-1 and  SIS SS 055900.
Brushing and blowing systems allows the steel shot removal at the end of the shot blasting.

This series shot blasting machine is most suitable for production floor in the construction industries, marine, off-shore oil & gas industries etc.

A complete system include:

Roller conveyors,

Shot Blasting Machine,

Abrasives recovery & Separate System,

Abrasives blower off ,

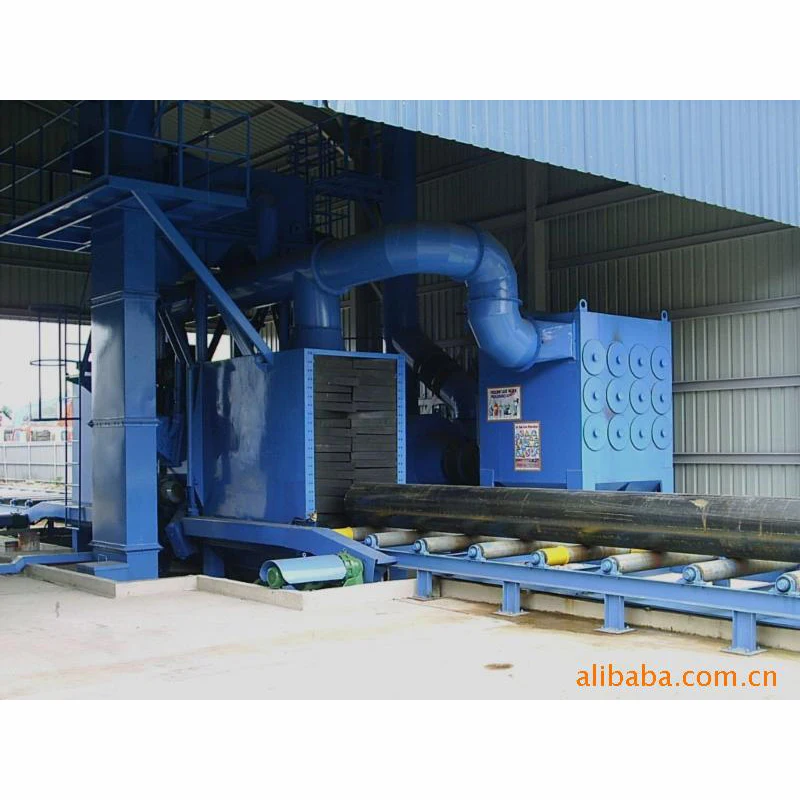

Dust collector and Control Panel



	QH698	QH6910	QH6912
Entrance Dimension	800x1600mm	1000x1800mm	1200x2000mm
Turbines	8	8	8
Turbine Power	7.5KW	11KW	15KW
Conveying Speed	0.5~4m/min	0.5~4m/min	0.5~4m/min
Blasting Speed	0.5~1.5m/min	0.5~1.5m/min	0.5~51.m/min
Surface Cleaning Grade	SA 2.5	SA 2.5	SA 2.5
Conveyor Loading Capacity	1,500Kg	2,000Kg	2,000Kg
Dust Collector	Filter Cartridge	Filter Cartridge	Filter Cartridge
