Sheet metal processing stable gantry cnc gantry plasma/gas profile cutting machine

Product Overview

Description

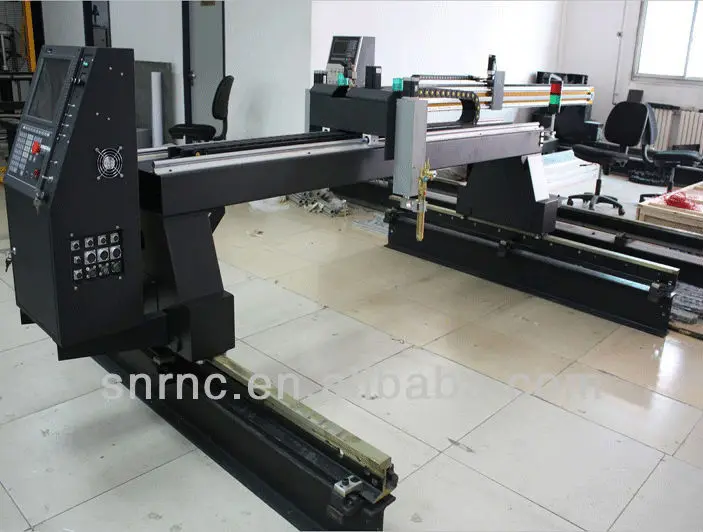

Light Gantry Type Cutting Machine,Support plasma and flame,high accuracy and speed.



Configration



Item	QTY	Unit	Remark

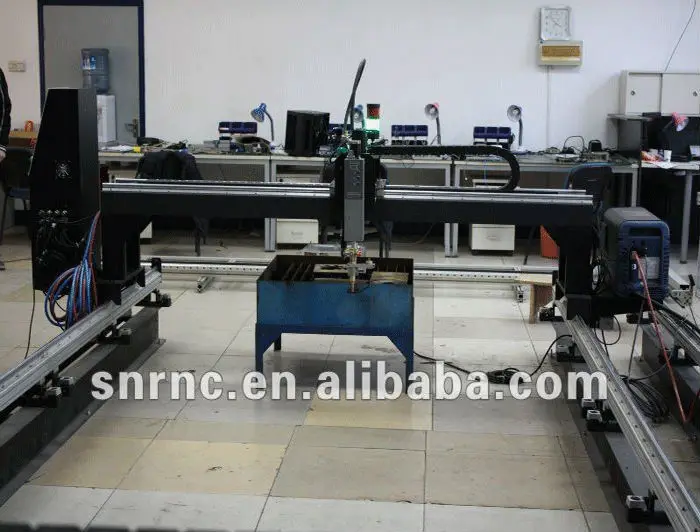

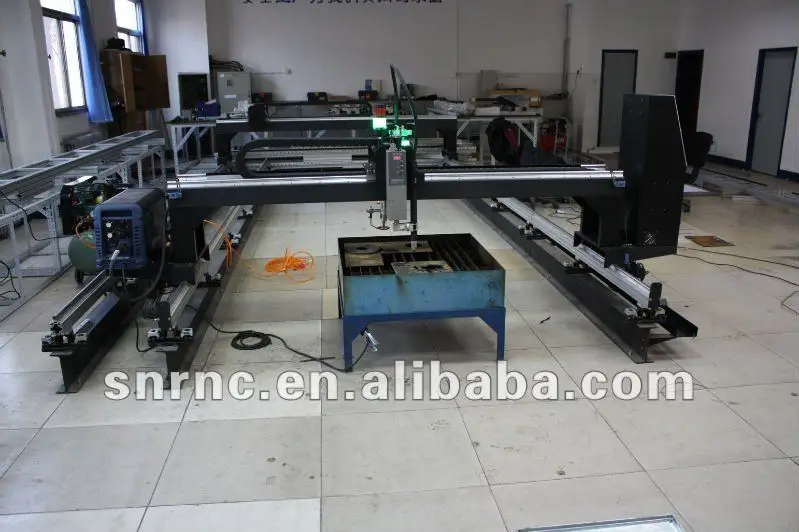

SNR-QL4-2560	1	set	Gantry CNC Cutting Machine
CNC controller	1	set	SF-2200H,10.4 inch color
Beam Width	2500	mm	Effective width 2000mm
Rail Longth	6000	mm	Effective longth 5000mm

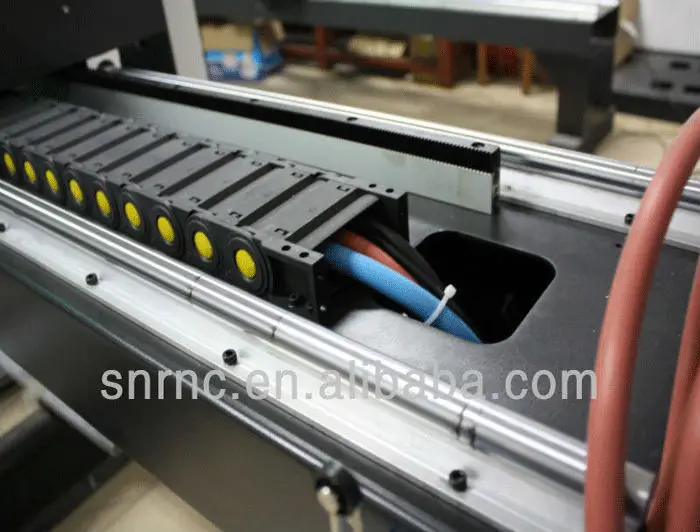

Longitudinal precision rack	10	set	1m/set
Drive Type	2		Dual drive
Motor	3	set	Panasonic Servo motor
Driver	3	set	Panasonic Servo driver
Reducer	3	set	Precision planetary reducer

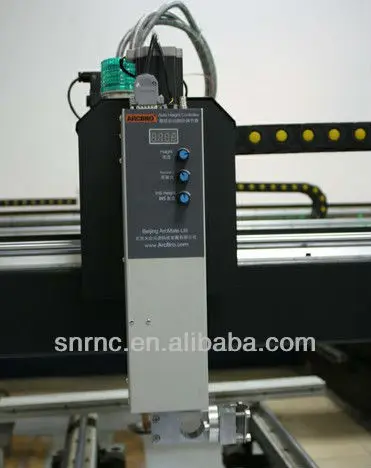

THC	1	set	SF-HC30B0 torch height control
THC adjust range			0-200mm

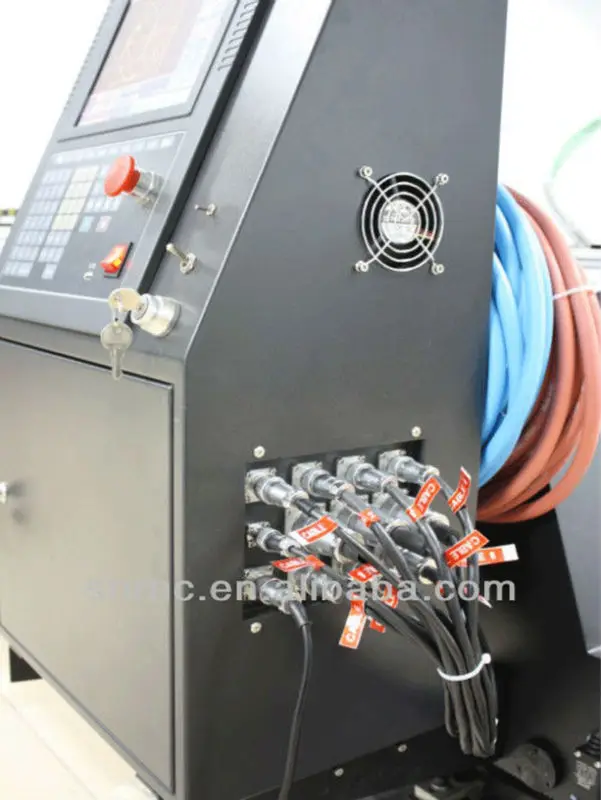

Control cabinet	1	set	Beijing Seigniory
Plasma source			Opitional



Accessary List



Name	Specification	QTY	Unit
Rail	2m/pc	6	M
Rack	1m/pc	10	pc
User Manual		1	set
Flame Torch		1	set
THC		1	set
Beam		1	set
Control cabinet		1	set



Description

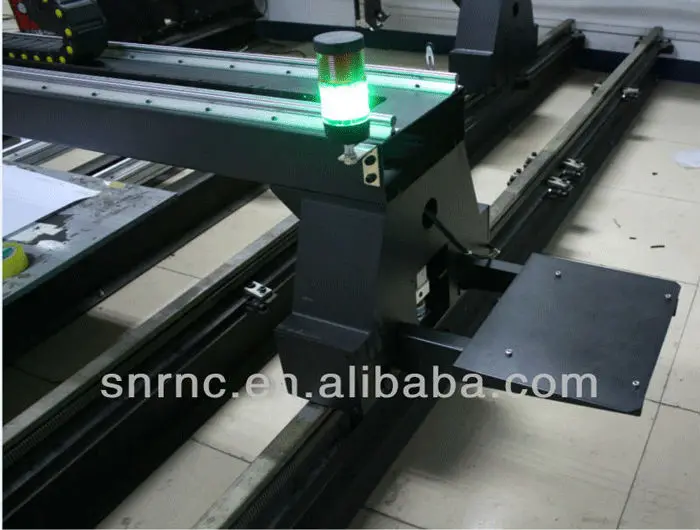

The overall processing machine base; good stability, not deformed; high accuracy; Modularization design, such as disassembly crossed beam, combined center unit, special crossed beam trunkings and humanity operate interface.

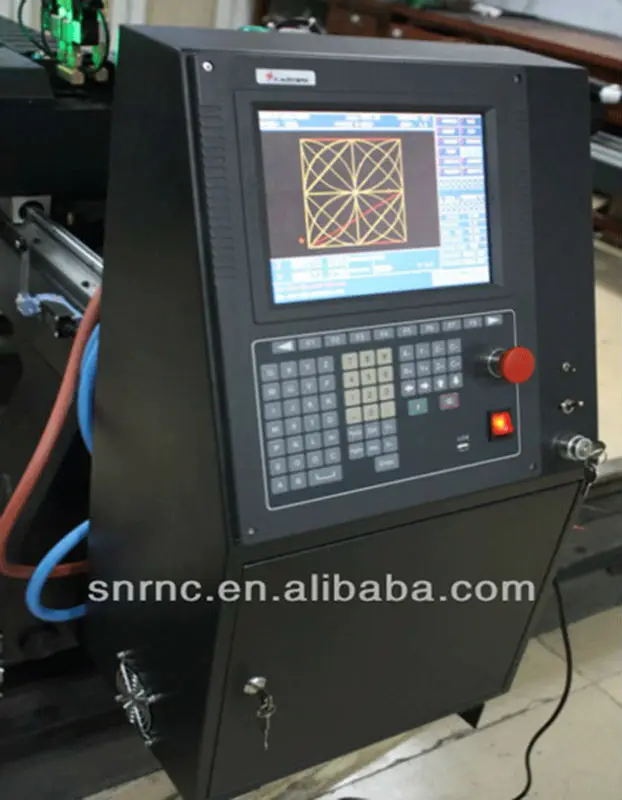

Using CNC of Beijing starfire Control system SF-2200/H



1.High reliability, such as anti-plasma jamming, and lighting strike, surge;

2.The storage capacity of user’s machining program is from 32M to 64M;

3.In both English and Chinese interface conversion;

4.Automatic height control with initial fix position;

5.Using USB Flash Drive reading procedure and timely upgrade software;

6.Built-in the rich graphics, makes programing easy to learn.



Optional Accessories



FastCAM or IBE software

Torch: Flame/plasma torch

Height control: Manual height control, Auto height control

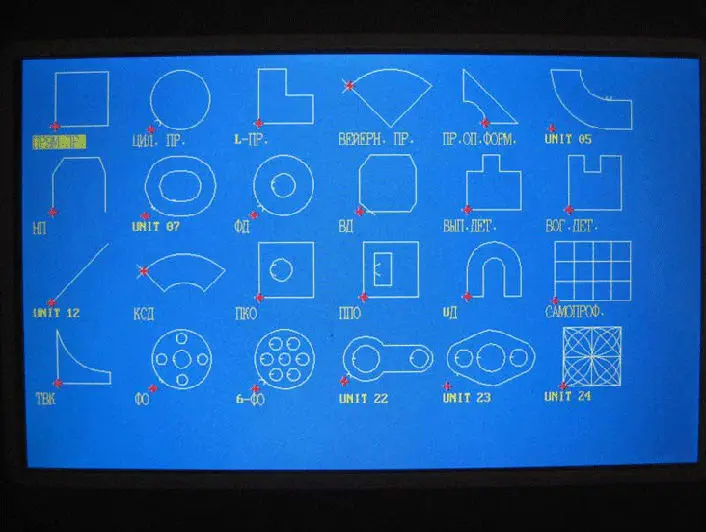

1.Built - in 24 figures,choose them directly when cutting.





2.SF-2200H CNC control system,10.4 inch color





3.Connecting wires.





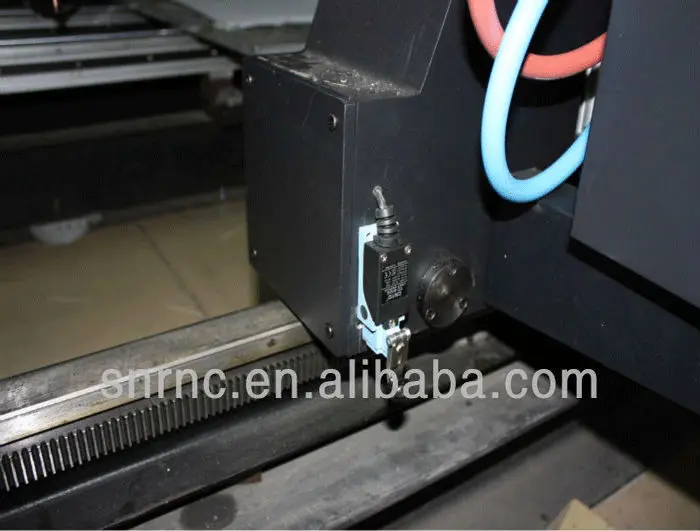

4.High-precision round linear rail,stable and accuracy.





5.Indicating lamp. More safety





6.The overall processing base,stability and impact.





7.SF-HC30B0 Torch Height Control.High accuracy.







8.FastCAM(English,French,Spanish,Japanise)







9.SNR-QL4-2060

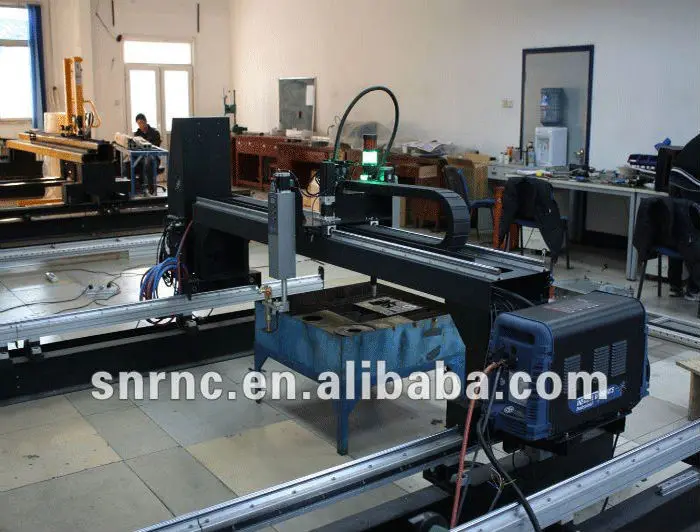

10.Machine in the cutting.







11.Finish Working

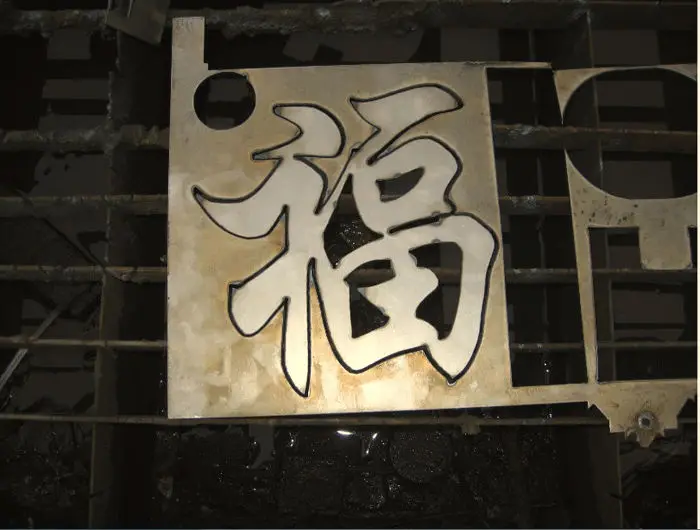

12.Cutting products
