MgO fire resistant wall board making machine

Product Overview

Description

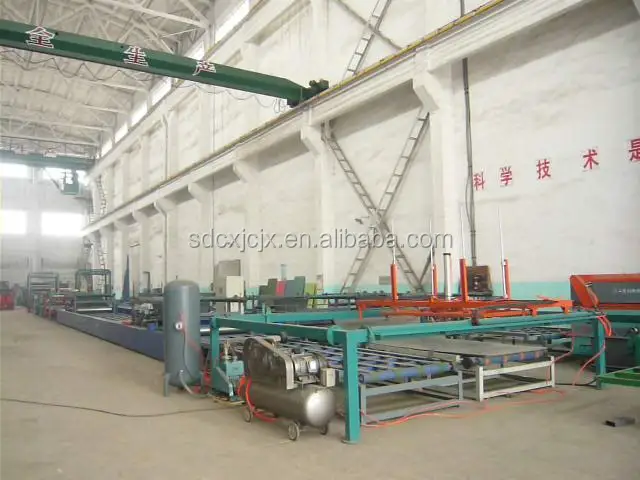

   MgO fire-resistant wall board making machine



High-quality Mgo wall board making machine can manufacture various new model building mould boards with materials, such as crop stalk, stone powder and glass fiber after special technology. This new model  automatic  equipment for making mgo board has following advantages: fireproof, waterproof, environmental protection, no toxicity, low cost and easy operation.







 I  Equipment structure and feature



 1. The machine adopts Chuangxin production technology to spread material and spread cloth for many times as well as strengthen the middle part of the manufactured product. The equipment runs stably with reasonable structure, easy operation and high precision, and the production personnel can get to work after easy training.

 2. One equipment can manufacture several products. It can produce not only building mould board but also fireproof board and ceiling board.



 II  Equipment specification and technical parameter

 1. Name: Production Line for Building Mould Board

 2. Outside size: 18000×1800×1500~2100×1800×1600(mm)



     Power supply: 380V



     Power: 2.2KW~4KW



     Running method: adjusting and fixed speed



III  Board performance and feature



<I> Performance index (Note: Actual measured values of National Research Center of Testing Techniques for Building Materials)





1	Apparent density t/_	1.18
2	Water absorbing capacity	22.4
3	Anti-fracture Mpa	22.0
4	Resistance to tension Mpa	6.4
5	Impact resistance KJ/M2	10.1



  <II> Features

This product can be used repeatedly with such following features: waterproof, anti-breaking, anti-impact, even & glazed surface, easy operation and low cost, and it can be nailed, sawed, planed and stuck. It can replace steel mould board, 5 ply panel, 9 ply panel and bamboo & wood mould board, and be applied in all kinds of casting concrete engineering.
