Great Quality Bus Bitzer 4NFCY 100% Original Air Conditioner Compressor

Product Overview

Description

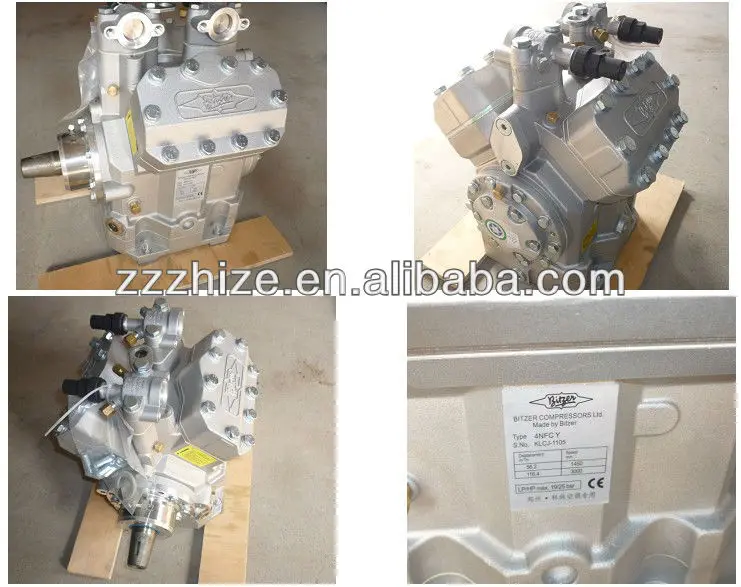

Bitzer 4NFCY Air Conditioner Compressor

1.Brand Name:Bitzer

2.Model Number:4NFCY

3.Car Make:City bus,Sightseeing bus,Coach



Our Main Brand



Technical Parameters

	SI	IP
Cylinder volume	647 cm³	39.4 CIR
Displacement (1450rpm)	56,2 m³/h	1986 CFH
Displacement (3000rpm)	116,4 m³/h	4110 CFH
No. of cylinder x bore x stroke	4 x 70 x 42mm	4 x 2.76 inch x 1.65 inch
Allowed speed range	1450 .. 3000 1/min	1450 .. 3000 1/min
Weight (without clutch)	33,0 kg	73.0 lb
Magnetic clutch 12V or 24V DC	LA16 (Option)	LA16 (Option)
Weight magnetic clutch	10 kg	22 lb
V-belts	2 x SPB	2 x SPB
Max. pressure (LP/HP)	19 / 28 bar	275 / 403 psi
Connection suction line	35 mm - 1 3/8'	35 mm - 1 3/8'
Connection discharge line	35 mm - 1 3/8'	35 mm - 1 3/8'
Oil type R134a	BSE 55 (Option)	BSE 55 (Option)
Oil type R22	B5.2 (Standard)	B5.2 (Standard)
Oil charge	2,5 dm³	88 fl. Oz
Crankcase heater	70 W 12or 24V DC (Option)	70 W 12or 24V DC (Option)
Pressure relief valve	Standard	Standard
Oil drier	Option	Option
Capacity control	100-50% (Option)	100-50% (Option)

We can offer all kinds of air conditioner compressor,such as 4NFCY,4TFCY,4PFCY,4UFCY,6NFCY,6UFCY,6TFCY,6PFCY,F400Yetc.



Packing Details

1. One piece in a poly bag.5 or 10 pieces in a carton.

2. Mark the product numbers and the QTY outside the carton.

3. As your requirement.



Marking

1. Be possible to mark your logo as request.

2. No specified, will mark our Logo as standard.

3. OEM is accepted.



Zhengzhou Zhize Trading Co., Ltd. is a main dealer for bus spare parts in China. Our company located in Zhengzhou, Henan province,

Over 10 years' exporting experience.



Our products are exported to many countries, for example: Algeria, Tanzania, Venezuela, Russia, Sudan, Ghana, Dubai, Jordan, Finland, Chile, Trinidad and Tobago, Slovenia, etc..



We can offer all kinds of Yutong and Higer bus parts for you,just tell us the VIN number and engine number.
