Car Oil Spiral Filter Core Tube Forming Making Machine

Product Overview

Description

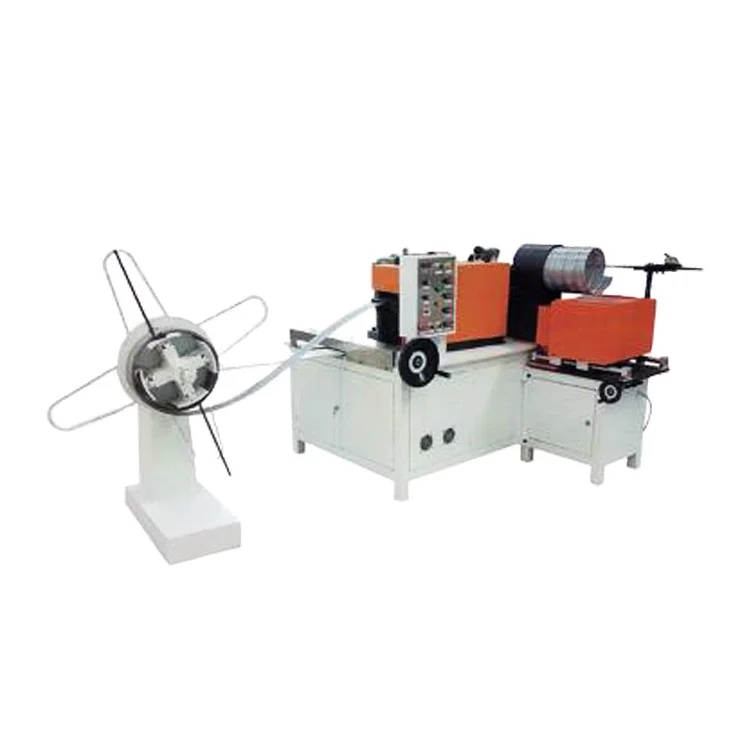

Car Oil Spiral Filter Core Tube Forming Making Machine

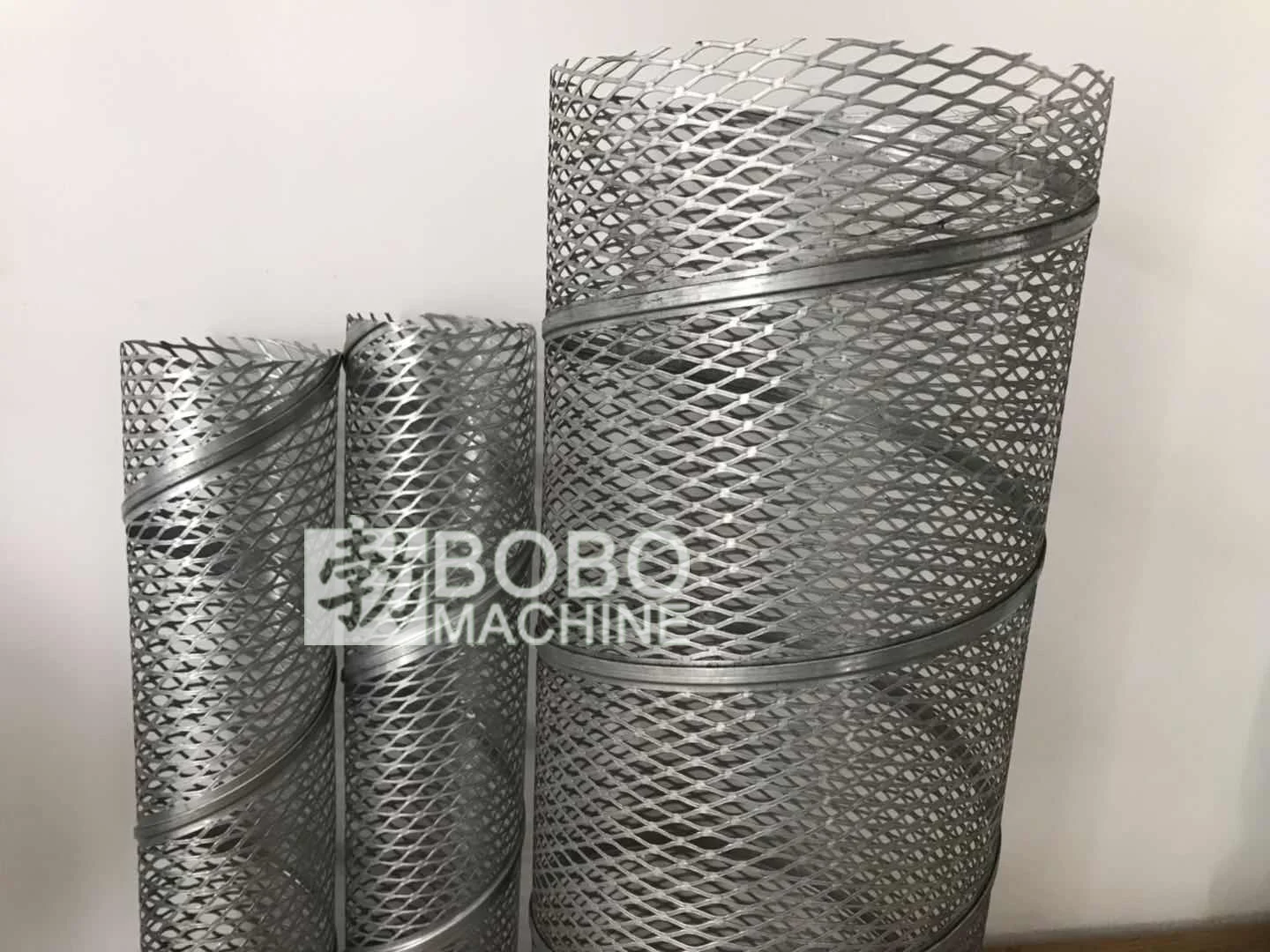

The spiral filter forming machine is specially for producing the cores of automotive filters.



Main features

1- Very easy and quick to change the diameter of spiral tube.

2-  Any length can be cut according to customer’s requirement.

3- By adjusting clutch, the machine can be suitable for different thick materials.



4- PLC control makes high efficient, stable quality, less procedures and materials and so reduces the production cost.



5- Fluid drive, large driving moment and stable run.









 Technical data

Production capacity	1.2 ~1.6 m/min
Diameter range of filter core	38mm~150mm
Length of core	any, unlimited
Thickness of raw material	0.35~0.45mm
Width of raw material	50 mm,or 60mm
Motor power	3kw
Electric power	380V/50Hz (can be according to customer’s requirements)
Weight	800kg
Dimension of main part	1300mm x 1000mm x 1400mm
Dimension of unloading rack	1200mm x 800mm x 760mm
