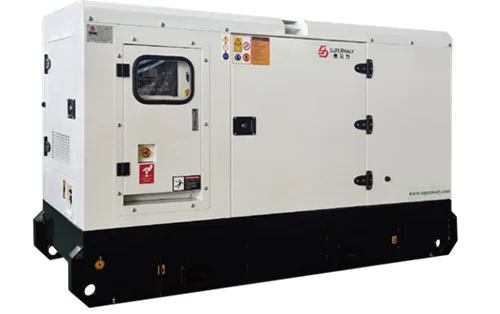

in stock! 12.5 kva diesel generator by Yangdong/Lister/Weifang engine

Product Overview

Description

12.5 kva diesel generator feature, specification, price and photos.



Our advantage

1. 12.5 kva diesel generator with engine brand can be Yangdong, Ricardo, etc.

2. We supply spare parts during the whole service life.

3. We are professional genset manufacturer, not trader

4. Decades’ years of manufacturing and exporting experience

5. Adopt International quality standards, to meet high quality requirement

6. Good reputation for Reliable quality & Reasonable price

7. Strong technical support

8. Advanced production line with skilled workers





12.5kva diesel generator specification:

12.5kva Diesel Generator
Genset Model		open type	SY10GF
Prime Power(kva)			12.5
Standby Power(kva)			13.75
Rated current(A)			18
Overall Size(mm)		Length(mm)	1725
		Width(mm)	800
		Height(mm)	950
Gross Weight(kg)			700
Diesel Engine	Model		YD480G
	Rated Power(kva)		17.5
	Intake Type		Natural
	No.of Cylinder		4. L
	Bore x Stroke(mm)		80*90
	Displacement(L)		1.809
	Mechanical Governor Rate		≤5%
	Electronic Governor Rate		≤1%
	Exhaust Temperature(°C)		≤540
	Lub oil Consumption(L)		<2.72
	Rated Fuel Consumption		<240g/kw.h
	Starting method		24V electric starter
	Governing Type		mechnical
Alternator	Model		SWT-10
	Rated Power(kva)		12.5
	Power Efficiency		90.30%
	Voltage Regulation		≤ ±1
	Excitation Type		Brushless
	Insulation Class		H



Type: open frame type, silent type, weatherproof type, traier, container, etc.



12.5kva Diesel Generator Feature:

1)12.5kva diesel generator with alternator Stamford, Lerory Somer, Mathron, Engga or Chinese brand alternator
2) Noise level: below to 75dB by 7m distance
3) Sound attenuated enclosure: special noise elimination setting restrains the machinery noise and the unit has perfect all-weather service property and the outside steel material features preferable corrosion prevention capability
5) 8-24hrs operation base tank
6) Key start / auto start
7) Sound-proof / weather-proof canopy is optional
8) 230 / 400V AC, 50Hz / 60Hz, 0.8pF three-phase and four wires alternating current output
9) Frequency: <3%
10) Frequency at stable state: <0.5%
11) Frequency deviation at instantaneous state: ≤+10%
12) Frequency return time: ≤3s
13) Voltage deviation at stable state: ≤±1%
14) Voltage deviation at instantaneous state: ≤+20%
15) Voltage return time: ≤4s
16) Voltage modulation: ≤0.3%



Our certificate of  12.5 kva diesel generator

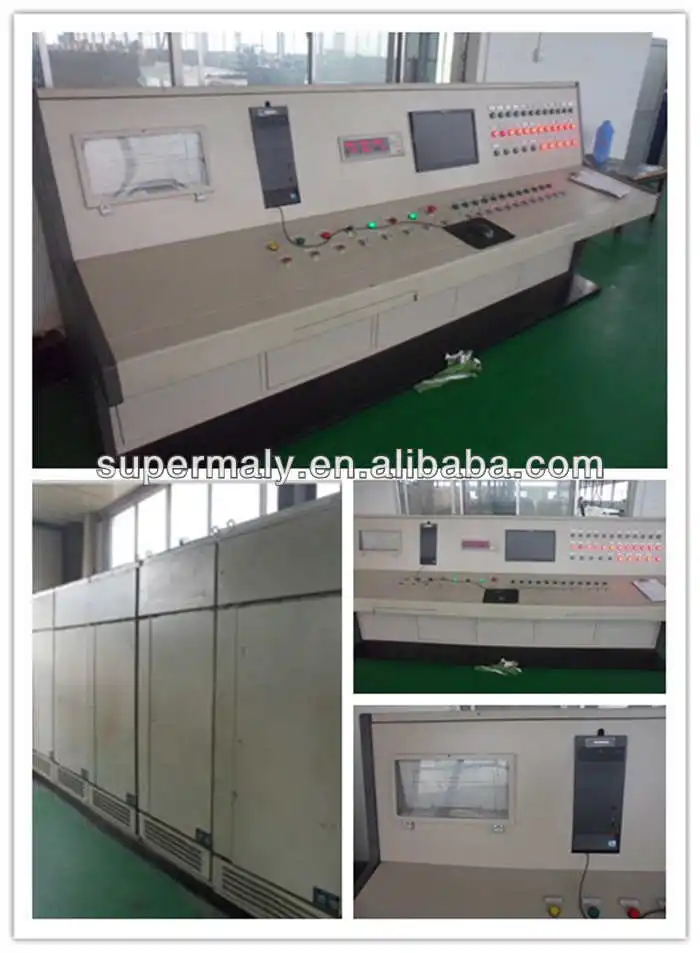

Testing of  12.5 kva diesel generator

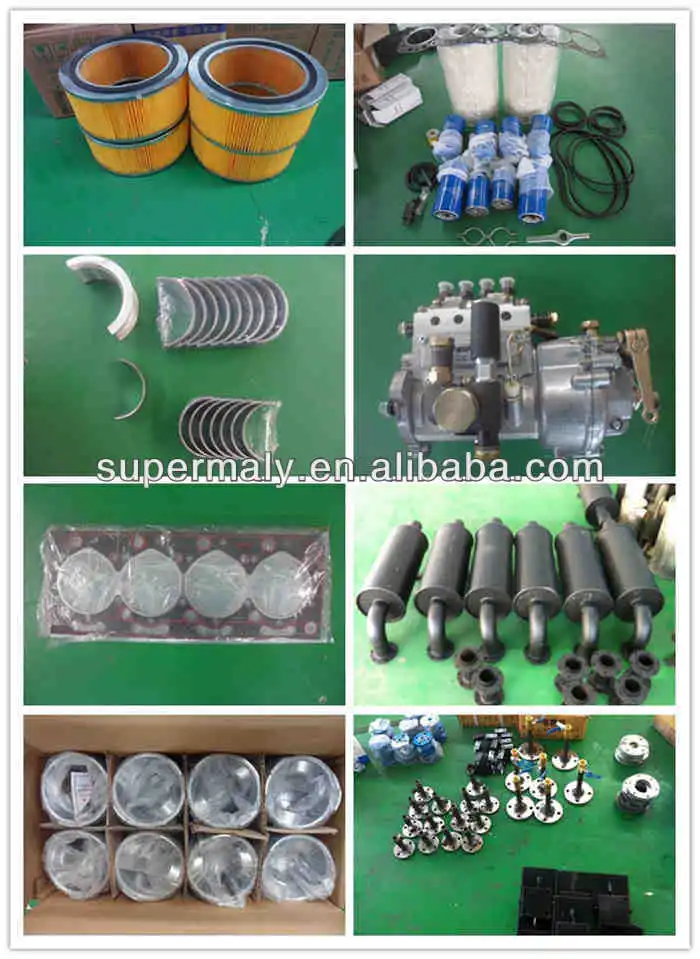

We supply spare parts during the whole service life for  12.5 kva diesel generator

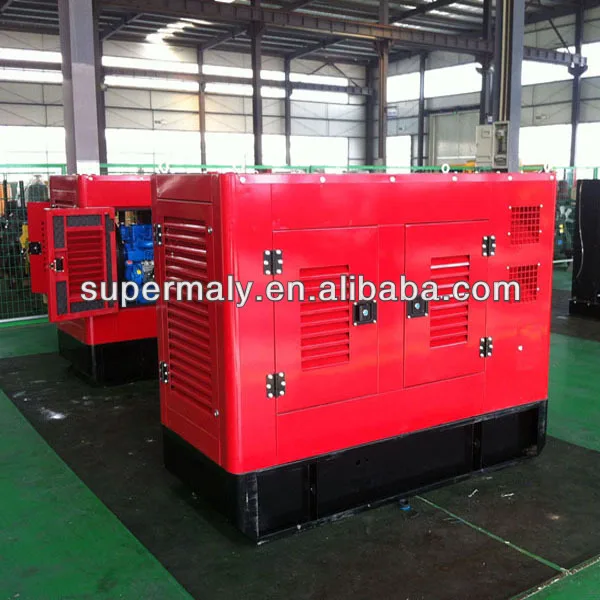

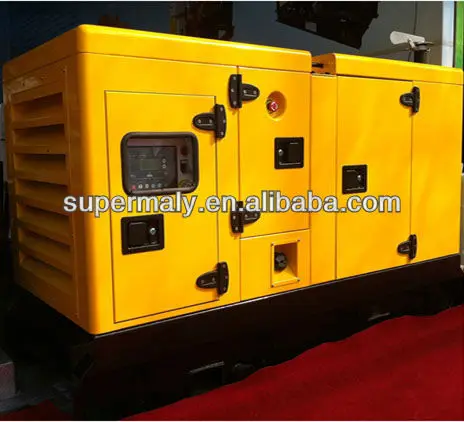

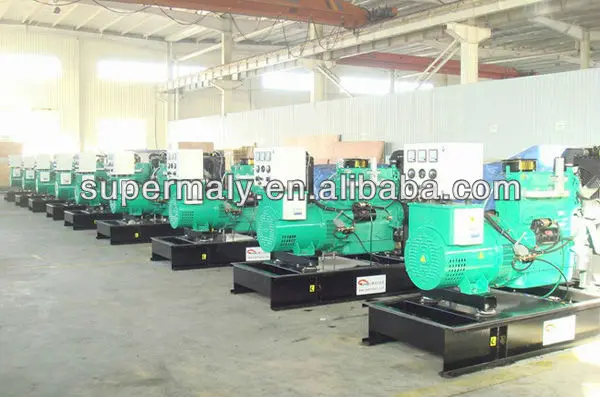

Photos of  12.5 kva diesel generator
