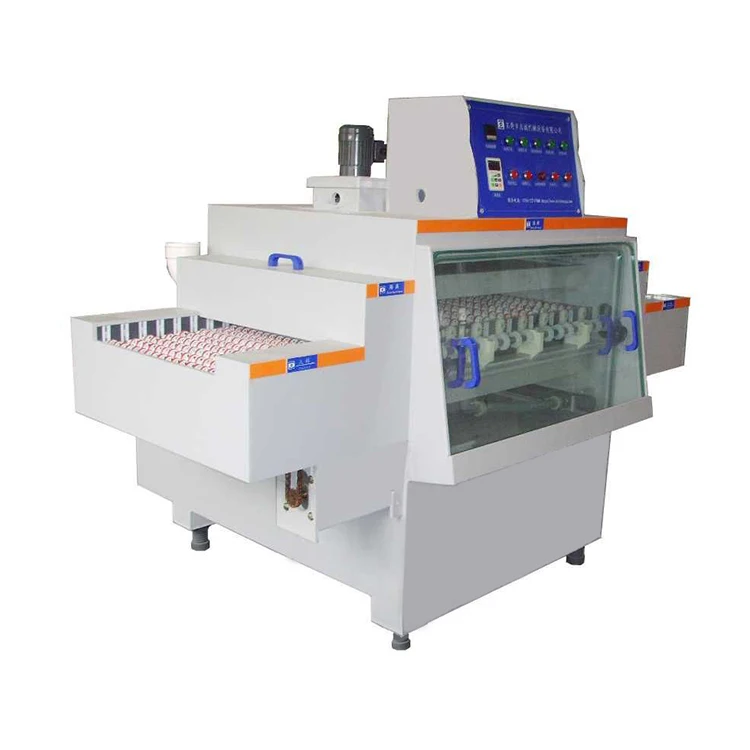

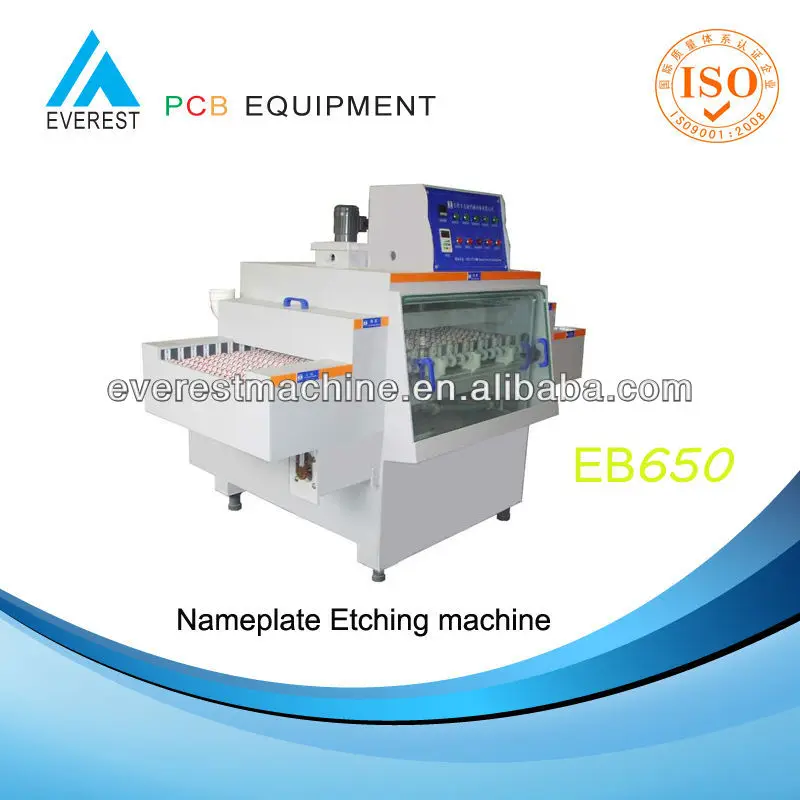

Chemical spraying etching machine
- Category: >>>
- Supplier: Everest Pcb Equipment Co. Ltd.
Share on (754756991):
Product Overview
Description
Related Products
Product Description
Main parameters:
Model Number: | EB650 |
Power | 11KW/380V/50HZ |
Working width | 650mm(can customized) |
Etching area | 650×1000mm(can customized) |
Etchant: | Ferric Chloride/ copper chloride |
Etched type | Double Spraying with oscillating system |
Working Temperature | 0~65°C(adjustable) |
Heat System | Titanium,4KW*1 |
Cool System | titanium pipe |
Vertical Pump | 2.2KW/220V/50HZ(can customized) |
Tolerance: | 0.025mm |
Machine Size | 2110*1938*1878mm |
Weight | About 650kgs |
Automatic Control System:
Speed adjust system
Pressure Adjust System
Temperature control system
Net Filter System
Features:

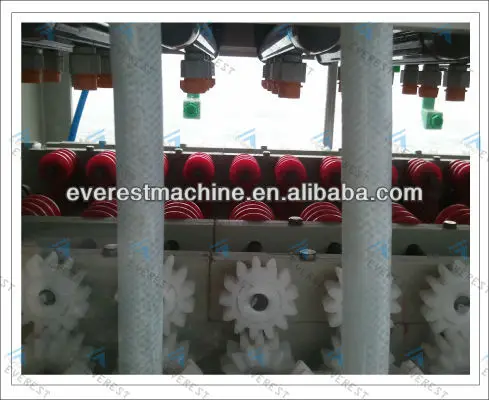

1.High transparency toughened glass design, it's convenient to observe internal spraying and transmission.
2.Uses PCB technology with double oscillatory frame to get higher precision
3.The body is made of PP or PVC,which is heat-resistant, corrosion-resistant and strain-resistant.
4.Adopted high pressure system,so the praying is more uniform
5.The speed can be adjusted for your different requirements.
6.Built in thermostat and can work for a long time.
7.Heating tube and cooling tube used titanium materials with good corrosion resistance.
and the best temperature could be ensure by automatic heating and cooling device.
8.Simple operation, it's very suitable for mass production.
9.Non-standard sizes can be customized according to different business requirement
Applications:

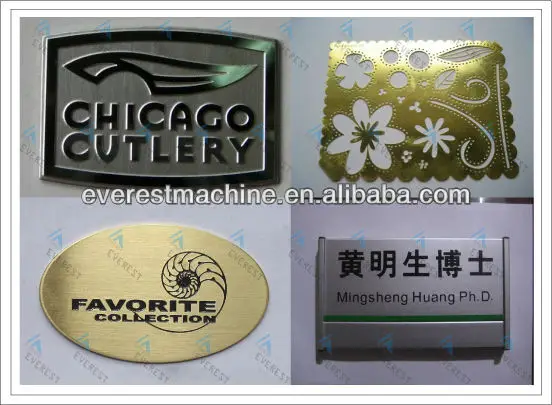

It’s mainly used to etch through the metal decoration plates, nameplates ,signs, tags,stencils,gobos,metal crafts and so on
Package:
Wooden case with waterproofing felt in side for ocean transportation,If you have special requirements ,pleased inform us in advance.
After-sales Services:
Three years warranty for product quality.
Timely service,life-long maintenance.
Free training for installation and operation of products.
Provide main component for replacement when you send back the problematical ones.
