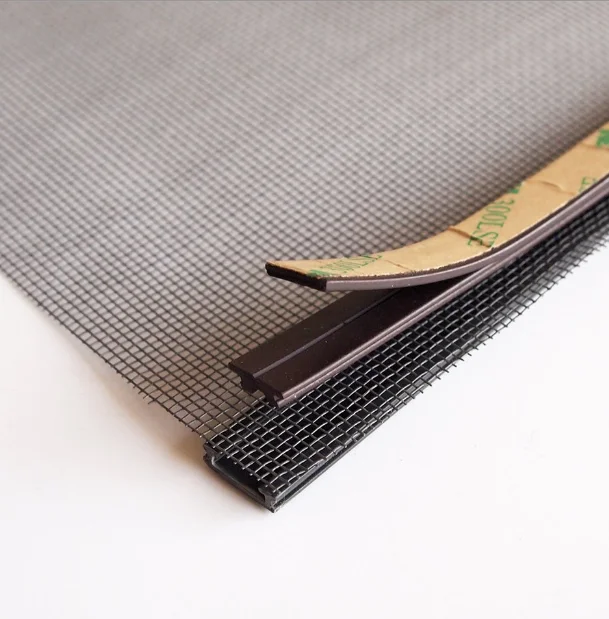

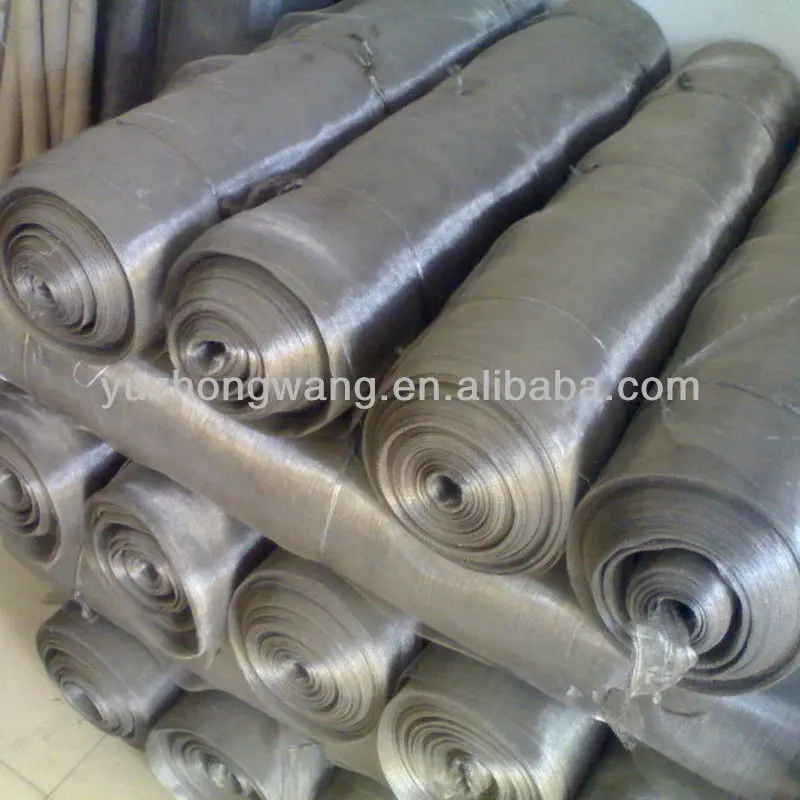

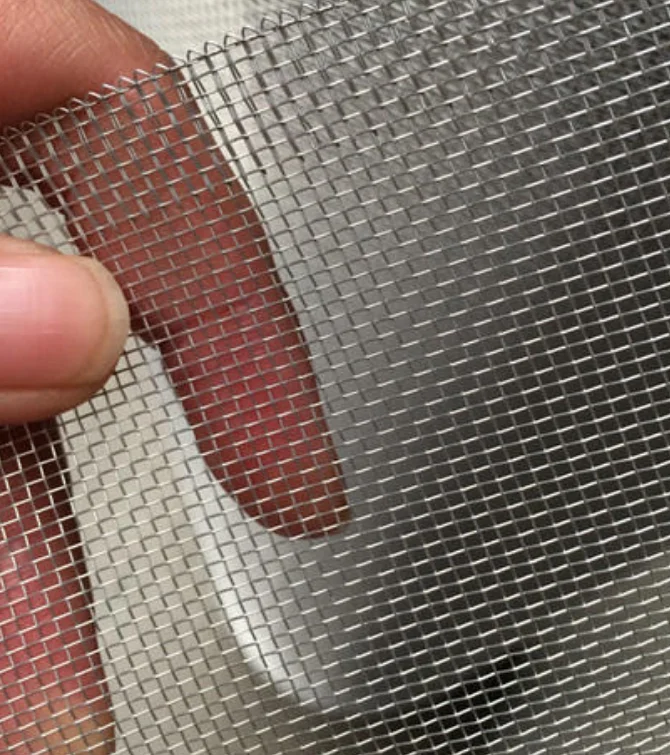

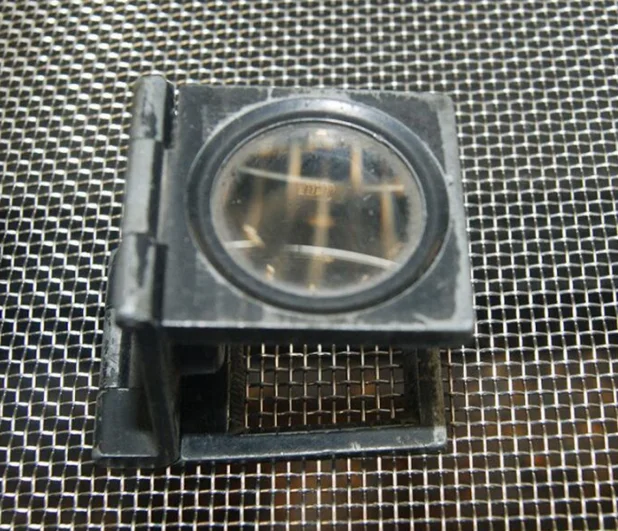

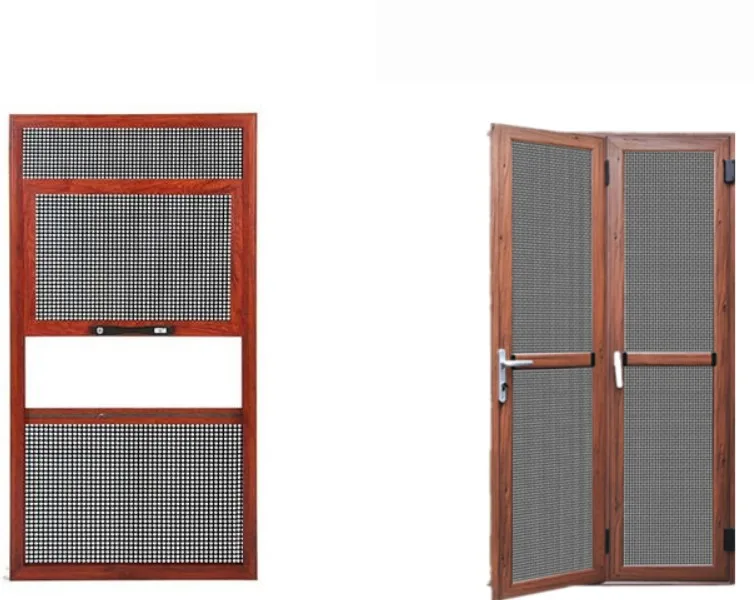

Stainless steel mosquito window screen netting

Product Overview

Description

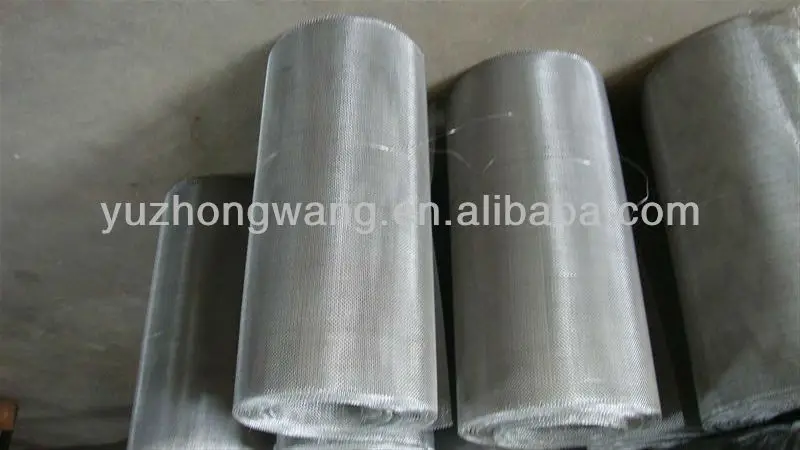

stainless steel window screen
General specifications: 14mesh x 14 mesh, 16mesh x 14mesh, 16mesh x 16mesh

Material: S.S 304, 304L, 316, 316L, and other special materials.

Characteristics: Made by stretching and drawing through moulds, the product is characterized by acid-alkali resistance, high tensile strength, intercrystalline corrosion resistance, smooth surface and bright color.

Performance: acid resistance, alkaline resistance, high temperature resistance, strong tension, and good abrasion resistance.
weaving type: plain weave, twill weave, Dutch weave (plain), Dutch weave (twill).

Usage: used for screening and filtering in the acid or alkaline environment, and used as a mud mesh in petroleum industry, as a screen mesh in chemical industry, and as a pickling mesh in electroplating industry.

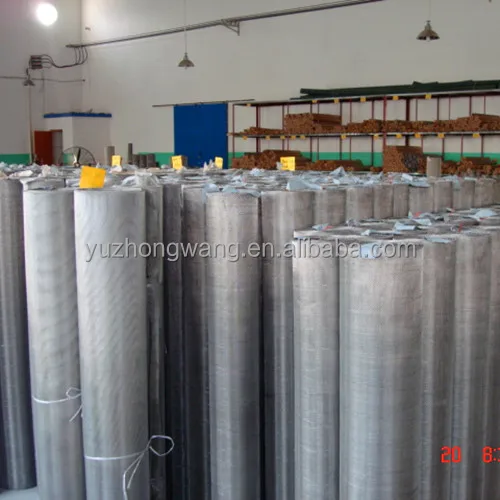

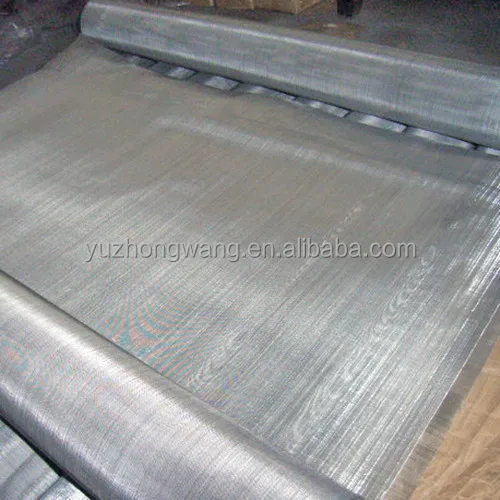

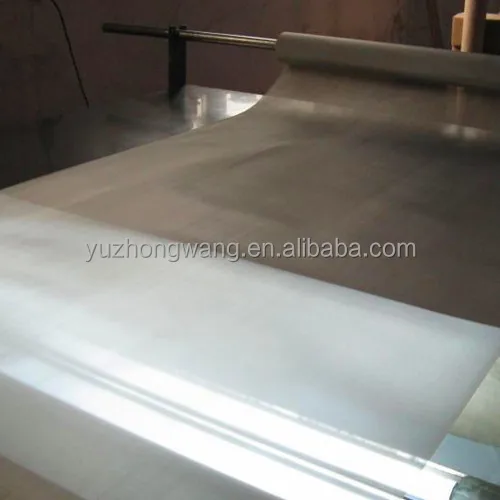

Stainless Steel Wire Mesh and Wire Cloth, Plain Weave stainless wire mesh Mesh Wire Dia. (MM) Opening (MM) Material (AISI) 7meshx7mesh 1.00 2.63 304 or316 10meshx10mesh 0.60 1.94 304 or316 12meshx12mesh 0.50 1.62 304 or316 16meshx16mesh 0.40 1.19 304 or316 16meshx16mesh 0.35 1.24 304 or316 18meshx18mesh 0.35 1.06 304 or316 20meshx20mesh 0.40 0.87 304 or316 24meshx24mesh 0.26 0.80 304 or316 30meshx30mesh 0.30 0.55 304 or316 35meshx35mesh 0.17 0.56 304 or316 40meshx40mesh 0.23 0.40 304 or316 50meshx50mesh 0.20 0.31 304 or316 60meshx60mesh 0.15 0.27 304 or316 70meshx70mesh 0.12 0.24 304 or316 80meshx80mesh 0.13 0.19 304 or316 90meshx90mesh 0.12 0.16 304 or316 100meshx100mesh 0.10 0.15 304 or316 120meshx120mesh 0.09 0.12 304 or316 150meshx150mesh 0.063 0.11 304 or316 180meshx180mesh 0.053 0.09 304 or316 200meshx200mesh 0.053 0.07 304 or316

Stainless Steel Wire Mesh and Wire Cloth, Twill Weave 250meshx250mesh 0.040 0.063 316 300meshx300mesh 0.040 0.044 316 325meshx325mesh 0.035 0.043 316L 350meshx350mesh 0.030 0.042 316L 400meshx400mesh 0.030 0.033 316L 450meshx450mesh 0.028 0.028 316L 500meshx500mesh 0.025 0.026 316L

Stainless Steel Wire Cloth, Dutch Weave Mesh Wire Dia. (MM) Material (AISI) 12mesh x 64mesh 0.58 x 0.40 304 or 316 24mesh x 110mesh 0.36 x 0.25 304 or 316 14mesh x 88mesh 0.50 x 0.33 304 or 316 30mesh x 150mesh 0.23 x 0.18 304 or 316 40mesh x 200mesh 0.18 x 0.13 304 or 316 50mesh x 250mesh 0.14 x 0.11 304 or 316 80mesh x 700mesh 0.10 x 0.08 304 or 316 165mesh x 800mesh 0.071 x 0.040 304 or 316 165mesh x 1400mesh 0.06 x 0.04 304 or 316 200mesh x 1800mesh 0.05 x 0.032 304 or 316 825mesh x 2300mesh 0.035 x 0.025 316L 400mesh x 2800mesh 0.030 x 0.02 316L
