PZ 6 Aliva small shotcrete pump

Product Overview

Description

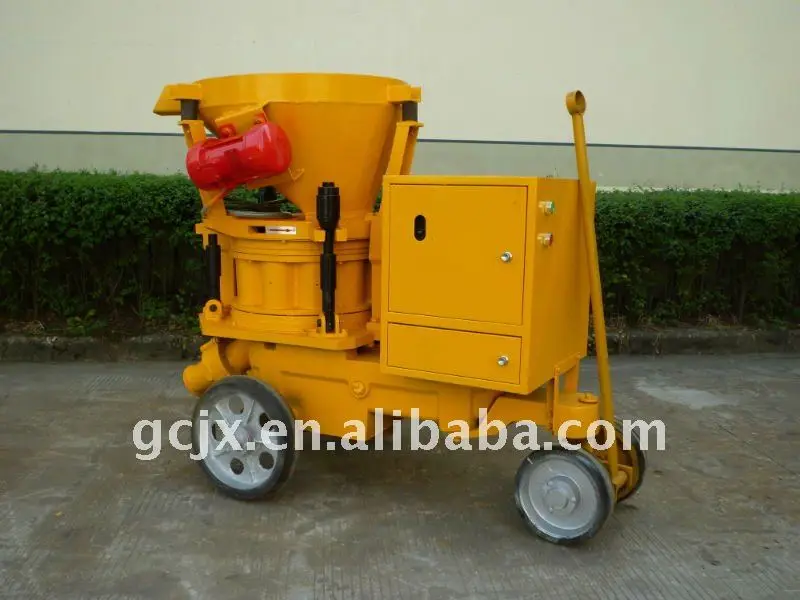

PZ-6    Small shotcrete pump



Model PZ-6  concrete gunite machine  is the most ideal device for the concrete anchor spray construction, wet spray and moist spray. And be widely used for the anchor spray supporting construction in tunnel, culvert and underground projects. The accelerating admixture conveying system in the machine is independent measured precisely by standard metering pump which is freely adjusted. And uniquely-made rubber bushing block on the swirler benefits mixture delivery. HPS-6 has stable performance, is convenient for maintenance, saves energy, has a long service life, protects environment, and improves the spraying layer quality.















Technical parameter



Model	PZ-6	PZ-9
Production capacity (m3/h)	6	7-9
Max horizontal delivery distance(m)	200	200
Max vertical delivery distance(m)	40	40
Cement-sand ratio	1 : 3-5	1 : 3-5
Water-cement ratio	≤0.4-0.45	≤0.4-0.45
Vibration motor power(kw)	0.25	0.25
Max aggregate size (mm)	20	20
Inner diameter of delivery hose(mm)	51	51
Working air pressure (Mpa)	0.2-0.4	0.2-0.4
Air consumption(m3/h)	7-8	10-12
Motor power(kw)	5.5	7.5
Dimensions(mm)	1300×900×1100	1300×800×1300
Net Weight(kg)	700	900







vulnerable parts:

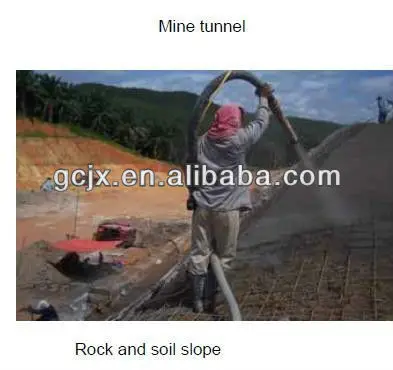

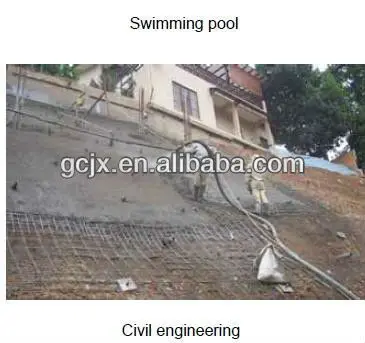

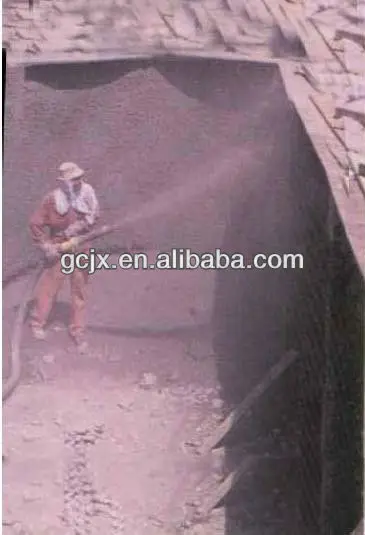

1. PZ-6 can be used in lots of applications including shotcrete concrete ,refractory and fireproof in mine tunnel, swimmingpool, rock scope contruction etc.
