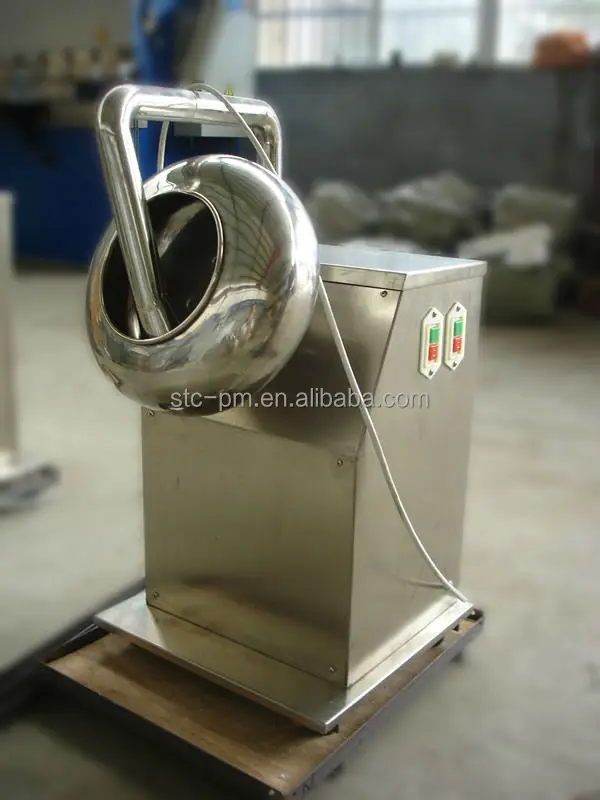

BY300 tablet coating machine

Product Overview

Description

BY300 sugar coating machine

These machines sugarcoat the tablets and pills for pharmaceutical and food industries. It is also used for rolling and heating beans and edible nuts or seeds. As its feature. The sugarcoating round pot is elevated with a elevation 30`to the horizontal, the heater such as gas or electrical heater can placed directly under the pot. A separated blower with electrical heater is provided with the machine. The pipe of the blower stretches into the pot for heating or cooling purpose. The thermal capacity can be selected in two levels.





Main technical Data :

ITEM	TYPE
	BY300(A)	BY400(A)	BY600	BY800	BY1000
Dia. of  by 1000 series sugar coating machine Dish mm	300	400	600	800	1000
Rotation Speed of  by 1000 series sugar coating machine Dish r/min	46/5-50	46/5-50	42	30	30
Production  Capacity of by 1000 series sugar coating machine kg/time	2	5	15	36	45
by 1000 series sugar coating machine  Motor kw	0.55	0.55	0.75	1.1	1.1
by 1000 series sugar coating machine   Overall Size mm	520*360*650	540*360*700	930*800*1420	980*800*1480	1070*1000*1580
candy sugar coating machine Net weight kg Net weight kg	46	52	120	180	320
