ISO9001 Mineral gold concentrate plant for copper, zinc, Au, silver, W Panning Machinery with gold concentrate line

Product Overview

Description

gold concentrate line  China Manufcturer

Brief introduction about  gold concentrate line

        General speaking, the  gold concentrate line  composes of several equipments, such as jaw crusher, impact crusher, vibrating feeder, belt converyor, ball mill, spiral separator, mixer, rotary kiln,and so on. as to how many equipments needed for each model, it's mainly depended on your situation and your expection about the final product, such as the size of the stone, the grade of the coarse ore and your expect on the final product,etc.

Advantages of Jiangtai brand  gold concentrate line

1: all products are manufactrured with the guidance of ISO9001

2: each quality product to optimized the complete line, so it's more effective

3: the gold recovery line is low noise

4: whole life sale service for the  gold concentrate line so our client can rest assured

5: any spare parts is available in our factory

Procedures of the gold plant

1: crude ore need to be primary by coarse jaw crusher and re-crushed by fine crusher or impact crusher

2: the re-crushed particles will be sent to ball mill to get sutle powder

3: the powder will be processed by spiral separator in the next stage

4: then the mineral will be mixed with additives in the mixer

5: the flurry will be processed to extract gold in the flotation machine

6: then the rotary dryer will dry the gold ore, so the  gold concentrate line is finished by now.

Technical Parameters of Flotation Cell in the  gold concentrate line

Model	Cell Volume (m³)	Impeller  Diameter (mm)	Productive  Capacity (m³/min)	Impeller Rotational (r/min)	Motor of Impeller		Motor of  Scraper		Overall Dimension of Four Cells (mm)	Weight Of Single Cell (kg)
					Model	Power (KW)	Model	Power (KW)
XJK-1A	0.13	200	0.05~0.16	593	Y90L-4	1.5	Y802-4	0.75	500*500*550	266
XJK-2 A	0.23	250	0.12~0.28	504	Y100L-4	1.5	Y802-4	0.75	600*600*650	389
XJK-3 A	0.35	300	0.15~0.5	500	Y90L-4	1.5	Y802-4	0.75	700*700*700	430
XJK-4 A	0.62	350	0.3~0.9	400	Y132S-6	3	Y90L-6	1.1	900*900*850	630
XJK-5 A	1.1	500	0.6~1.6	330	Y132M-6	5.5	Y90L-6	1.1	1100*1100*1100	1300
XJK-6 A	2.8	600	1.5~3.5	280	Y160L-6	11	Y100L-6	1.5	1750*1600*1100	2325

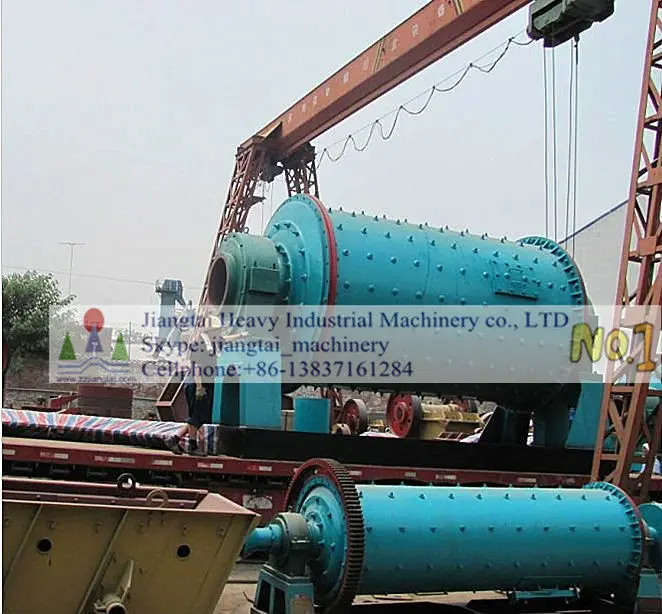

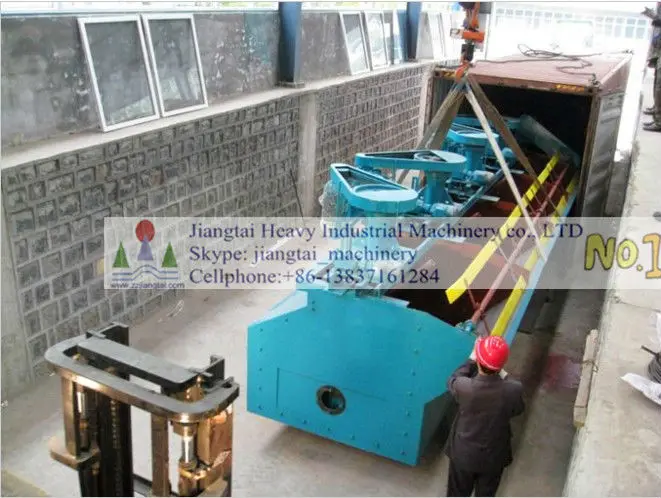

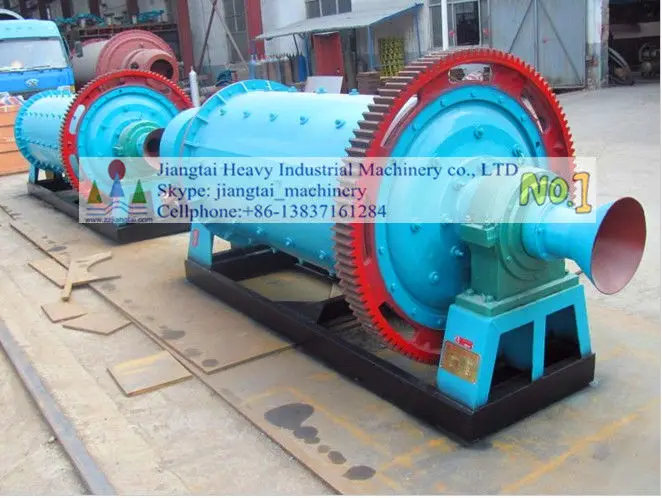

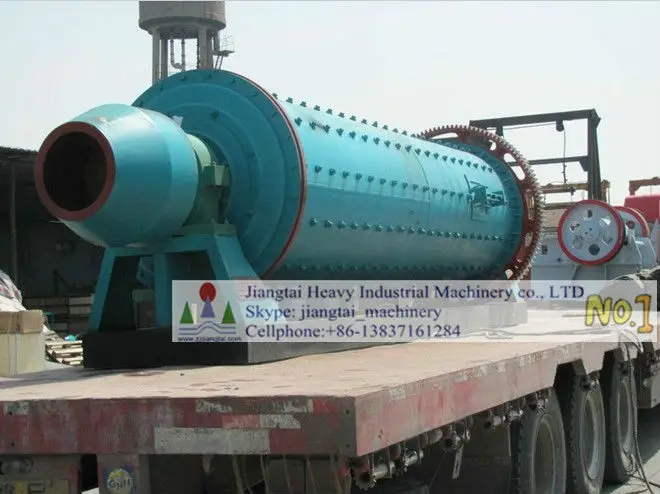

 Hot Shows about  gold concentrate line













If you have any question or need to get the latest price about the gold concentrate line , whatever it is , pls do not hesitate to contact us as below:
