Automatic fabric double folding and lapping / rolling machine

Product Overview

Description

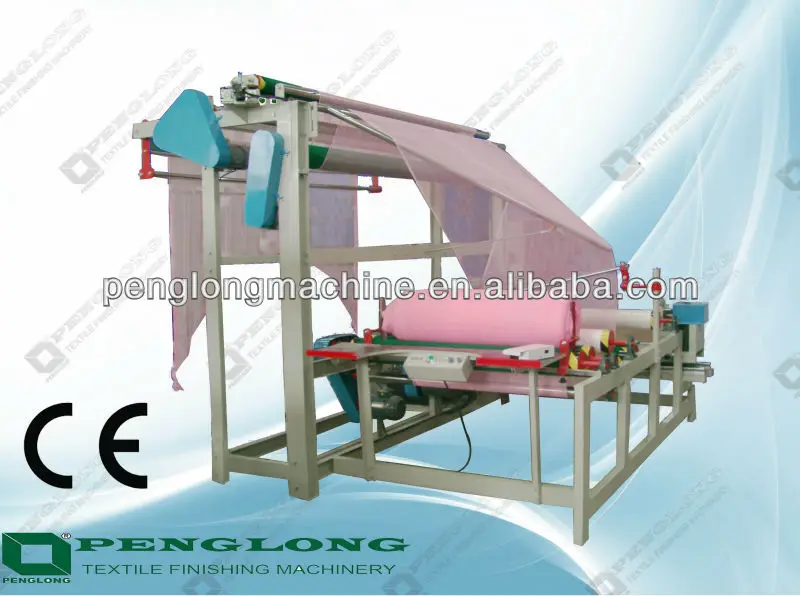

Fabric Folding and Winding /lapping Machine

Fabric Doulbe-folding and Rolling Machine







 Usage:

This machine is suitable for unwinding and plaiting all kinds of knitted, silk, towel-weave, cotton or other finished fabrics with tensionless.



Characteristics:



1.This fabric folding and winding maachine with cutting device is applicable for the inspection for knitting surface materials for textile,printing and dyeing enterprises.





2.Frequency speed control,kick control,simple and convenient operation.





3.Front and back fabric extending roller,prevent crease and rolling with edge blowing device.





4.Automatically track the edging with infrared ray,automatically align the edge of fabric.





5.Aotumaticlly controlled the front and back with automatic tension frame,protect the fabric from the influence of tension when rolling.





6.Fabric roller is equipped with speed differential mechanism,adjust the softness and hardness of fabric roll.





7.Cutting device and electric scale is optional.





8.CE approved





Technical Parameters:

1	Production Name	Fabric Folding and Winding Machine

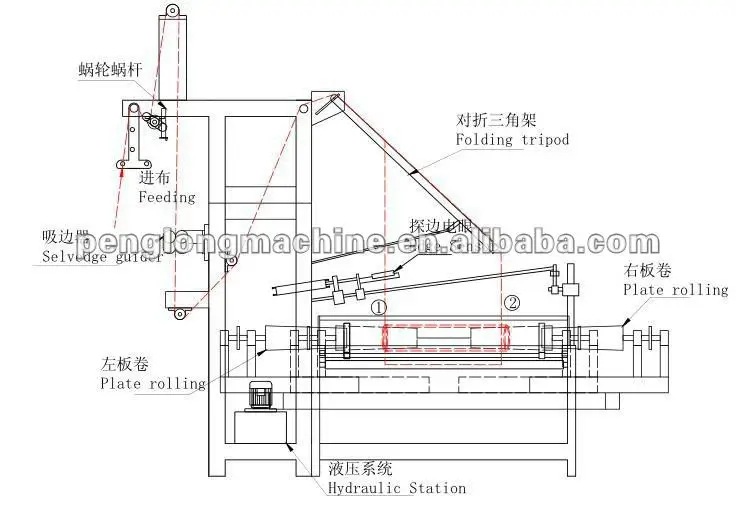

2	Model	PL-G
3	Working Width	1800~2400mm(other size available)
4	Main Motor	Inverter 3HP*49*1set(Brake attached)
5	Highest Speed	120m/min
6	Operating Space	2350mm(L)*2250mm(W)*2600mm(H)(1800mm)
7	Packing Size	2450mm(L)*2350mm(W)*2700mm(H)(1800mm)









Three ways of package for choice:



1. Bubble Wrapping--For Free



2. Wooden Pallet--Additional Charge of USD250



3. Wooden Case--Additional Charge of USD500









Engineers are available to service machinery overseas.



Changshu Penglong Machinery CO., Ltd has been founded in 2000.We are specially making and designing any kinds of fabric finishing machine according to customers' different requirements.

Our machines have been exported to Australia,Agrentina,South Africa,Ukrain,Uruguay,Portland,Brazil,El Salvador,Vietnam,Thanland,France,Bangladesh,Ethiopia,Iran,Iraq,Saudi Arabia,Sri Lanka and so on.

We are never stopping developing and improving our products and service before or after these years.Hope our rich experience in fabric finishing machine and our sincerity would offer your company help and satisfied you.

PS:
Main Conventional Products:
1.Fabric inpection machine series :
We have many different types.Some will aim to all kinds of woven fabric,knitted fabric or both.Some will aim to big fabric rolls,small rolls or both.Some aim to different fabric feeding,output or both.Also you can add some other special requirements.As you like.Model:PL-B,PL-B1,PL-B2,PL-A1,PL-A2,PL-N,PL-D,PL-D2,PL-F130,PL-G150,PL-G606,PL-C.

2.Fabric Plaiting Machine Series:
We have several types of this machine which are specially designed.Model :PL-E1,PL-E2,PL-E3,PL-E4.PL-800

3.Fabric Opening Machine Series:
These machines are used to slit/open tubualr fabrics.Such as roper opener ,PL-C Fabric slitting and inspection machine,Vertical High Speed Tubular Slitting Machine

4.Other Finishing Machine Series:
Fabric Edge Sewing Machine,Fabric folding Machine,Packing Machine,Shearing Machine,Raising Machine,Softening Machine,pl-2000 Automatic Centering Machine.

5.Other Machine Series:
Industrial Drying Tumbler Series,Auto-inverter Centrifugal Hydro Extractor,Swatch Cutter,Motors,Inverters,Hydraulic Parts and spare parts.







 Welcome to enquiry about our  Fabric Folding and Winding Machine!
