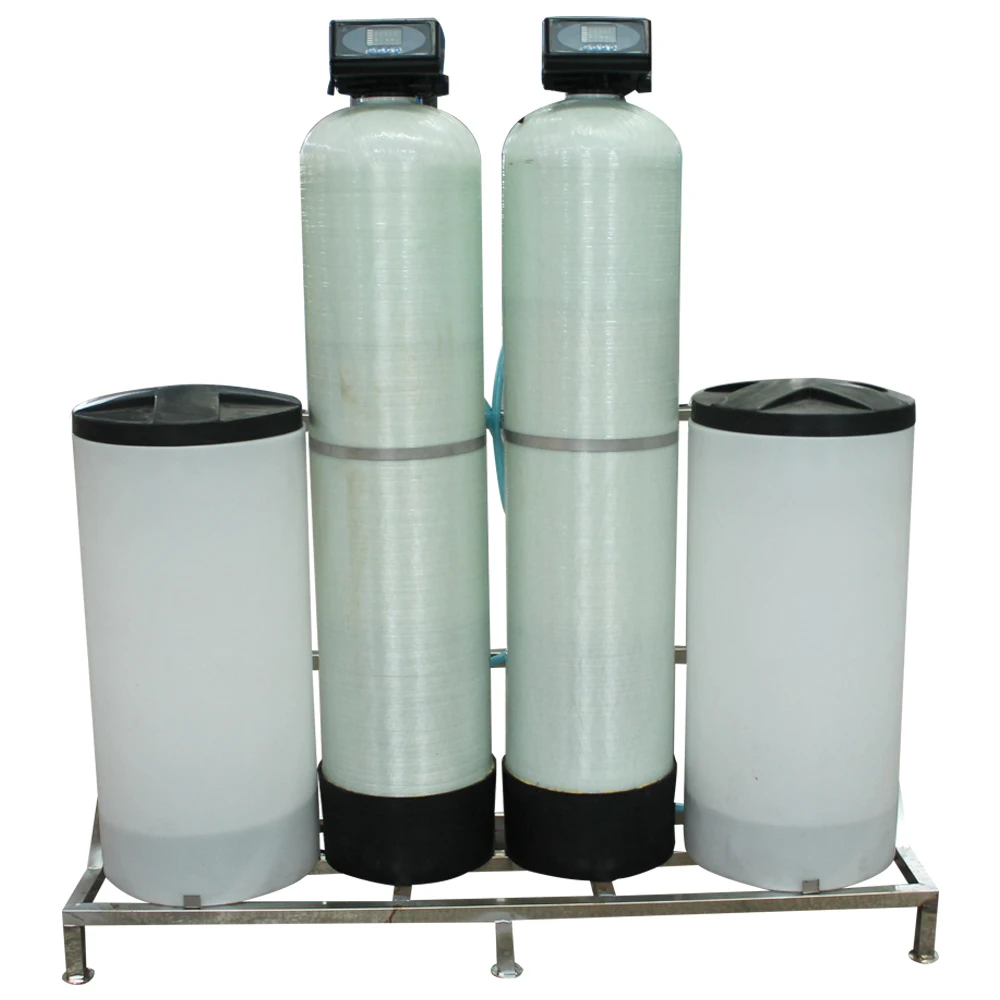

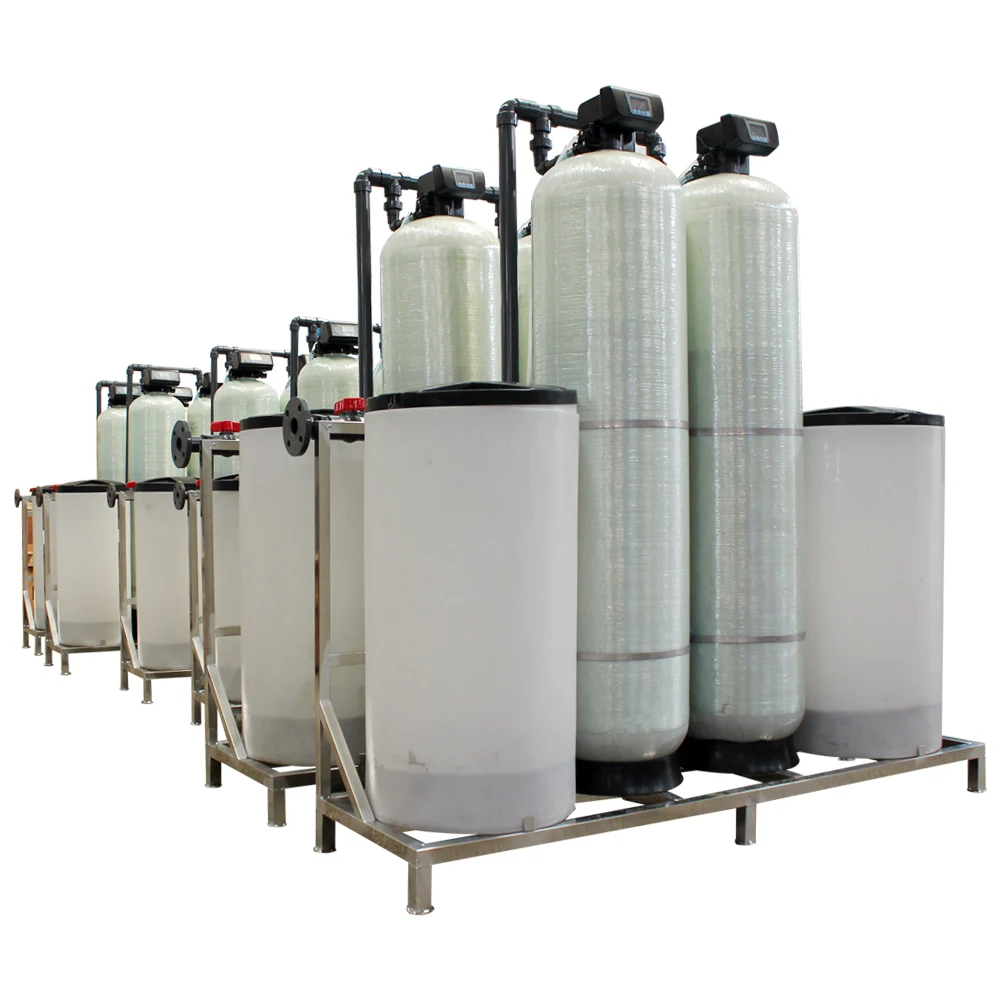

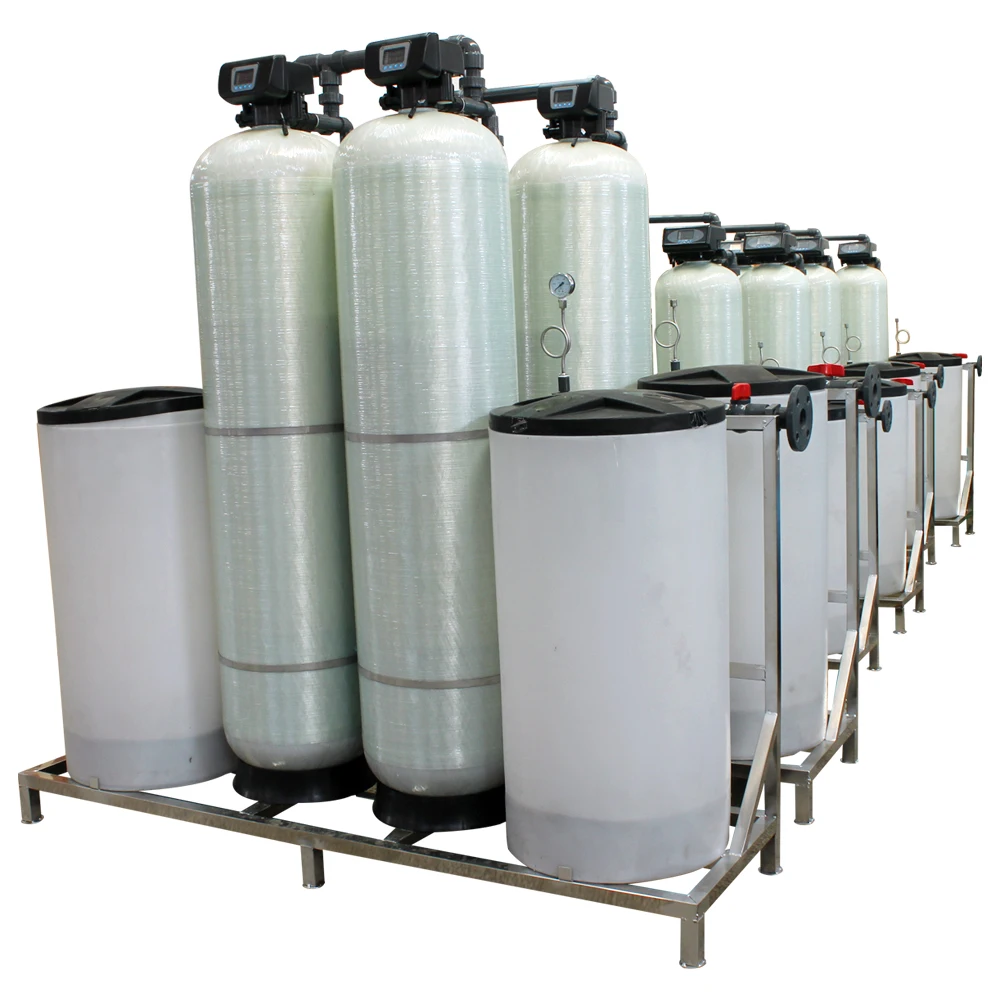

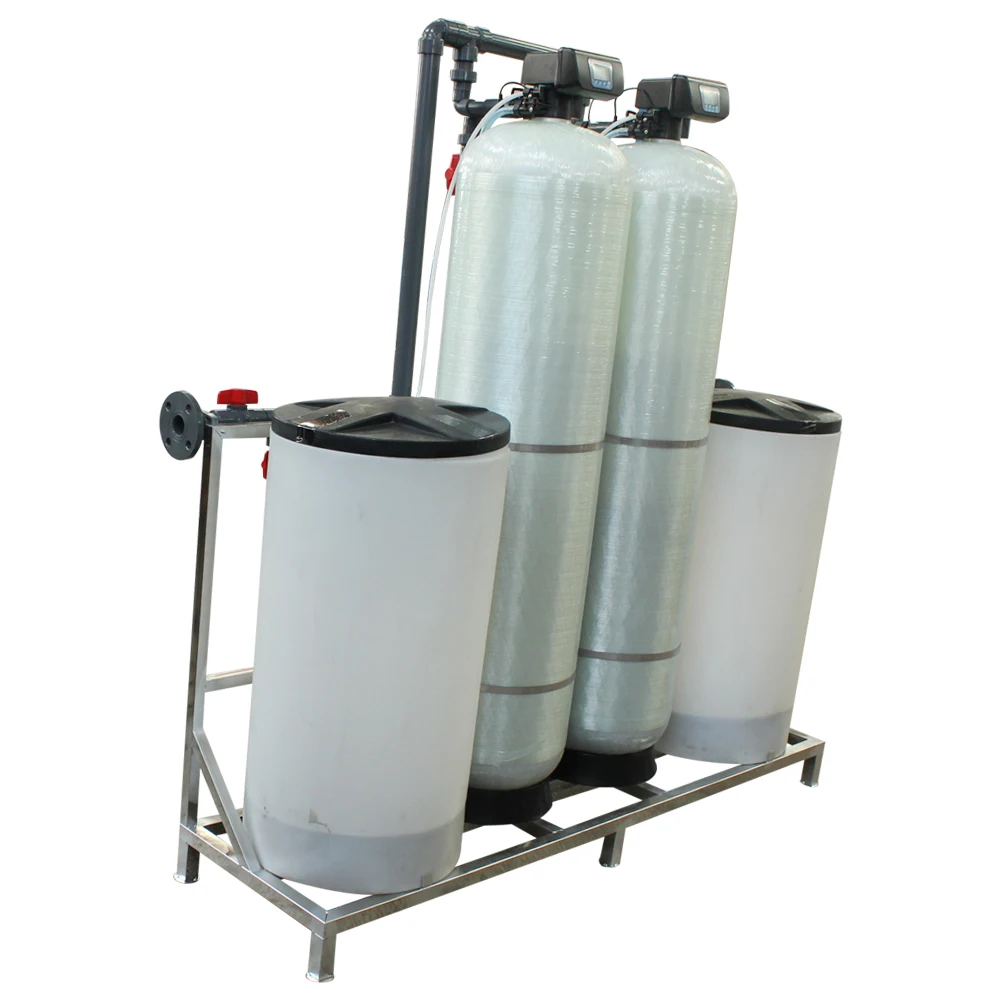

4000 LPH Auto FRP Water Softener With One Using Another Standby
- Category: >>>
- Supplier: Jiangsu YLD Water Processing Equipment Co. Ltd.
Share on (757063040):
Product Overview
Description
4000 LPH Auto FRP Water Softener With One Using Another Standby
Product Description
Type choice:
Softener equipment applies cation resin for softening raw water,its main target is to use cation resin to absorb(main parts of ),encreasing the hardness of raw water.
1. Users can choose manual operation control system for saving cost.
2. If users using for 24 hours can accord to water using time choosing for rebirth
3. Uses can according to water quality requirement:first grade multi-media filter,which can remove mud,rust,colloid and suspension in water.Second grade activated carbon filter,which can remove color,olfactory,biochemistry organic in water and encrease the left oxygen value and pollution in water.Third grade equipment softener equipment.
4. Effluent water capacity achieves the water supply of national low-pressure boiler.
5. Time control- type;flow control- type.In working ,apply single-tank,double-tank and multi-tank etc. other varied combination method.When choosing,users can choose as their needs.In operation,it has not only automatic function,but also is manual operation.
Technical index and working
1.Water pressure:0.18-0.6Mpa
2.Working temperature:1°c-55°c
3.Hardness of raw water: <8mmol/L
4.Operation method:manual/automatic
5.Hardness of effluent water: ≤0.03mmol/L
6.water flow: 1-2-50 ton/hour
7.Rebirth method:resin
8.Control method: time or flow
9Working electric: 220V/50Hz
Usage:
System automatic water softener widely used in steam bioler,heating bioler,exchanger,air conditioner, and other systems water softener,also used in hotel,restruant,office, and other life water treatment and food,drinking,wine,washing,textile,chemical,medicine and other industrial softener water treatment.
To customers details
01.What is the capacity(cubic meter per hou)for this water softener?
02.What is the working hours for this water softner each day?is it continuous 24 hours working or not?
03.Do you require the whole water softener system be assembed and installed into a skid?
Specifications:
Category | Model | Recommended water yield (M³/h) | Tank size Diameter *Height(mm) | Salt box (L) | Amount of resin(KG) |
Single-valve and single-tank | YL-I-0.5 | 0.5 | 200×900 | 25 | 20 |
YL-I-1 | 1 | 250×1400 | 60 | 40 | |
YL-I-2 | 2 | 300×1400 | 200 | 60 | |
YL-I-3 | 3 | 350×1400 | 100 | 80 | |
YL-I-4 | 4 | 400×1650 | 200 | 120 | |
YL-I-5 | 5 | 500×1750 | 300 | 180 | |
YL-I-6 | 6 | 300×1900 | 350 | 240 | |
YL-I-10 | 8-10 | 750×1900 | 500 | 360 | |
YL-I-18 | 42-18 | 900×1900 | 800 | 520 | |
YL-I-25 | 18-25 | 1000×2200 | 1000 | 720 | |
YL-I-35 | 25-30 | 1200×2400 | 1500 | 1000 | |
YL-I-50 | 35-50 | 1500×2500 | 2000 | 6400 | |
Dual-valve and dual-tank (simultaneous operation and respective regeneration) | YL-II-36 | 24-36 | 900×1900 | 800 | 1040 |
YL-II-50 | 36-50 | 1000×2200 | 1000 | 1440 | |
YL-II-70 | 50-70 | 1200×2400 | 1500 | 2000 | |
YL-II-100 | 70-100 | 1500×2500 | 2000 | 3200 | |
Dual-valve and dual-tank(One for use and the other for standby) | YL-II-1 | 1 | 250×1400 | 60 | 80 |
YL-II-2 | 2 | 300×1400 | 100 | 120 | |
YL-II-3 | 3 | 350×1400 | 100 | 160 | |
YL-II-4 | 4 | 400×1650 | 200 | 240 | |
YL-II-5 | 5 | 500×1750 | 300 | 360 | |
YL-II-6 | 6 | 600×1900 | 350 | 480 | |
YL-II-10 | 8-10 | 750×1900 | 500 | 720 | |
YL-II-18 | 12-18 | 900×1900 | 800 | 1040 | |
YL-II-25 | 18-25 | 1000×2200 | 1000 | 1440 | |
YL-II-35 | 25-35 | 1200×2400 | 1500 | 2000 | |
YL-II-50 | 35-50 | 1500×2500 | 2000 | 3200 |
Packaging & Shipping
TO SHANGHAI NIBONG QINGDAO TIANJING GUANGDONG PORT
Our Services
We provide 24 hours online customer service.
Any inquiry about water treatment system, please feel free to contact me for further details!
Contact information:
Mobile phone/ WhatsApp/ Wechat: +86 13585066069
Email: yld AT jsyld.com.cn
Alibaba website: http://js-yilida.en.alibaba.com
Official website: www.zgyld.com
Guarantee period:1 year
After-sale service:800-827-87-226
