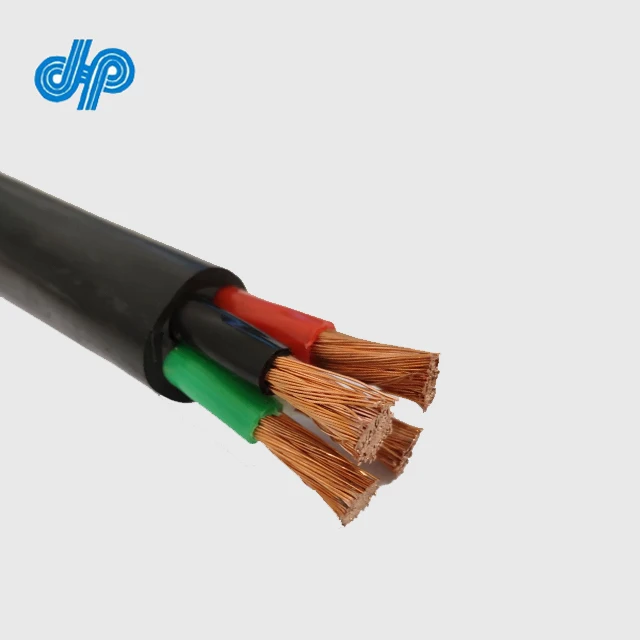

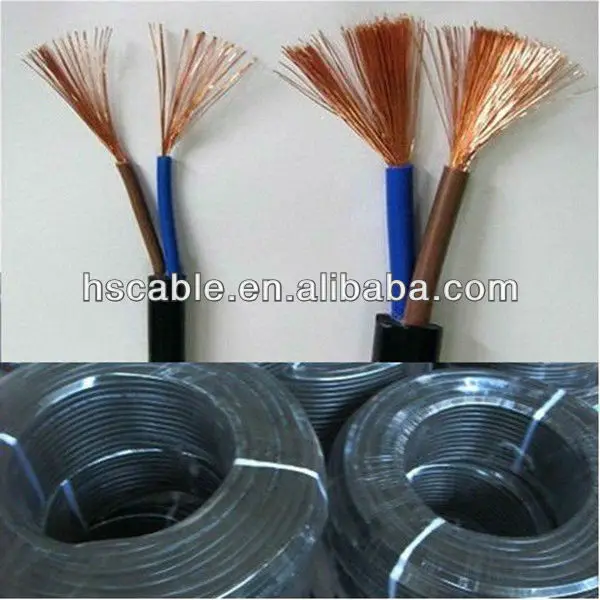

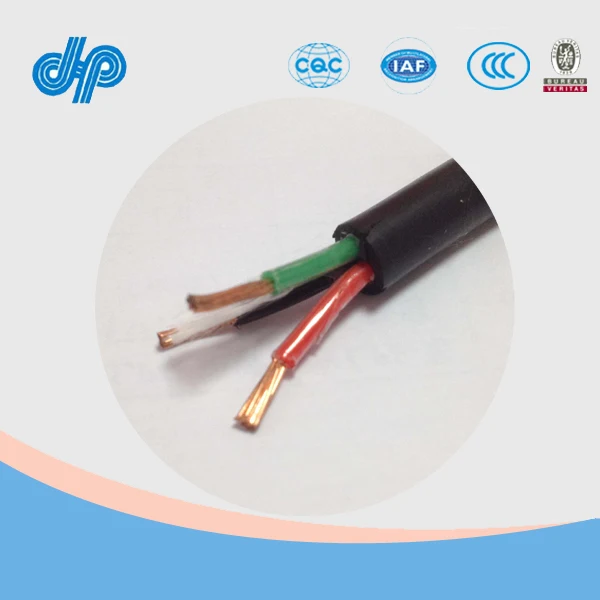

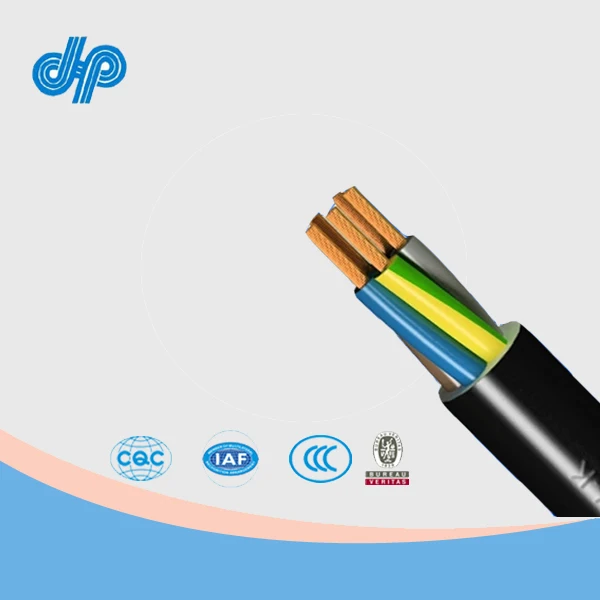

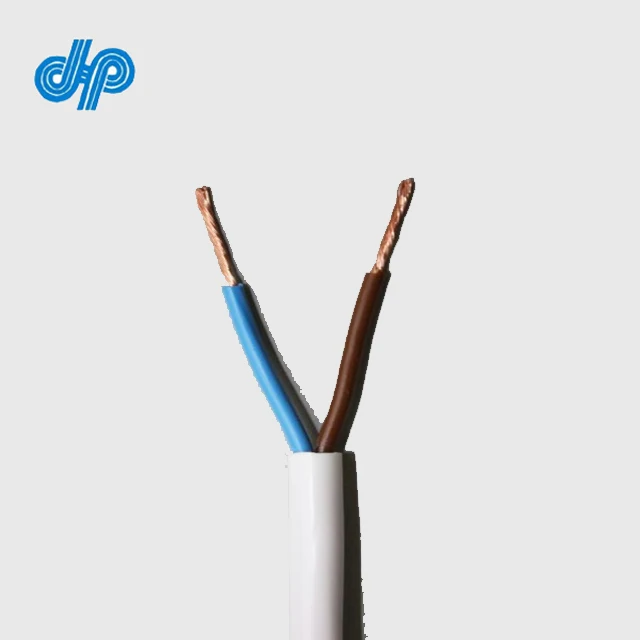

300/500V FLEXIBLE PVC 35MM2 RVV POWER CABLE

Product Overview

Description

300/500V RVV POWER CABLE :

1. Stranded Copper Conductor

2. Pvc insulated and Jacket

3. Classfy as follows:

	Name	Laying Site and Requirements	Long-time Permissible Working Temperature of Conductor(
227IEC01/05 BV BLV	Copper Conductor,PVC Insulated Wire	Fixed laid in the circumstance of indoor, conduit etc.	70
	Aluminium Conductor,PVC Insulated Wire
227IEC 07 BV-90	Heat Resistant Copper Conductor,PVC Insulated Wire at 90	Fixed laid in the circumstance of high temperature environment and can be laid indoor, conduit etc.	90
BVR	Copper Conductor,PVC Insulated Flexible Wire	Fixed laid where flexibility is required.	70
227-IEC10 BVV	Copper Conductor PVC Insulated and PVC Sheathed Round Wire	Fixed laid where high mechanical protection and moisture are required. They can be laid in the air or underground.	70
BLVV	Aluminium Conductor PVC Insulated and PVC Sheathed Round Wire
BVVB	Copper Conductor PVC Insulated and PVC Sheathed Flat Wire
BLVVB	Aluminium Conductor PVC Insulated and PVC Sheathed Flat Wire
227IEC 02 RV227     IEC 06    RV	Copper Conductor,PVC Insulated Flexible Connector	Mainly used at middle-light type movable euipments, instrument and meters, household appliances, power and lighting and the places where flexibility is required.	70
227IEC 42 RVB	Copper Conductor,PVC Insulated Flat Flexible Connector
RVS	Copper Conductor,PVC Insulated Flexible Twisting Connector
227IEC52 RVV  227IEC53 RVV	Copper Conductor PVC Insulated and PVC Sheathed Round Flexible Connector(Light and Common Type)

 4.Structure size, the technical parameters:

metric(mm2)	insulation	sheath	average	finished product	20°Cconductor
	thickness(mm)	thickness(mm)	diameter(mm)	similar   weight(kg/km)	resistance≤Ω/km
60227 IEC 52(RVV), 60227 IEC 56(RVV-90) 300/300V
2×0.5	0.5	0.6	5.9	32.8	39
2×0.75	0.5	0.6	6.3	39.2	26
3×0.5	0.5	0.6	6.3	42.1	39
3×0.75	0.5	0.6	6.7	51.2	26
60227 IEC 53(RVV), 60227 IEC 57(RVV-90) 300/500V
2×0.75	0.6	0.8	7.2	52.3	26
2×1.0	0.6	0.8	7.5	59.3	19.5
2×1.5	0.7	0.8	8.6	78.7	13.3
2×2.5	0.8	1	10.6	119.2	7.98
3×0.75	0.6	0.8	7.6	64.8	26
3×1.0	0.6	0.8	8	74.3	19.5
3×1.5	0.7	0.9	9.4	104.4	13.3
3×2.5	0.8	1.1	11.4	157.5	7.98
4×0.75	0.6	0.8	8.3	79.4	26
4×1.0	0.6	0.9	9	95.5	19.5
4×1.5	0.7	1	10.5	134	13.3
4×2.5	0.8	1.1	12.5	196	7.98
5×0.75	0.6	0.9	9.3	191.6	26
5×1.0	0.6	0.9	9.8	114.1	19.5
5×1.5	0.7	1.1	11.6	165.8	13.3
5×2.5	0.8	1.2	13.9	242.3	7.98
60227 IEC 52(RVV), 60227 IEC 56(RVV-90) 300/300V
2×0.5	0.5	0.6	5.9	32.8	39
2×0.75	0.5	0.6	6.3	39.2	26
3×0.5	0.5	0.6	6.3	42.1	39
3×0.75	0.5	0.6	6.7	51.2	26
