Automatic P.E Shrink Packing Fabric Rolls Machine
- Category: Textile Finishing Machines >>>
- Supplier: Changshu Penglong Machinery Co. Ltd.
Share on (757943965):
Product Overview
Description
Packing Fabric Rolls Machine,fabric roll packing machine, packaging machine,wrapping machine,shrink packing machine.
-Usage:
Packing Fabric Rolls Machine is designed to pack fabric rolls by P.E. film automatically.
-Characteristics of Packing Fabric Rolls Machine:
The fabric rolls loaded on the infeed conveyor will be wrapped in a 3-side sealed package, and then the package will be trasferred into a shrink tunnel and rapidly heat shrunk.Finally the package comes outs in a tight but soft shape.Package without shrinkage of PE film is also available in this type fabric roll packing machine.
-Technical Parameters of Packing Fabric Rolls Machine:
| 1 | Packing speed | 5~6rolls/min |
| 2 | Valid Fabric Diameter | 100mm~500mm,Valid packing length 900mm~2200mm |
| 3 | Seal Type | Three sides sealing(thermostatic system) |
| 4 | Length of packing shaft | Max2800mm |
| 5 | Driver Type | Pneumatic Control |
| 6 | Guide Shaft | Grinding Axis and Ball-bearing |
| 7 | Side Sealing way | Right and left,edge sensor control |
| 8 | Edge sealing way | Right and left packing,centering and fastening |
| 9 | Material of Packing Shaft | Alloy Copper |
| 10 | Shaft Protection | Edge sensor tracking and warning |
| 11 | Thickness of PE Film | 0.04~0.10mm |
| 12 | Length of PE Film | 2000~2750mm |
| 13 | Pneumatic Cylinder | Magnetic Induction |
| 14 | Pneumatic Cylinder Control | Approach Switch Made in Japan and Korea |
| 15 | Power Consumption | 13Kw,About 8Kw avaliable |
| 16 | Air Pressure Apply | Apply 1800/liter/min,Pressure 6kg/cm,50/lter/min |
| 17 | Edge sealing Vacuum Wast Aspirating Equipment | Air Blower made in Taiwan 5HP*2sets |
| 18 | Electric Operate | Equipped with PLC and touch pane,Autodiagnosis failure indication |

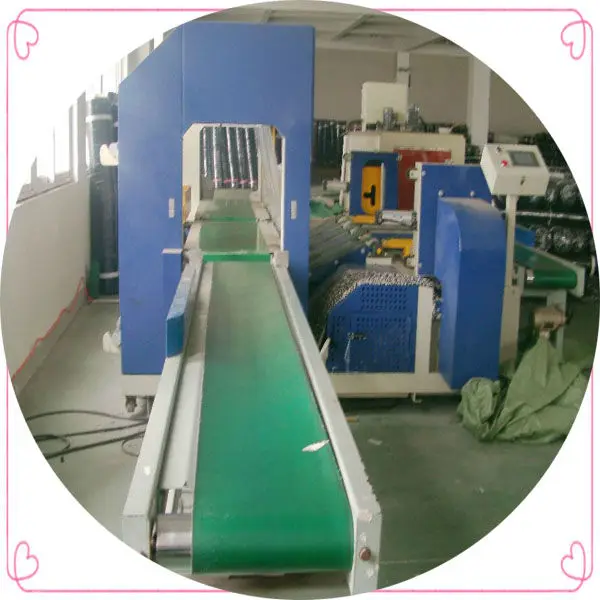

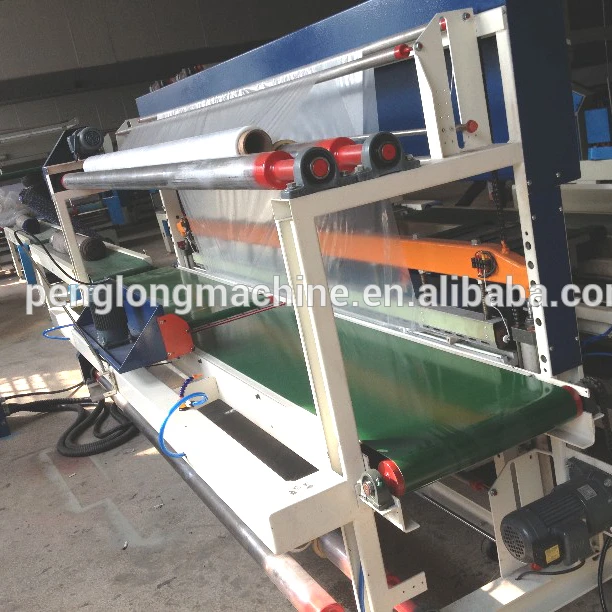

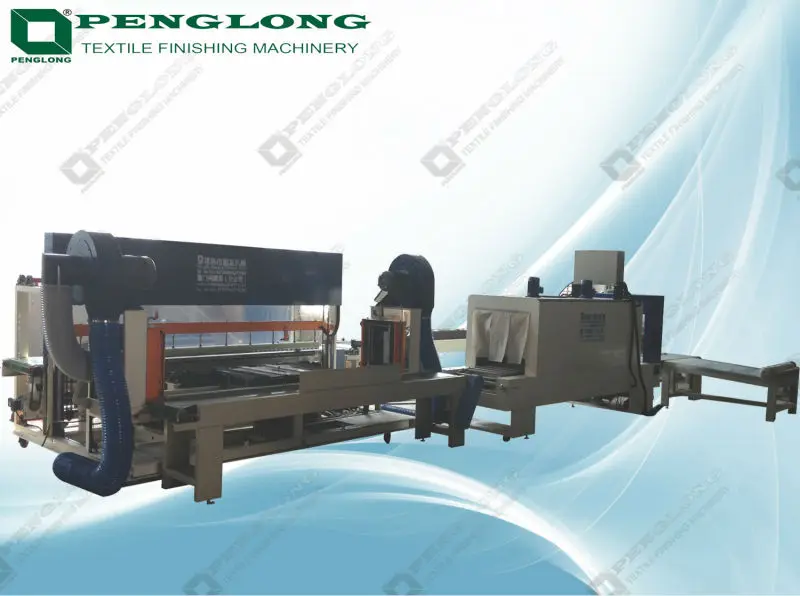

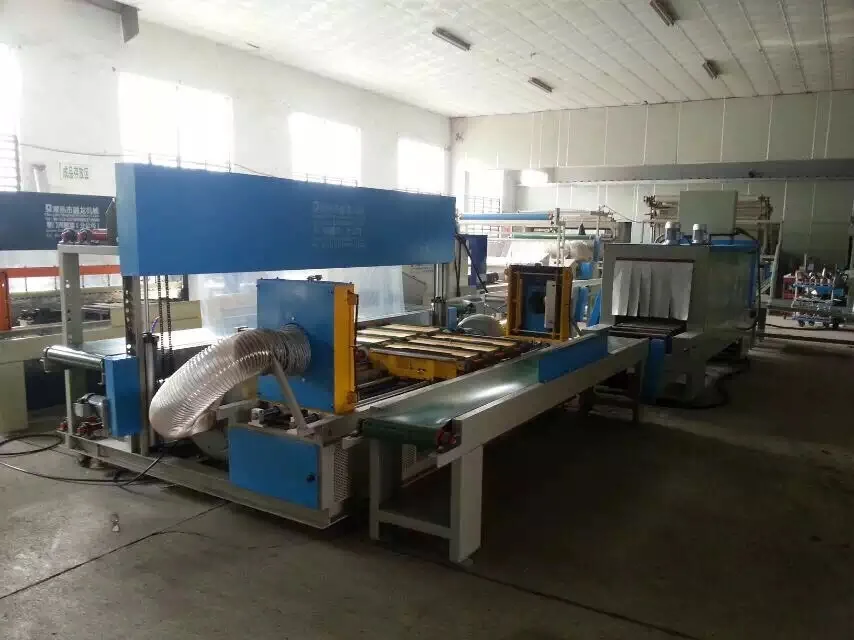

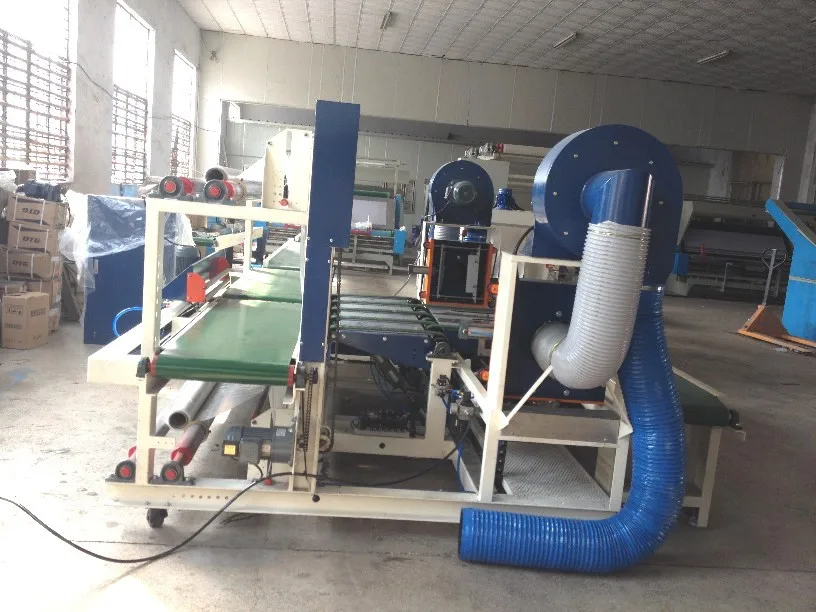

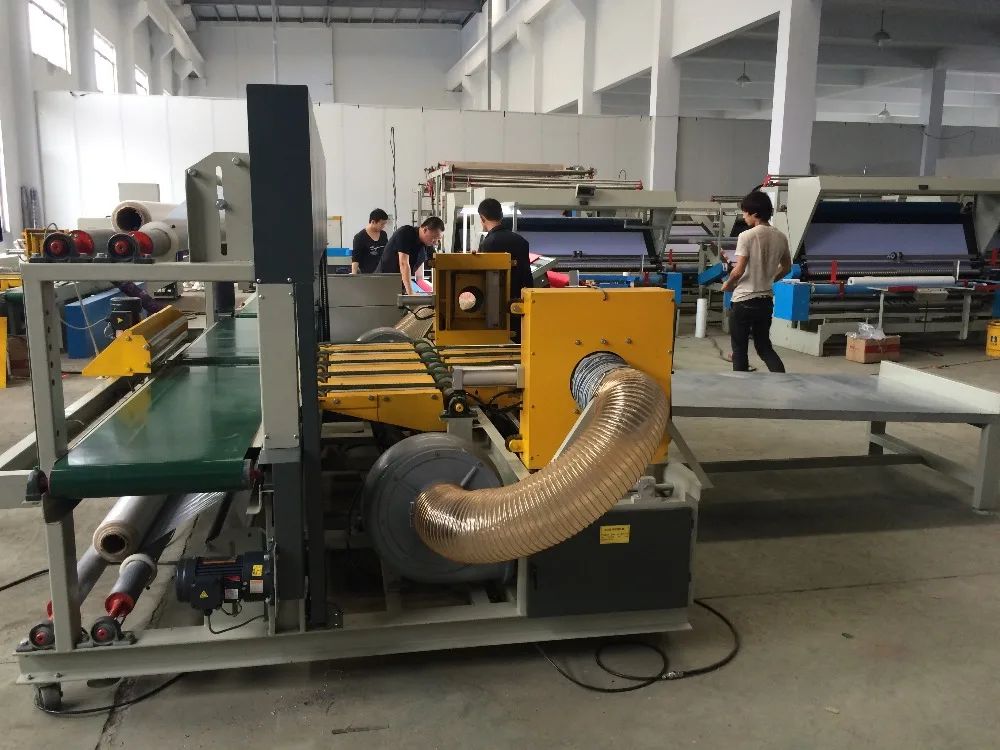

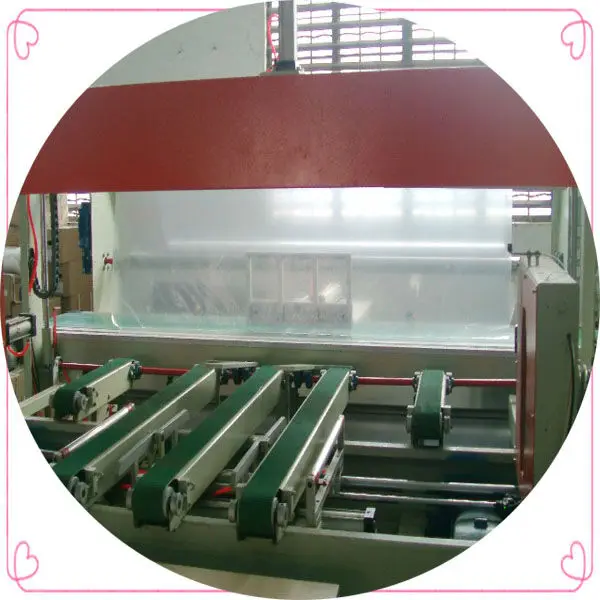

-Detailed pictures of packing fabric rolls machine:
-Transaction info of Packing Fabric Rolls Machine
| Minimum Order Quantity | 1Unit/Units |
| Payment Term |
T/T,L/C at sight,Western Union |
| Price | EXW/FOB/CIF price |
| Delivery Time | 15 days |
| Loading Port | Shanghai, China |
| Packaging Details | Wooden case,also can be customized |
| Supply Ability | Available |
