Испытательная камера для защиты от пыли IEC 60529 IP5 IP6

Product Overview

Description

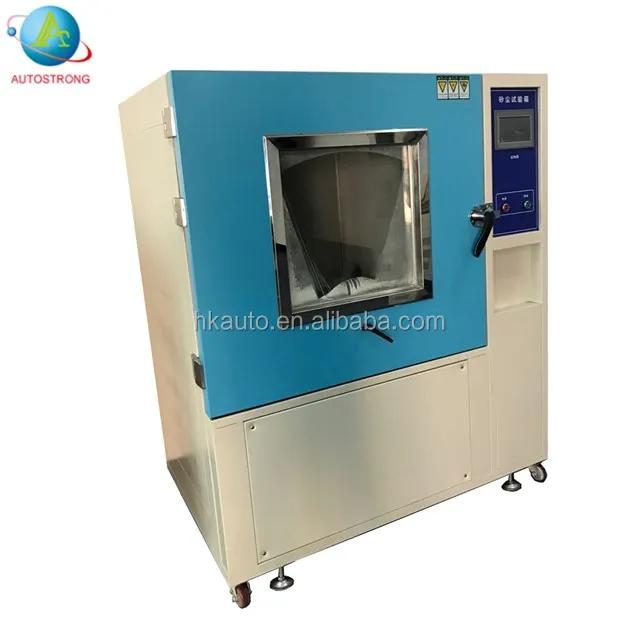

IEC 60529 IP5 IP6 Dustproof Tester Dust Test Chamber

Specifications:This dust test chamber provides testing as per various IEC-60529 standards.Combination  of various testing cycles are available in a completely mono block construction.All settings can be done in an ergonomically designed control panel with accurate and uniform dust agitation.



 Technical Specification:

Model		AUTO-SC010
Internal dimension (D*W*H) mm		1000*1000*1000 (provide other sizes)
External dimension (D*W*H) mm		1300*1300*2200 (provide other sizes)

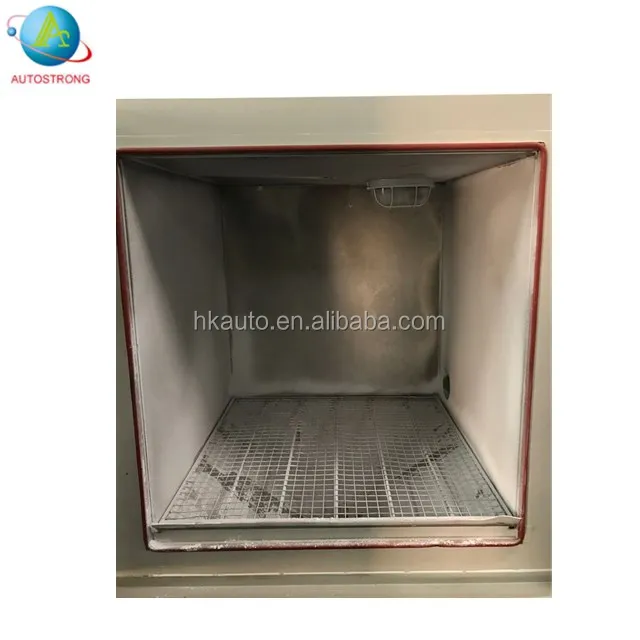

Interior material		Strong Stainless steel
Exterior material		Galvanized steel plate

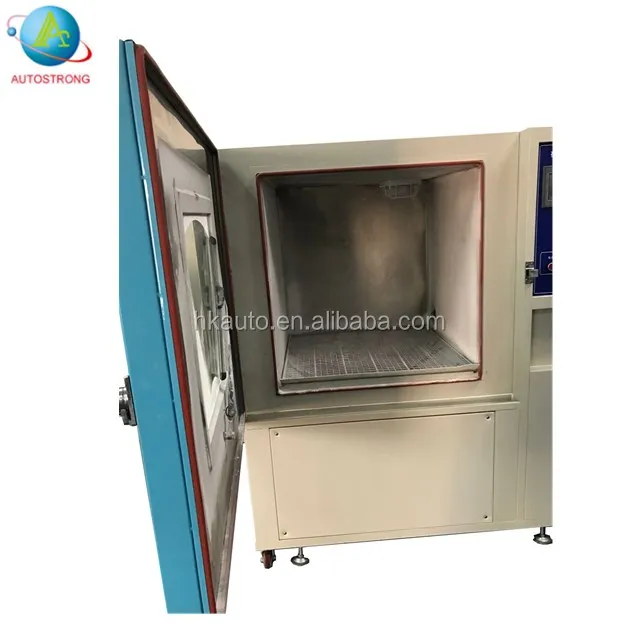

Viewing window		There is viewing window on the door, allow operator to see the specimen
Specimen power socket		Dust-proof socket
Controller		Programmable touch screen controller
Metal net dimension		Nominal line diameter is 50um, nominal separation distance between line 75um
Air blower		All plastic centrifugal fan
Vacuum system		Equipped with pressure gage, air filter, three pieces of pressure regulation,  and connection tube ,vacuum pump is optional
Concentration of dust		10kg
Testing Temp		5~25°C
Flow rate of dust (m/s)		5m/s
cement amount		2kg/m3 ~ 4kg/m3
Testing Time	continuous	1-9999(S,M,H)adjustable
	Circle	1-9999(S,M,H)adjustable
Accessories		Vacuum pump, Dustproof plug (220V), Wiper, Casters with adjusters
Power Source		AC220V 2KW

IP1 IP2 IP3 IP4 dustproof test probe







1.How to choose the most suitable products?

Our professional team will give you the best suggestion,when you need some products to make the test,just be patiently to tell us the information about your test sample,the parameters your required.Our team may help you to find the best one.



2.Can payment term be changed?

Yes,it is negotiated,please just tell us your ideal payment.We may arrange as your requirements.



3.How can I make sure for your quality?

Don't worry about that,we can also offer you the third party calibration as your requirements,all products can be sent to  Metrology Institute.And also,our factory have pass ISO9001 and CE test.Also with the the calibration of CNAS,ILAC.



4.How to choose the Transportation Term?

Usually,we may according to your needs,we may choose the most rasonable freight,then to select for you.



5.How long does the warranty takes and what are the after sales services?

Usually,our warranty is one year,but also it can accordingly lasting as your requires.In the period of warranty,we may offering the parts replacements,repairing and technique support,necessaryly,our engineer may go to the local country to service.



Please feel free to contact us for more details, or visit our new website : www.hkautostrong.com
