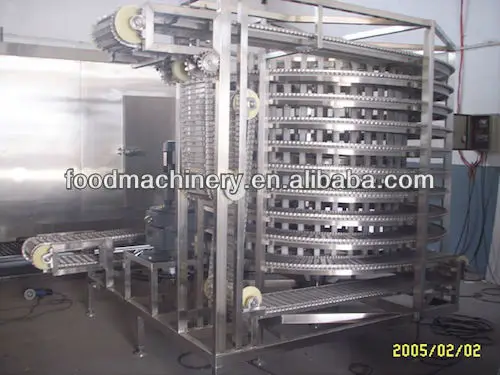

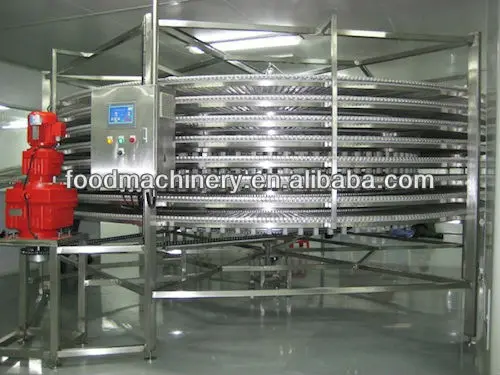

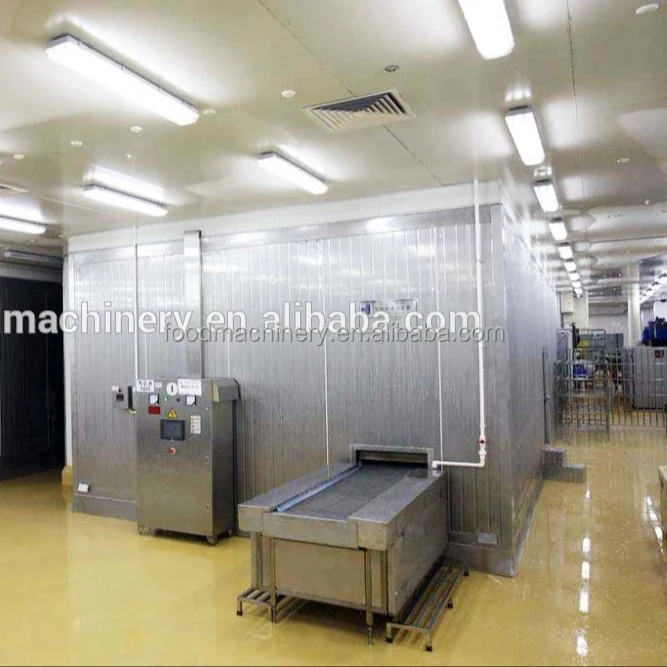

iqf spiral blast freezer

Product Overview

Description

Feature:

Structure: Compact construction, advanced design ensure smaller floor space requirements.

                 Customizable. Fit most products and processing line.

                 Complete stainless steel SUS304 structure.

                 Extremely flat conveyor ensures minimum marks on food.

                 Electrical heating device on insulation doors.

                 Whole stainless steel drip tray.

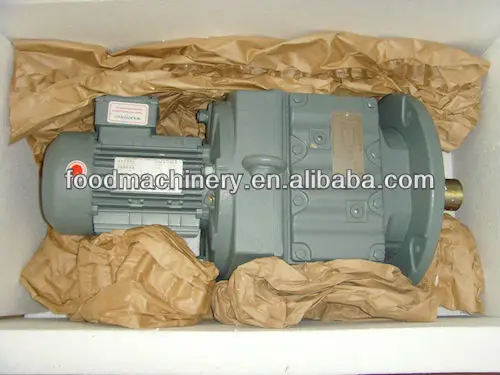

Driving: Advanced driving system with high quality motor, lower noise,long life,high efficiency.

Control: Adjustable retention time with Simens touch screen+PLC control system,  Schneider electrical parts.

Evaporator: Aluminum evaporator with larger fins and special different fins pitch, fins have hydrophilic film, which ensure less defrosting time and easier to be cleaned.

Freeze efficiently and evenly with good food quality.

Wide processing capacity:300kg/h~6000kg/h

CE certificate



Machinery Application:

IQF spiral blast freezer  is suitable for most food processing line especially for continuous type. It’s widely used in freezing meat fillet/nugget  vegetable, fruit, pasta, ice cream, aquatic food, prepared food and so on.



Technical Parameter for Single Spiral Quick Freezer/ iqf spiral blast freezer

Single Model	Output (Min) (kg/h )	Time Range (min)	Cold Consumption (+35/-42°C)	Installed Power (KW)	Cabinet Dimension (mm)			Weight (Ton)
					L	W	H
SF300-I	300	20~120	47 KW	8	46  00	2500	3000	6
SF500-I	500	20~120	79 KW	15	5500	3500	3000	9
SF1000-I	1000	20~120	165 KW	26	6500	4200	3200	13
SF2000-I	2000	20~120	320 KW	48	7500	5000	4000	19
SF3000-I	3000	20~120	480 KW	68	8800	5800	4600	27
Remark: Above parameter is only for your information. In fact output range is adjustable from 300~3000kg/hour(single spiral IQF),customized according to your requirement totally.



Infeed and outfeed direction is adjustable:
