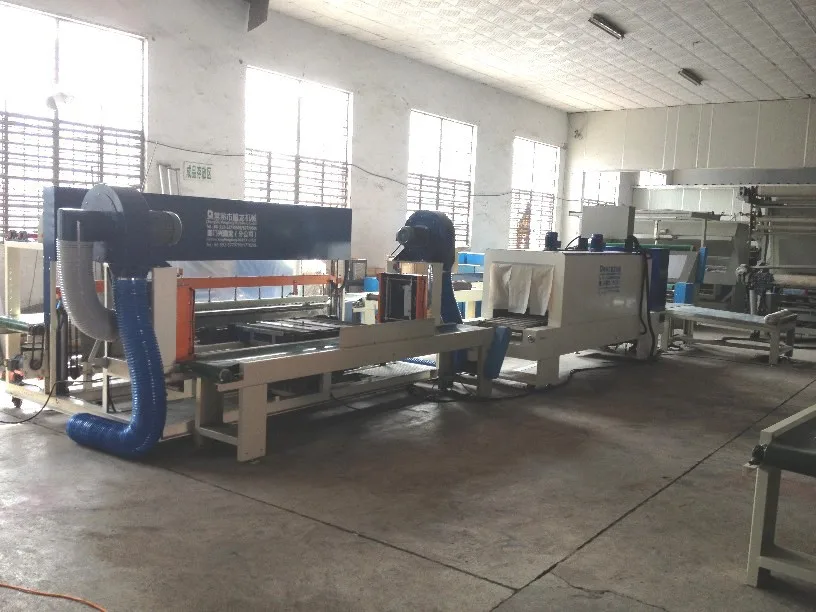

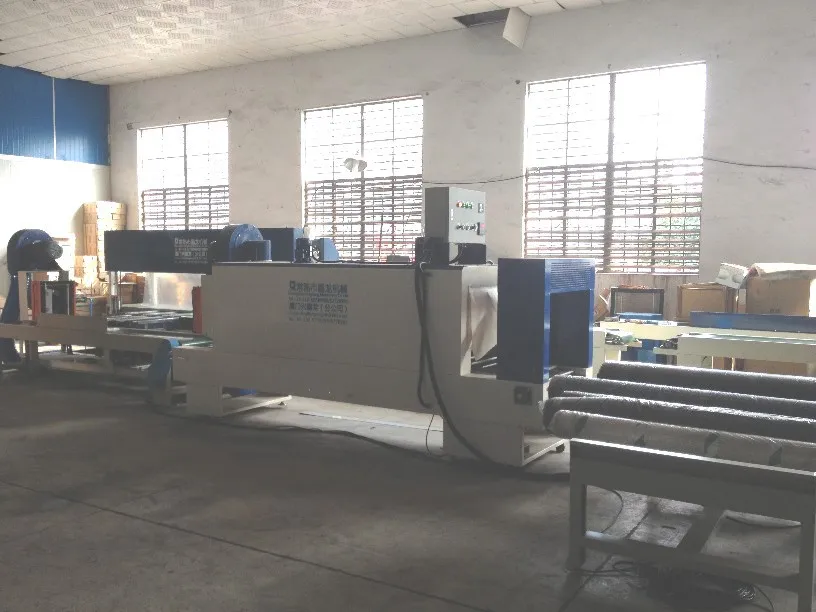

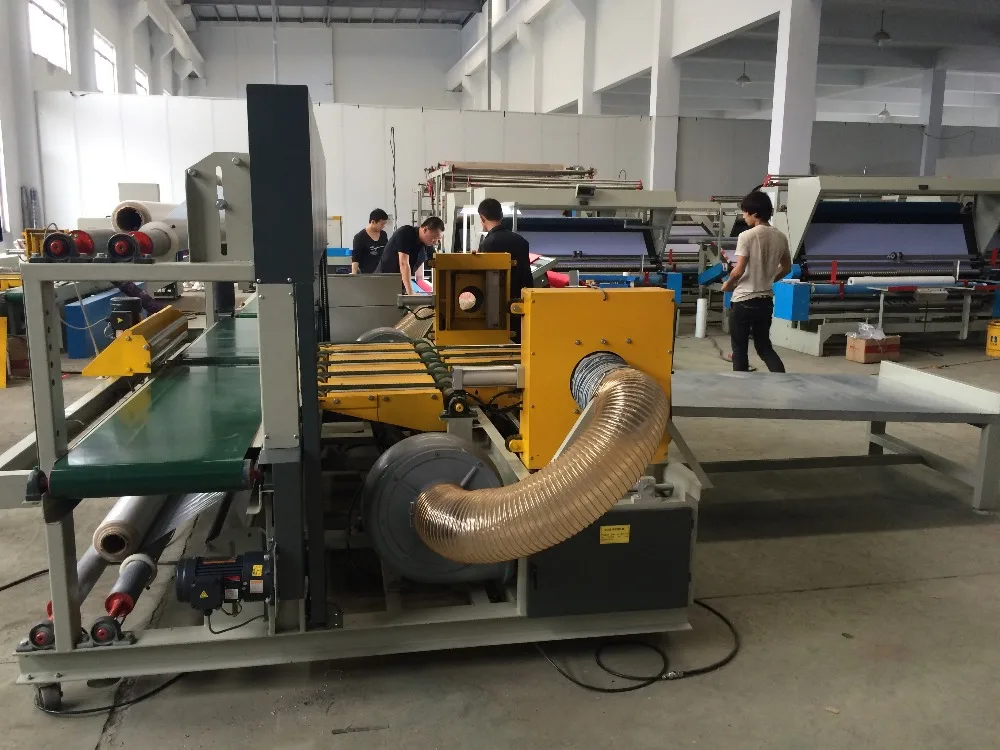

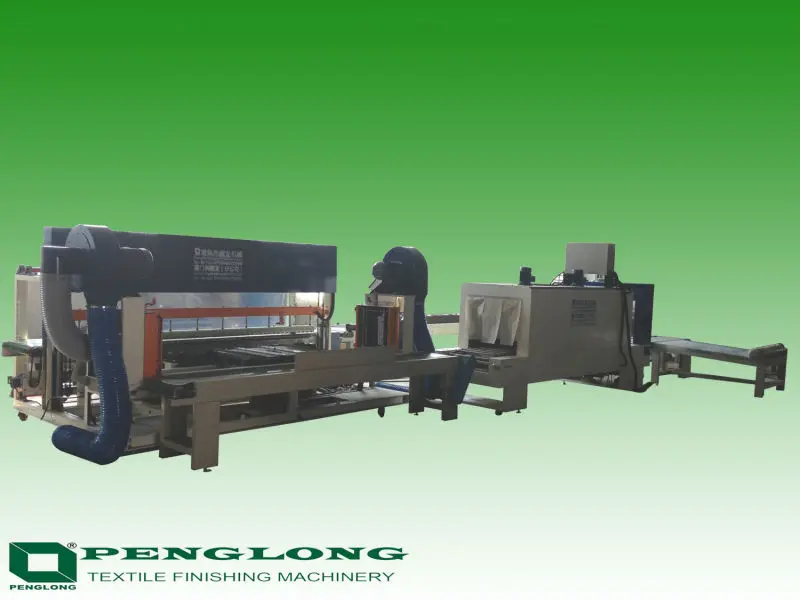

Automatic Heat Shrink wrapper Machine to Pack Fabric Rolls By P.E. Film

Product Overview

Description

Automatic Heat Shrink wrapper Machine,fabric roll packing machine, packaging machine,wrapping machine,shrink packing machine.



-Usage:



Automatic Heat Shrink wrapper Machine is designed to pack fabric rolls by P.E. film automatically.



-Characteristics of Automatic Heat Shrink wrapper Machine:

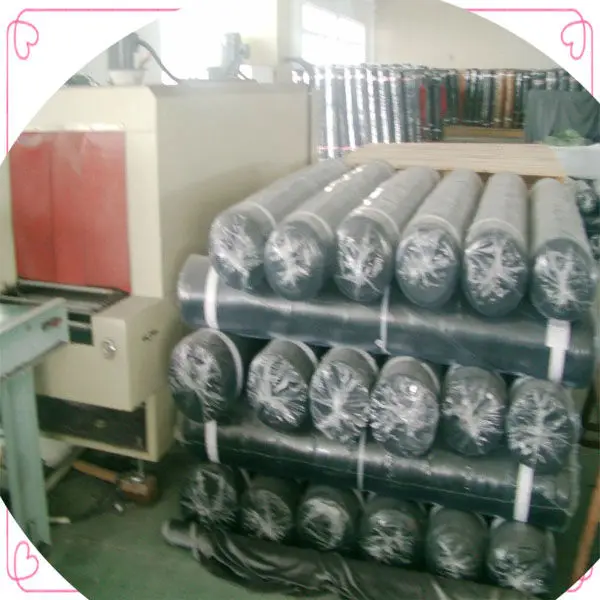

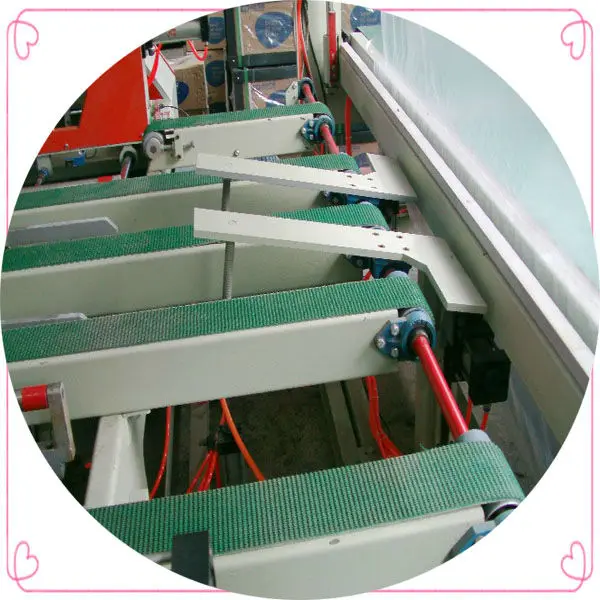

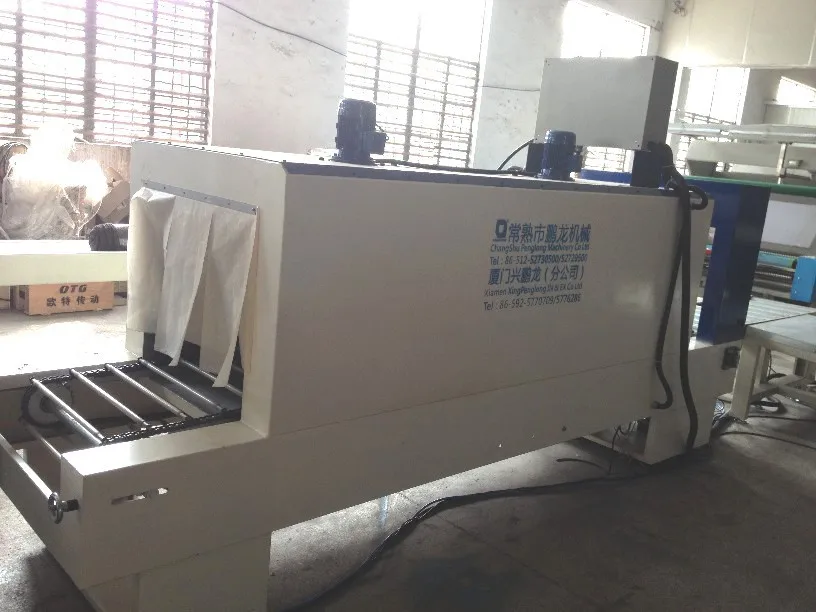

The fabric rolls loaded on the infeed conveyor will be wrapped in a 3-side sealed package, and then the package will be trasferred into a shrink tunnel and rapidly heat shrunk.Finally the package comes outs in a tight but soft  shape.Package without shrinkage of PE film is also available in this type fabric roll packing machine.



-Technical Parameters of Automatic Heat Shrink wrapper Machine:



1	Packing speed	5~6rolls/min
2	Valid Fabric Diameter	100mm~500mm,Valid packing length 900mm~2200mm
3	Seal Type	Three sides sealing(thermostatic system)
4	Length of packing shaft	Max2800mm
5	Driver Type	Pneumatic Control
6	Guide Shaft	Grinding Axis and Ball-bearing
7	Side Sealing way	Right and left,edge sensor control
8	Edge sealing way	Right and left packing,centering and fastening
9	Material of Packing Shaft	Alloy Copper
10	Shaft Protection	Edge sensor tracking and warning
11	Thickness of PE Film	0.04~0.10mm
12	Length of PE Film	2000~2750mm
13	Pneumatic Cylinder	Magnetic Induction
14	Pneumatic Cylinder Control	Approach Switch Made in Japan and Korea
15	Power Consumption	13Kw,About 8Kw avaliable
16	Air Pressure Apply	Apply 1800/liter/min,Pressure 6kg/cm,50/lter/min
17	Edge sealing Vacuum Wast Aspirating Equipment	Air Blower made in Taiwan 5HP*2sets
18	Electric Operate	Equipped with PLC and touch pane,Autodiagnosis failure indication

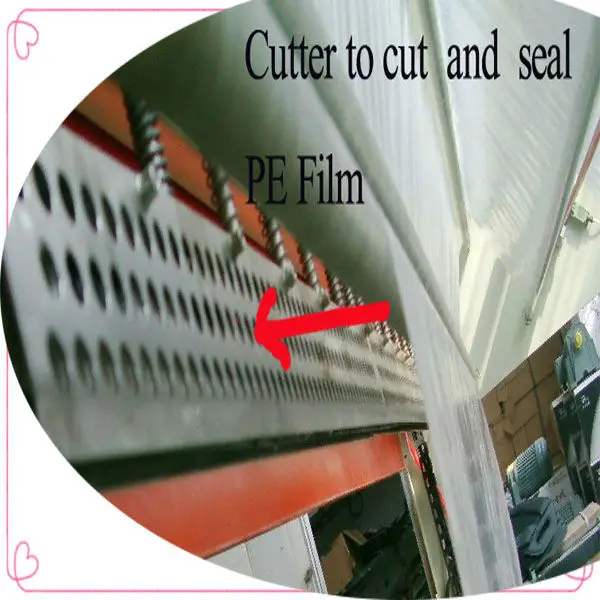

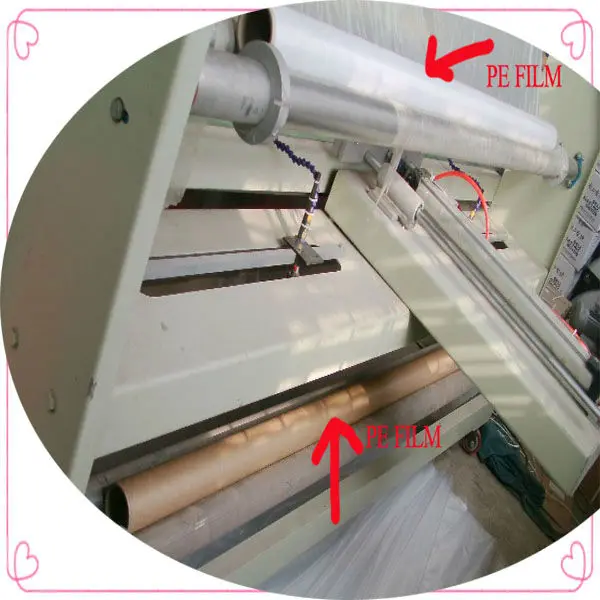

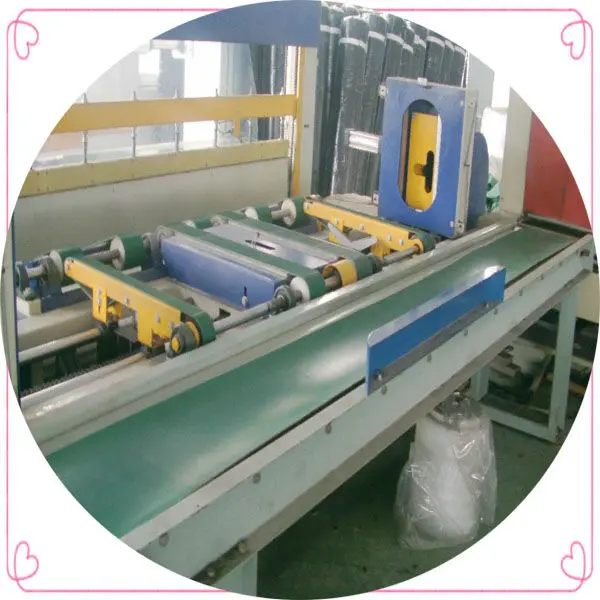

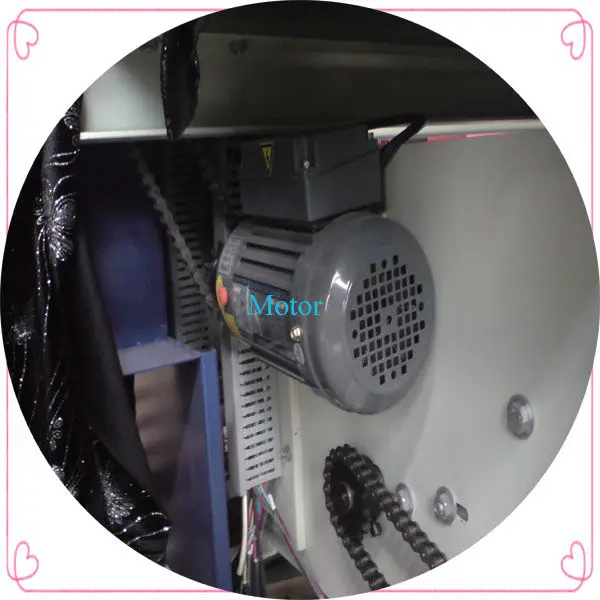

-Detailed pictures of automatic heat shrink wrapper machine:

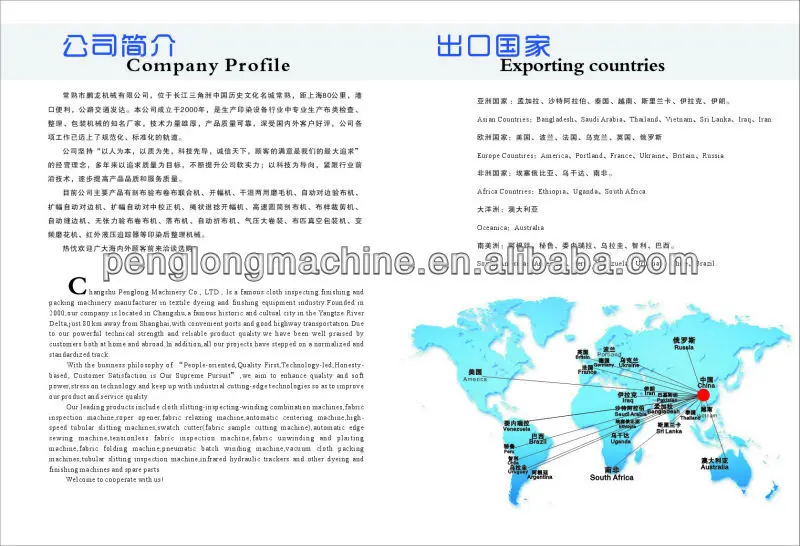

-About us



-Transaction info of automatic heat shrink wrapper machine



Minimum Order Quantity	1Unit/Units
Payment Term	T/T,L/C at sight,Western Union
Price	EXW/FOB/CIF price
Delivery Time	15 days
Loading Port	Shanghai, China
Packaging Details	Wooden case,also can be customized
Supply Ability	20sets per months





Welcome to inquiry automatic heat shrink wrapper machine to pack fabric rolls by P.E. film.



You are warmly welcome to visit our factory.
