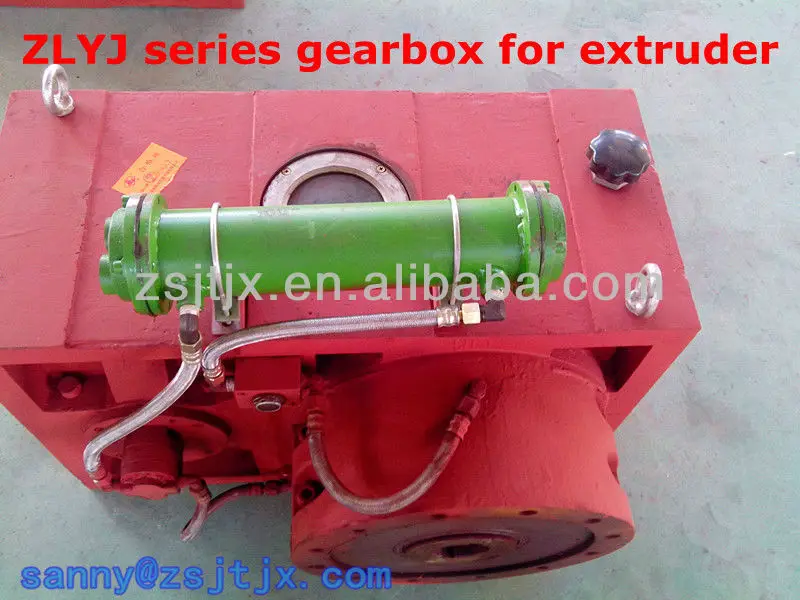

ZLYJ series gear reducer for extruder / ZLYJ series extruder special hardened gearbox plastic & rubber machinery parts

Product Overview

Description

We can produce screw and barrel according to your design,

Also we can design screw and barrel according to your requirements.

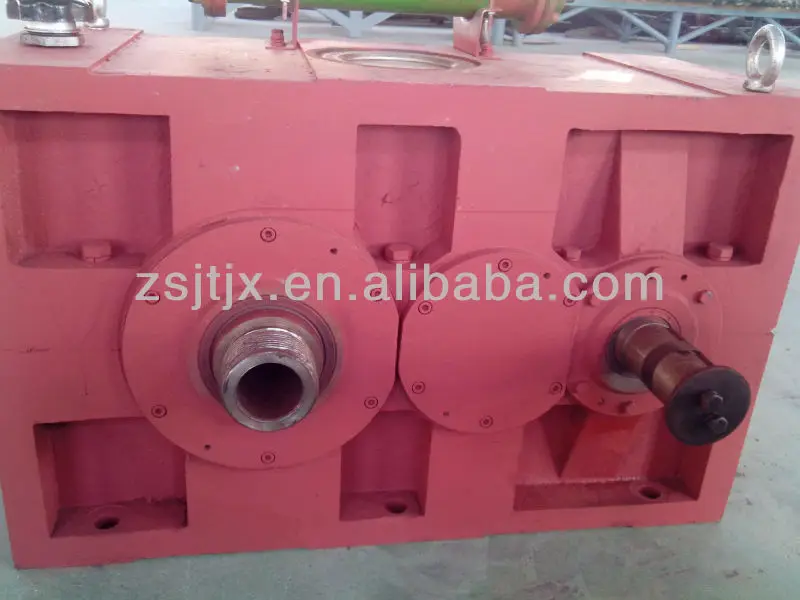

Gearbox







Range of application



1. The rotate speed of High speed shaft no higher than 1500 r/min.

2. Gear rotating circular rate no more than 20 m/s.

3. Operating ambient temperature is -40 ~ 45 °C, if it is lower than 0 °C ,

   the lubricating oil should be preheat above 0 °C.

  This kind of gearbox can be used for both positive and negative direction running, but some of  the model have unilateral pump, and default direction is : in the face of the output shaft, output shaft is clockwise rotation.

 If change, please explain when ordering.



Model fo gearbox

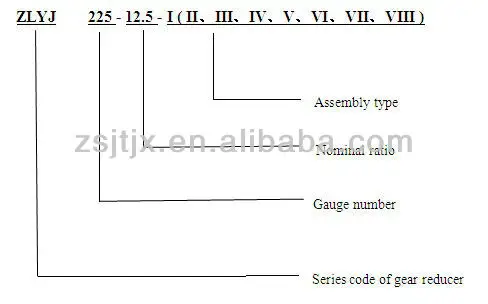

In the gearbox model, including series code, gauge number, nominal ratio, assembly type.



Mark sample:









Reducer allowable axial thrust









 we can also match oil pump and outside cold for you.

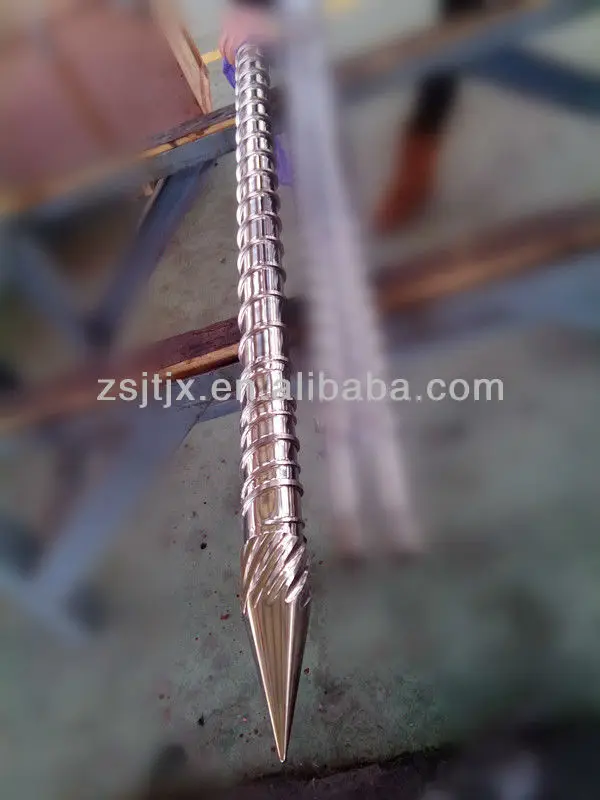

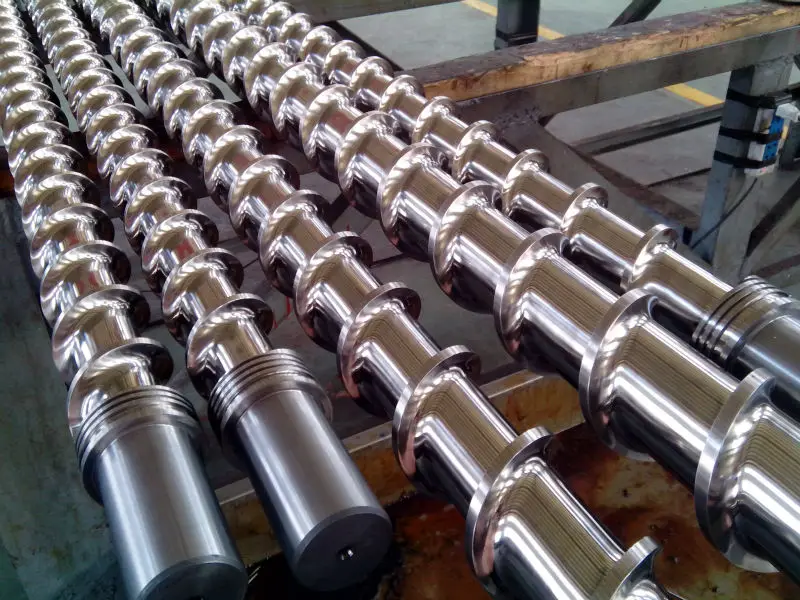

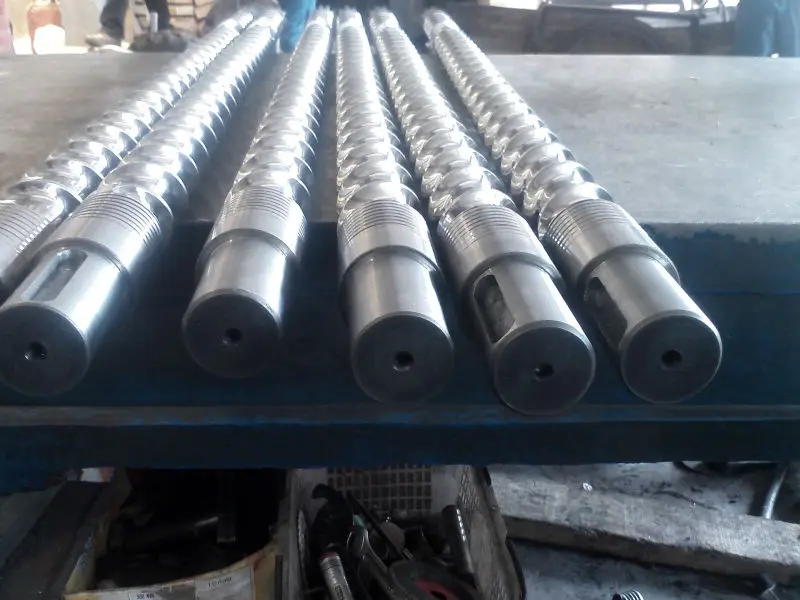

Screw and barrel









Our advantages:







The excellent complete equipments







Professional team of engineers







The experienced workers







Wearable and durable screw and barrel







Over 20 years experience on making screw and barrel







 Located in the biggest screw town of China, which has convenient traffic.











Process











confirm the design--arrange the order--Laying-off the material--drilling--







rough turning--rough grinding--hardening & tempering--finish turning outer







diameter--rough milling threand--alignment (removal of material deformation)--







finished milling thread--polishing--rough grinding outer diameter--milling the end







spline--nitriding treatment--fine grinding--polishing--packaging--shipping















Technical specifications







Technical Index







1.Hardness after hardening and tempering: HB280-320



2.Nitrided Hardness: HV850-1000



3.Nitrided case depth: 0.50-0.80mm



4.Nitrided brittleness: less than grade 2



5.Surface roughness: Ra 0.4



6.Screw straightness: 0.015 mm



7.Surface chromium-plating's hardness after nitriding: ≥900HV



8.Chromium-plating depth: 0.025~0.10 mm



9.Alloy Hardness: HRC50-65



10.Alloy depth: 0.8~2.0 mm







Materials & Processes







1.Quality 38CrMoAlA (JIS SACM645)



2.Quality Duplex Stainless Steels



3.42 CrMo (JIS SCM440)



4.40Cr



5.GH113



6.SKD11



7.SKD61 (H13)



8.Gr12MoV



9.Quality Powder Metallurgy Raw Materials



10.Cold/Thermal Spray Hard Metal Process



11.Advanced nitriding Process



12.Corrosion & Abrasion Resistance Bimetal Spraying Process











products application



















packages















workshop























company introduce







Zhejiang Jinteng Mchinery Manufacture Co.,Ltd through more than 20 years development,has already become the biggest specialized in manufacturing the screws and cylinders of plastics machine manufacturer.







The screw and barrel made by our company is widely suitable for domestically produced, imported 30-80000gram casting machine,Diameter 15-300mm single screw extrution machine ,Diameter 45/90-92/188mm conical twin screw extruder,Diameter 45/2~150/2mm parallel twin screw extruder machine and each kind of Products through the quenched and tempered,qualitative,nitriding,fine grinding or spray welding alloy,polishing process technology.







In strict accordance with the ISO9001-2008 international quality system,to ensure the quality of product reach the international advanced level.











our other products,different kinds of screw and barrel







♦ conical twin screw and barrel
♦ parallel twin screw and barrel
♦ single screw and barrel for Extruder
♦ Injection machinery screw and barrel
♦ rubber screw and barrel
♦ bimetallic alloy screw and barrel

If you have any requirments in screw and barrel, feel free to contact us.
