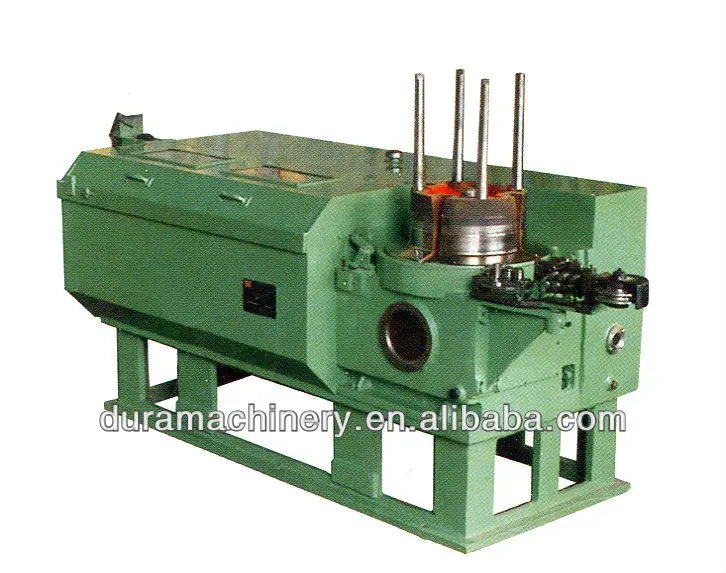

LT series wet type wire drawing machine, water tank type

Product Overview

Description

 LT Series Wet Type Wire Drawing Machine



Directions(application)

The water-tank series wire-drawing machine is of wet type to draw low-, mid-, and high-carbon steel wires, as well as non-ferrous materials. With swift speed, high quality and good reputation, it's the most ideal equipment for steel wire and rope, galvanized wire,and electric wire manufacturers.



Technical Specifications



Model	Unit	LT3-15/350
Capstan diameter	mm	350
Drawing sequence No.	--	15
Inlet wire diameter	mm	2.2-2.8
Outlet wire diameter	mm	0.6-0.8
Total compressibility	%	91
Average partial compressibility	%	15
Max. speed of drawing	m/s	7
Motor power	kw	37
Overall dimensions(L×W×H)	mm	2600 x 1300 x 1350
Weight	kg	2650
