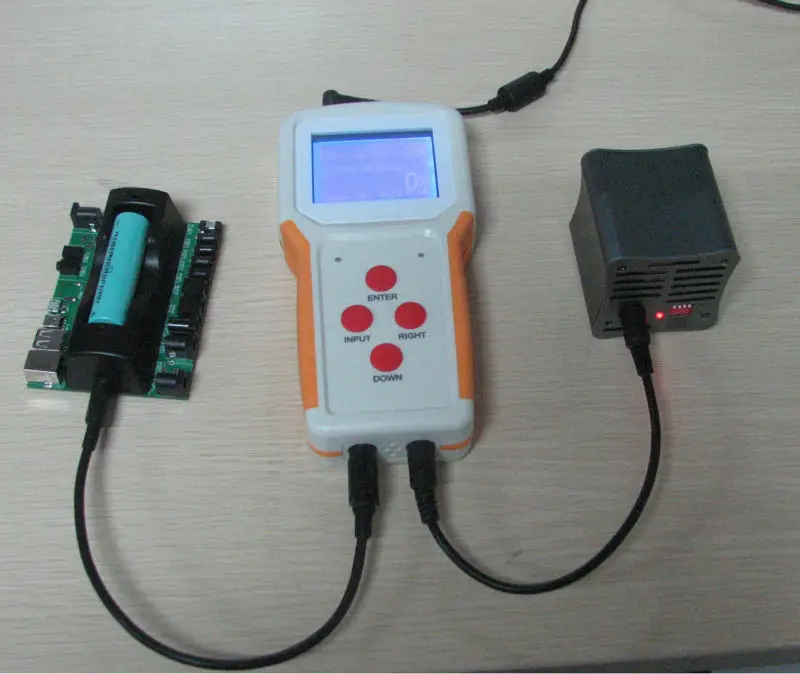

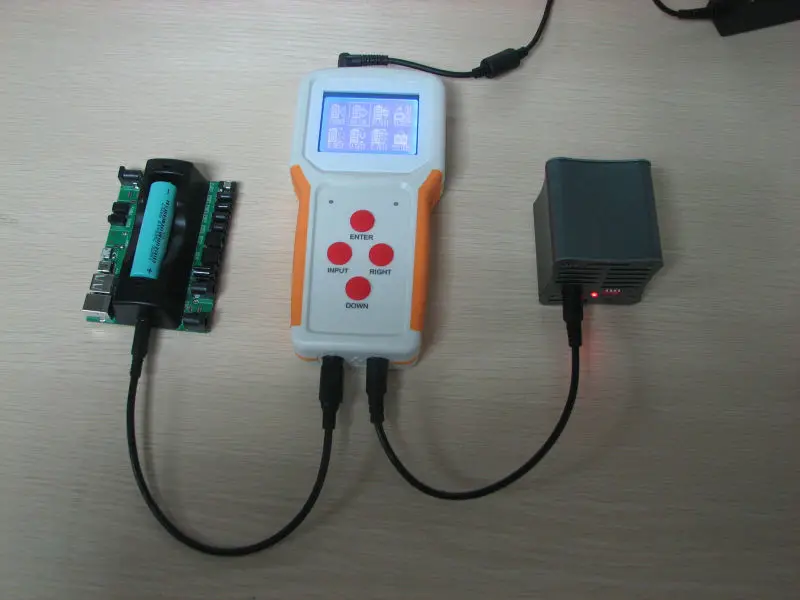

18650 lion battery cell capacity tester RFNT4

• one independent channels: can be used singly

• Battery recognition function: read battery information from battery cell

• With the repair function of zero voltage

• Intelligent protection against over-current, over-voltage, over-charge, over-heat and short circuit.

• Active heat-dissipating

• Suitable for over 95% of laptops in market with the separate connector

Basic Parameters:

• Dimensions: 210 x 99 x 35mm

• Unit weight: 333 g

• Adapter

   Input: AC 100~240V

  Output: DC 19V 4.74A

• Display way: segment  LCD with white backlight +  LED in red and green

• Charge mode: constant current / constant voltage

• Charge current: Maximum charging current of each channel: 2.5A

 • Standby power consumption: ≤1W

• Working temperature: 0°C~40°C/20%~90% RH(Non Condensing)

• Storage temperature: -20°C~65°C/10%~95% RH(Non Condensing)

• Maximum charge time: 8 hours

• A set of product includes: A detector, an adapter, 13 connectors, 10 wires and 10 jumpers
